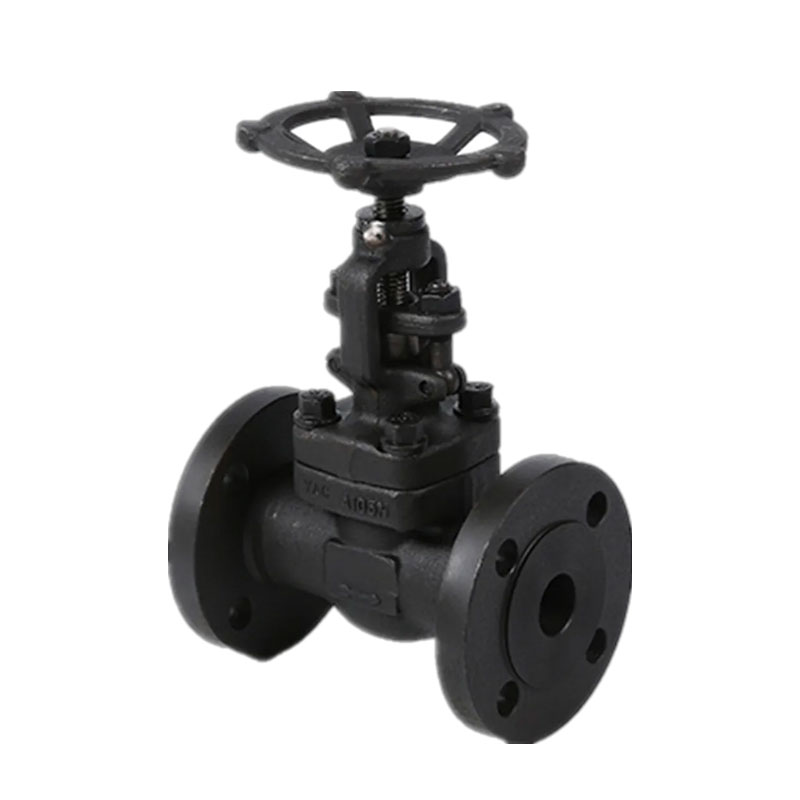

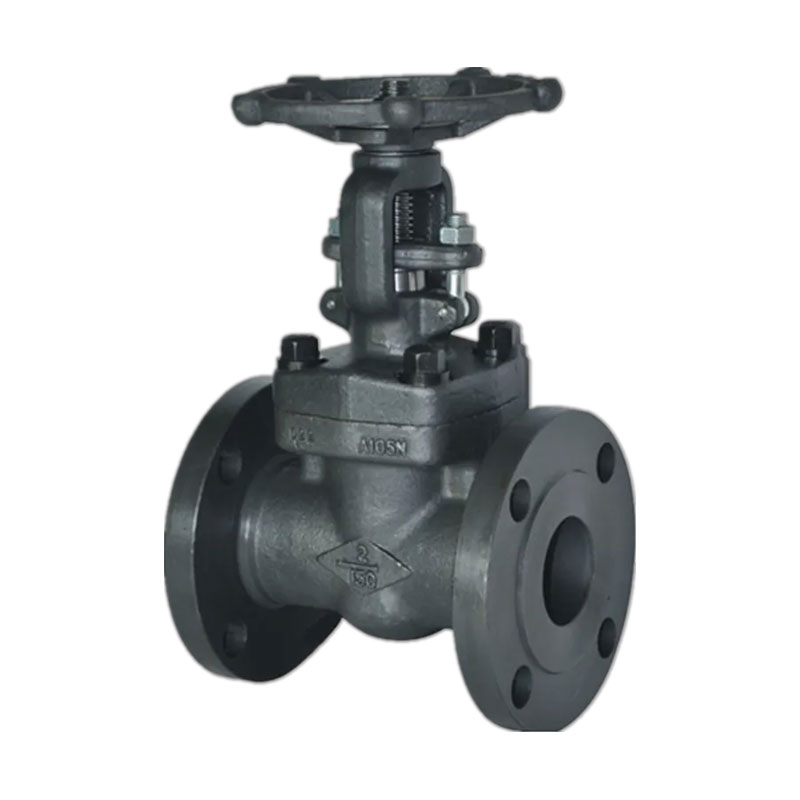

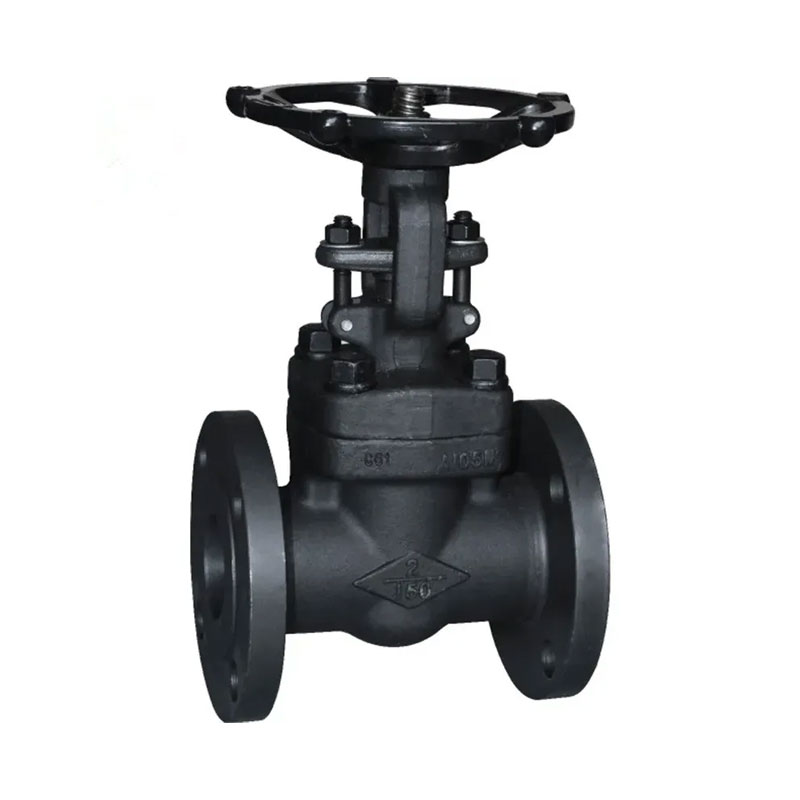

The Integrated Forged Steel Flange End Gate Valve 150LB independently manufactured by Qiaopai Valve has improved the strength and sealing of the valve body through the overall forging process, and can resist internal pressure impact and temperature difference stress.
Meanwhile, the compact design and full bore structure ensure low resistance and high efficiency flow, making it an ideal valve for enterprises looking to purchase long-life and high-performance pipeline control systems.
Size: 1/2''-2''(DN15~DN50)
Pressure Rating: 150LB-600LB/PN16~PN100/10K~60K)
Material: A105,FL2,F11,F22,F5,F304,F316,F51/F53,F321,C3,C5,C95800
Suitable Temperature: -29ºC~429ºC.
Suitable Medium: Water, Steam, Oil and natural gas etc.
Design and manufacture conformto:API602,BS5352,ANSI B16.34
Socket welded dimension conform to ANSI B16.11,JB/T1751
Screw ends dimension conform to ANSI B1.20.1,JB/T7306
Butt-welded conform to ANSI B16.25,JB/T12224
Flange ends conform to ANSI B16.5,JB79
Test and inspection conform to:API598,GB/T13927,JB/T9092
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | ||
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | |||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) | |
| 2 | Seat Ring | A276 420 | A276 304 | A276 304(L) | A276 316(L) | |
| 3 | Wedge | A276 410 & 430 | A182 F304 | A182 F304(L) | A182 F316(L) | |
| 4 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) | |
| 5 | Gasket | Corrugated SS + graphite | SS + PTFE | |||
| 6 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) | |
| 7 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M | |
| 8 | Pin | A276 420 | A276 304 | |||
| 9 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | ||
| 10 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M | |
| 11 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) | |
| 12 | Gland Nut | A193 2H | A194 4 | A194 8 | A194 8M | |
| 13 | Yoke Nut | A276 410 | ||||
| 14 | H.W. Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M | |
| 15 | Nameplate | SS | ||||
| 16 | Hand wheel | A197 | ||||
| 17 | Bearing Gasket | A473 431 | ||||
| 18 | Stem Packing | Flexible Graphite | PTFE | |||
| Suitable Medium | W.O.G. etc | W.O.G. etc | HNO3CH3OOH etc | |||
| Suitable Temperature | -29 425 | -29 550 | -29 180 | |||
Note: Other materials are available upon request.
Dimensions (mm) and Weights (Kg)
Flanged End Gate Valve 150Lb~600Lb
| NPS | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | ||
| L(RF)L1(BW) | 150 | 108 | 117 | 127 | 140 | 165 | 203 | |
| 300 | 140 | 152 | 165 | 178 | 190 | 216 | ||
| 600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
| H(OPEN) | 150, 300 | 158 | 169 | 197 | 236 | 246 | 283 | |
| 600 | 169 | 197 | 236 | 246 | 283 | 320 | ||
| W | 100 | 100 | 125 | 160 | 160 | 180 | ||
| Weights | 150 | RF | 4.5 | 5.2 | 8.2 | 11.5 | 12.5 | 20.3 |
| BW | 2.8 | 3.3 | 5.4 | 7.1 | 8.2 | 12.5 | ||
| 300 | RF | 4.8 | 6.2 | 9.3 | 14 | 15.5 | 23.4 | |
| BW | 3.5 | 4.4 | 6.8 | 8.1 | 9.2 | 15.4 | ||
| 600 | RF | 5.9 | 7.4 | 10.4 | 16.2 | 17.5 | 28.3 | |
| BW | 4.5 | 5.1 | 8.2 | 10.5 | 12.4 | 20.1 | ||
The valve cover of the Integrated Forged steel flange end gate valve 150LB is divided into three types: bolted valve cover, welded valve cover, and pressure self tightening valve cover.
The main feature of this valve is a rising stem with a bracket, and the overall valve body is a flange. Flat bottomed valve seat design reduces fluid pressure and ensures unobstructed flow. Widely applicable as a regulating and intercepting device on fluid pipelines such as tap water, sewage, construction, food, electricity, medicine, metallurgy, textile, energy systems, etc.
