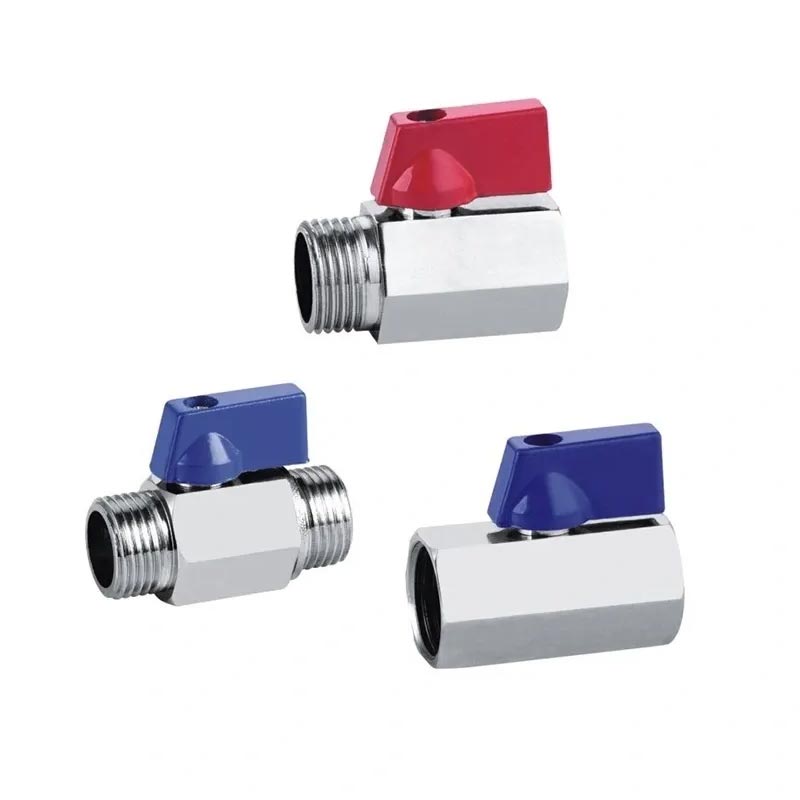

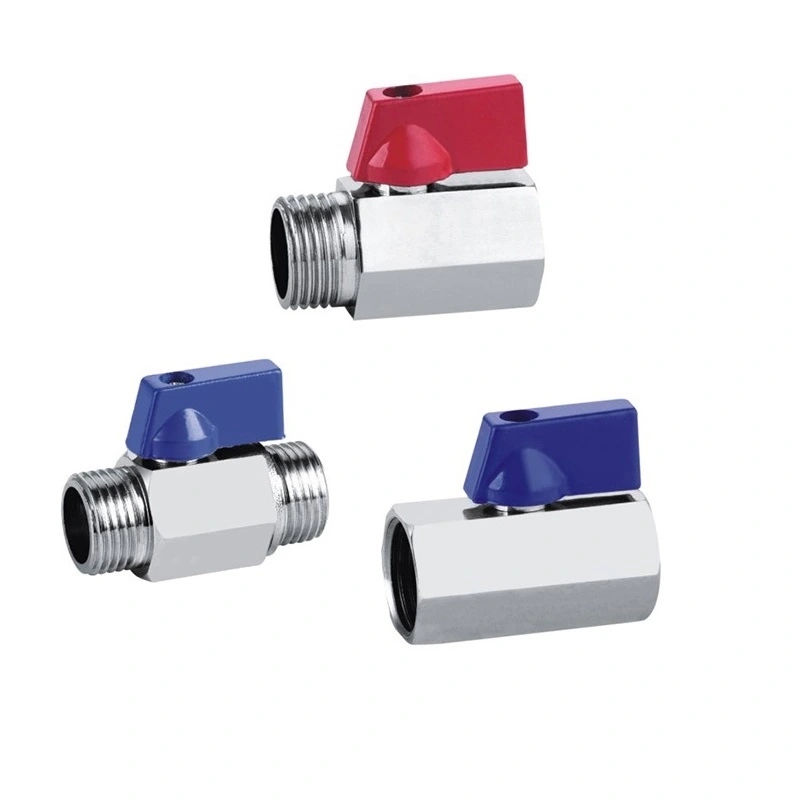

JOEPAI durable Stainless Steel Mini Ball Valve, combining high sealing performance and ultra compact design, it is an ideal cost-effective choice for various small fluid control systems, suitable for various working conditions such as water purification, gas, instrument equipment, etc.

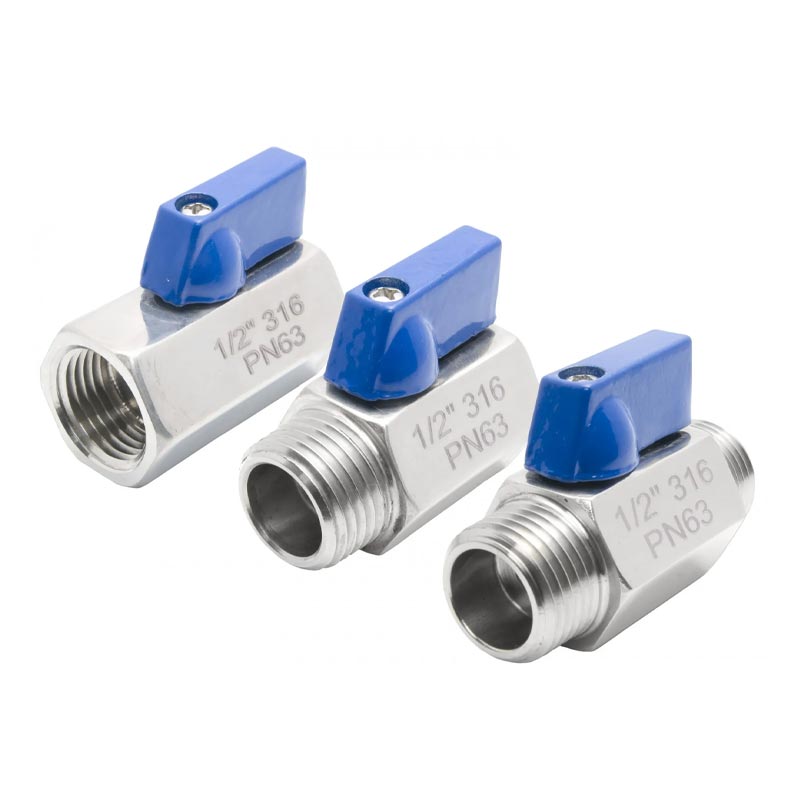

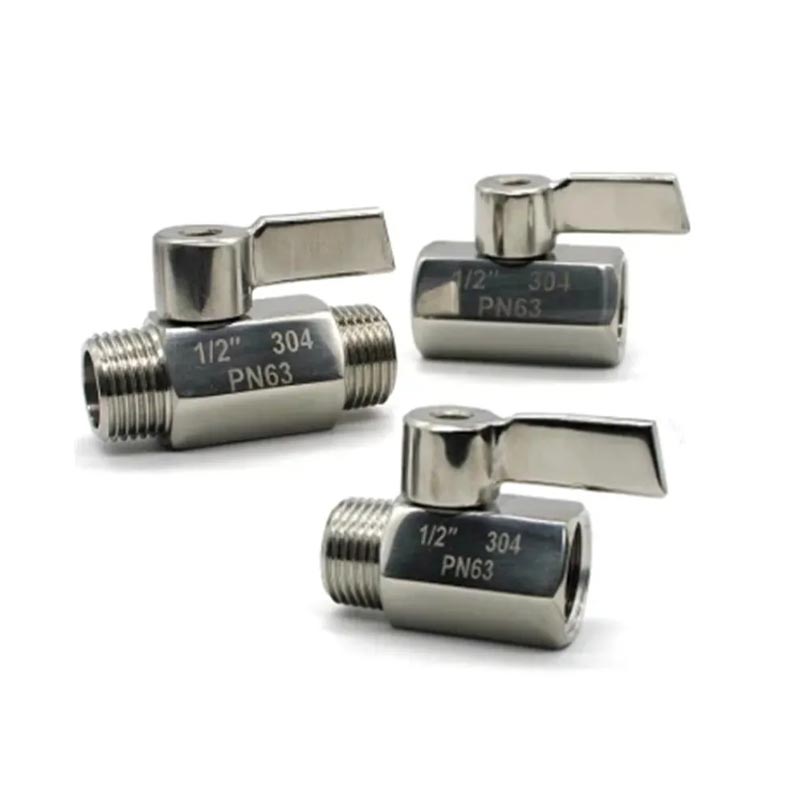

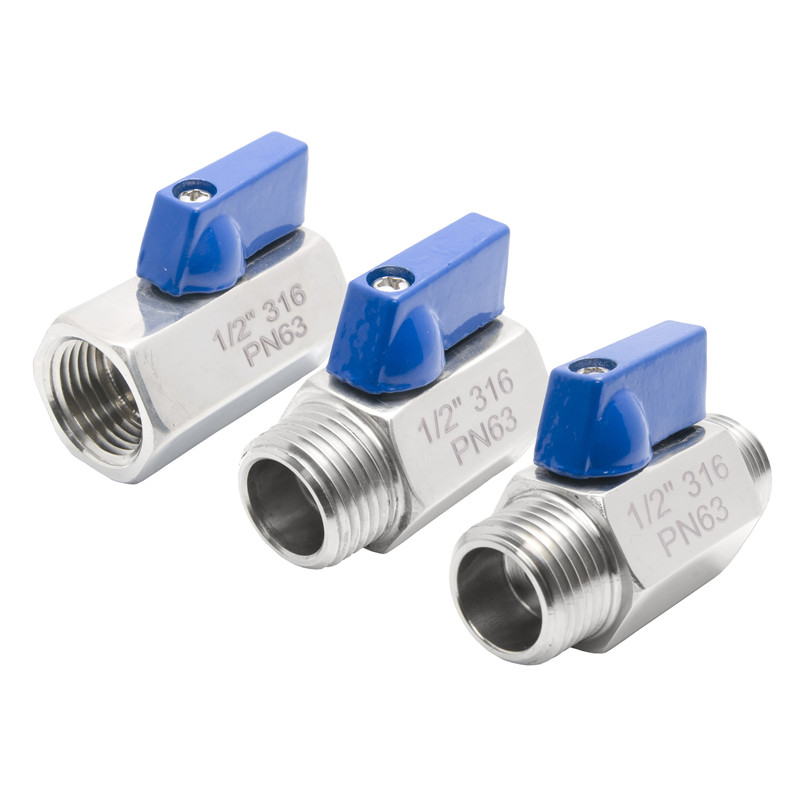

Stainless Steel Mini Ball Valves have various interfaces including internal and external threads, internal threads, and external threads. They are made of stainless steel 304 and 316 materials, with a sanitary design and mirror finish technology, meeting the requirements of clean fluids.
This stainless steel mini ball valve has a compact structure, small size, good sealing performance, flexible opening and closing, large flow rate, exquisite appearance, and superior quality.
Reduce flow path
Design of valve stem anti extrusion device
There are pressure relief holes on the steel ball groove
Multiple threaded ends to choose from
Stainless Steel Mini Ball Valve suitable medium: water; Steam; Oil products; Various highly corrosive chemical media; Weak acid-base medium
| Working Pressure | 1.6Mpa |
| Tested Pressure | 1.0Mpa By Gas |
| Working Medium | Water, gas |
| Working Temperature | -20° C≤ T≤ 120° |
| ITEM | Designation | Material |
| 1 | Handle | Aluminum |
| 2 | Body | Brass, CW617N |
| 3 | Ball | Brass, Hp59-1, chromed plated |
| 4 | Seat/Sealing | PFTE |
| 5 | O-ring | NBR |
| 6 | Bonnet | Brass |
| 7 | Nut | Brass |
| DN | G | D | L | W | H |
| 6 | 1/8" | 7 | 40 | 22.8 | 26.5 |
| 8 | 1/4" | 7 | 40 | 22.8 | 26.5 |
| 10 | 3/8" | 7 | 40 | 22.8 | 26.5 |
| 15 | 1/2" | 9.2 | 46 | 22.8 | 28.3 |
| 20 | 3/4" | 12.5 | 54 | 22.8 | 31.5 |
| 25 | 1" | 15 | 65 | 22.8 | 34 |
