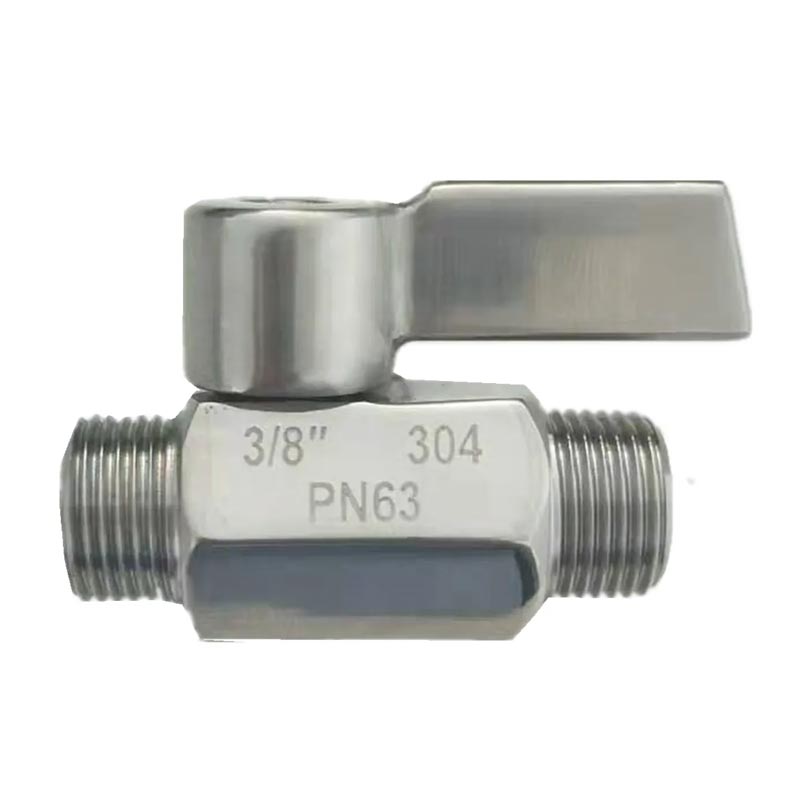

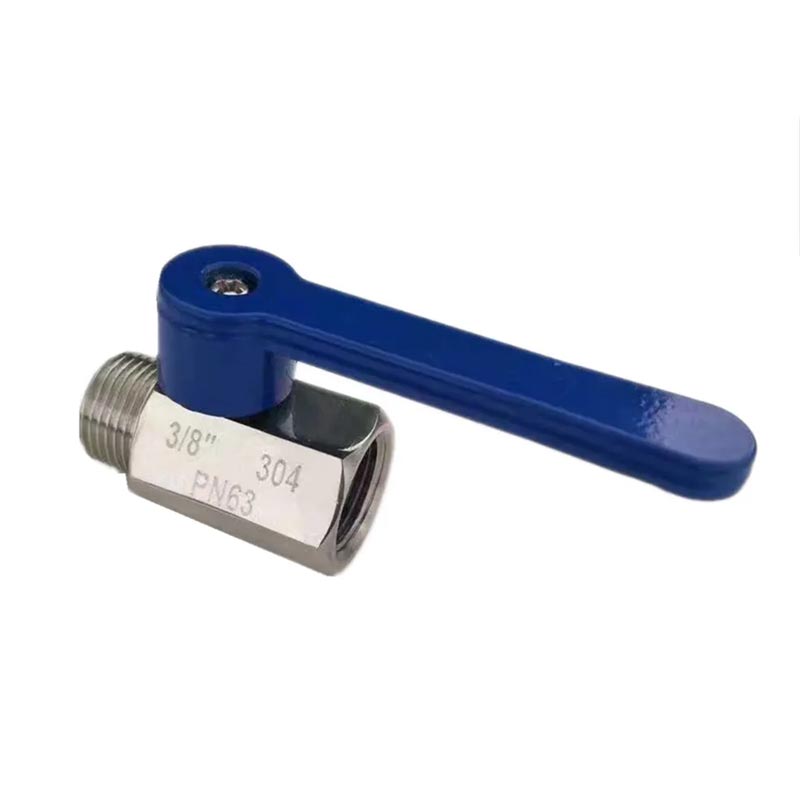

JOEPAI high quality Long Handle Stainless Steel Threaded Mini Ball Valve, combine the two opposing requirements of "easy handling" and "precision and compactness". Specially designed for high-frequency operating environments of microsystems, meeting the higher demand for user-friendly use in industrial and civilian systems.
Size:1/8"-1"(DN6~DN25)
Working Pressure: 1000WOG(PN63)
Blow-Out Proof Stem/Reduced port
Operator:Long Handle Lever
Investment Casting
Material Standard:
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
Seat material:PTFE RPTFE
Finish: Surface Polishing
Working Temperature:-20C-232℃
Suitable:Medium:Water,Oil,Gas
Design Standard:ASME B16.34
Threaded Ends:ANSIB.20.1(NPT):BS21;DIN2999/259;IS0228/1;JISB03;IS07/1
Inspection and testing:API598/MSS SP-110/EN 12266
Various Thread Standards Available:BSP(P),BSPT,NPT
With the advancement of technology and the development of industry, the
application fields of mini ball valves will be further expanded, and
technology will continue to innovate.
1. Intelligence: Combining advanced technologies such as the Internet of
Things and big data to achieve remote monitoring and intelligent control of
mini ball valves, improving the automation level and operational efficiency
of the system.
2. Integration: Integrating mini ball valves with other fluid control
components, sensors, etc. to form a multifunctional and integrated fluid
control system that meets more complex application requirements.
3. Environmental protection and energy conservation: Adopting new
environmentally friendly materials, optimizing structural design, reducing
energy consumption and emissions, and meeting the requirements of green
manufacturing and sustainable development.
4. High precision: With the advancement of precision machining technology,
the manufacturing accuracy of mini ball valves will continue to improve to
meet higher precision fluid control requirements.
Long Handle Stainless Steel Threaded Mini Ball Valve, as an
important component of fluid control systems, plays an increasingly
important role in industrial production and daily life due to its compact,
efficient, and reliable characteristics. With the continuous advancement of
technology and the expansion of application fields, the future development
prospects of mini ball valve will be
even broader.

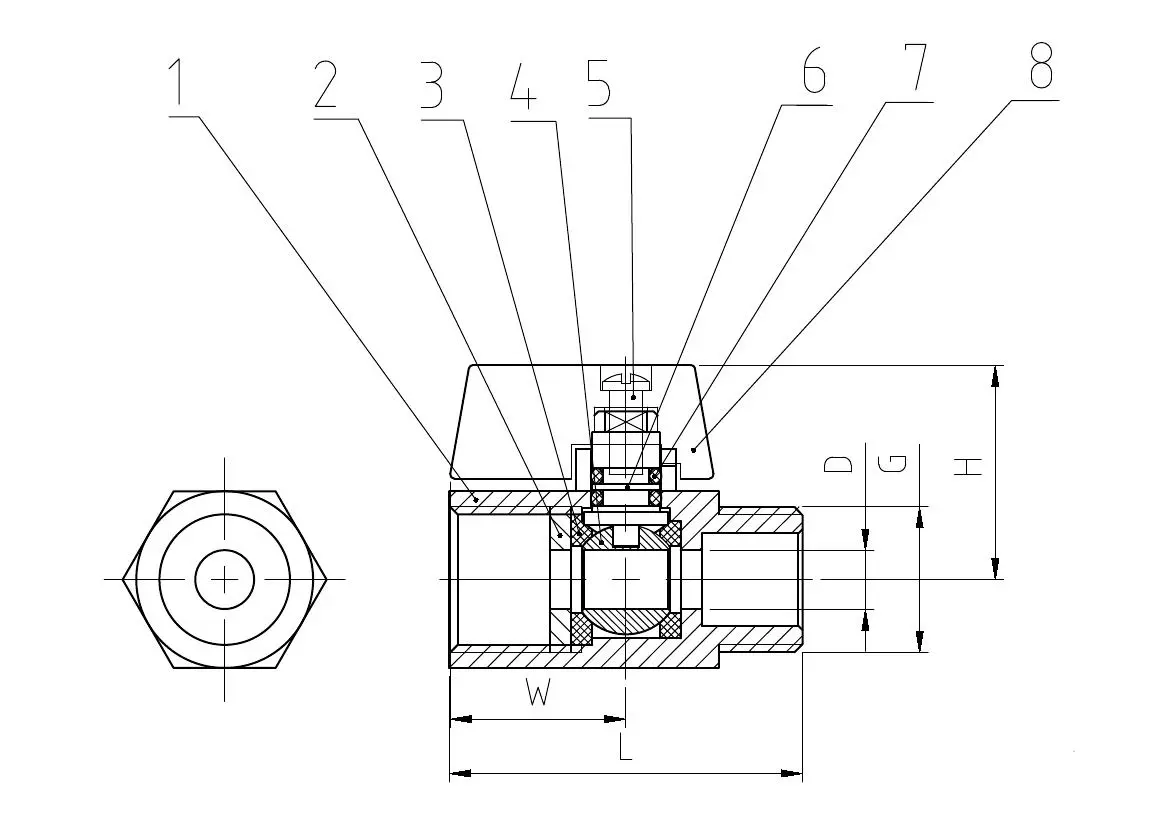

| NO. | PART NAME | MATERIAL | |
| 1 | BODY | CF8 | CF8M |
| 2 | CAP | CF8 | CF8M |
| 3 | SEAT | PTFE | PTFE |
| 4 | BALL | SS304 | SS316 |
| 5 | BOLT | SS304 | SS304 |
| 6 | STEM | SS304 | SS316 |
| 7 | O-RING | NBR | NBR |
| 8 | HANDLE | ALUMINIUM ALLOY | ALUMINIUM ALLOY |
| DN | G | D | L | W | H |
| 6 | 1/8" | 7 | 40 | 22.8 | 26.5 |
| 8 | 1/4" | 7 | 40 | 22.8 | 26.5 |
| 10 | 3/8" | 7 | 40 | 22.8 | 26.5 |
| 15 | 1/2" | 9.2 | 46 | 22.8 | 28.3 |
| 20 | 3/4" | 12.5 | 54 | 22.8 | 31.5 |
| 25 | 1" | 15 | 65 | 22.8 | 34 |
