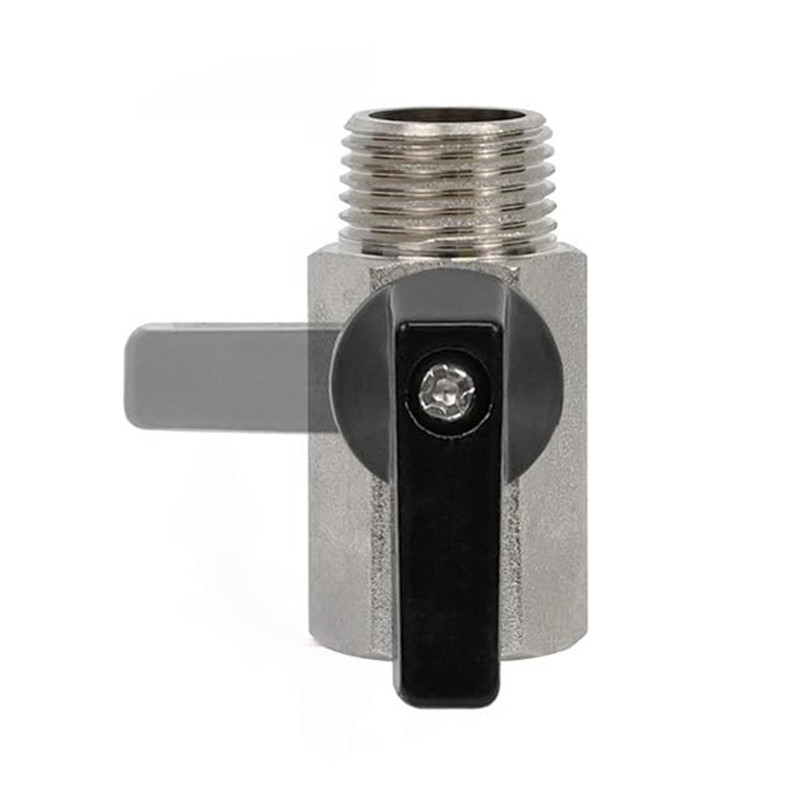

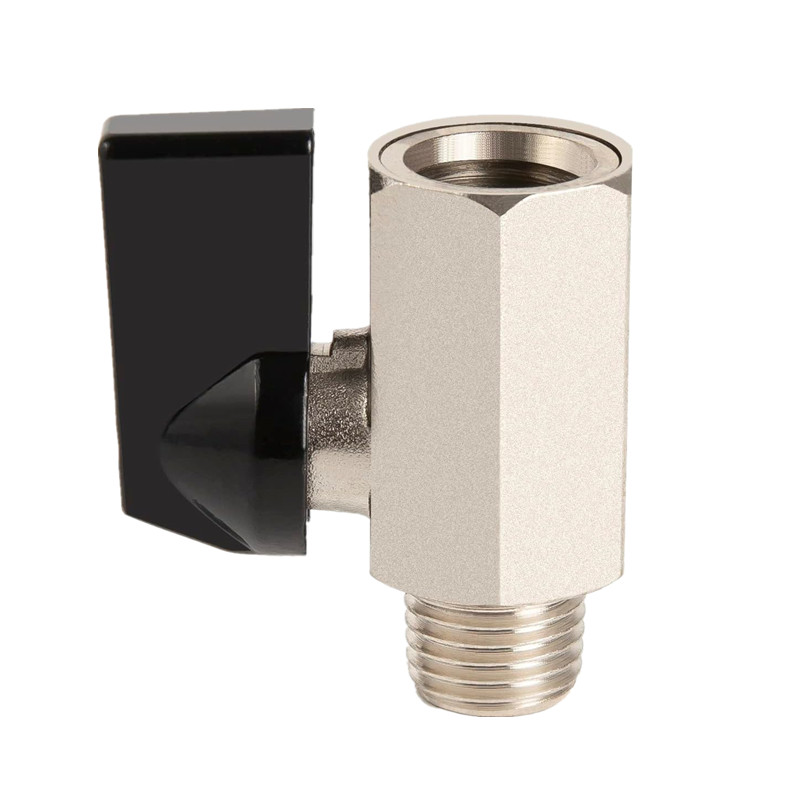

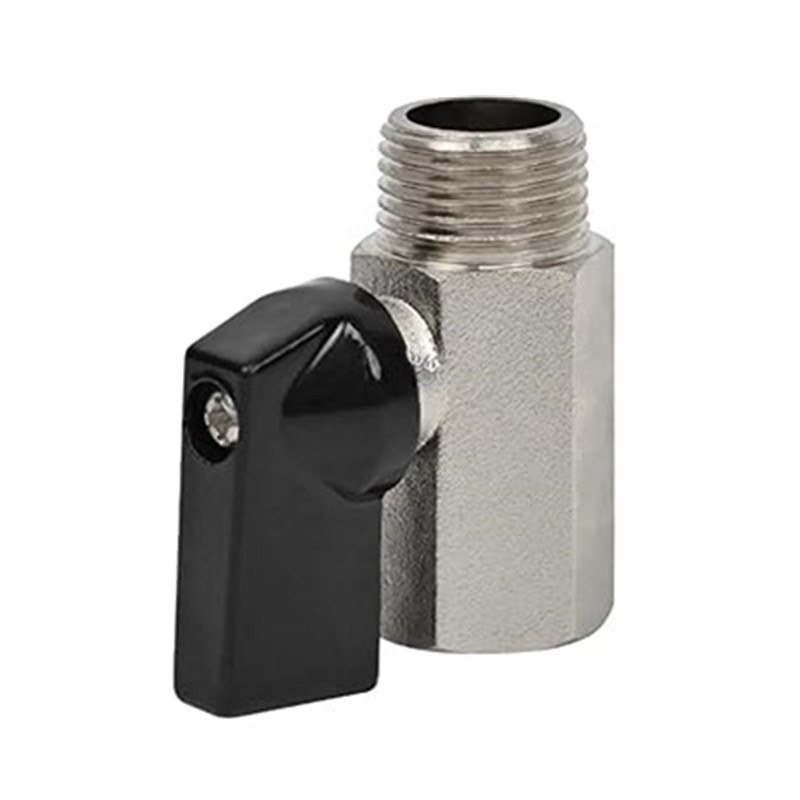

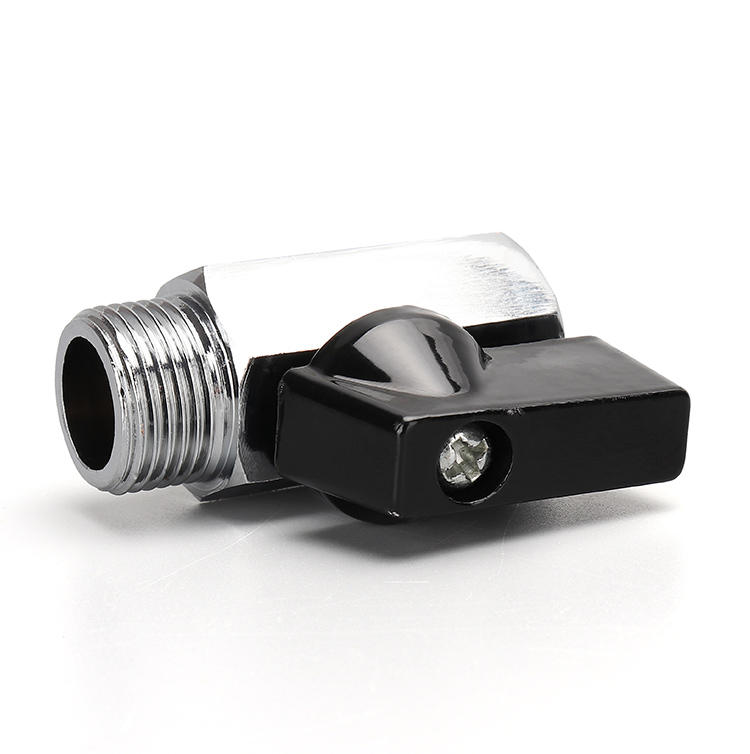

The JOEPAI Brass Mini Ball Valve With Aluminium Handle made in China, is a compact valve designed specifically for low-pressure fluid control in narrow installation spaces. This valve is made of high-quality brass, which is corrosion-resistant and durable. The lightweight aluminum handle ensures quick manual operation, ergonomic comfort, and color coding options for system recognition. It is the best valve for residential pipelines, pneumatic applications, instrumentation, and other general devices.
Size:1/8",1/4“,3/8”,1/2",3/4",1"(DN6~DN25)
Forging body, bright chromed treatment
Meduim: Water. Hot water

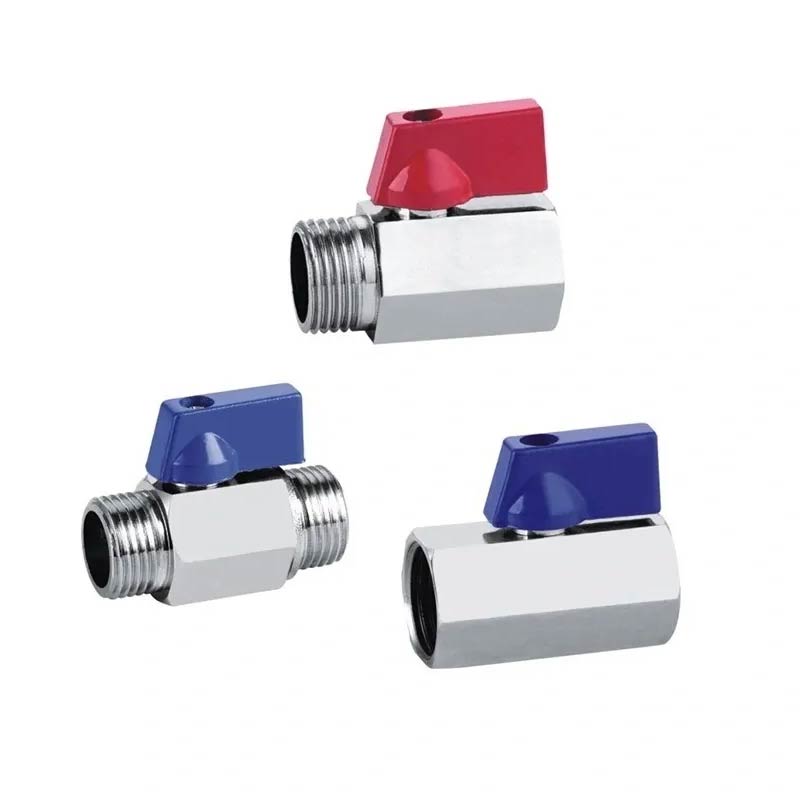

Operator:Handle Lever-Red/blue/black/yellow/grey
Blow-Out Proof Stem/Reduced port
Design Standard:ASME B16.34
Threaded Ends:ANSIB.20.1(NPT):BS21;DIN2999/259;IS0228/1;JISB03;IS07/1
Inspection and testing:API598/MSS SP-110/EN 12266
Various Thread Standards Available
| Working Pressure | 1.6Mpa |
| Tested Pressure | 1.0Mpa By Gas |
| Working Medium | Water, gas |
| Working Temperature | -20° C≤ T≤ 120° |
| ITEM | Designation | Material |
| 1 | Handle | Aluminum |
| 2 | Body | Brass, CW617N |
| 3 | Ball | Brass, Hp59-1, chromed plated |
| 4 | Seat/Sealing | PFTE |
| 5 | O-ring | NBR |
| 6 | Bonnet | Brass |
| 7 | Nut | Brass |
| DN | G | D | L | W | H |
| 6 | 1/8" | 7 | 40 | 22.8 | 26.5 |
| 8 | 1/4" | 7 | 40 | 22.8 | 26.5 |
| 10 | 3/8" | 7 | 40 | 22.8 | 26.5 |
| 15 | 1/2" | 9.2 | 46 | 22.8 | 28.3 |
| 20 | 3/4" | 12.5 | 54 | 22.8 | 31.5 |
| 25 | 1" | 15 | 65 | 22.8 | 34 |
