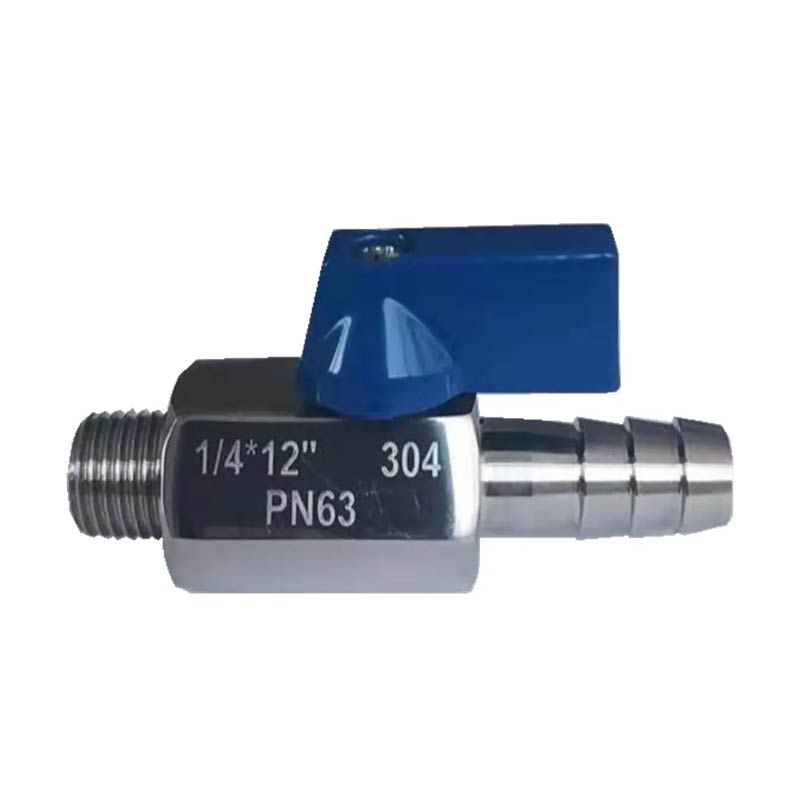

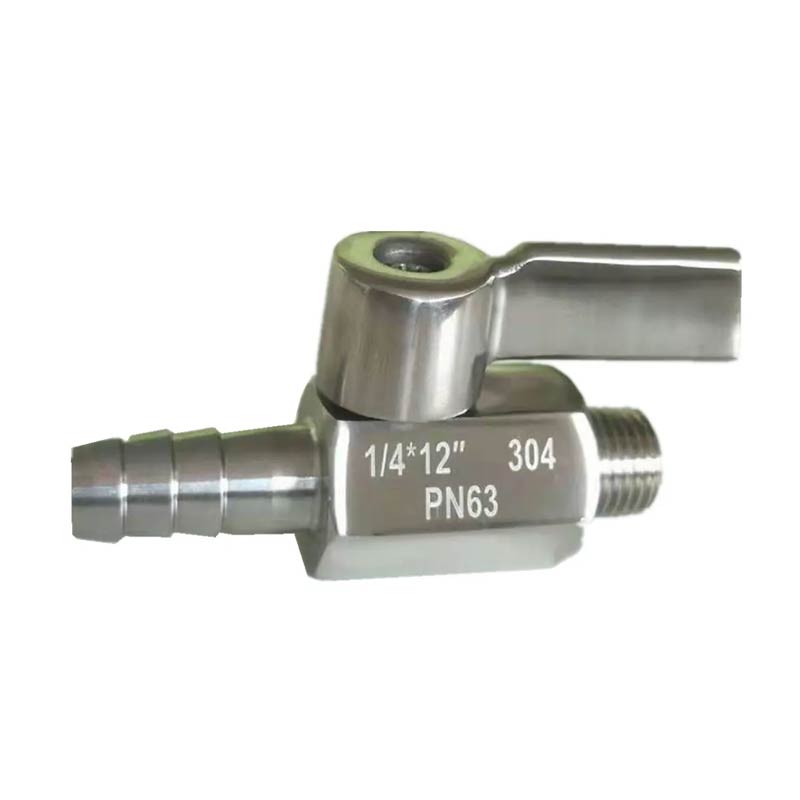

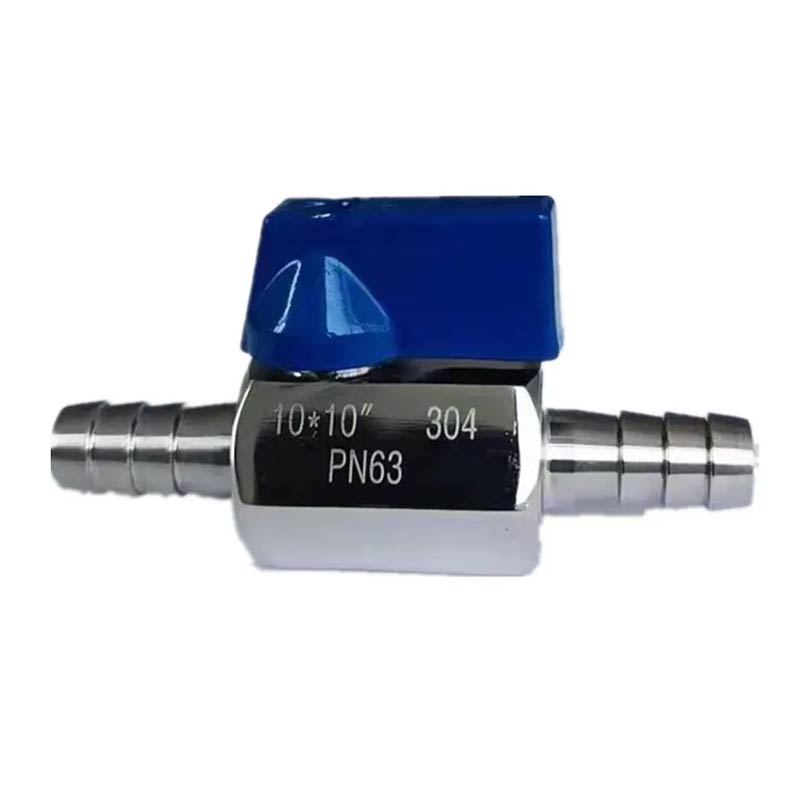

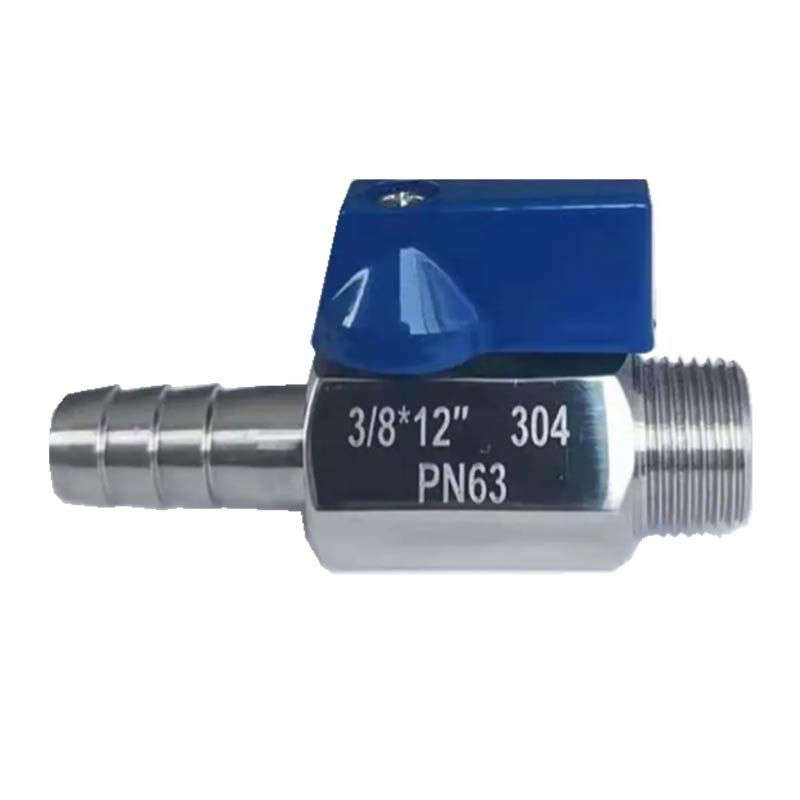

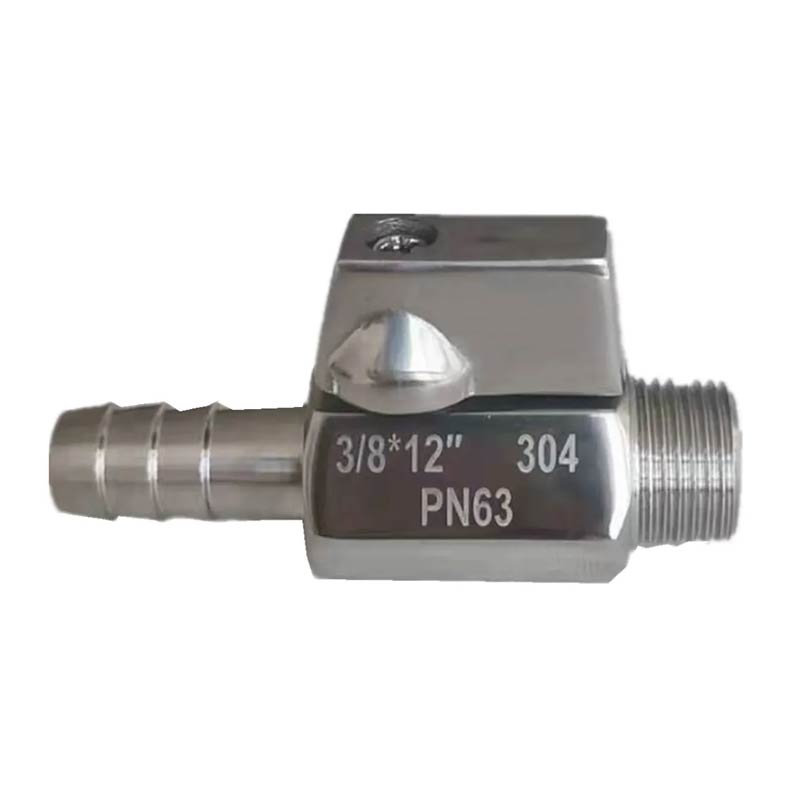

Stainless Steel Threaded Mini Ball Valve with Hose Nipples

JOEPAI has been specializing in the manufacturing of Stainless Steel Threaded Mini Ball Valve with Hose Nipples for over 20 years, with rich experience in exporting mini ball valves. It supports OEM/ODM customization, and its products comply with international standards, widely exported to markets in Europe, North America, and Southeast Asia. We offer fast delivery, high cost-effectiveness, and stable quality. Welcome to discuss cooperation.

Main features

1. Excellent Material Properties (Stainless Steel)

Corrosion Resistance: The valve body, ball, and stem are typically constructed of 304 or 316 stainless steel, resistant to corrosion from water, steam, oil, various chemicals, and solvents, making them suitable for harsh environments.

High Strength and Durability: Stainless steel offers high mechanical strength and is pressure- and temperature-resistant.

2. Compact Mini Design

Space Saving: Compared to standard-sized ball valves, mini ball valves are smaller and lighter, making them ideal for installation in equipment, instruments, or piping systems where space is limited.

3. Efficient Fluid Control (Ball Valve Structure)

Quick Open/Close: Simply rotate the handle 90 degrees (1/4 turn) for full opening or closing, making operation quick and easy.

4. Flexible Dual Connection Options (with Hose Nipples)

Threaded on One End: One end of the valve body features male threads (NPT or BSPP), which can be screwed directly into a female threaded connection on equipment or piping, providing a secure and reliable connection. One end features a hose connector; the other end features a barbed hose nipple, specifically designed for connecting hoses (such as silicone, plastic, and rubber tubing). The barb design secures the hose and, when used with a clamp, prevents it from becoming dislodged under pressure.

Easy to convert: This design seamlessly solves the problem of converting and connecting rigid (threaded) tubing to hoses, eliminating the need for additional adapters and simplifying system design.

Valve Detail

Blow-out proof stem design
Entirely silica sol precision forging
Reduced port
Handle operated
Specification:1/8"-1"
Material:SS304 SS316
Pressure:1000WOG/PSI PN63
Seat material:PTFE RPTFE
Finish: Surface Polishing
Working Temperature:-20C-232℃
Suitable:Medium:Water,Oil,Gas
Design Standard:ASME B16.34
Inspection and testing:API598/MSS SP-110/EN 12266

Product application

Aerospace military products, shipbuilding heavy industry, petrochemicals, power equipment, boiler equipment, steel, fire sprinklers, electroplating and coating, gas and fuel, environmental protection equipment, soot blowing and dust removal, experimental equipment, textile printing and dyeing, central air conditioning, water treatment, industrial furnaces, drying equipment, HVAC systems, reclaimed water reuse systems, industrial self-control small equipment, intelligent water-saving control instruments, water-saving system execution terminals, etc.

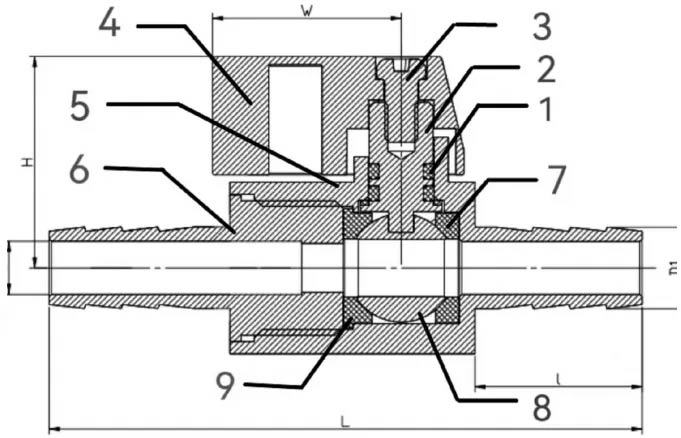

Main Parts and Materials

Main Dimensions
