The JOEPAI stainless steel monoblock ball valve is specifically designed for precise flow control of liquids and gases. Its single-piece body construction ensures high leak-tightness and eliminates weld points, significantly reducing the risk of leaks.
A perforated ball inside the valve rotates to start or stop the flow. Operation can be performed manually via a lever or automatically using an actuator. The robust stainless steel body offers excellent resistance to corrosion and wear, ensuring long-lasting performance with minimal maintenance.
Monoblock ball valves are widely used across industrial and commercial applications, especially in pipelines carrying chemical substances.
Common applications include:
∙ Water treatment plants
∙ Steam lines and pressurized gas systems
∙ Food and beverage industry (hygienic design)
∙ Pharmaceutical and petrochemical facilities
∙ Marine engines and power plants
The compact monoblock design allows easy integration into space-constrained systems and ensures safe operation under high temperatures and pressures.
The stainless steel monoblock ball valve contains a spherical ball with a central hole, rotated via a stem. When the hole is aligned parallel to the pipeline, flow is released; when perpendicular, flow is completely stopped.
This rotation can be done manually or with an automatic actuator. The design ensures a high-integrity seal between the ball and seat, providing safe operation even during sudden pressure changes.
Monoblock ball valves are available in various sizes and pressure ratings. General specifications include:
|
Parameter |
Details |
|
Body Material |
AISI 304 / AISI 316 stainless steel |
|
Ball Material |
AISI 304 / AISI 316 stainless steel |
|
Seat Material |
PTFE (Teflon),RPTFE,PPL |
|
Connection Type |
Wafer Flanged |
|
Pressure Rating |
PN16 ~ PN40 |
|
Size Range |
DN15 ~ DN200 |
|
Temperature Range |
-29°C to +250°C |
|
Mounting Standard |
ISO 5211 compliant (customizable) |
|

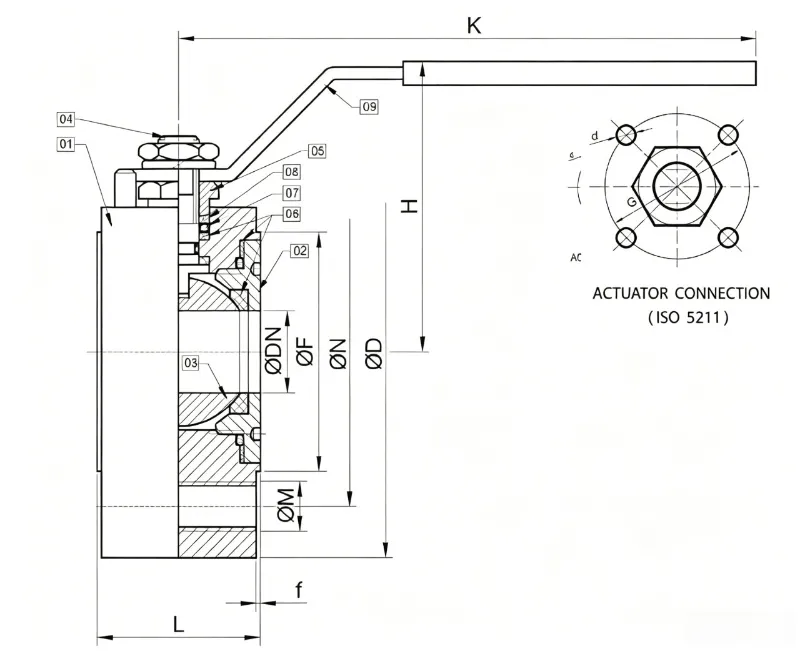

SIZE |
|
|
|
|
|
|
PN16 |
PN40 |
|
|
|||||
|
NPS |
DN |
L |
K |
H |
ØD |
ØDN |
f |
ØN |
ØM |
ØF |
ØN |
ØM |
ØF |
G |
d |
|
1/2" |
15 |
38 |
155 |
80 |
87 |
15 |
2 |
65 |
M12x4 |
45 |
65 |
M12x4 |
45 |
36 |
M5 |
|
3/4" |
20 |
40 |
155 |
90 |
97 |
20 |
2 |
75 |
M12x4 |
58 |
75 |
M12x4 |
58 |
36 |
M5 |
|
1" |
25 |
45 |
175 |
100 |
107 |
25 |
2 |
85 |
M12x4 |
68 |
85 |
M12x4 |
68 |
42 |
M5 |
|
11/4" |
32 |
58 |
175 |
110 |
135 |
32 |
2 |
100 |
M16x4 |
78 |
100 |
M16x4 |
78 |
42 |
M5 |
|
11/2" |
40 |
65 |
240 |
120 |
145 |
40 |
3 |
110 |
M16x4 |
88 |
110 |
M16x4 |
88 |
50 |
M6 |
|
2" |
50 |
82 |
240 |
130 |
165 |
50 |
3 |
125 |
M16x4 |
102 |
125 |
M16x4 |
102 |
50 |
M6 |
|
21/2" |
65 |
103 |
300 |
140 |
177 |
65 |
3 |
145 |
M16x4 |
122 |
145 |
M16x8 |
122 |
70 |
M8 |
|
3" |
80 |
120 |
400 |
150 |
197 |
80 |
3 |
160 |
M16x8 |
138 |
160 |
M16x8 |
138 |
70 |
M8 |
|
4" |
100 |
140 |
400 |
165 |
230 |
100 |
3 |
180 |
M16x8 |
162 |
190 |
M20x8 |
162 |
102 |
M10 |
|
5" |
125 |
200 |
610 |
240 |
248 |
125 |
3 |
210 |
M16x8 |
188 |
220 |
M20x8 |
188 |
102 |
M10 |
|
6" |
150 |
235 |
610 |
260 |
298 |
150 |
3 |
240 |
M20x8 |
212 |
250 |
M22x8 |
218 |
125 |
M12 |
|
8" |
200 |
310 |
850 |
310 |
398 |
200 |
3 |
295 |
M20x12 |
268 |
320 |
M27x12 |
285 |
125 |
M12 |
Superior leak-tightness – No weld points means fewer potential leak paths.
Corrosion & wear resistance – Stainless steel body ensures long service life.
Low maintenance – Monoblock design reduces wear and extends operational life.
Quick operation – 90° rotation enables fast open/close cycles.
Hygienic & safe – Ideal for food, pharmaceutical and chemical processes.
Cost-effective – Long service life and low operating costs improve system efficiency.
Need the right stainless steel monoblock ball valve for your application? Contact our team for technical support, custom solutions, or a quote tailored to your system requirements.
-
