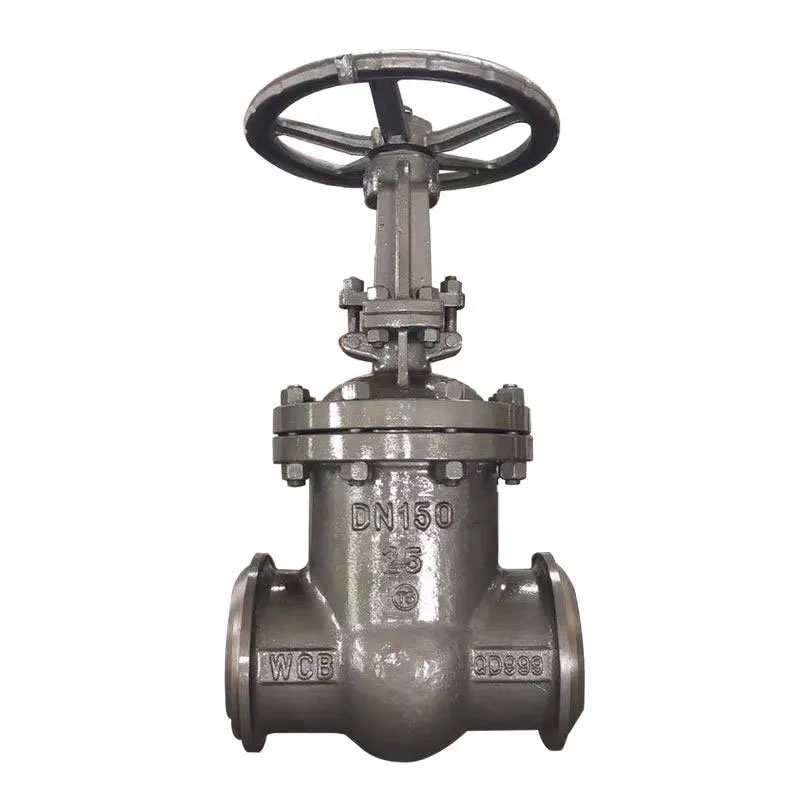

High Pressure Cast Steel Gate Valve PN16 has become an essential component in industrial piping systems, providing reliable flow control in high-pressure environments. As a professional engineer, I often ask myself, why should I select this valve for my operations? The answer lies in its robust construction, high performance, and versatility. Designed to handle pressures up to 16 bar (PN16) and high-temperature fluids, this valve ensures safety and efficiency in pipelines, water treatment plants, and chemical industries.
When evaluating valves for high-pressure systems, I always consider durability and reliability. High Pressure Cast Steel Gate Valve PN16 stands out due to its superior material and design:
Material: ASTM A216 WCB cast steel body
Nominal Pressure: PN16 (16 bar)
Size Range: DN15 to DN600
Connection Type: Flanged (ISO 7005-2 standard)
Operation: Manual handwheel, optional gear operator or electric actuator
Temperature Range: -29°C to 425°C
Design Standard: API 600 / BS 1414
Sealing: Metal-to-metal wedge or optional resilient seat
Body Test Pressure: 24 bar
Seat Test Pressure: 17.6 bar
This combination ensures a long service life even in harsh conditions, offering precise control and minimal leakage.
Many engineers ask, how does this valve improve operational efficiency? The design of High Pressure Cast Steel Gate Valve PN16 allows for full bore flow, reducing pressure drop and avoiding turbulence. The wedge-shaped gate ensures tight sealing and minimizes maintenance needs, reducing downtime. Whether controlling water, steam, or oil, this valve provides consistent performance and enhances system reliability.
When I consider valve options, I evaluate their benefits:
Durability: Cast steel material resists corrosion and high-pressure stress.
Versatility: Suitable for a wide range of media including water, gas, and oil.
Maintenance-Friendly: Simple design allows easy inspection and part replacement.
Safety: High-pressure rating ensures secure operation under demanding conditions.
Compliance: Meets international standards, guaranteeing compatibility and quality.
| Parameter | Specification |
|---|---|
| Material | Cast Steel ASTM A216 WCB |
| Pressure Rating | PN16 (16 bar) |
| Size Range | DN15–DN600 |
| Connection | Flanged (ISO 7005-2) |
| Operation | Handwheel / Gear / Electric |
| Temperature Range | -29°C to 425°C |
| Design Standard | API 600 / BS 1414 |
| Body Test Pressure | 24 bar |
| Seat Test Pressure | 17.6 bar |
| Sealing Type | Metal-to-metal / Resilient seat |
Q1: What makes High Pressure Cast Steel Gate Valve PN16 suitable for industrial pipelines?
A1: Its robust cast steel body and PN16 pressure rating allow it to handle high-pressure fluids safely. Full bore design reduces pressure drop and ensures consistent flow control in industrial pipelines.
Q2: Can High Pressure Cast Steel Gate Valve PN16 handle hot media like steam?
A2: Yes, with a temperature range up to 425°C, this valve is ideal for steam, hot oil, and other high-temperature applications without compromising performance.
Q3: How do I maintain High Pressure Cast Steel Gate Valve PN16 for long-term use?
A3: Routine inspection of the stem, gate, and sealing surfaces, along with lubrication of moving parts, ensures durability. The valve's simple construction allows easy replacement of worn parts.
Q4: Is the High Pressure Cast Steel Gate Valve PN16 customizable for specific applications?
A4: Absolutely. Wenzhou Joepai Valve Co., Ltd. provides customization options such as resilient seats, gear or electric operation, and various flange standards to match client requirements.
If you're seeking a reliable source for High Pressure Cast Steel Gate Valve PN16, Wenzhou Joepai Valve Co., Ltd. offers high-quality solutions tailored to industrial needs. With over 20 years of experience, the company provides professional advice, quality assurance, and prompt delivery. You can contact their sales team directly to discuss specifications, pricing, and bulk orders.
High Pressure Cast Steel Gate Valve PN16 is not just a component; it's a critical element that ensures system safety, reliability, and efficiency. Investing in a high-quality valve today prevents costly downtime and enhances operational performance for years to come.
-
