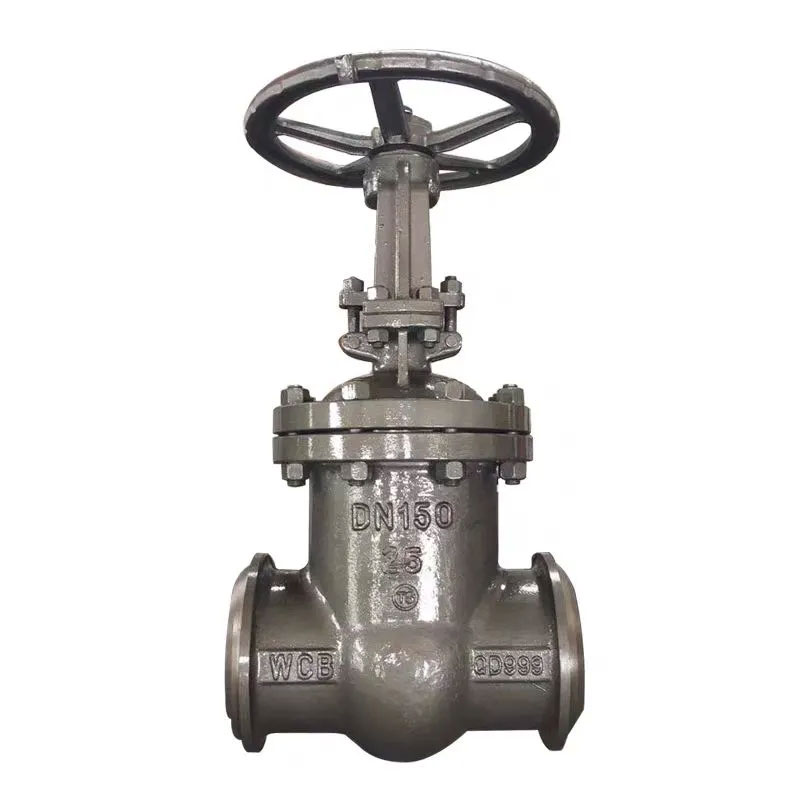

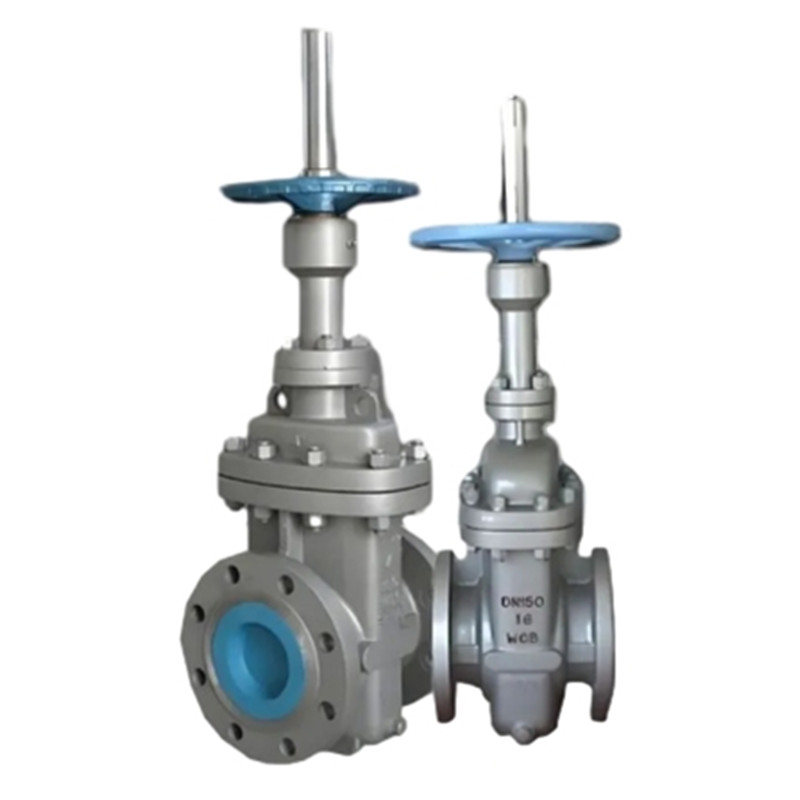

High Pressure Cast Steel Gate Valve PN16

JOEPAI has designed a high-quality High Pressure Cast Steel Gate Valve PN16 for high-pressure conditions, which adopts advanced cast steel forming technology and has stable strength, good sealing and pressure resistance. It is applied in petroleum, chemical, power plant, water supply and drainage, and industrial pipeline systems, and can also adapt to water, steam, oil and corrosive media.

Send Inquiry

Product Description

JOEPAI High Pressure Cast Steel Gate Valve PN16, the valve body has a compact structure and excellent corrosion resistance.

Our products are widely exported to Europe, Southeast Asia, South America, the Middle East and other regions, and comply with multiple national standards such as DIN, ANSI, API, ISO, CE, etc.

Product Standards

1.Design & Manufacture:GB122234
2.Face to Face:GB12221
3.Flange Dimension:GB9113 JB79
4.Pressure&Temperature rating:GB9131
5.Inspection & Test:GB/T13927 JB/T9092

Product Features

1.Compact structure, rational design, high rigidity, smooth flow path, and low flow resistance.
2.Sealing surfaces made of stainless steel and hard alloy for extended service life.
3.Flexible graphite packing ensures reliable sealing and easy operation.
4.Actuation methods: Manual, pneumatic, electric, or gear-driven.
5.Structural types: Flexible wedge single disc, rigid wedge single disc, or double disc.

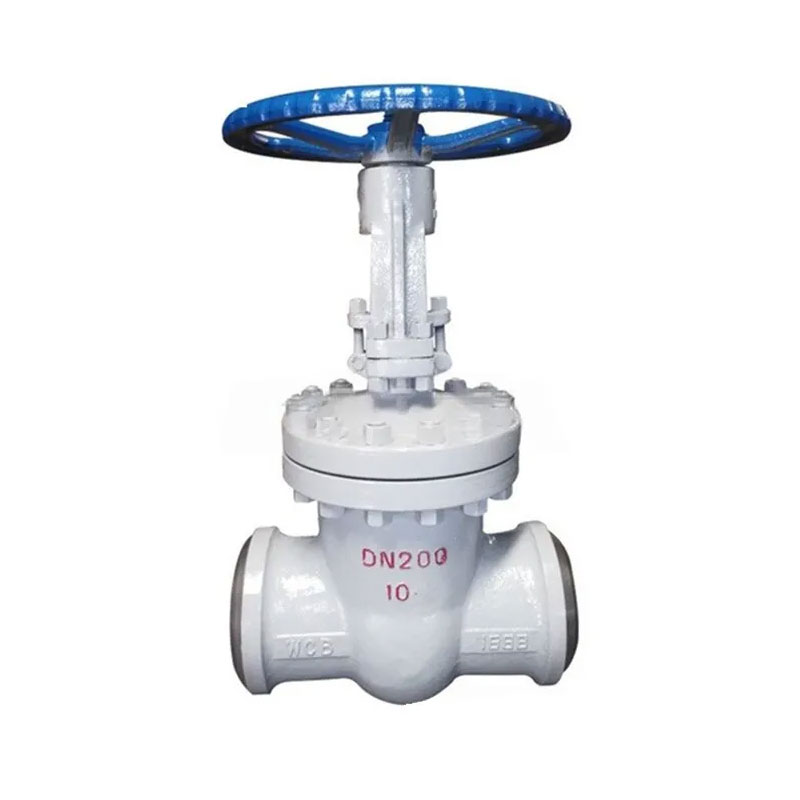

High Pressure Cast Steel Gate Valve PN16

Main Component Materials

Body & Bonnet	Disc & Seat	Stem	Stem Nut	Packing	Handwheel
Carbon Steel	High-quality Carbon Steel + Hard Alloy/Stainless Steel	Cr Stainless Steel	Aluminum Bronze	Graphite Asbestos Packing	Malleable Cast Iron
Cr-Ni-Ti Steel	Stainless Steel + Hard Alloy	Cr-Ni-Ti Stainless Steel	Aluminum Bronze	PTFE-Impregnated Packing	Malleable Cast Iron
Cr-Ni-Mo-Ti Steel	Stainless Steel + Hard Alloy	Cr-Ni-Mo-Ti Stainless Steel	Aluminum Bronze	PTFE-Impregnated Packing	Malleable Cast Iron
Cr-Mo Steel	Alloy Steel + Hard Alloy	Cr-Mo-Al Steel	Aluminum Bronze	Flexible Asbestos + 33.4	Malleable Cast Iron

Main Dimensions:

1.6MPa	Size	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
	L	mm	130	150	160	180	200	250	265	280	300	325	350	400	450	500	550	600	650	700	800
	H	mm	175	180	210	210	350	358	373	435	500	614	674	818	1225	1415	1630	1780	2050	2181	2599
	W	mm	180	180	200	200	200	240	240	280	320	360	360	400	450	500	500	600	720	720	720
2.5MPa	Size	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
	L	mm	130	150	160	180	200	250	265	280	300	325	350	400	450	500	550	600	650	700	800
	H	mm	175	180	210	210	350	358	373	435	500	614	674	818	1225	1415	1630	1780	2050	2181	2599
	W	mm	180	180	200	200	200	240	240	280	320	360	360	400	450	500	500	600	720	720	720
4.0MPa	Size	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
	L	mm	130	150	160	180	200	250	280	310	350	400	450	550	650	750	850	950
	H	mm	175	180	210	210	350	358	373	435	500	614	674	818	1225	1415	1630	1780
	W	mm	180	180	200	200	200	240	240	280	320	360	360	400	450	500	500	600
6.4MPa	Size	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
	L	mm	170	190	210	230	240	250	280	320	350	400	450	550	650	750	850	950
	H	mm	175	180	210	230	350	359	373	435	500	614	674	818	970	1145	1280	1450
	W	mm	120	120	140	160	200	240	280	320	360	400	400	450	560	640	800	800

Product Installation

1. Clean the inside of the High Pressure Cast Steel Gate Valve PN16 before installation, and there should be no impurities on its valve chamber and sealing surface.
2. Tighten the bolts connecting each part evenly with force.
3. Check whether the filling part is tightly compressed, ensure the sealing of the filling is tight, and the gate can be flexibly opened and closed.
4. Before installation, check the valve model, size, and other information, and ensure that the flow direction of the medium is consistent with the specified flow direction.
5. During installation, a certain amount of space should be left to facilitate the operation of valve drive.
6. Strictly follow the instructions on the wiring diagram to arrange the wiring of the drive device.
7. After installation, it is necessary to maintain it regularly.

High Pressure Cast Steel Gate Valve PN16
