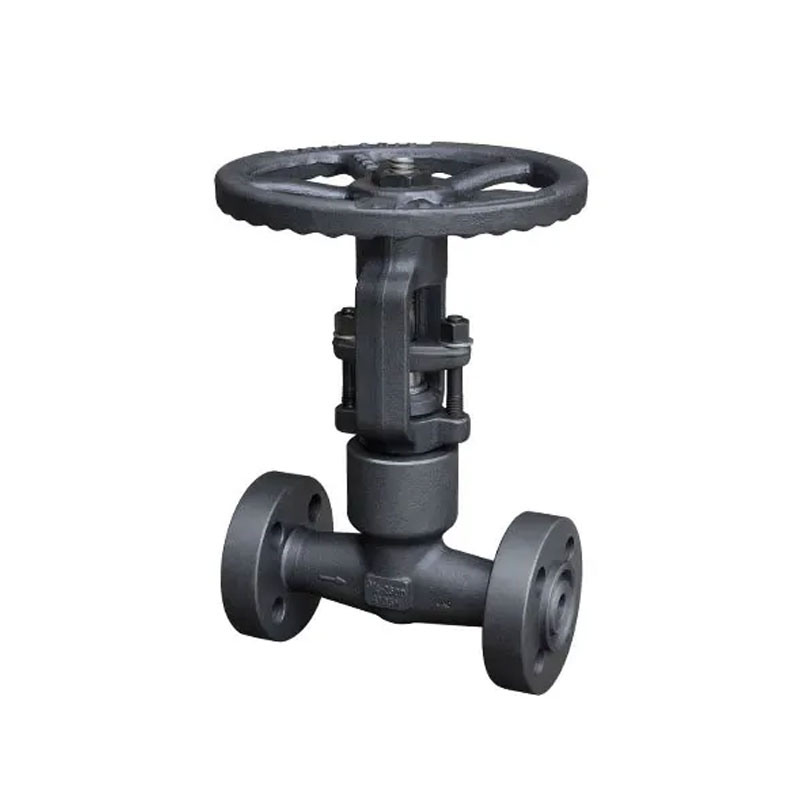

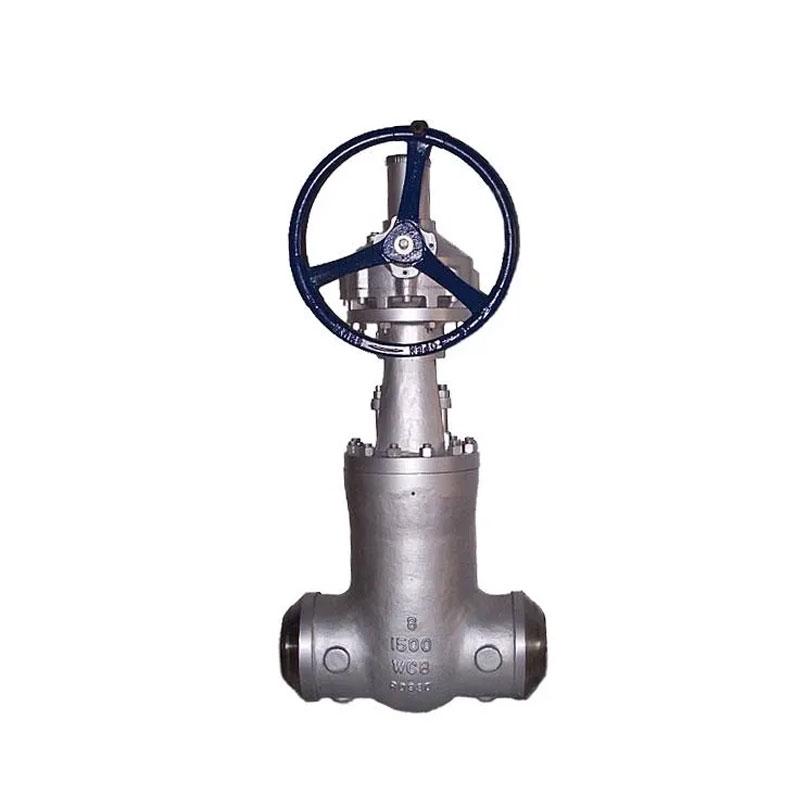

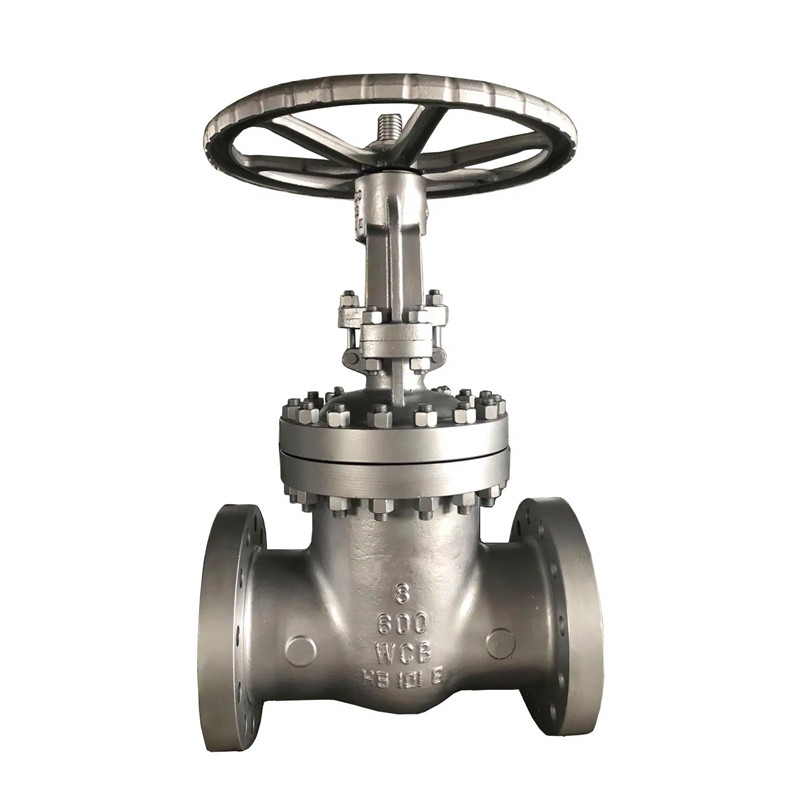

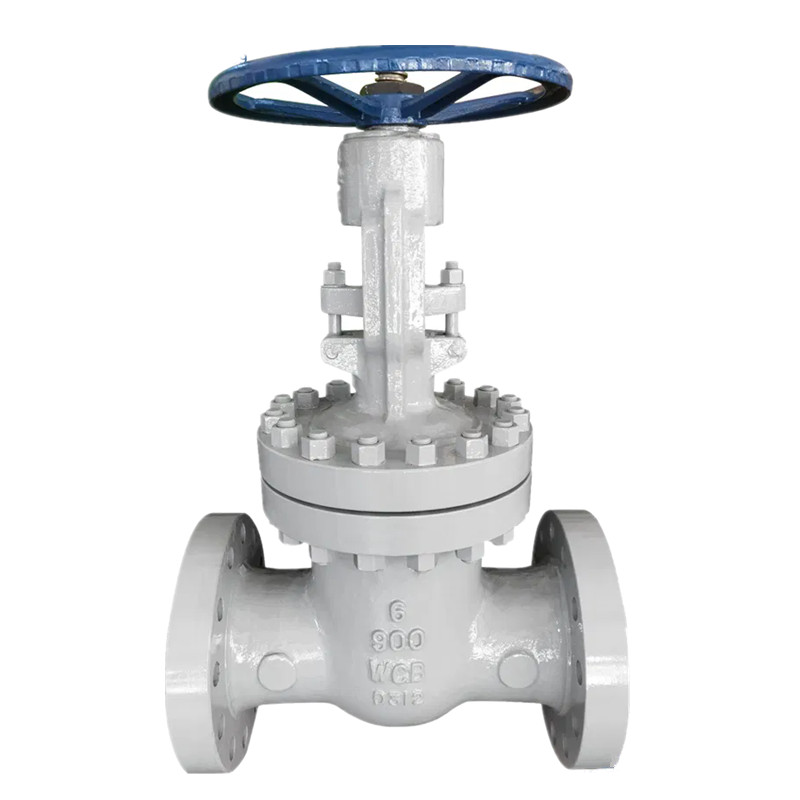

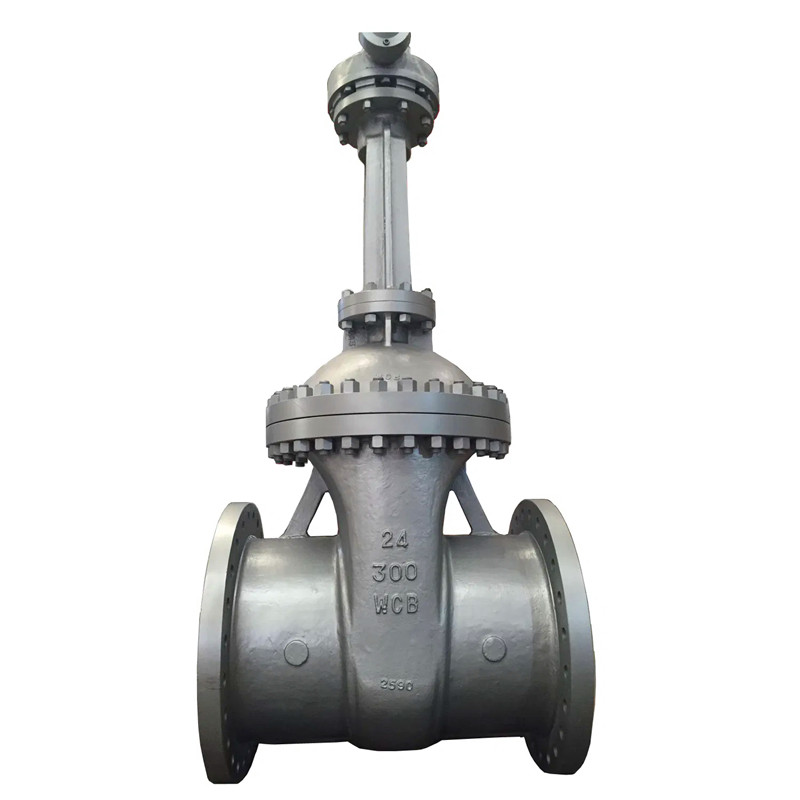

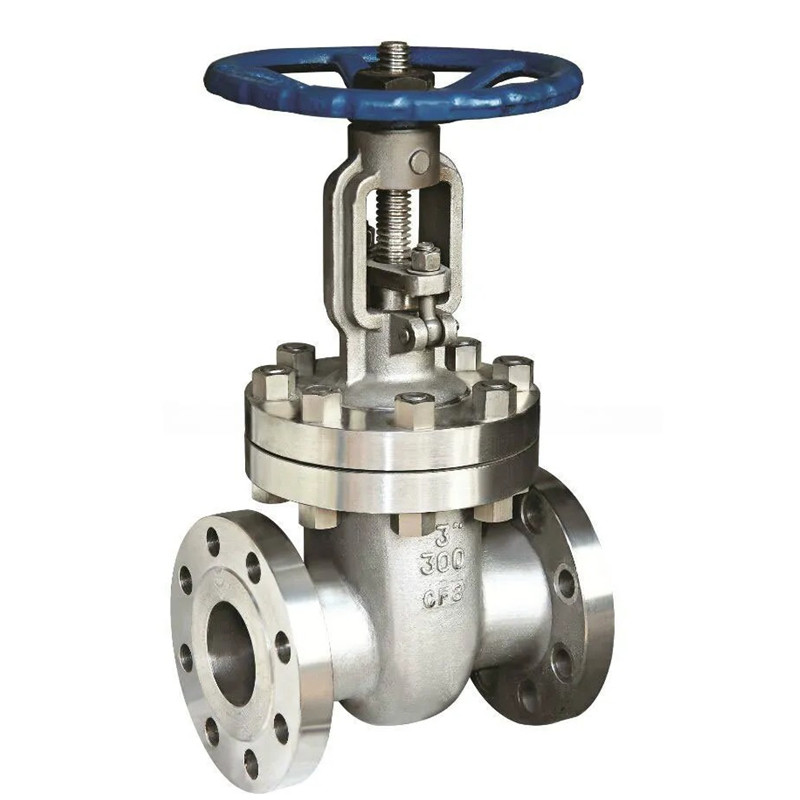

Wenzhou JOEPAI Valve Co., Ltd. is a professional valve manufacturer. The full bore design of the Cast Steel Wedge Gate Valve ensures smooth flow of the medium, and the sealing pair is precision ground to maintain good sealing performance and opening and closing stability for a long time. Optional soft seal or metal seal structure, can accept multiple media and complex construction conditions.
What is cast steel valve? Cast Steel Wedge Gate Valve is one of many valve types, manufactured from cast steel (carbon steel). The applicable temperature for cast steel valves is ≤ 425 ℃, and the applicable medium is water, oil, natural gas, etc. The commonly used cast steel valve series products include cast steel ball valves, cast steel gate valves, cast steel butterfly valves, cast steel check valves, cast steel globe valves, cast steel filters, etc.
Features: The gate is vertically adjustable for opening and closing, only fully open and fully closed, and cannot be adjusted or throttled;
Wedge guiding minimizes seat rubbing and scuffing resulting in long cycle
life.
Designed to ASME B16.34.
Body made of superior strength forgings and optional cast steel.
Diantai stem seal offers tight seal with little to no maintenance over long
periods of time.
Optional live-loading of packing.
Non-rotating stem.
Hardfaced seating faces resist erosion.
Other sizes and pressure classes available. Contact the company for
specifications.
Size range(s)
NPS 2 - 24 (DN 50 - 600)
Pressure rating
ASME Classes 600 - 4500
Standard connections
Socket weld, Butt weld
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Seat | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Wedge | A276 430&410 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 5 | Pressure Seat | A105 | A182 F304 | A182 F304(L) | F316(L) |
| 6 | Pressure Ring | A276 304L | A276 316L | ||
| 7 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 8 | Gland Eye hold | A193 B7 | A193 B16 | A193 B8(M) | |
| 9 | Pin | A276 420 | A182 F304(L) | ||
| 10 | Stem Packing | Flexible Graphite | PTFE | ||
| 11 | P.S. Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 12 | Gland | A276 F420 | A182 F304 | ||
| 13 | Gland Flange | A216 WCB | A351 CF8 | ||
| 14 | Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 15 | Yoke Nut | A276-410 | |||
| 16 | Retaining Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 17 | Hand wheel | A197 | |||
| 18 | H.W. Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 19 | Oil Cup | Brass | |||
| Suitable Medium | W.O.G. etc | W.O.G. etc | HNO3, CH3OOH etc | ||
| Suitable Temperature | -29 425 font | -29 550 font | -29 180 font | ||
The opening and closing component of a Cast Steel Wedge Gate Valve is the gate plate, and the direction of movement of the gate plate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled.
The gate valve has two sealing surfaces, and the most commonly used mode gate valve has two sealing surfaces that form a wedge shape. The wedge angle varies with the valve parameters, usually 5 °, and 2 ° 52 'when the medium temperature is not high.
