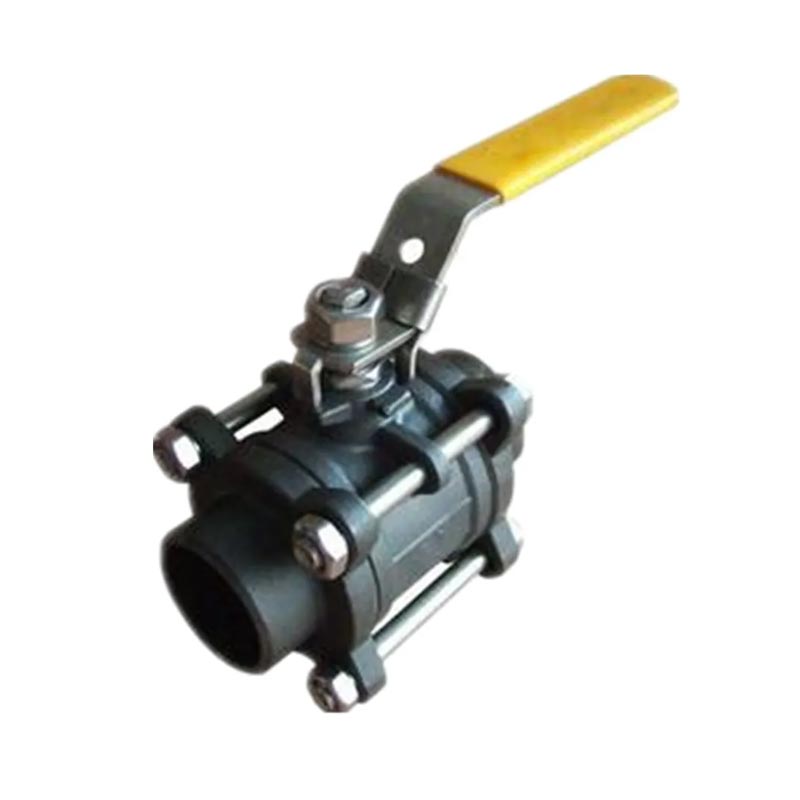

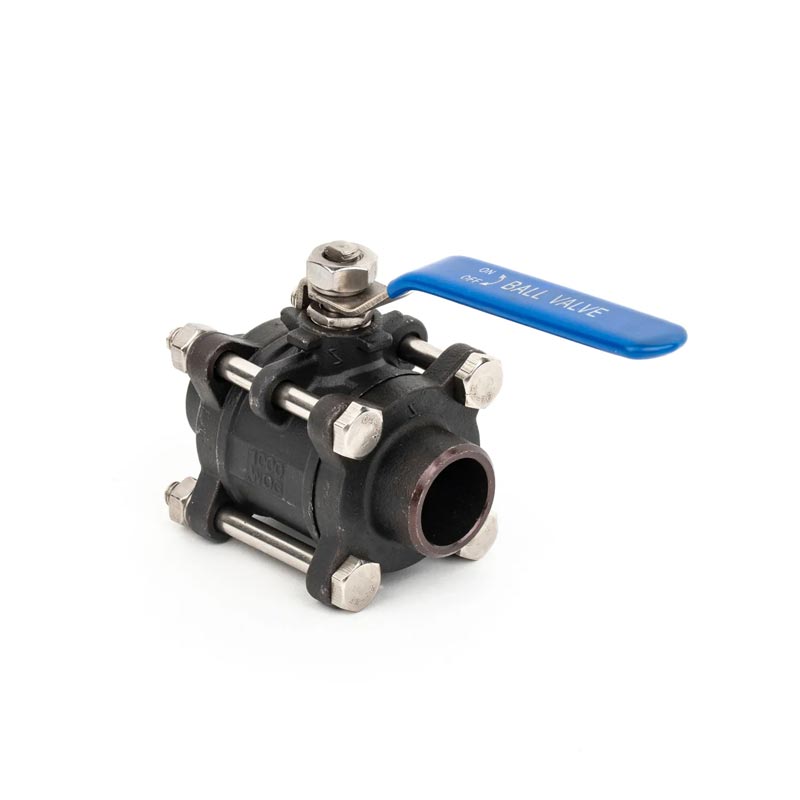

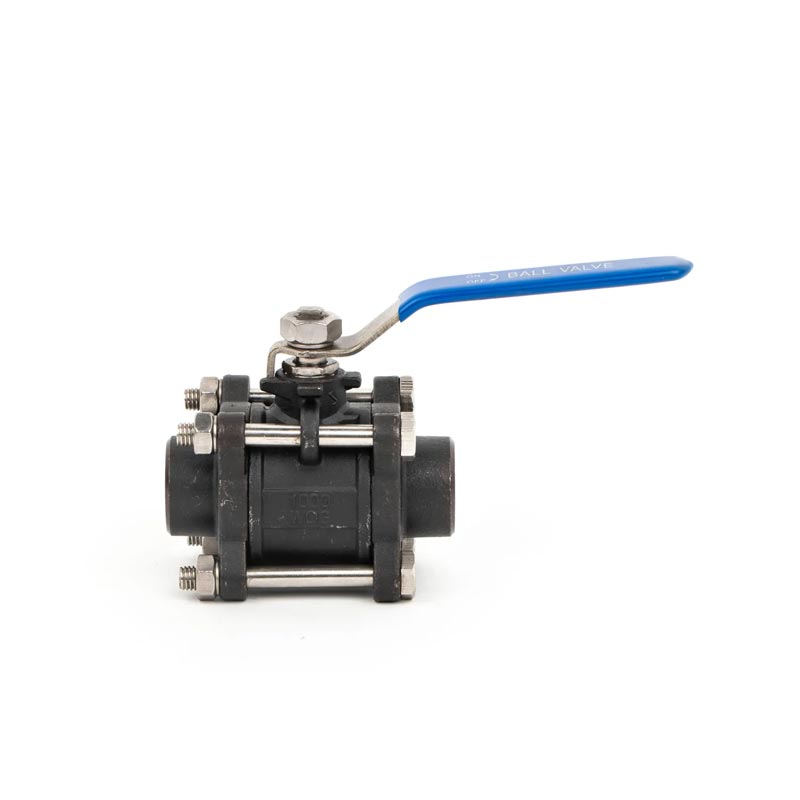

The JOEPAI Carbon Steel 3-PC Welded Ends Ball Valve PN64 offers superior performance for high-pressure applications, providing durable and reliable fluid control in industries such as oil and gas, chemical processing, power generation, and water treatment. With its robust 3-piece design, welded ends, and fire-safe construction, this valve is engineered to meet the most demanding requirements. Choose Joepai for industry-leading quality, innovation, and support.
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
| 1 | CAP | CF8M/CF8/WCB | 8 | STEM | SS316/SS304SS |
| 2 | BOLT WASHER | SS304/SS/SS316 | 9 | THRUST WASHER | PTFE |
| 3 | HEX NUT | SS304/SS/SS316 | 10 | PACKING | PTFE |
| 4 | BOLT | SS304/SS/SS316 | 11 | GLAND | SS304/SS |
| 5 | BODY | CF8M/CF8/WCB | 12 | SPRING WASHER | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | BLOCK ONLY RETREAT | SS |
| DN | G | D | L | W | H1 | H2 | E1 | E2 | Ra | Rb |
| 6 | 1/4" | 6 | 60 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
| 10 | 3/8" | 10 | 60 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
| 15 | 1/2" | 14 | 75 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
| 20 | 3/4" | 19 | 80 | 9 | 9 | 45 | R3 | R3 | 18 | 21 |
| 25 | 1" | 24 | 90 | 11 | 11 | 55 | R3 | R3.5 | 21 | 25 |
| 32 | 11/4" | 32 | 110 | 11 | 11 | 60 | R3 | R3.5 | 21 | 25 |
| 40 | 11/2" | 38 | 120 | 14 | 14 | 75 | R3.5 | R4.5 | 25 | 35 |
| 50 | 2" | 50 | 140 | 14 | 14 | 83 | R3.5 | R4.5 | 25 | 35 |
| 65 | 21/2" | 65 | 185 | 17 | 17 | 108 | R3.5 | R4.5 | 25 | 35 |
| 80 | 3" | 80 | 205 | 17 | 17 | 116 | R4.5 | R5.5 | 35 | 51 |
| 100 | 4" | 98 | 240 | 22 | 22 | 130 | R4.5 | R5.5 | 35 | 51 |
