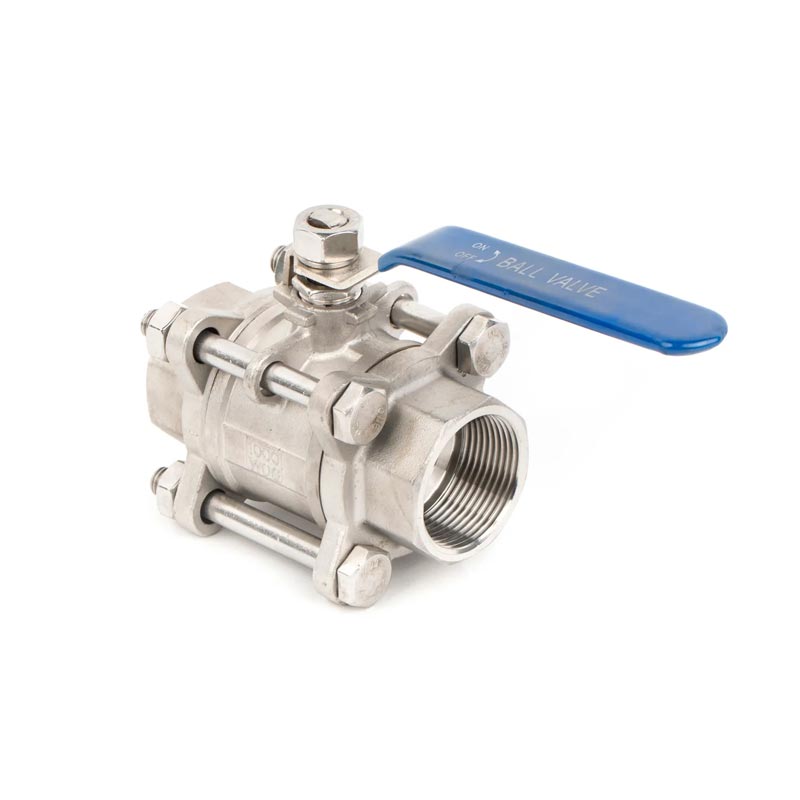

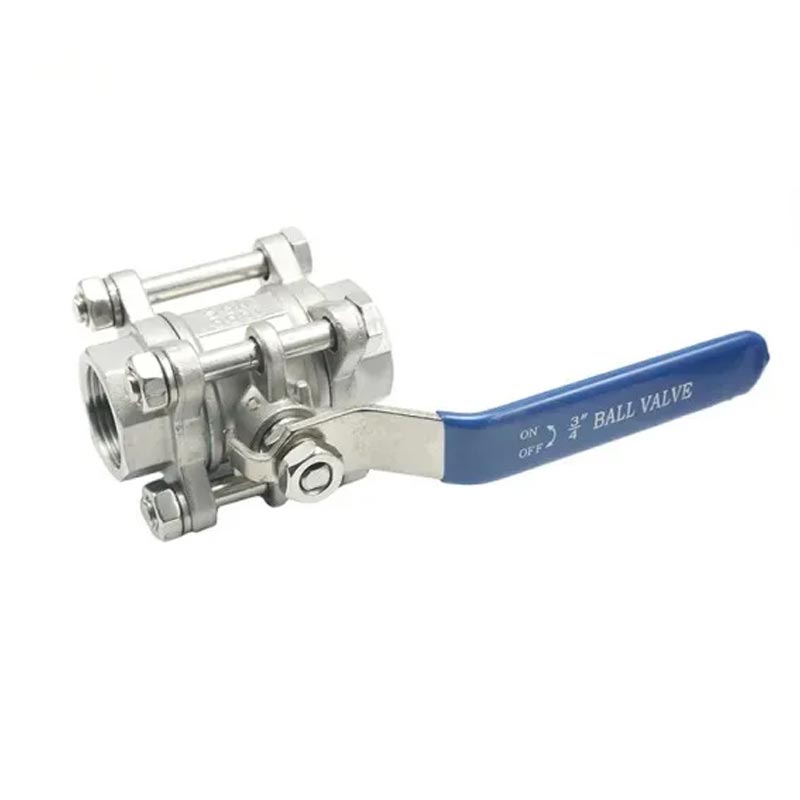

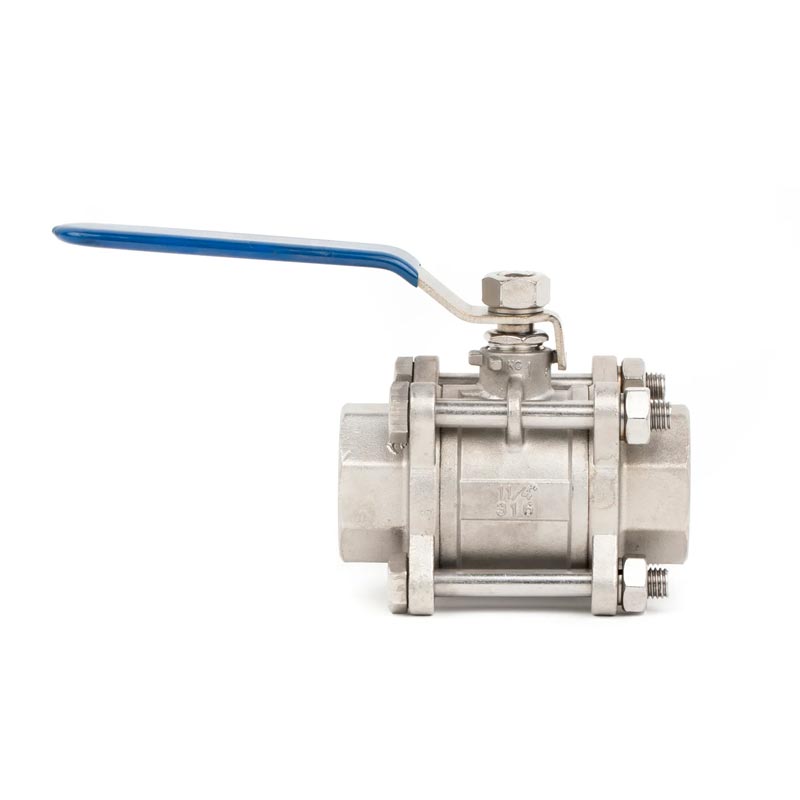

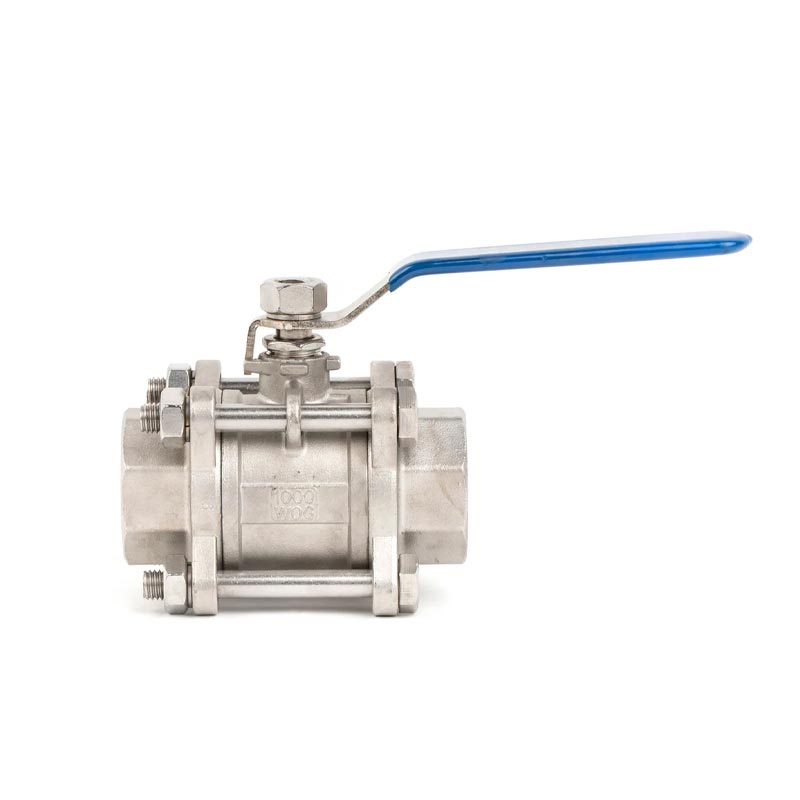

The Joepai Stainless Steel Threaded 3-PC Ball Valve offers unparalleled reliability and performance for demanding industrial applications. Its versatile design and corrosion resistant stainless steel body make it an excellent choice for industries such as chemical processing, water treatment, food and beverage, and oil and gas. With its easy to maintain 3 piece design and secure threaded connections, this valve ensures leak tight performance and long lasting durability. Choose JOEPAI for your valve choices and enjoy high quality, support, and global service.
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
| 1 | CAP | CF8M/CF8/WCB | 8 | STEM | SS316/SS304SS |
| 2 | BOLT WASHER | SS304/SS/SS316 | 9 | THRUST WASHER | PTFE |
| 3 | HEX NUT | SS304/SS/SS316 | 10 | PACKING | PTFE |
| 4 | BOLT | SS304/SS/SS316 | 11 | GLAND | SS304/SS |
| 5 | BODY | CF8M/CF8/WCB | 12 | SPRING WASHER | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | BLOCK ONLY RETREAT | SS |
| DN | G | D | L | W | H1 | H2 | E1 | E2 | Ra | Rb |
| 6 | 1/4" | 6 | 60 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
| 10 | 3/8" | 10 | 60 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
| 15 | 1/2" | 14 | 75 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
| 20 | 3/4" | 19 | 80 | 9 | 9 | 45 | R3 | R3 | 18 | 21 |
| 25 | 1" | 24 | 90 | 11 | 11 | 55 | R3 | R3.5 | 21 | 25 |
| 32 | 11/4" | 32 | 110 | 11 | 11 | 60 | R3 | R3.5 | 21 | 25 |
| 40 | 11/2" | 38 | 120 | 14 | 14 | 75 | R3.5 | R4.5 | 25 | 35 |
| 50 | 2" | 50 | 140 | 14 | 14 | 83 | R3.5 | R4.5 | 25 | 35 |
| 65 | 21/2" | 65 | 185 | 17 | 17 | 108 | R3.5 | R4.5 | 25 | 35 |
| 80 | 3" | 80 | 205 | 17 | 17 | 116 | R4.5 | R5.5 | 35 | 51 |
| 100 | 4" | 98 | 240 | 22 | 22 | 130 | R4.5 | R5.5 | 35 | 51 |
Stainless Steel Threaded 3-PC Ball Valve control hot air ducts must have good sealing performance, because hot air stoves are high-temperature and high-pressure equipment, and the fuel used is also flammable, explosive, and toxic, so they must have good sealing performance. The hot blast stove system is equipped with cold air ducts, hot air switches, etc.
Among them, the cold air duct needs to ensure sealing performance and is usually welded with steel plates with a thickness of 4-12mm. To address the thermal stress caused by the difference in cold air temperature between summer and winter, it is necessary to install expansion rings and Stainless Steel Threaded 3-PC Ball Valves on the cold air ducts. The support of the cold air duct should be kept away from the expansion ring to avoid hindering the free expansion and contraction of the cold air duct.
