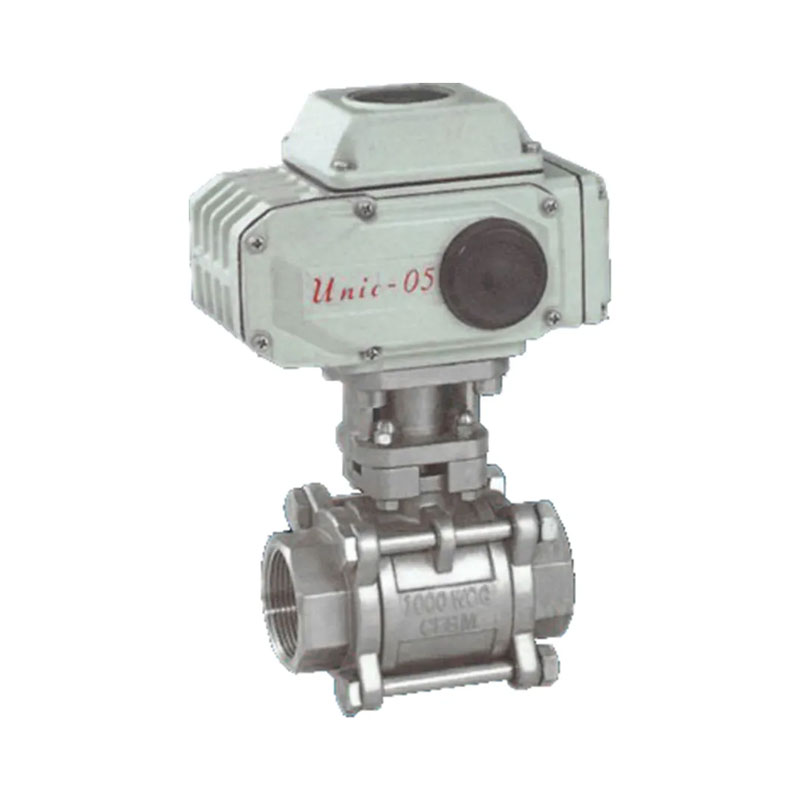

The JOEPAI supplier provide 90 Pneumatic 3PC Ball Valve which can be tightly closed with only a 90 degree rotation and a small rotational torque. The completely equal valve body cavity provides a low resistance, straight through flow channel for the medium. It is generally believed that ball valves are most suitable for direct opening and closing, but recent developments have designed ball valves to have throttling and flow control functions.
Wenzhou JOEPAI Valve Co., Ltd. is a professional industrial fluid control solution enterprise integrating design, research and development, manufacturing, and sales. It is located in Longwan District, Wenzhou City, Zhejiang Province, adjacent to the airport and conveniently located. Welcome customers from home and abroad to cooperate sincerely and create brilliance together!
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
| 1 | CAP | CF8M/CF8/WCB | 8 | STEM | SS316/SS304SS |
| 2 | BOLT WASHER | SS304/SS/SS316 | 9 | THRUST WASHER | PTFE |
| 3 | HEX NUT | SS304/SS/SS316 | 10 | PACKING | PTFE |
| 4 | BOLT | SS304/SS/SS316 | 11 | GLAND | SS304/SS |
| 5 | BODY | CF8M/CF8/WCB | 12 | SPRING WASHER | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | BLOCK ONLY RETREAT | SS |
| DN | G | D | L | W | H1 | H2 | E1 | E2 | Ra | Rb |
| 6 | 1/4" | 6 | 60 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
| 10 | 3/8" | 10 | 60 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
| 15 | 1/2" | 14 | 75 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
| 20 | 3/4" | 19 | 80 | 9 | 9 | 45 | R3 | R3 | 18 | 21 |
| 25 | 1" | 24 | 90 | 11 | 11 | 55 | R3 | R3.5 | 21 | 25 |
| 32 | 11/4" | 32 | 110 | 11 | 11 | 60 | R3 | R3.5 | 21 | 25 |
| 40 | 11/2" | 38 | 120 | 14 | 14 | 75 | R3.5 | R4.5 | 25 | 35 |
| 50 | 2" | 50 | 140 | 14 | 14 | 83 | R3.5 | R4.5 | 25 | 35 |
| 65 | 21/2" | 65 | 185 | 17 | 17 | 108 | R3.5 | R4.5 | 25 | 35 |
| 80 | 3" | 80 | 205 | 17 | 17 | 116 | R4.5 | R5.5 | 35 | 51 |
| 100 | 4" | 98 | 240 | 22 | 22 | 130 | R4.5 | R5.5 | 35 | 51 |
Body Material: Stainless Steel CF8 / CF8M
Three-piece body for in-line maintenance
Aluminum alloy pneumatic actuator with ISO 5211 mounting
Double-acting / Spring-return (fail-safe)
PTFE / RPTFE / Cavity-filled seat (optional)
End Connection: Threaded / Welded / Flanged (customizable)
Pressure Rating: 1000WOG / PN63
Temperature Range: -20°C to +180°C
Standards: ISO 5211, API 598, EN 12266-1
