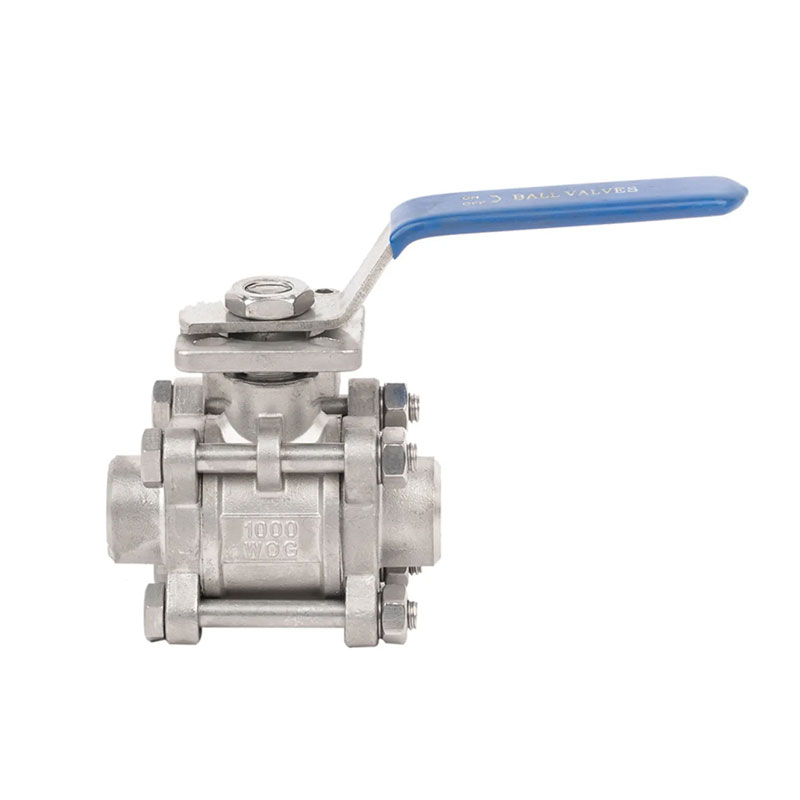

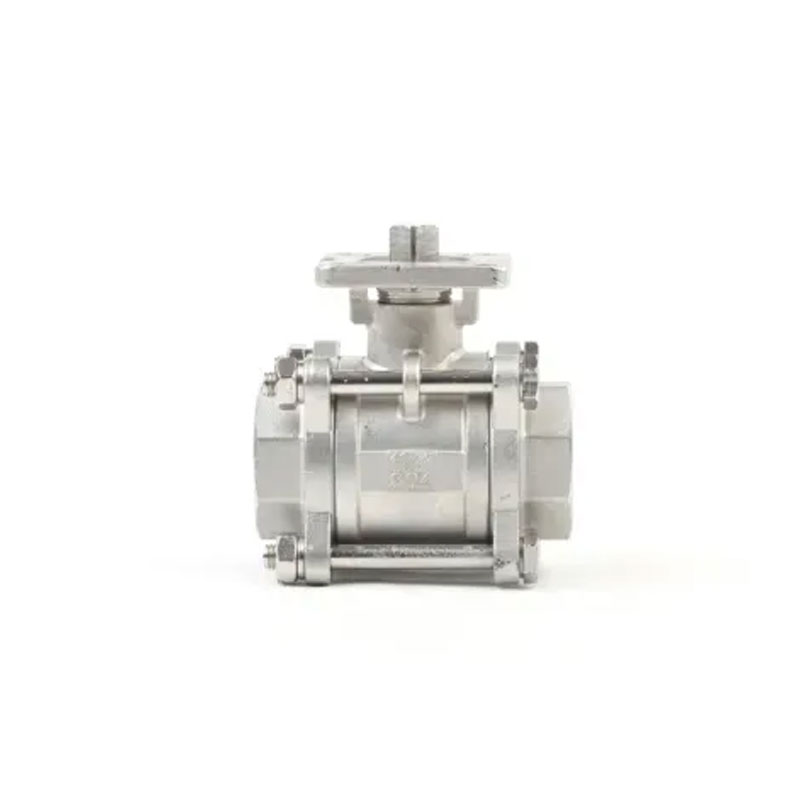

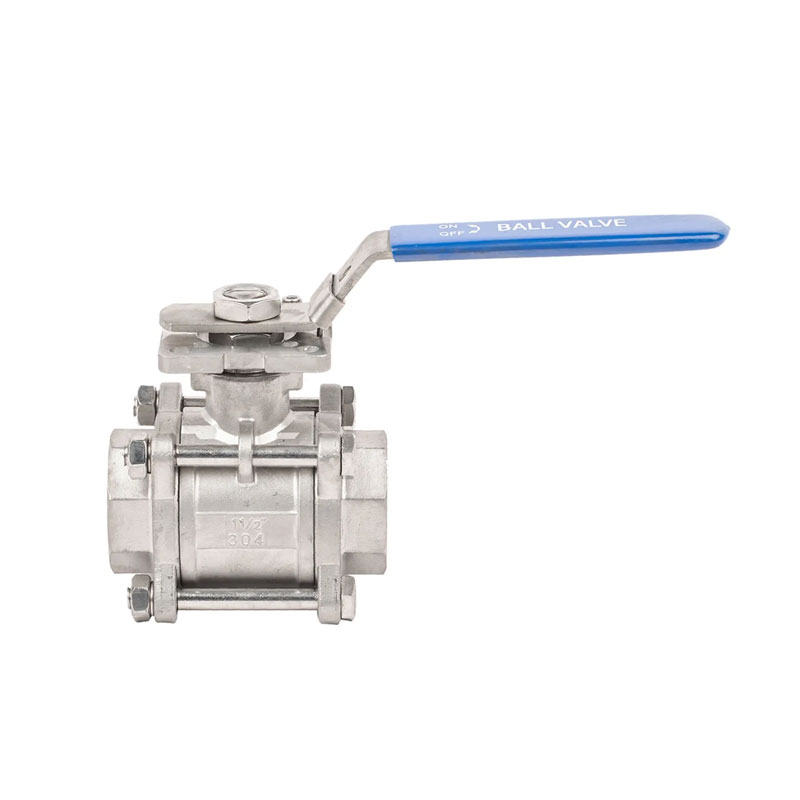

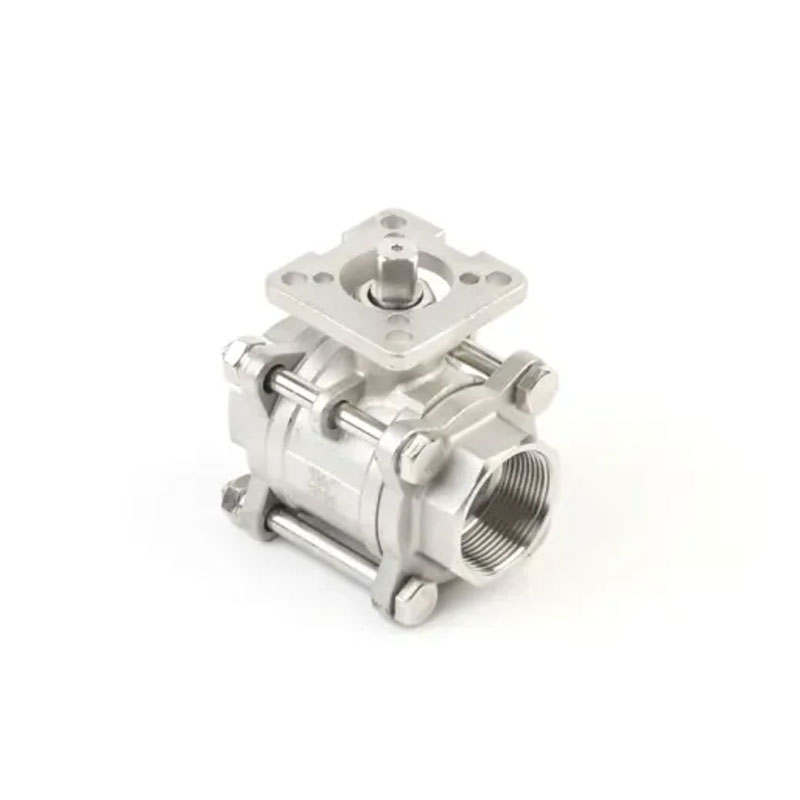

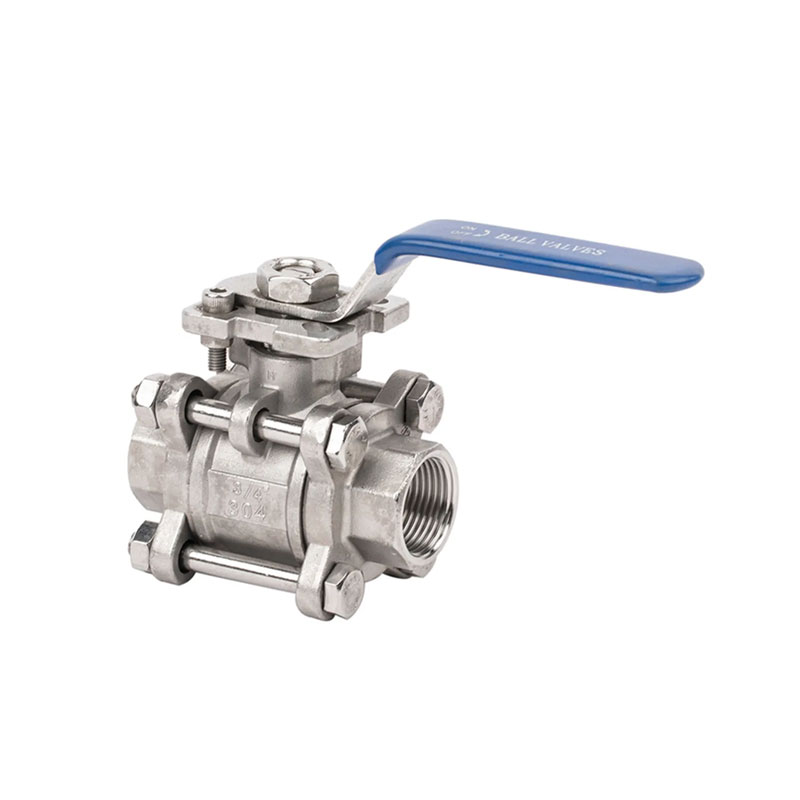

3PC Threaded Ball Valve

The 3PC Threaded Ball Valve produced by Wenzhou Joepai Valve Co., Ltd. maintains an ISO 9001 quality system, holds CE, KC, and AS certifications, and emphasizes research and development driven manufacturing. The three piece split design allows for on-site maintenance without disassembling the valve from the pipeline, greatly reducing downtime for critical flow systems.

The threaded end ensures fast and safe connection of medium and low pressure systems, making it the most suitable valve for chemical, oil and gas, water treatment, and general industrial applications, in compliance with API, ANSI, ISO, DIN, and GOST standards.

Product Detail：

THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308

Product Feature:

(1) Low flow resistance;
(2) Simple structure;
(3) Small size and light weight;
(4) The sealing surface material of the 3PC Threaded Ball Valve is made of plastic, which has good sealing performance;
(5) Easy to operate, quick opening and closing, convenient for remote control;
(6) Easy to maintain, the sealing ring is generally movable and easy to disassemble and replace;
(7) When fully open or fully closed, the sealing surfaces of the ball and valve seat are isolated from the medium, and the passage of the medium will not cause erosion of the valve sealing surface.

Main Parts and Materials

Main Dimensions
