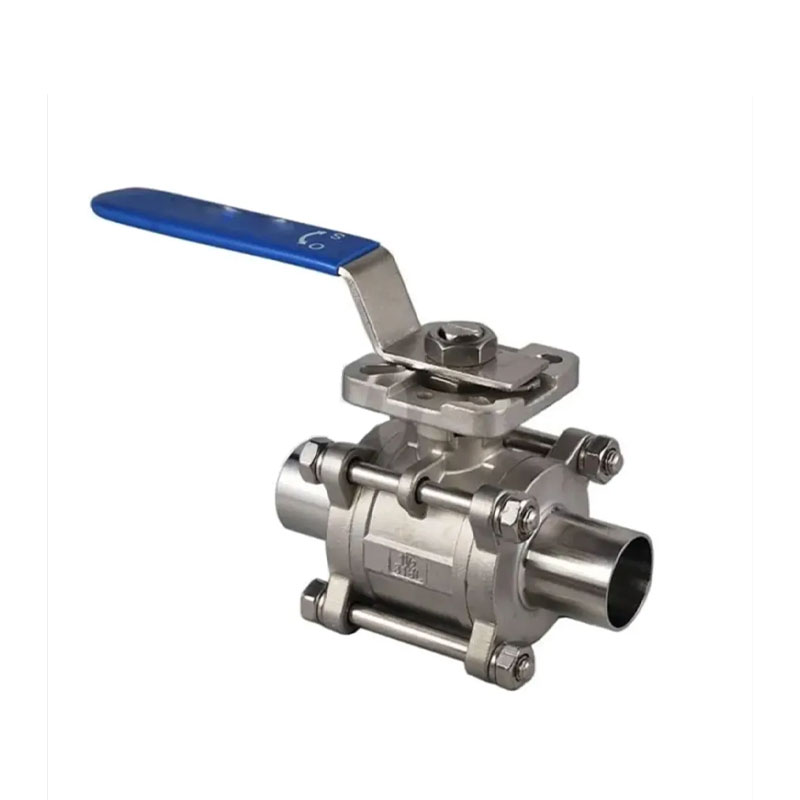

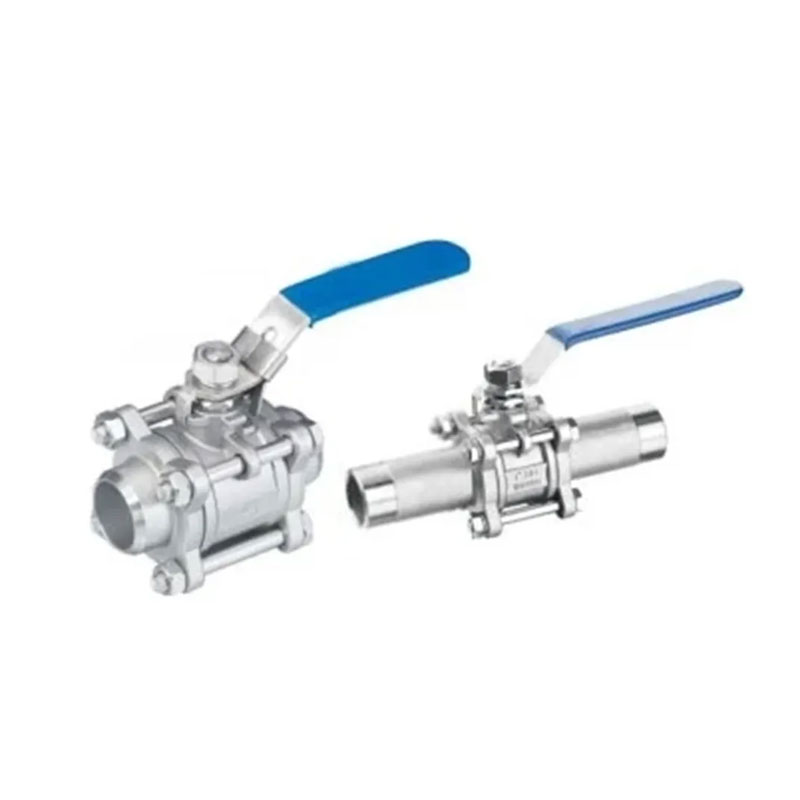

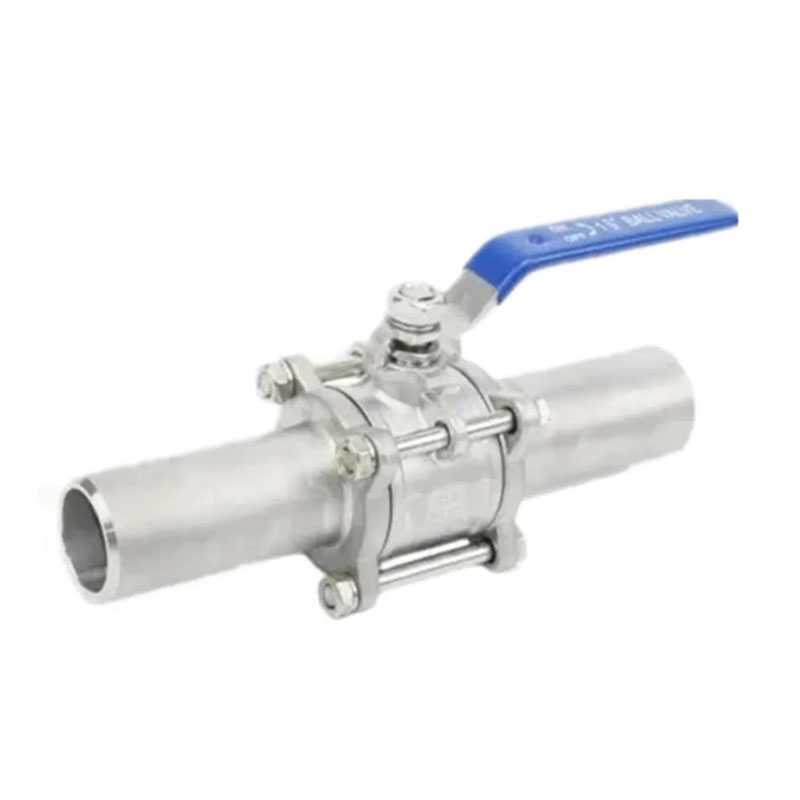

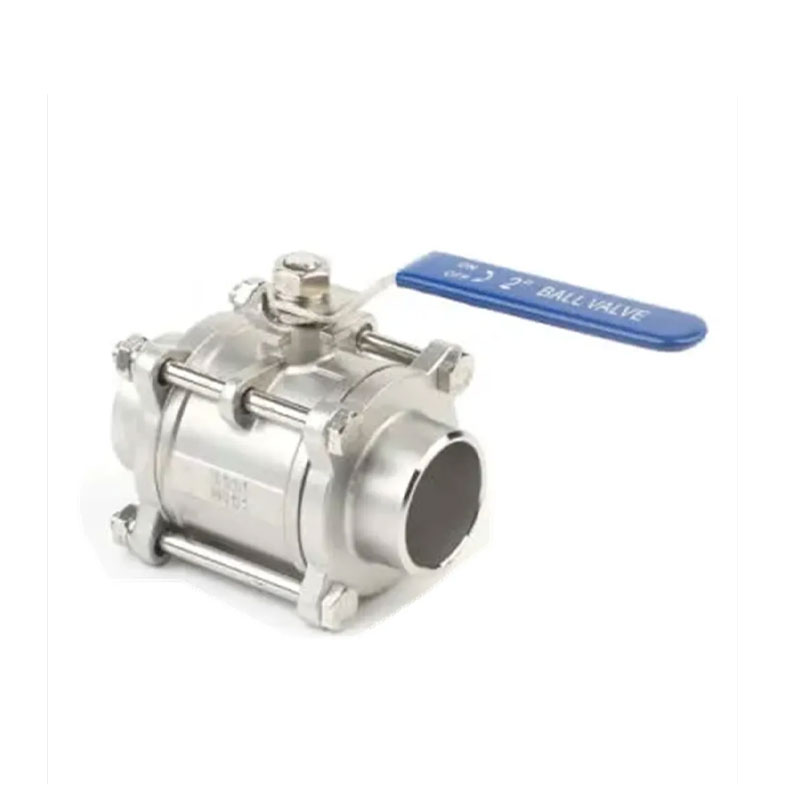

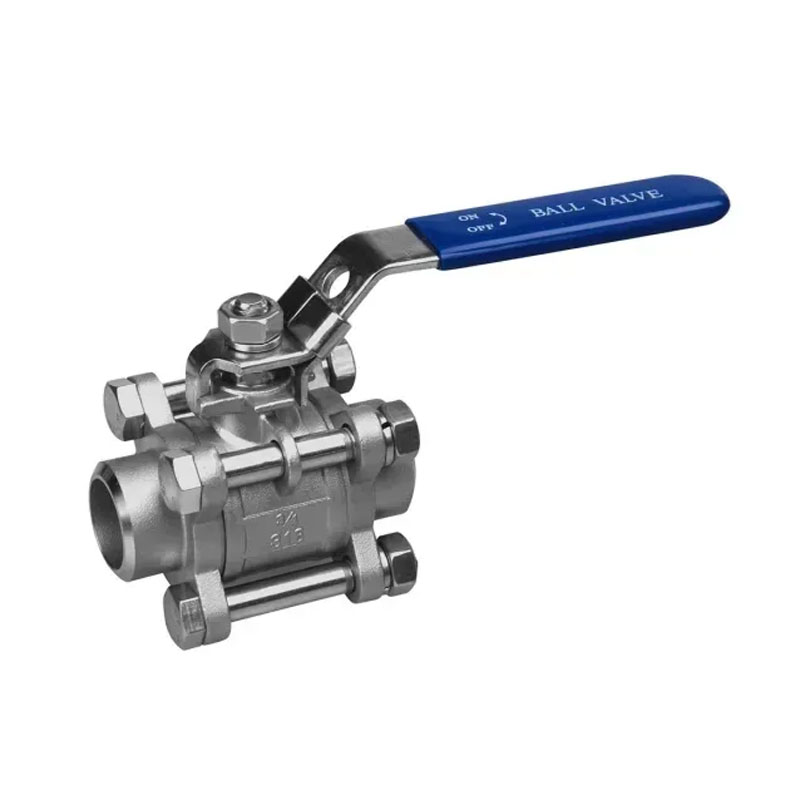

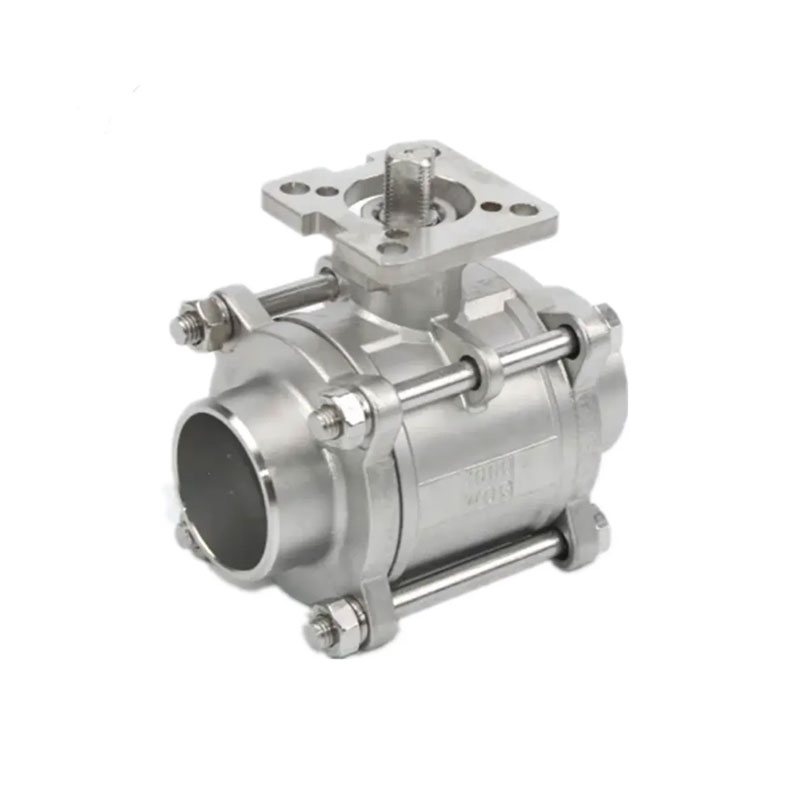

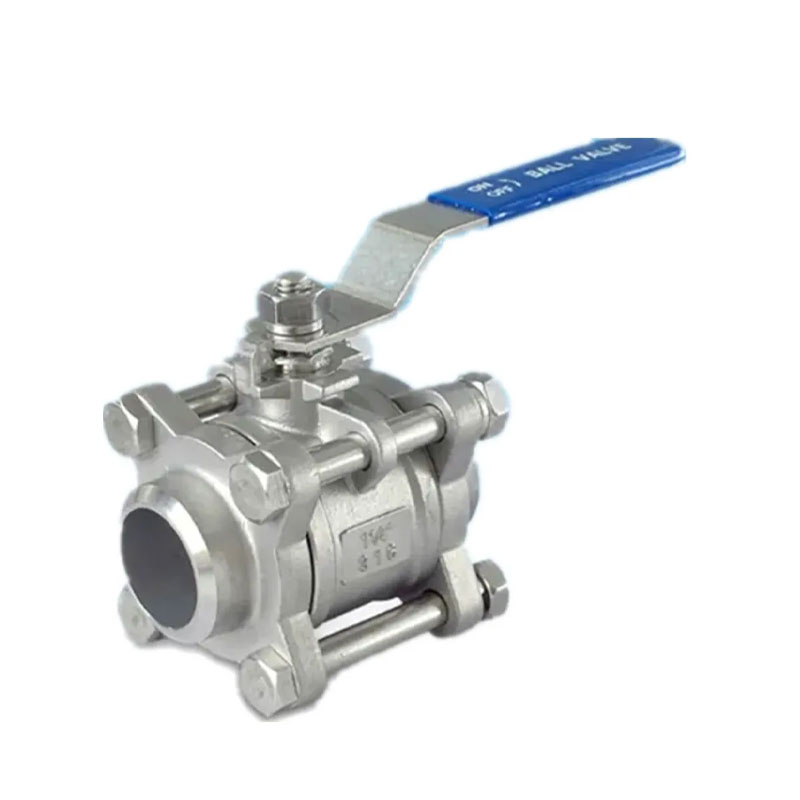

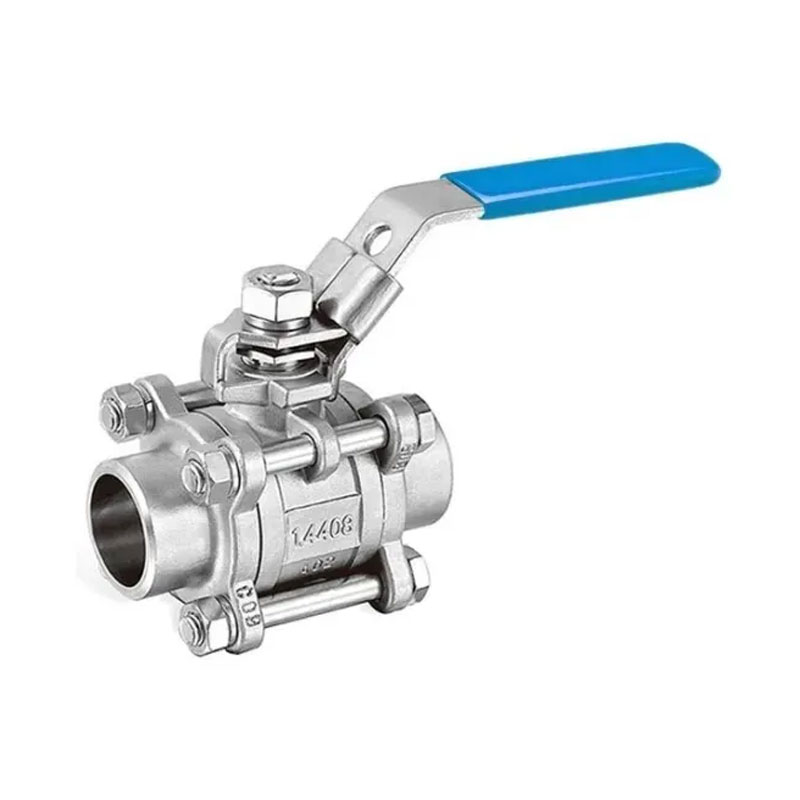

The 3PC Butt-welded Ends Stainless Steel Ball Valve produced by JOEPAI is designed to withstand high pressure, high temperature, and harsh working conditions. It adopts a fully stainless steel forging structure and is connected to the welded end. This design can be integrated with the pipeline system without leakage hazards.
The three piece structure allows for maintenance and cleaning without dismantling the overall welding system, making it suitable for applications in industries such as food, pharmaceuticals, chemicals, and petrochemicals.
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
| 1 | CAP | CF8M/CF8/WCB | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS/SS316 | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS/SS316 | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS/SS316 | 12 | HANDLE | SS304/SS |
| 5 | BODY | CF8M/CF8/WCB | 13 | SPRING WASHER | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS |
| NPS | DN | d | D | L | W | H |
| 1/4" | 8 | 12.5 | 16.4 | 68 | 90 | 53 |
| 3/8" | 10 | 12.5 | 18.6 | 68 | 90 | 53 |
| 1/2" | 15 | 15 | 22.6 | 74 | 90 | 56 |
| 3/4" | 20 | 20 | 28.8 | 84 | 108 | 65 |
| 1" | 25 | 25 | 34.8 | 94 | 123 | 69 |
| 11/4" | 32 | 32 | 44.2 | 110 | 170 | 81.5 |
| 11/2" | 40 | 38 | 50.8 | 126 | 170 | 86.5 |
| 2" | 50 | 49 | 62.8 | 147 | 170 | 102 |
| 21/2" | 65 | 62 | 75.4 | 185 | 240 | 133 |
| 3" | 80 | 76 | 94 | 216 | 240 | 133 |
| 4" | 100 | 94 | 114 | 270 | 280 | 173 |
JOEPAI has advanced CNC machining and testing equipment and a high-quality team dedicated to creating a reliable, durable, and easy to maintain valve product portfolio, covering ball valves, gate valves, check valves, butterfly valves, etc., widely exported to Europe, the Middle East, Southeast Asia, the Americas, and other regions.
