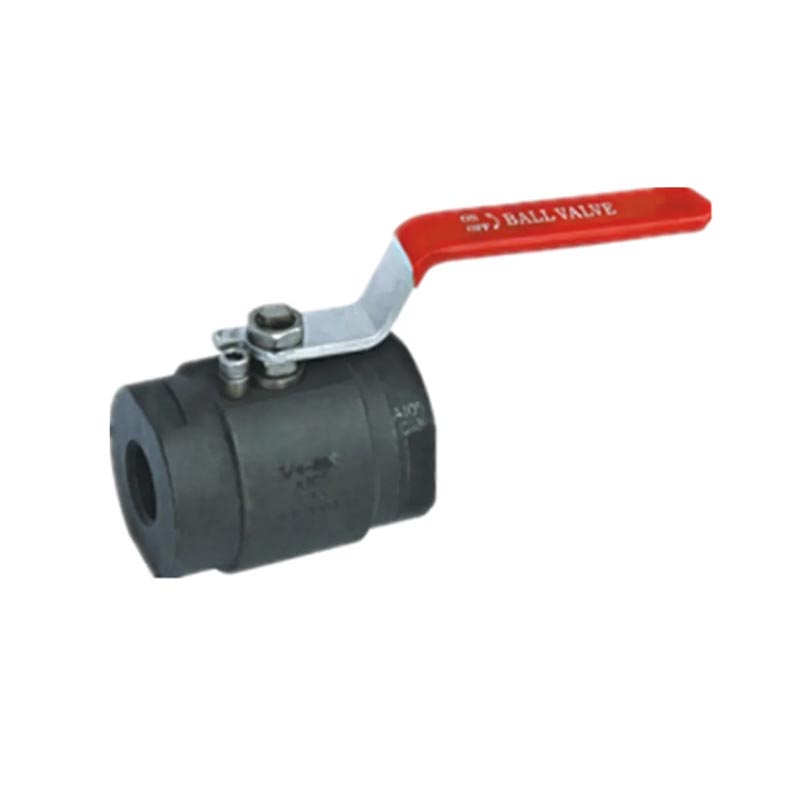

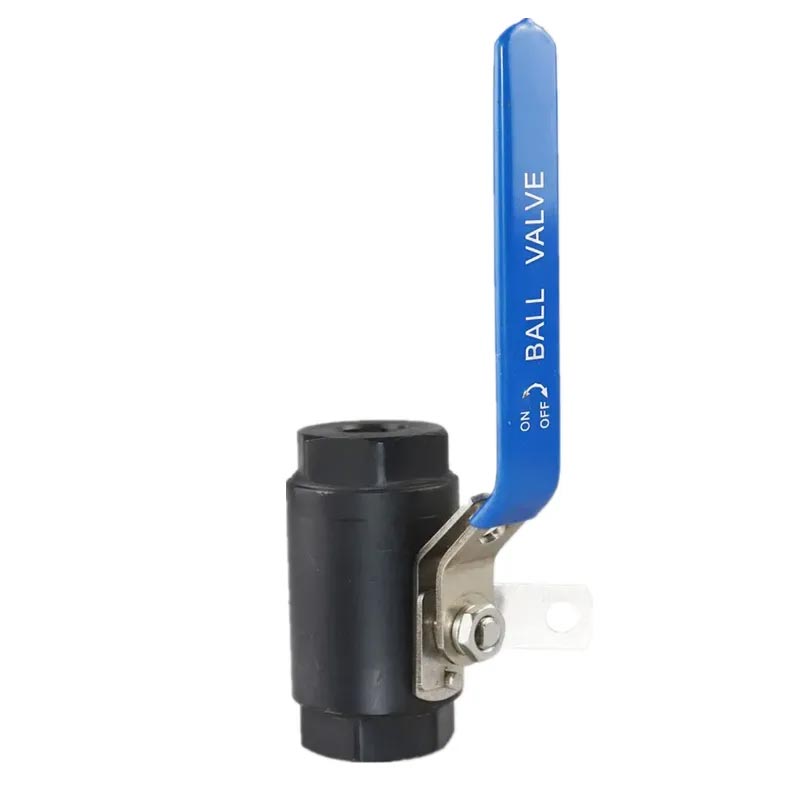

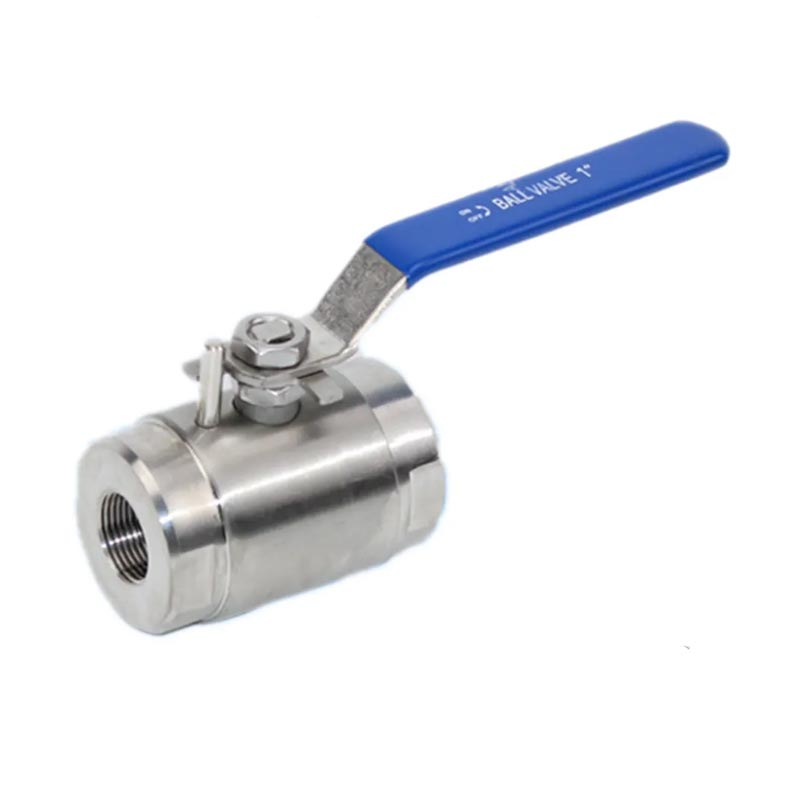

Forged Steel A105 High Pressure Ball Valve 800LB

JOEPAI, a famous valve factory in China, providing Forged Steel A105 High Pressure Ball Valve 800LB.The high-pressure ball valve (800LB) is used in high demand industrial systems such as petroleum, natural gas, chemical, power, and marine engineering. This valve is made of A105, F304, F316 forged steel material, which has high pressure resistance, corrosion resistance, and high temperature resistance characteristics, making stable and reliable operation at a pressure level of 800LB.

Product Features

THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 42MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
FORGING BODY
3000PSI(PN210) W.O.G
MATERIAL STANDARD: S45C/ASTM A105(N)/DIN1.00619
SS304/ASTM F304(L)/DIN1.4308
SS316/ASTM F316(L)/DIN1.4408

Operation and Use

(1) Before operation, it is necessary to confirm that the pipelines and valves have been flushed.
(2) The operation of the valve is completed by driving the valve stem to rotate according to the input signal of the actuator: when it rotates 1/4 turn (90 °) in the forward direction, the valve closes. When rotating 1/4 turn (90 °) in reverse, the valve opens.
(3) When the direction indicator arrow of the actuator is parallel to the pipeline, the valve is in the open state; When the arrow is perpendicular to the pipeline, the valve is in the closed state.

Maintenance

Having a long service life and maintenance free period will depend on the following factors: normal working conditions, maintaining a harmonious temperature/pressure ratio, and reasonable corrosion data

Main Parts and Materials

Main Dimensions

Pay attention to

When disassembling and reassembling, care must be taken to prevent damage to the sealing surface of the parts, especially non-metallic parts. Special tools should be used when removing the O-ring.
During assembly, the bolts on the flange must be tightened symmetrically, gradually, and evenly.
The cleaning agent should be compatible with the rubber parts, plastic parts, metal parts, and working media (such as gas) in the ball valve. When the working medium is gas, gasoline (GB484-89) can be used to clean metal parts. Non metallic parts should be cleaned with purified water or alcohol.
The decomposed individual parts can be cleaned by immersion washing. Metal parts that have not yet decomposed can be cleaned with a clean and fine silk cloth soaked in cleaning agent (to prevent fibers from falling off and adhering to the parts). During cleaning, all grease, dirt, adhesive buildup, dust, and other substances adhering to the wall surface must be removed.
