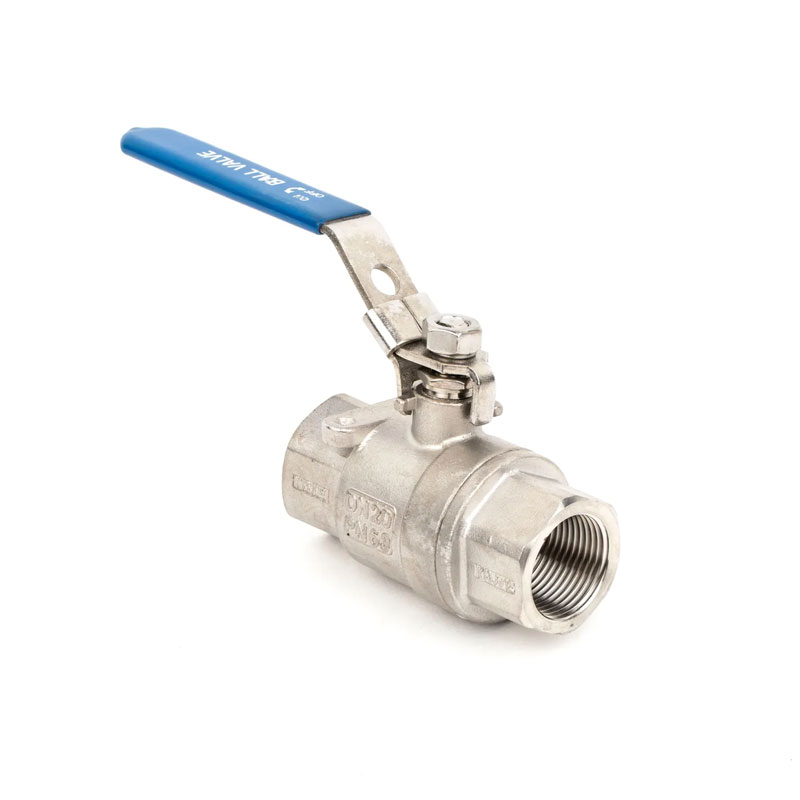

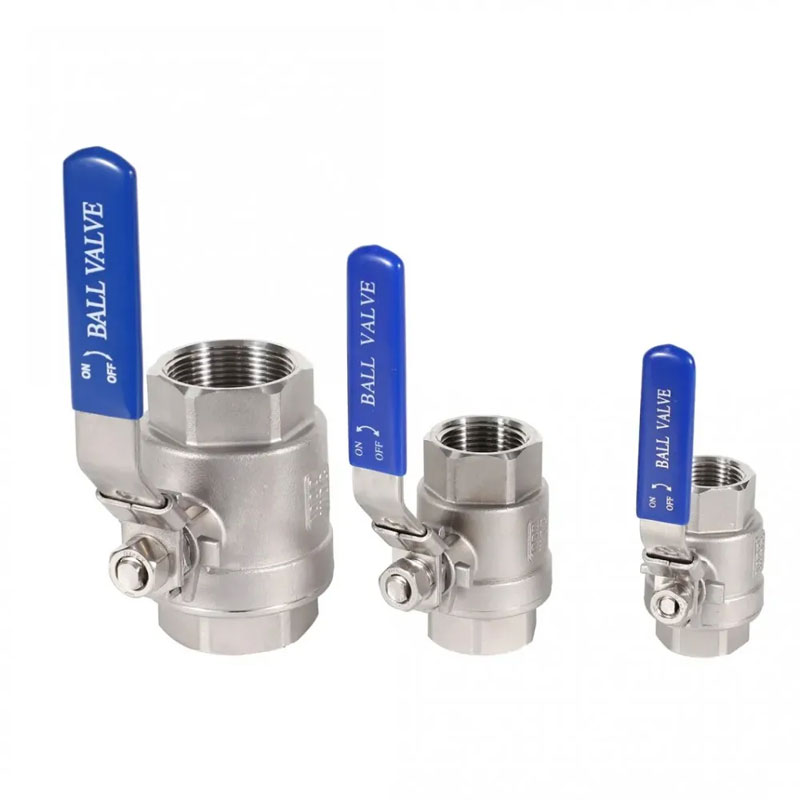

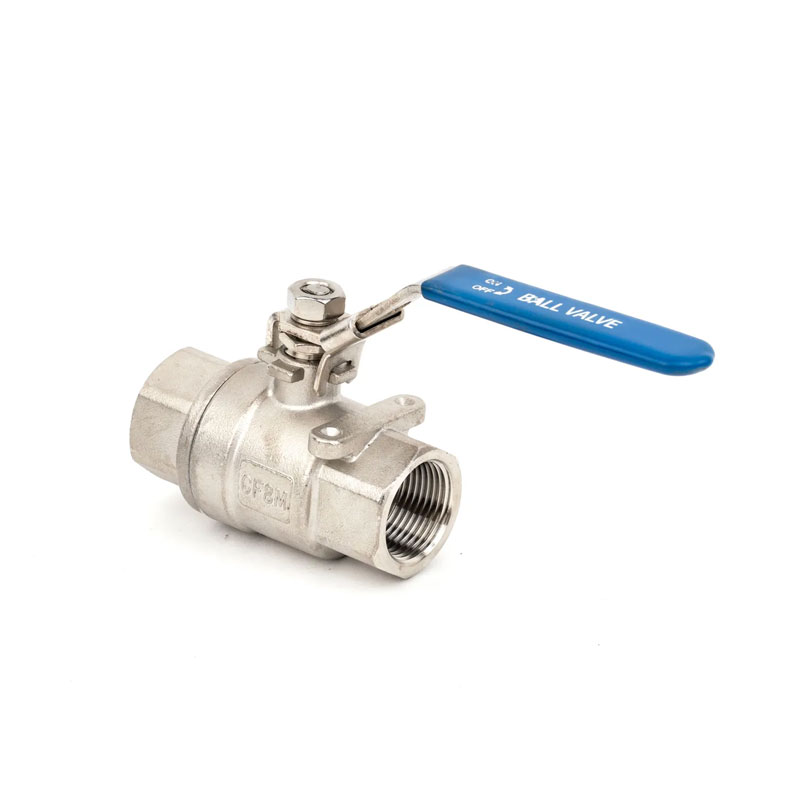

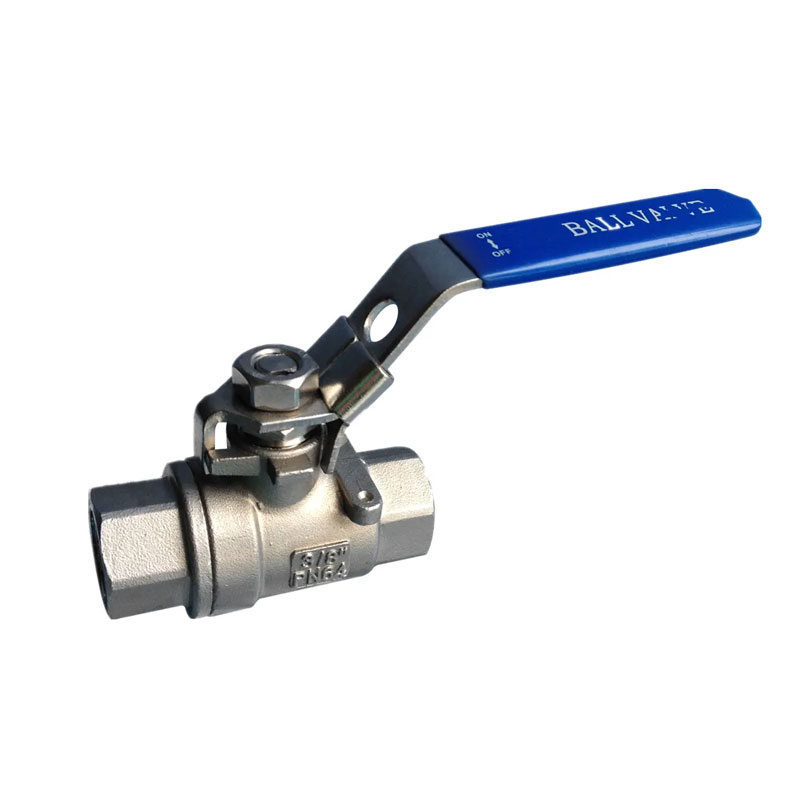

JOEPAI durable Heavy Duty DIN 2PC Stainless Steel Female Threaded Ball Valve It has high corrosion resistance, pressure resistance, and temperature resistance, providing reliable shut-off control and excellent durability for industrial applications.
The full port design ensures minimal pressure drop, while the precision machined internal threads allow for quick installation and leak free connections. It complies with DIN thread standards and has a full bore stainless steel valve body, making it the preferred valve for European and global markets that require long-term high-pressure valve performance.
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE:6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
FACE TO FACE:DIN3202-M3
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
| 1 | Body | WCB/CF8M/CF8 | 8 | Packing | PTFE |
| 2 | Cap | WCB/CF8M/CF8 | 9 | Gland | SS304/SS |
| 3 | Seat | PTFE | 10 | Handle | SS304/SS |
| 4 | Ball | SS316/SS304/SS | 11 | Spring Washer | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 12 | Stem Nut | SS304/SS |
| 6 | Gasket | PTFE | 13 | Locking Piece | SS304/SS |
| 7 | Thrust Washer | PTFE | 14 | Plastic Cover | Plastic |
| NPS | DN | D | L | W | H | Ra | Rb |
| 1/2" | 15 | 15 | 75 | 110 | 71 | 18 | 4 |
| 3/4" | 20 | 20 | 80 | 122 | 67.5 | 18 | 4 |
| 1" | 25 | 25 | 90 | 122 | 70 | 18 | 5 |
| 11/4" | 32 | 32 | 110 | 170 | 80 | 25 | 5 |
| 11/2" | 40 | 38 | 120 | 170 | 91 | 25 | 5 |
| 2" | 50 | 50 | 140 | 170 | 98 | 50 | 5 |
| 21/2" | 65 | 64 | 185 | 210 | 128 | - | - |
| 3" | 80 | 76 | 205 | 240 | 134 | - | - |
| 4" | 100 | 100 | 240 | 314 | 160 | - | - |
Heavy Duty DIN 2PC Stainless Steel Female Threaded Ball Valves are suitable for air, steam, water, gas, petroleum and petrochemical products, corrosive media, etc. They are widely used in various fields such as petroleum, chemical, metallurgical, light industry, papermaking, power plants, refrigeration, etc.
The two-piece internal thread ball valve product has many characteristics such as compact structure, exquisite appearance, intelligent control, excellent performance, good quality, and convenient use.
It is a manually operated ball valve with a 90 ° rotation angle. Excellent sealing performance, high flow capacity, low flow resistance coefficient, simple structure, easy maintenance, and long service life.
Two piece internal thread ball valves are usually used in applications with strict sealing requirements. In addition to controlling gas, liquid, and steam media, they are also suitable for controlling sewage and media containing fibrous impurities.
