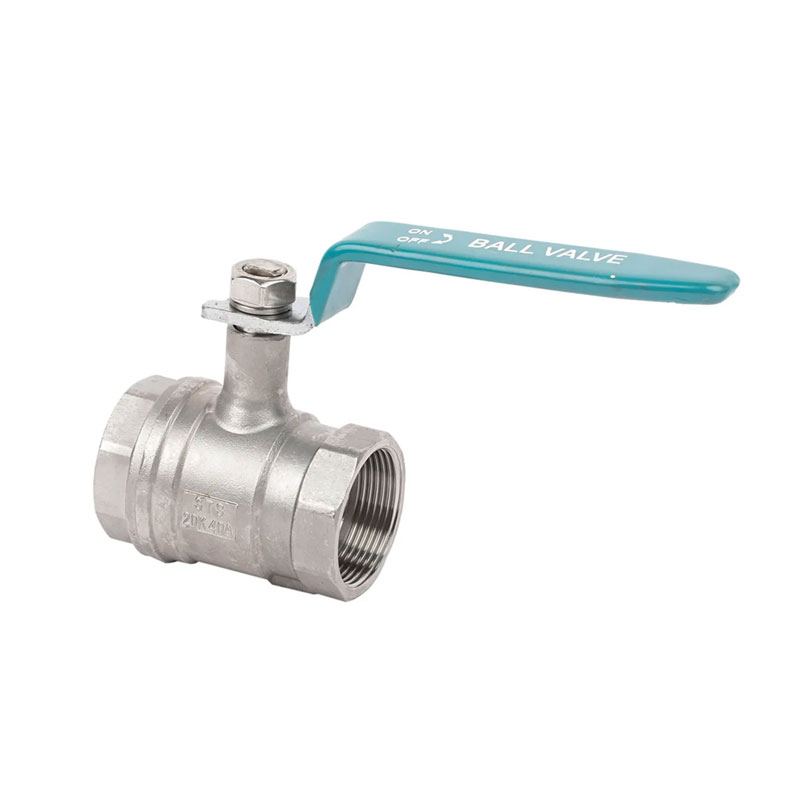

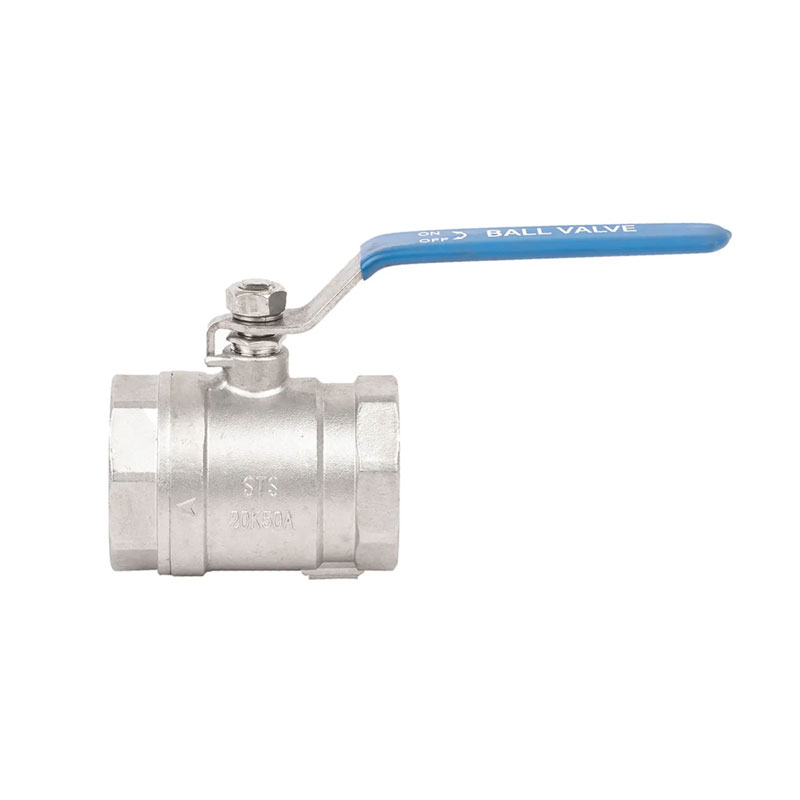

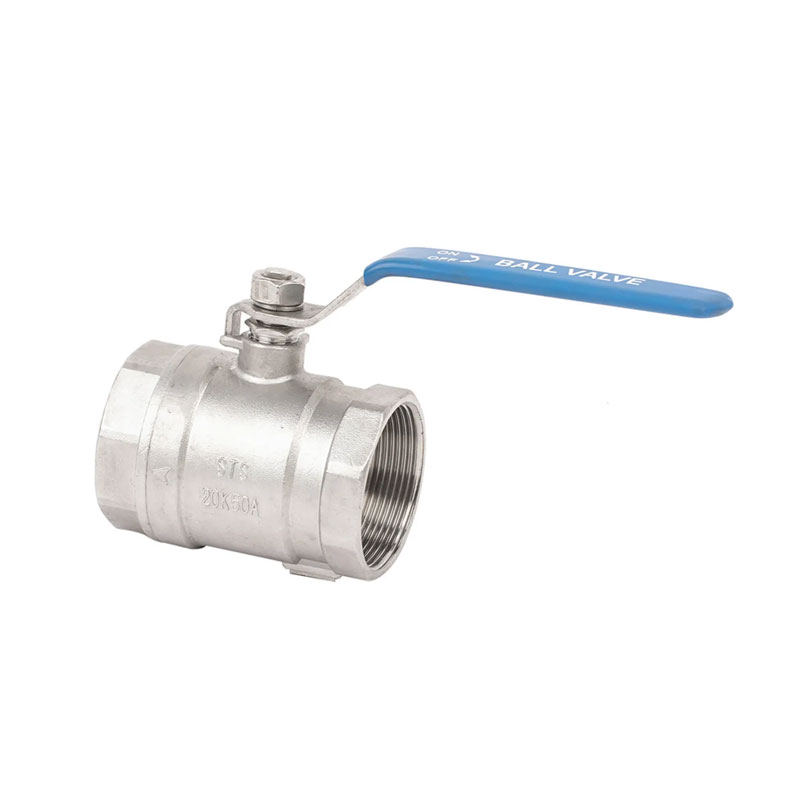

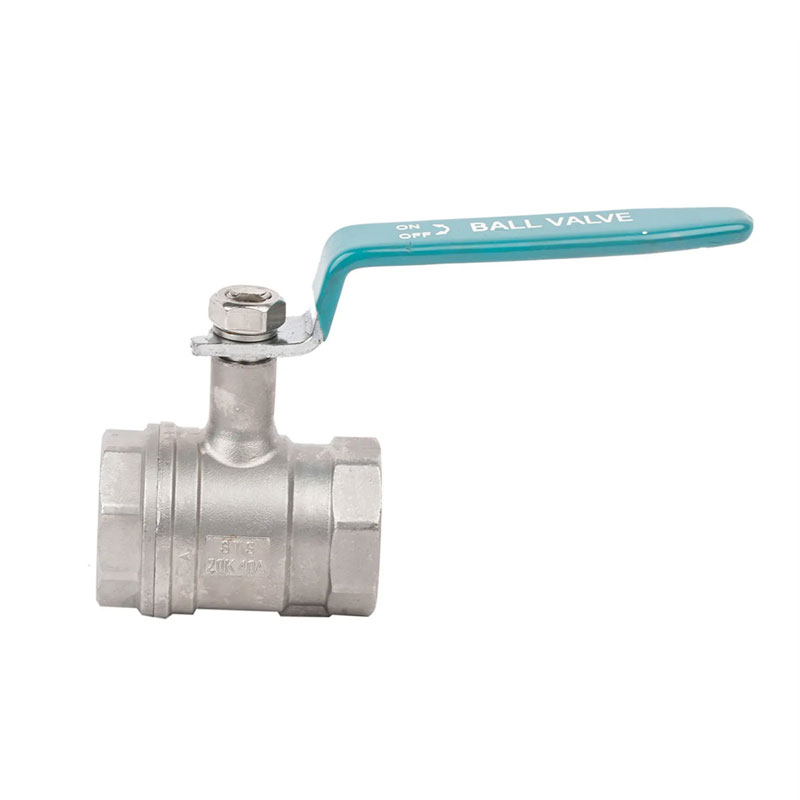

SUS304 Threaded Korea Type Reduced Bore Ball Valve

SUS304 Threaded Korea Type Reduced Bore Ball Valve made in JOWPAI factory adopts a reduced diameter design, optimizing flow control and economical fluid regulation. It features a durable stainless steel structure, reliable sealing, and easy threaded connection. The valve structure complies with KC certification standards.

Product Detail：

1. Investment casting body
2. Working pressure 800/1000 psi 10k for W.O.G.
3. Adjustable stem packing
4. Pure Teflon seals and seats
5. Temperature range: -60 to 450 °F
6. Blow-out proof stem, solid ball as per customer request
7. 100% leakage tested at 100 psi air under water
8. Hydrostatic test pressure: 1500psi
9. Locking device (option)
10. Lever Operated

Main Parts and Materials

Main Dimensions

Product Advantage：

1. The fluid resistance is small, and its resistance coefficient is equal to that of a pipe segment of the same length.
2. Simple structure, small size, and light weight.
3. Tight and reliable, the sealing surface material of SUS304 Threaded Korea Type Reduced Bore Ball Valve is widely made of plastic, with good sealing performance, and has also been widely used in vacuum systems.
4. Easy to operate, quick opening and closing, only need to rotate 90 ° from fully open to fully closed, making it convenient for remote control.
5. Easy maintenance, simple ball valve structure, and generally movable sealing rings make disassembly and replacement relatively convenient.
6. When fully open or fully closed, the sealing surfaces of the ball and valve seat are isolated from the medium, and when the medium passes through, it will not cause erosion of the valve sealing surface.
7. It has a wide range of applications, with diameters ranging from a few millimeters to several meters, and can be used from high vacuum to high pressure.
