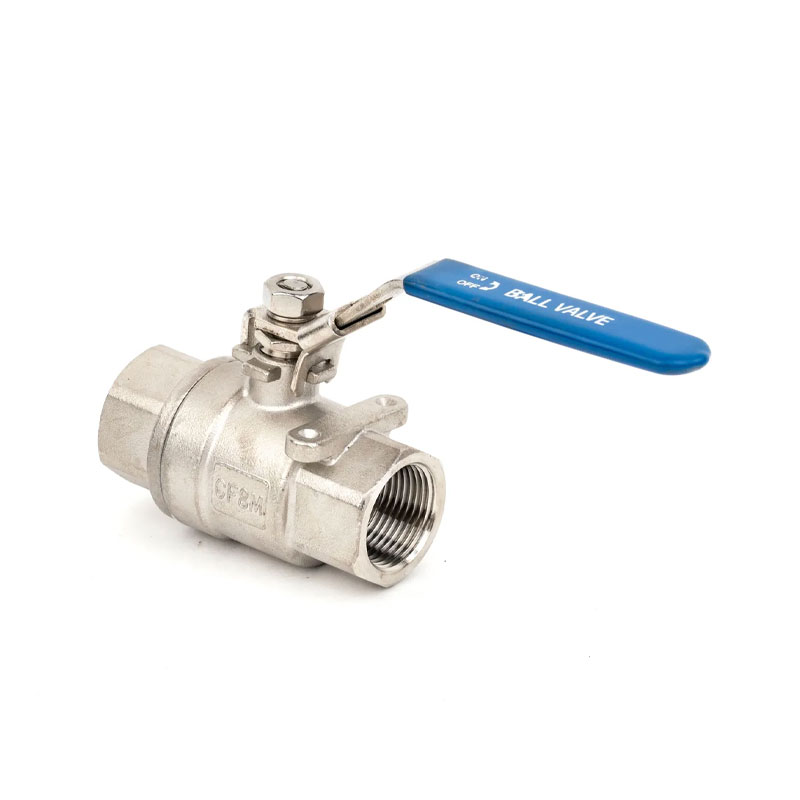

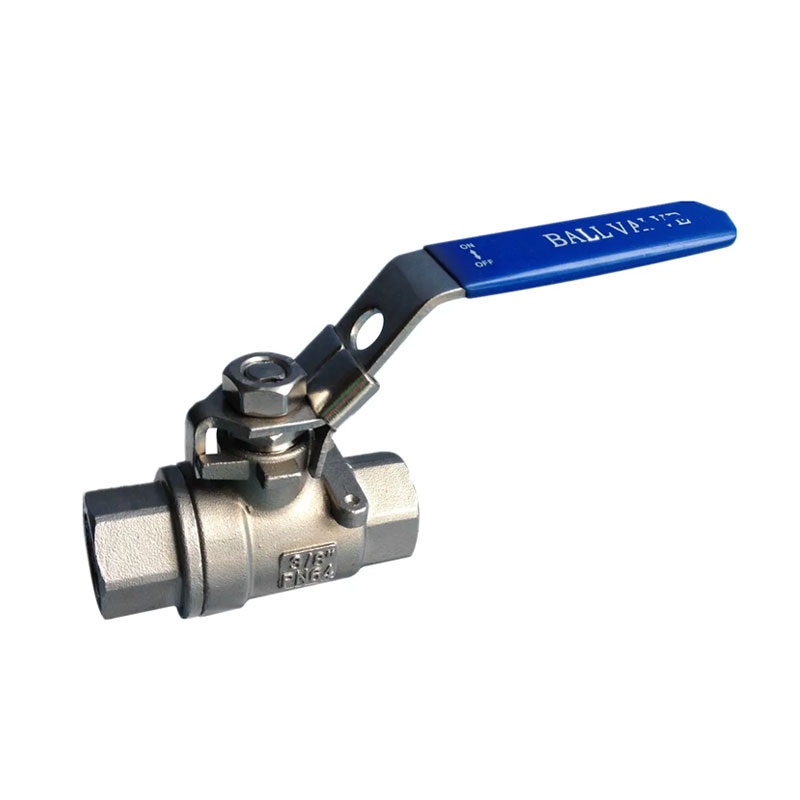

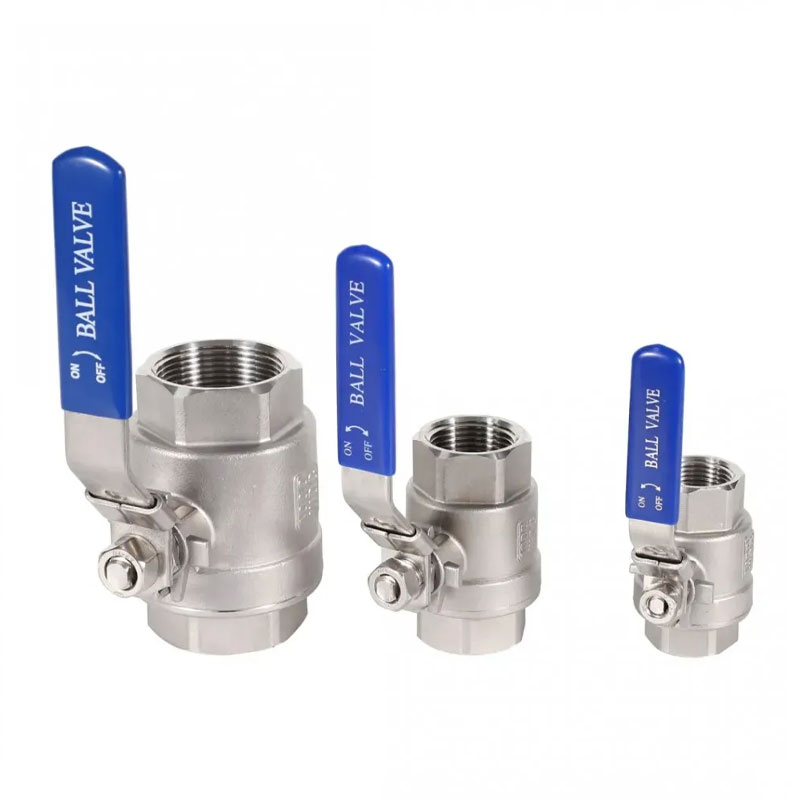

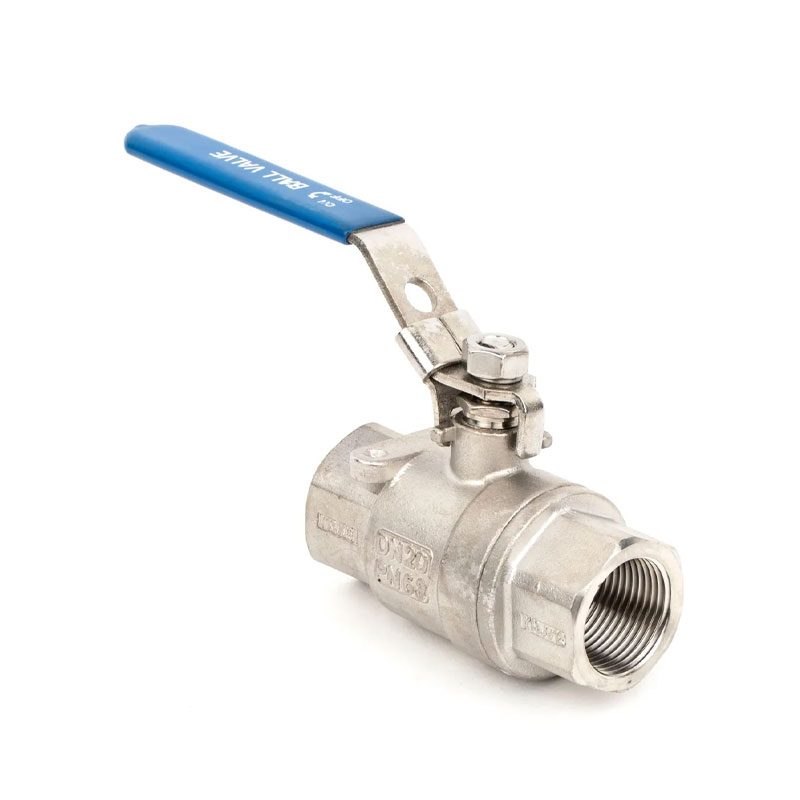

Key specifications of the 2PC 1000WOG PSI Stainless Steel Threaded Ball Valve are listed below for quick selection.
| Thread Standard | NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A |
|---|---|
| Max Pressure | 6.4MPa (1000PSI / PN64) |
| Temperature Range | -20°C ~ 232°C |
| Suitable Medium | Water, Oil, Air and Some Corrosive Liquids |
| Design Features | Blow-out Proof Stem / Full Port |
| Body | Investment Casting Body |
| Pressure Class | 1000PSI (PN64) W.O.G |
| Material Standard |
S45C / ASTM A216 GR-WCB / DIN1.00619 SS316 / ASTM A351 GR-CF8M / DIN1.4408 SS304 / ASTM A351 GR-CF8 / DIN1.4308 |
JOEPAI 2PC 1000WOG PSI Stainless Steel Threaded Ball Valve with full port inner channel reduces fluid resistance and avoids medium blockage during liquid and gas circulation. The sealing part uses high wear-resistant PTFE material. Even after tens of thousands of frequent opening and closing operations, the threaded ball valve will not have valve rod and end face leakage.
All threaded interfaces of JOEPAI Stainless Steel Threaded Ball Valve are CNC precision tapped, the thread fit is tight, and no medium seepage occurs under 1000WOG high pressure environment. To verify corrosion resistance, every batch undergoes a 240-hour salt spray aging test, and the valve surface remains intact after the test, suitable for coastal factories and chemical corrosive workshops.

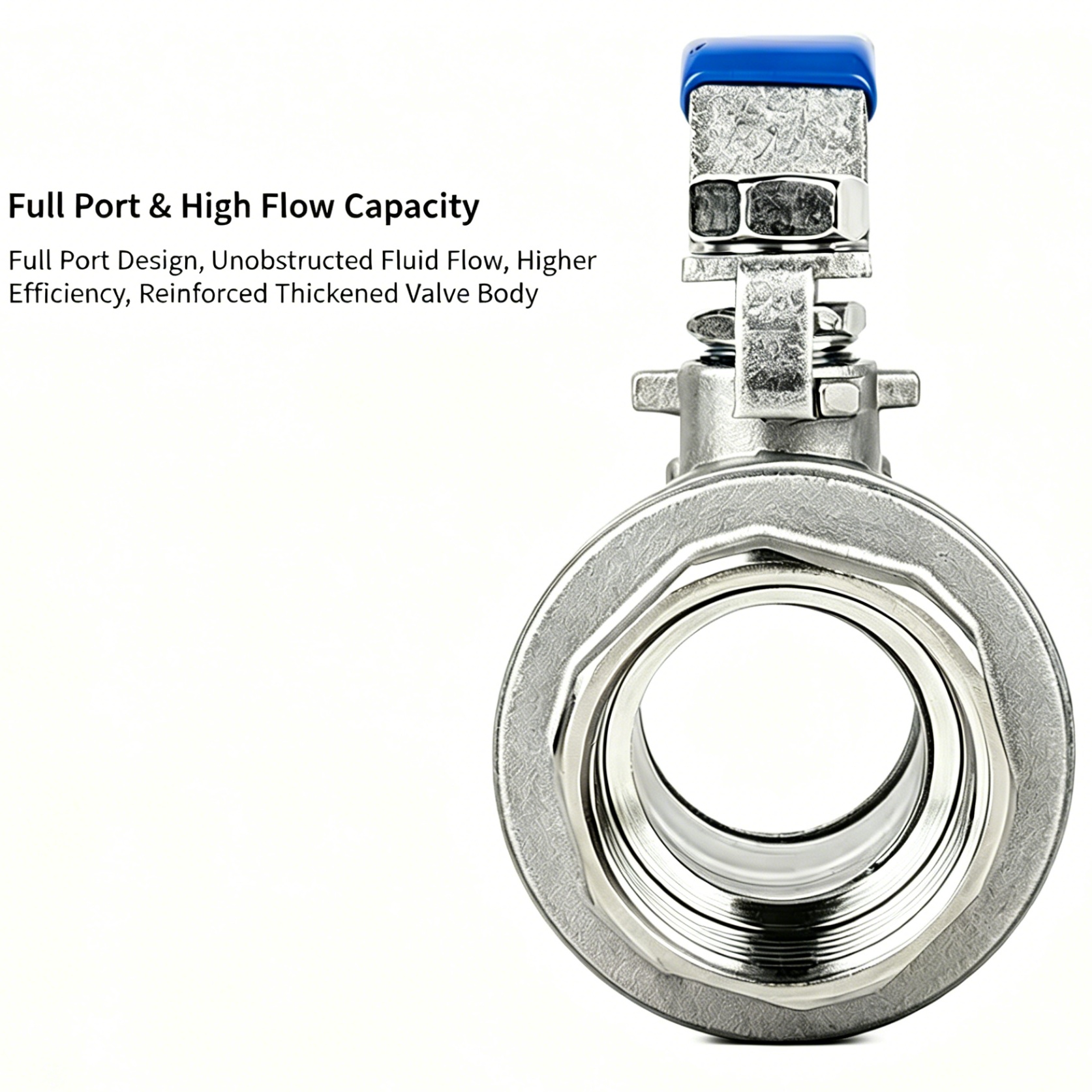

Reduces fluid resistance and avoids medium blockage, ensuring smooth flow of liquid and gas.
Maintains zero leakage after tens of thousands of frequent open/close cycles.
Tight thread fit prevents medium seepage under 1000WOG high pressure.
Valve surface remains intact, suitable for coastal and corrosive environments.
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | WCB / CF8M / CF8 |
| 2 | Cap | WCB / CF8M / CF8 |
| 3 | Seat | PTFE |
| 4 | Ball | SS316 / SS304 / SS |
| 5 | Stem | SS316 / SS304 / SS |
| 6 | Gasket | PTFE |
| 7 | Thrust Washer | PTFE |
| 8 | Packing | PTFE |
| 9 | Gland | SS304 / SS |
| 10 | Handle | SS304 / SS |
| 11 | Spring Washer | SS304 / SS |
| 12 | Stem Nut | SS304 / SS |
| 13 | Locking Piece | SS304 / SS |
| 14 | Plastic Cover | Plastic |
Materials can be customized according to working conditions, media, pressure and temperature requirements.
We supply standard sizes, and we can also accommodate custom orders manufactured in accordance with your drawings. Our engineering team can provide tailored designs to meet specific project requirements.
| NPS | DN | D | L | W | H |
|---|---|---|---|---|---|
| 1/4" | 8 | 11 | 54 | 95 | 50 |
| 3/8" | 10 | 11 | 54 | 95 | 50 |
| 1/2" | 15 | 14 | 62 | 95 | 55 |
| 3/4" | 20 | 19 | 71 | 110 | 60 |
| 1" | 25 | 24 | 79 | 125 | 70 |
| 11/4" | 32 | 32 | 97 | 145 | 75 |
| 11/2" | 40 | 38 | 105 | 170 | 86 |
| 2" | 50 | 49 | 123 | 170 | 95 |
| 21/2" | 65 | 65 | 142 | 210 | 128 |
| 3" | 80 | 80 | 168 | 240 | 134 |
| 4" | 100 | 100 | 208 | 314 | 160 |
Dimensions are for reference. Please confirm final drawings with JOEPAI before ordering.
JOEPAI 2PC 1000WOG PSI Stainless Steel Threaded Ball Valve is specially designed for high-corrosion media and solves multiple common pain points of industrial pipelines. In chemical processing workshops, frequent switch operations cause ordinary valves to leak quickly, while JOEPAI 1000WOG PSI Stainless Steel Threaded Ball Valve relies on wear-resistant PTFE seal to maintain zero leakage for a long time. For general industrial high-pressure gas and liquid transmission pipelines, many thin-wall valves cannot bear high pressure; JOEPAI 2PC Stainless Steel Threaded Ball Valve thickens the valve body wall to stabilize pressure bearing. In hydraulic fluid control systems, medium impurity erosion shortens valve service life; SS316 material optional JOEPAI 2PC Stainless Steel Threaded Ball Valve greatly extends service cycle.
This series of JOEPAI Stainless Steel Threaded Ball Valve has been supplied to machinery, chemical, water treatment and energy industries, with stable cooperation with dozens of overseas industrial purchasers.
Wenzhou Joepai Valve Co., Ltd. was established in 2020, with its predecessor Jingyue Valve Factory founded in 2003. We have more than ten years of experience in stainless steel ball valves, fire hydrants, booster valves and industrial flow control solutions.
Our products are produced in accordance with international standards API, ANSI, JIS, ISO, DIN, GOST, BS and domestic standards JB, GB. We focus on providing customized services to meet the unique needs of global customers for valve supply.
Wenzhou Joepai Valve Co., Ltd. is located in Longwan District, Wenzhou, Zhejiang Province, near the airport, with convenient transportation. The company integrates design, development, manufacturing and sales as a professional industrial flow control solution enterprise.
The company has CAD valve design, UG three-dimensional shaping and a quality inspection test center. Powerful production equipment and perfect testing methods effectively improve product quality and protect customer interests.
Core production equipment: more than 20 high-precision CNC lathes, 1 multifunctional machining center, 2 special pressure test equipment. Testing laboratory: spectral quantitative analyzer, high-precision roundness tester, hardness tester, torque wrench, valve fatigue tester.
JOEPAI has achieved ISO 9001 certification, with EU CE certification for core products, Korean KC certification for ball valves, and Australian AS 2419.2-2009 certification for fire hydrant products. The Dual Booster system is designed to comply with AS 2419.3 technical specifications.
Please contact us for the specific certificate applicable to this model and order quantity.
We offer standard and customized valve products covering gate valves, ball valves, butterfly valves, fire hydrants and stop valves. Our 2PC 1000WOG PSI Stainless Steel Threaded Ball Valve is one of our best-selling products for high-pressure industrial applications.
Yes. Our pre-sales technical team provides 1-to-1 solution design support based on your working parameters (pressure/temperature/medium, etc.), design drawings, or samples, ensuring compliance with international standards such as DIN and ANSI.
We use a digital production line with CNC precision machining and automated assembly (key component error ≤0.01mm), plus a five-level quality inspection system: raw material spectrum detection → assembly air tightness test → high-pressure hydrostatic test (1.5× rated pressure) → final inspection before delivery, with full traceability.
It is normally constructed from SS304 or SS316. Special materials SS304L, SS316L, Duplex stainless steel 2205 and 2507 are also available.
We offer a 12-month warranty from the date of delivery. Products will be repaired or replaced free of charge for quality issues not caused by human factors.
Standard maximum pressure: 1000WOG (PSI) / 6.4MPA (PN64). Temperature range: -20°C to 232°C. For special requirements, pressures of 2000 WOG or even up to 6000 WOG can be customized. Suitable media include water, oil, air, and some corrosive liquids.
Yes. We support sample orders for quality evaluation. Please contact us with your required size, pressure rating and medium, and our team will arrange the sample and delivery details quickly.
We offer flexible MOQ for trial orders and long-term cooperation. Normal delivery time is about 15–30 days after order confirmation, depending on quantity and customization requirements.
Tell us your valve size, pressure rating, medium and quantity. Our team will reply with price, lead time and technical confirmation within 24 hours on working days.
