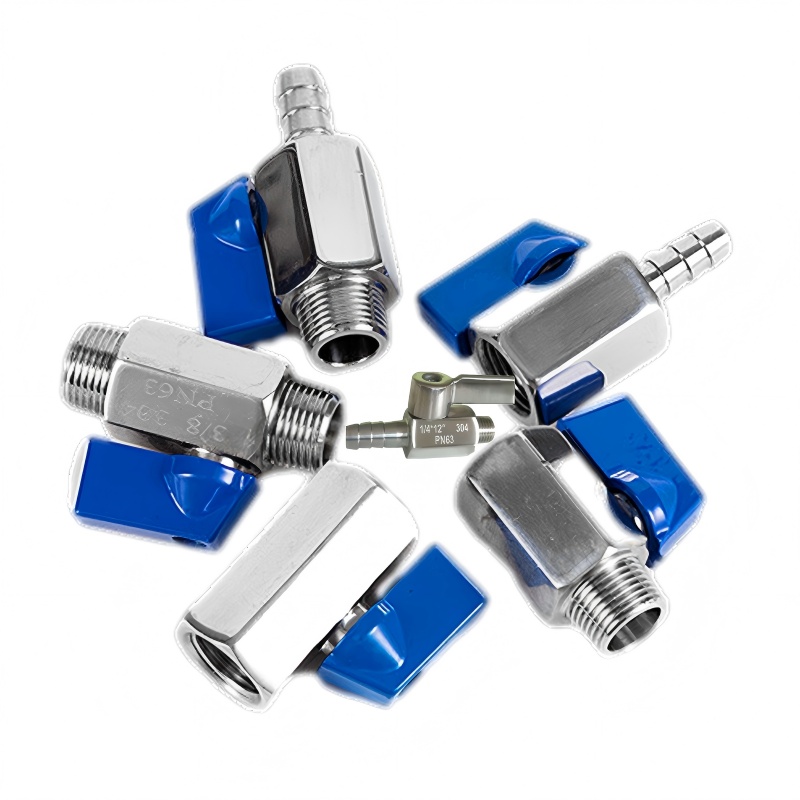

The mini ball valve is a switch used to cut off and connect the medium in the pipeline. It is mainly used to control and regulate the fluid. It can not only easily control the on/off and flow of the pipeline, but also has a beautiful effect. The valve with a working pressure of 1,000PSI(WOG), and made from stainless steel (SS304,SS316), this line of valves can outshine the rest of the mini ball valves on the market. Great for any water, oil, or gas system!
Joepai produced stainless steel mini ball valve with following key features:
1.Compact Design: Precision investment casting with mirror polishing, ideal for potable water and clean fluids.
2.Handle Choices: Aluminum alloy butterfly handle , extended long handle , stainless steel anti-blast handle.
3.90° Quick Shutoff: Low torque rotation, media-isolated sealing for extended lifespan.
4.Temperature Range: -29°C to 232°C , suitable for hot/cold media.
5.Sealing Material Choices: PTFE,RPTFE,PPL, resistant to weak acids/alkalis.
6.Leakproof Design: Blowout proof stem + dual packing, PN63(1,000PSI/WOG) pressure tested.
7.Multiple size choices, including 1/8”,1/4", 3/8", 1/2", 3/4", and 1".
8.Available in the following connection types:
-Male x Female Threaded
-Female x Female Threaded
-Male x Male Threaded
-Hose Barb x Hose Barb
-Hose Barb x Male Threaded
-Hose Barb x Female Threaded
The Threaded Types Compliant with BSP, BSPT, NPT international standards for diverse piping systems.
The Advantages of Hose Barb Connection:
Easy Installation: No need for thread alignment or welding, just insert the hose and fix it with a clamp, which greatly shortens the installation time; Suitable for narrow spaces or scenes that require frequent disassembly (such as laboratory equipment, mobile devices).
Vibration Resistance: The flexibility of the hose can absorb pipeline vibration and avoid the risk of leakage caused by vibration of metal threads (such as vehicle-mounted hydraulic systems).
High Compatibility: Adapt to hoses of different materials (PVC, rubber, PTFE, etc.) to solve the connection problem between pipes of different materials.
-
