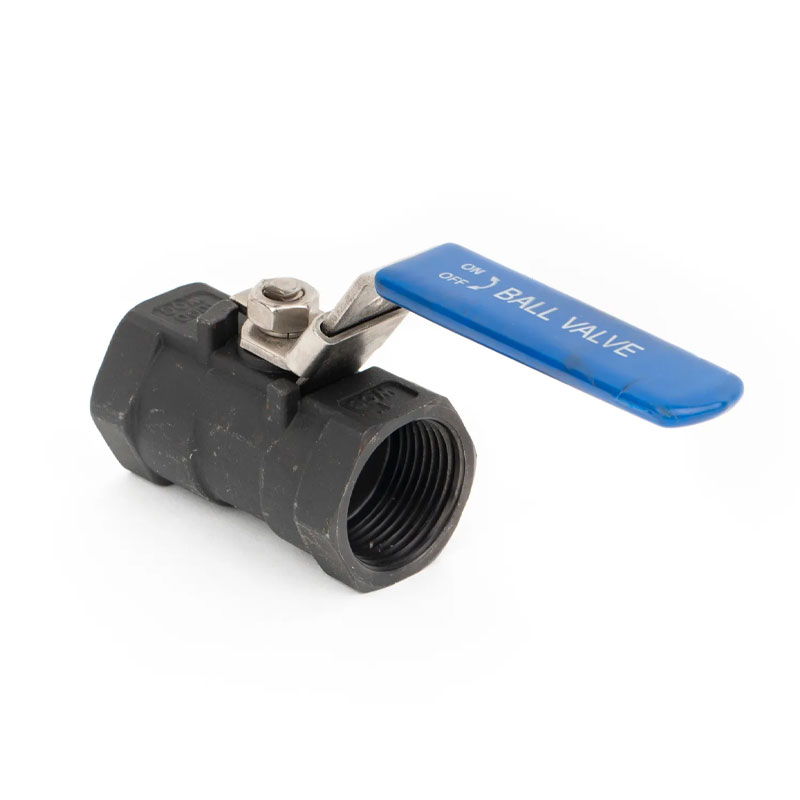

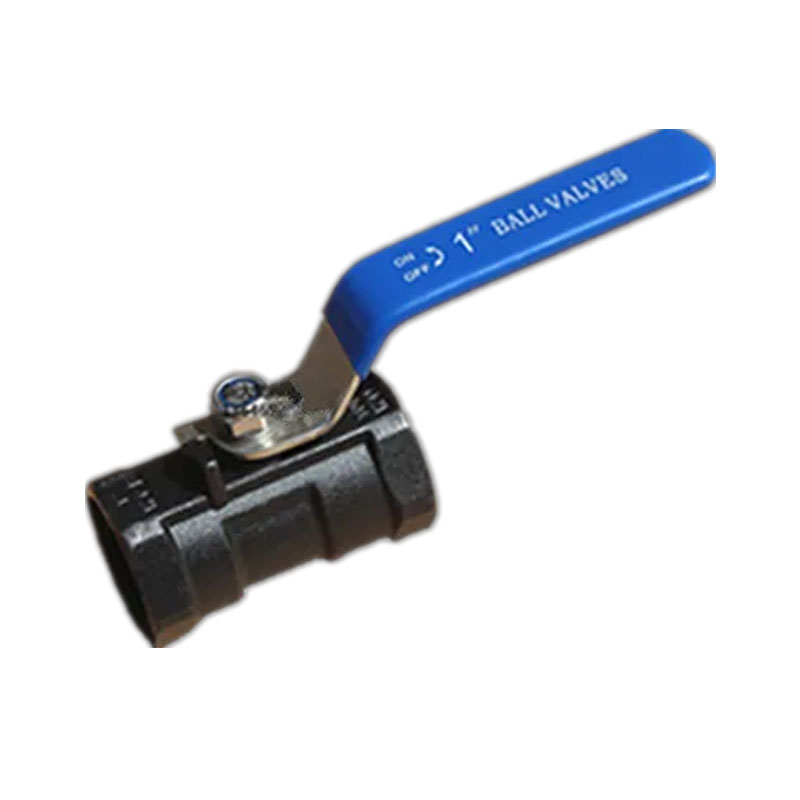

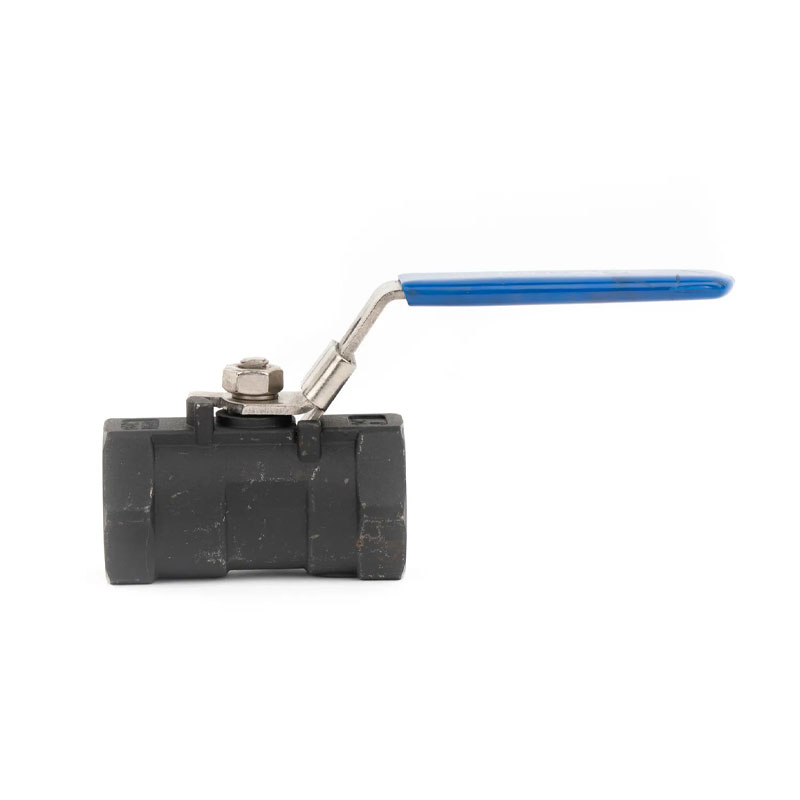

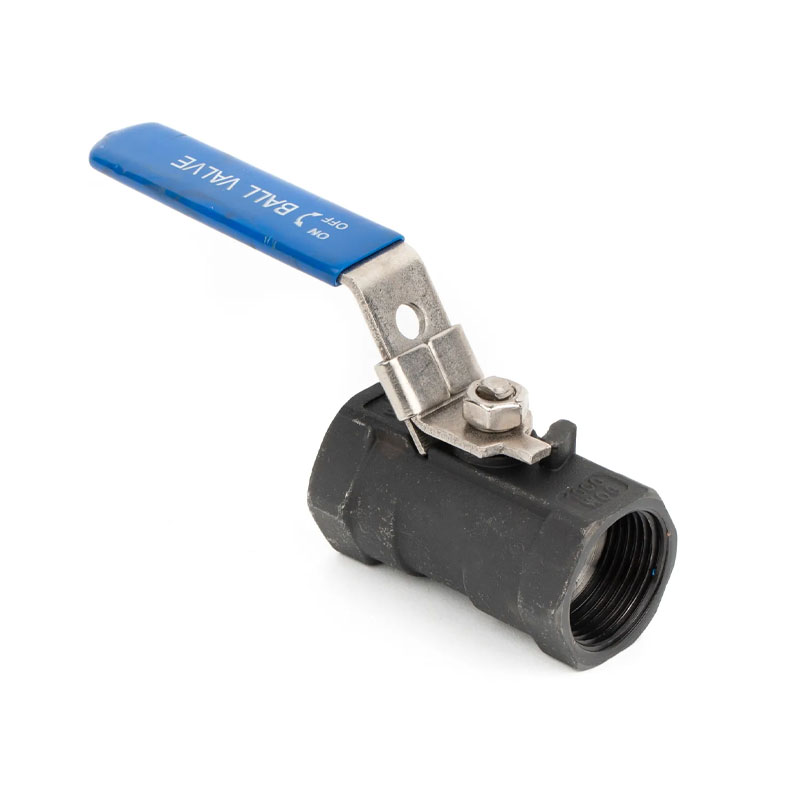

JOEPAI durable Carbon Steel Threaded 1PC Ball Valve made in China demonstrates stable and reliable control performance in high-pressure and frequently operated industrial pipeline systems with its high-strength structure, fast opening and closing, and good sealing performance. It is the most suitable valve for engineering projects and maintenance replacement.
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
REDUCED PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
| 1 | Body | WCB/CF8M/CF8 | 7 | Packing | PTFE |
| 2 | Ball | SS316/SS304/SS | 8 | Gland | SS304/SS |
| 3 | Seat | PTFE | 9 | Handle | SS304/SS |
| 4 | Cap | WCB/CF8M/CF8 | 10 | Spring Washer | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 11 | Stem Nut | SS304/SS |
| 6 | Thrust Washer | PTFE |
| NPS | D | L | H | W |
| 1/4" | 5 | 40 | 74 | 30 |
| 3/8" | 7 | 45 | 74 | 30 |
| 1/2" | 10 | 60 | 95 | 40 |
| 3/4" | 10 | 60 | 95 | 40 |
| 1" | 14 | 70 | 102 | 50 |
| 11/4" | 20 | 80 | 124 | 60 |
| 11/2" | 24 | 85 | 144 | 60 |
| 2" | 32 | 100 | 144 | 70 |
| 21/2" | 38 | 125 | 168 | 90 |
| 3" | 50 | 150 | 192 | 90 |
| 4" | 65 | 195 | 220 | 130 |
Provide OEM and ODM exclusive customization (logo/handle/material, etc.)
100% pressure test qualified before leaving the factory
Multi language labeling and international certification support (ISO, CE, ROHS)
