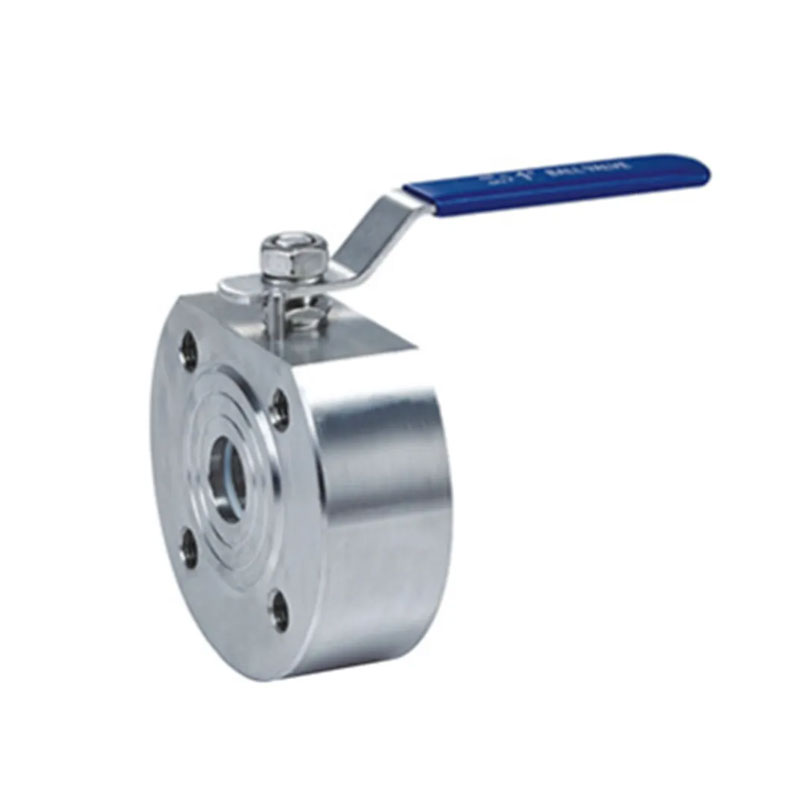

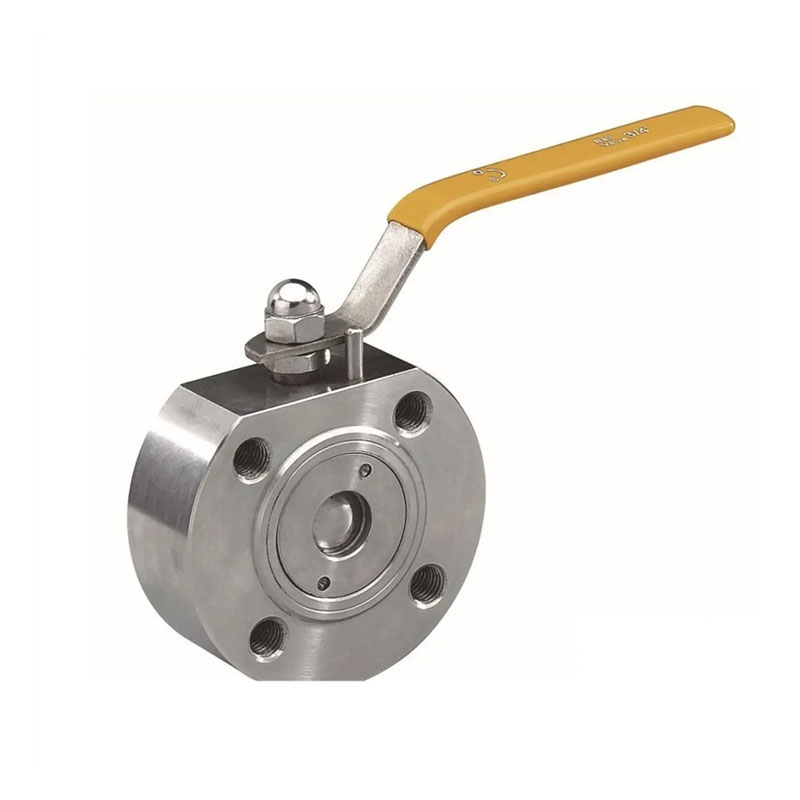

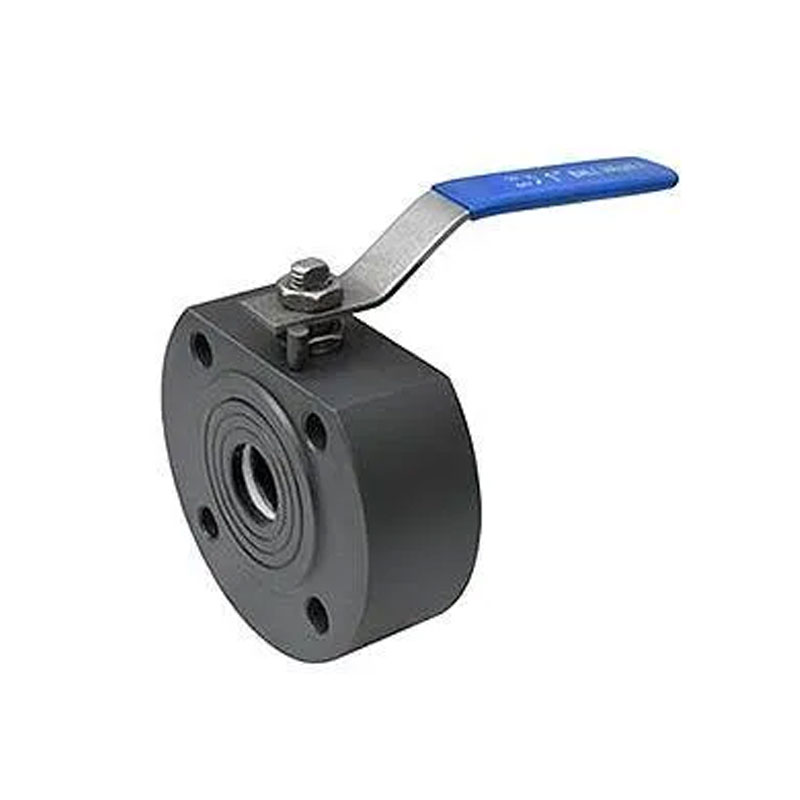

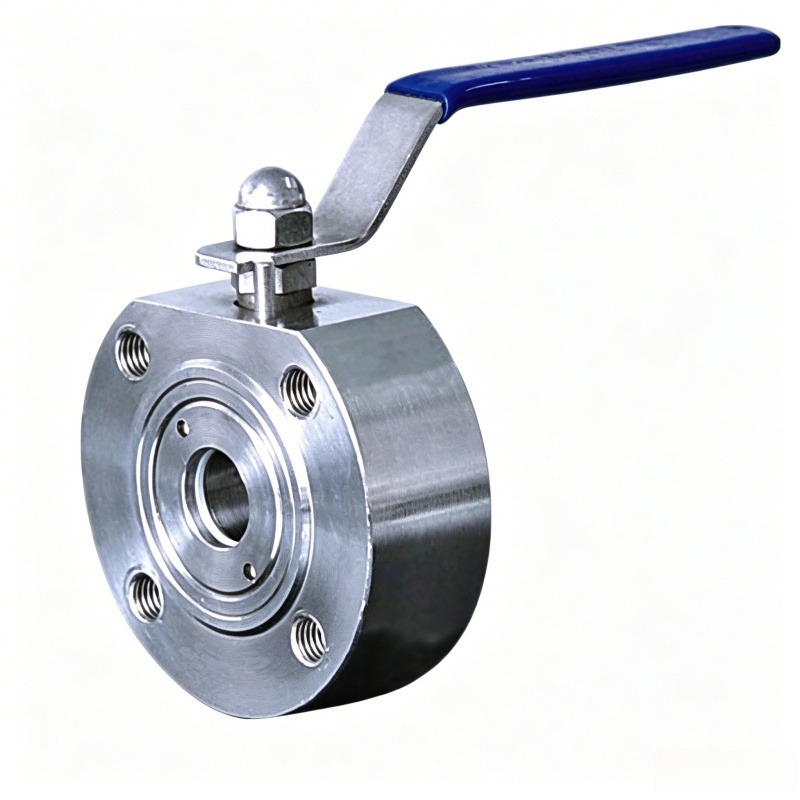

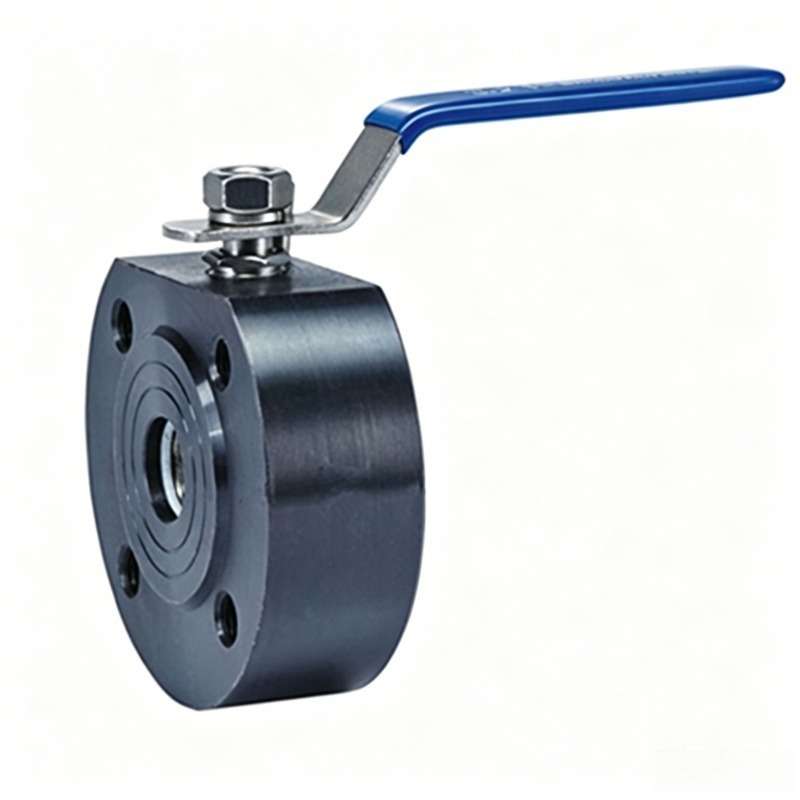

The JOEPAI durable Forged Steel 1PC Wafer Flanged Ball Valve product has many characteristics such as compact structure, exquisite appearance, intelligent control, excellent performance, good quality, and easy use. Forged Steel 1PC Wafer Flanged Ball Valve is a manually operated ball valve with a 90 ° rotation angle. It has excellent sealing performance, high flow capacity, low flow resistance coefficient, simple structure, easy maintenance, and long service life. One piece ball valves are usually used in applications with strict sealing requirements. In addition to controlling gas, liquid, and steam media, they are also suitable for controlling sewage and media containing fibrous impurities.
Main material: forged carbon steel (A105/LF2)
Integrated body with spray bar
Install the clamp flange end between ANSI/DIN/JIS flanges
PTFE/RPTFE/metal valve seat (optional)
Up to 2500 PSI (PN100)
Temperature range:- 29 ° C to+250 ° C
Lightweight and space saving
API 598/EN 12266-1
Customization: Provide aperture, handle design or actuator installation
according to requirements
JOEPAI Valve is a Forged Steel 1PC Wafer Flanged Ball Valve manufacturer headquartered in Wenzhou, China, developed from Jingyue Valve Factory established in 2003. With ISO 9001, CE, and KC certifications, our factory combines CNC machining, 3D design (UG/CAD), and complete pressure/chemical testing to provide customized engineering flow control solutions for customers in Europe, South Korea, Australia, Southeast Asia, and the Middle East. JOEPAI is your trusted partner in industrial pipeline projects
| No. | Part name | Material |
| 1 | Body | SS/SUS304 |
| 2 | Cap | SS/SUS304 |
| 3 | Seat | PTFE |
| 4 | Ball | SS304/SS316 |
| 5 | Stem | SS304/SS316 |
| 6 | Gasket | PTFE |
| 7 | O-ring | VITON |
| 8 | Packing | PTFE |
| 9 | Gland | SS/SUS304 |
| 10 | Stem nut | SS/SUS304 |
| 11 | Handle | SS |
| 12 | Stop pin | SS/SUS304 |

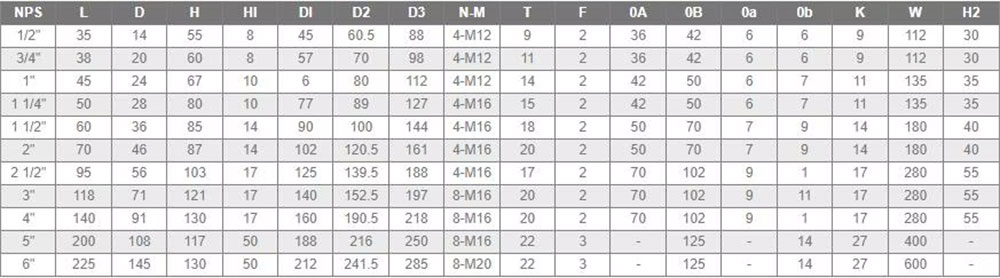

| NPS | L (mm) | D (mm) | H (mm) | HI (mm) | DI (mm) | D2 (mm) | D3 (mm) | N-M | T (mm) | F (mm) | OA (mm) | OB (mm) | 0a (mm) | 0b (mm) | K (mm) | W (mm) | H2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 35 | 14 | 55 | 8 | 45 | 60.5 | 88 | 4-M12 | 9 | 2 | 36 | 42 | 6 | 6 | 9 | 112 | 30 |
| 3/4" | 38 | 20 | 60 | 8 | 57 | 70 | 98 | 4-M12 | 11 | 2 | 36 | 42 | 6 | 6 | 9 | 112 | 30 |
| 1" | 45 | 24 | 67 | 10 | 6 | 80 | 112 | 4-M12 | 14 | 2 | 42 | 50 | 6 | 7 | 11 | 135 | 35 |
| 1 1/4" | 50 | 28 | 80 | 10 | 77 | 89 | 127 | 4-M16 | 15 | 2 | 42 | 50 | 6 | 7 | 11 | 135 | 35 |
| 1 1/2" | 60 | 36 | 85 | 14 | 90 | 100 | 144 | 4-M16 | 18 | 2 | 50 | 70 | 7 | 9 | 14 | 180 | 40 |
| 2" | 70 | 46 | 87 | 14 | 102 | 120.5 | 161 | 4-M16 | 20 | 2 | 50 | 70 | 7 | 9 | 14 | 180 | 40 |
| 2 1/2" | 95 | 56 | 103 | 17 | 125 | 139.5 | 188 | 4-M16 | 17 | 2 | 70 | 102 | 9 | 11 | 17 | 280 | 55 |
| 3" | 118 | 71 | 121 | 17 | 140 | 152.5 | 197 | 8-M16 | 20 | 2 | 70 | 102 | 9 | 11 | 17 | 280 | 55 |
| 4" | 140 | 91 | 130 | 17 | 160 | 190.5 | 218 | 8-M16 | 20 | 2 | 70 | 102 | 9 | 11 | 17 | 280 | 55 |
| 5" | 200 | 108 | 117 | 50 | 188 | 216 | 250 | 8-M16 | 22 | 3 | - | 125 | - | 14 | 27 | 400 | - |
| 6" | 225 | 145 | 130 | 50 | 212 | 241.5 | 285 | 8-M20 | 22 | 3 | - | 125 | - | 14 | 27 | 600 | - |
