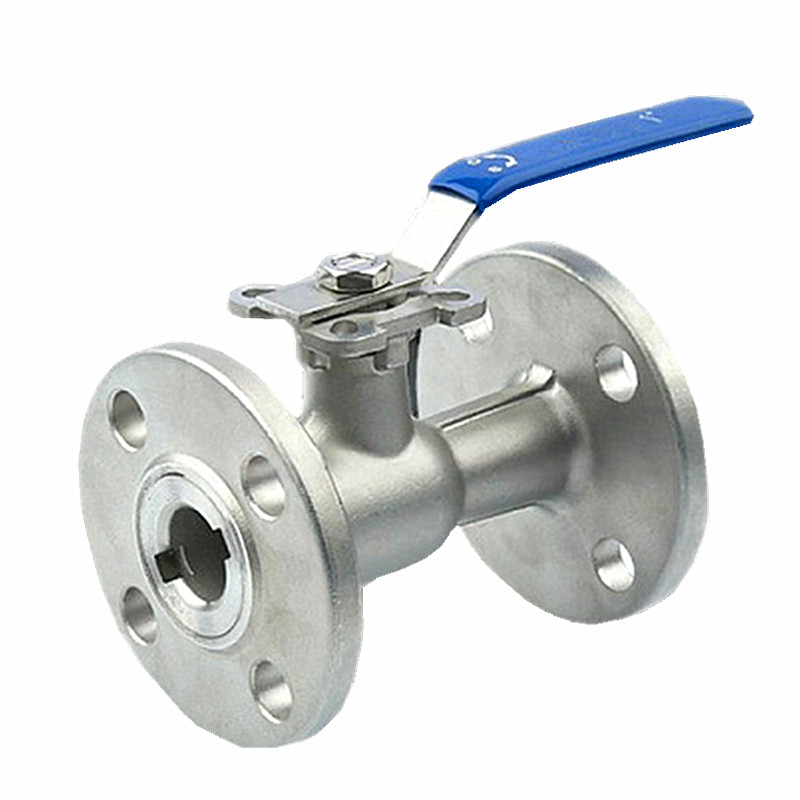

1 Piece ANSI 150 Industrial Stainless Steel Ball Valve with Top Flange

The JOEPAI high quality 1 Piece ANSI 150 Industrial Stainless Steel Ball Valve with Top Flange adopts  a floating ball. The ball "floats" within the valve cavity; it is supported by two valve seats but has no fixed shaft at the lower end. When the valve is closed, the valve stem, driven by the handle or actuator, applies downward pressure, pushing the ball tightly against the sealing seat at the outlet end, thus forming a seal.The floating ball valves with their excellent sealing performance, simple structure, low flow resistance, and quick operation, have become one of the most common and preferred valve types in many industries, including petroleum, chemical, water treatment, power, and light industry. Provided the application conditions are within their design limits, they are generally a reliable, economical, and efficient choice.

Specification

Size Range: ½" - 6"

ASTM A351 GR. CF8/ CF8M and WCB Bodies/316SS Trim

PTFE Seal Kits: Replaces PTFE, RPTFE and PPL. Low deformation under load.

Blow-out Proof Stem Design

Fire-resistant and anti-static structure to prevent static electricity from igniting flammable media. Ensure system security.

Adjustable stem packing

Long cycle life

Working Temperature: -45 Deg C to 246 Degree

ISO 5211 Actuator Mounting Pad,which enables the installation of electric/pneumatic actuators.

Handle Lever with Locking device (optional)

ANSI B16.5, B16.10 and B16.34 Full Compliance

Test standard: API 598, API 607

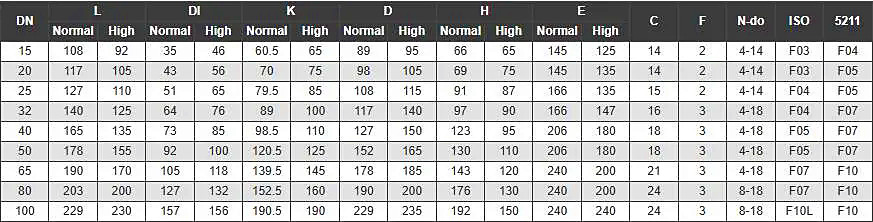

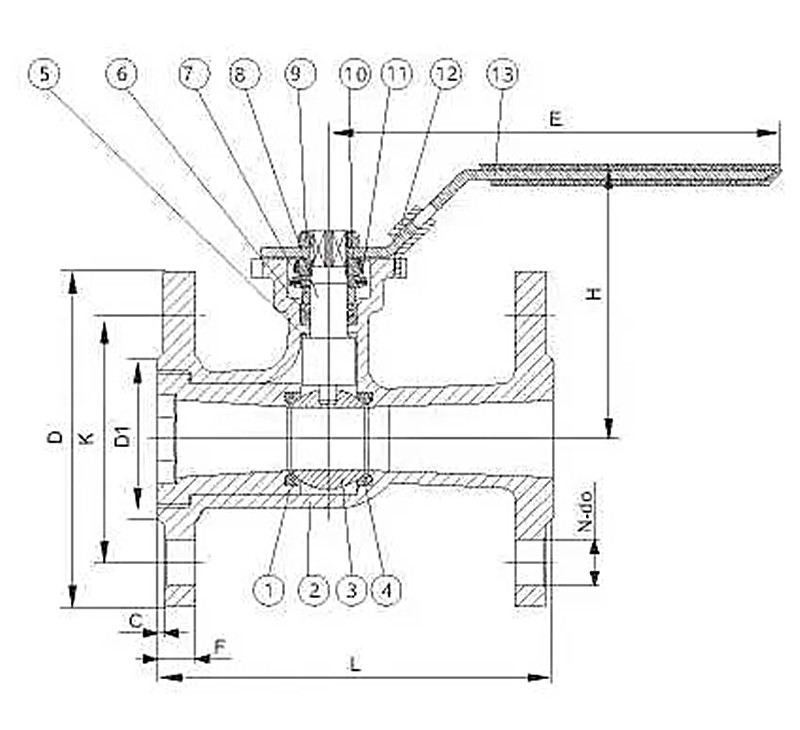

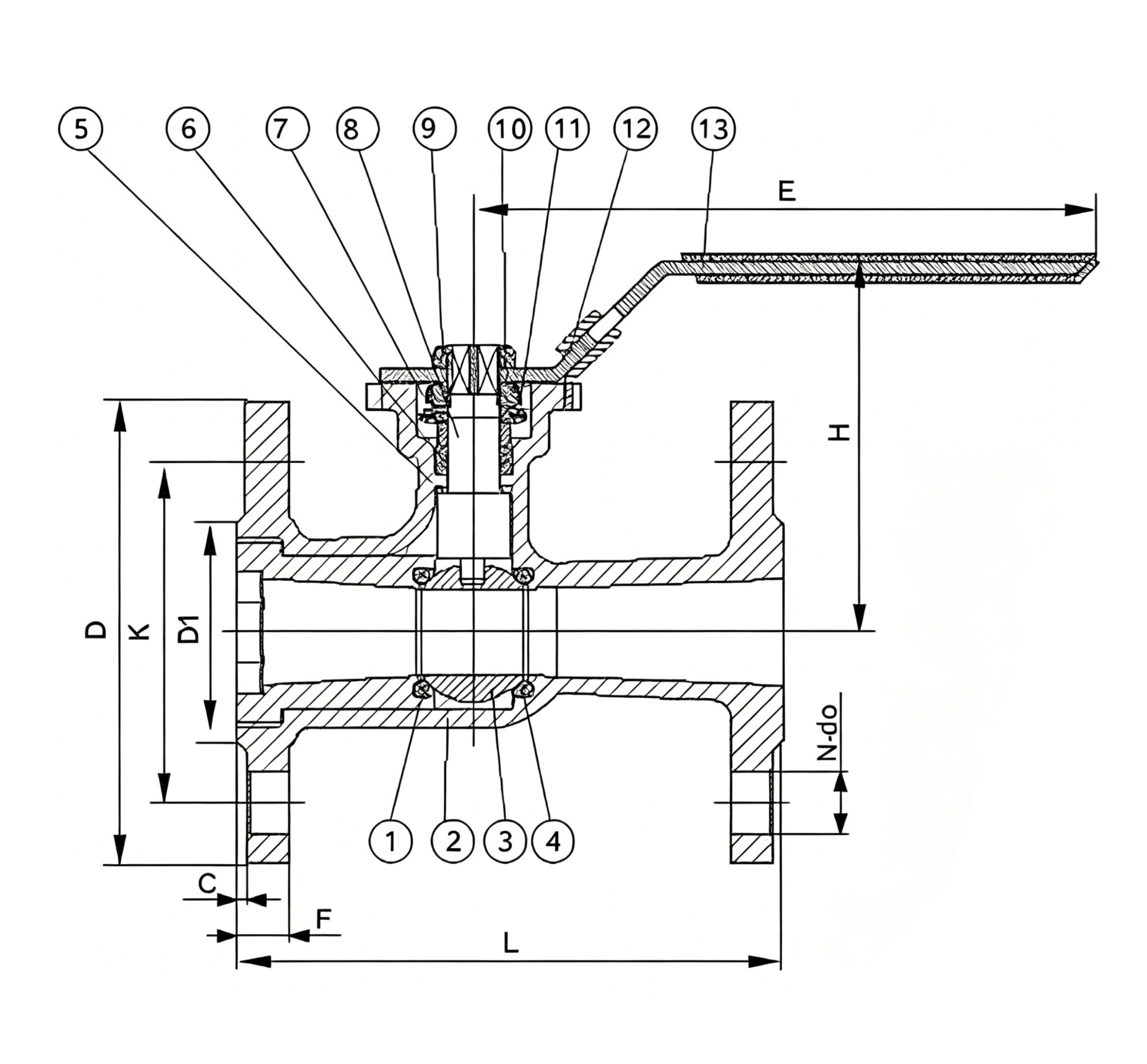

Dimensions
