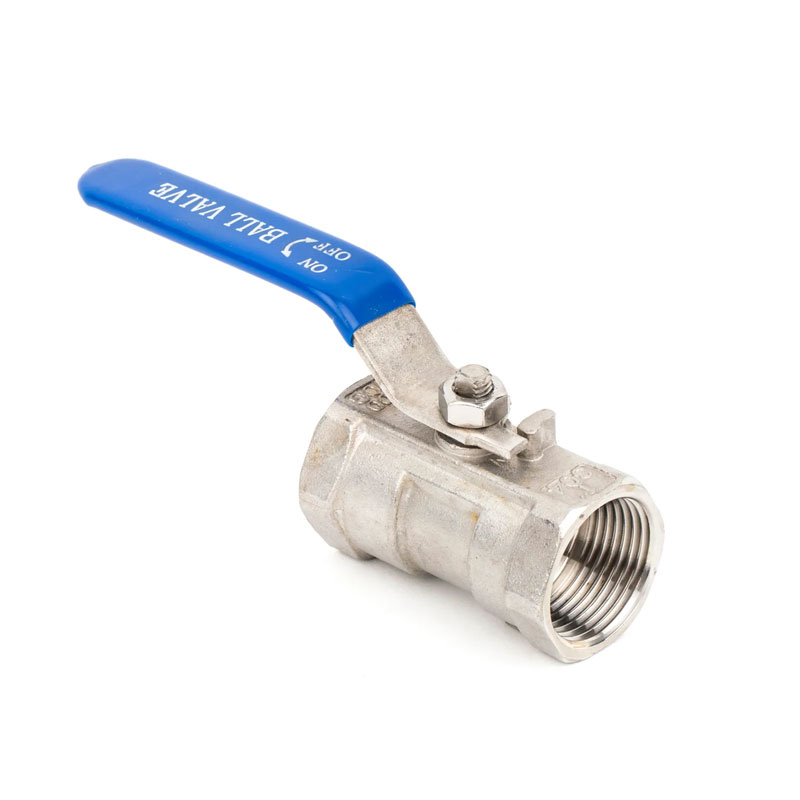

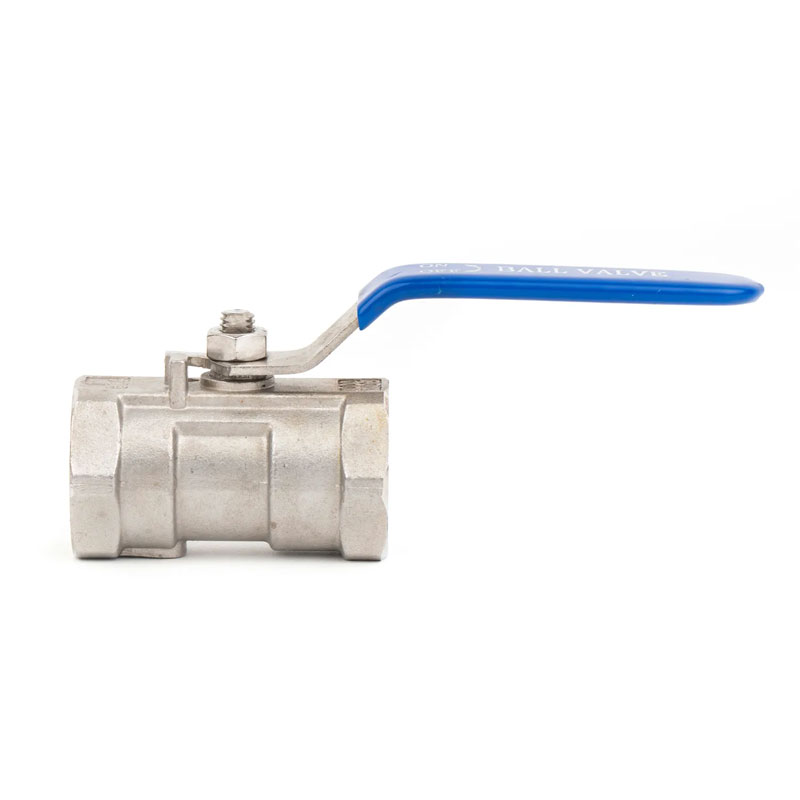

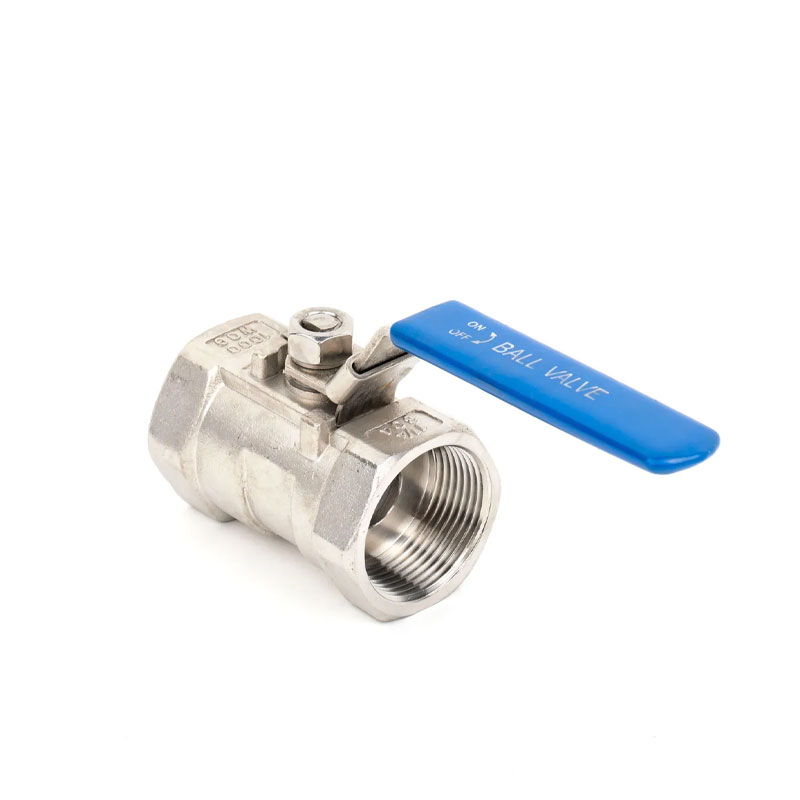

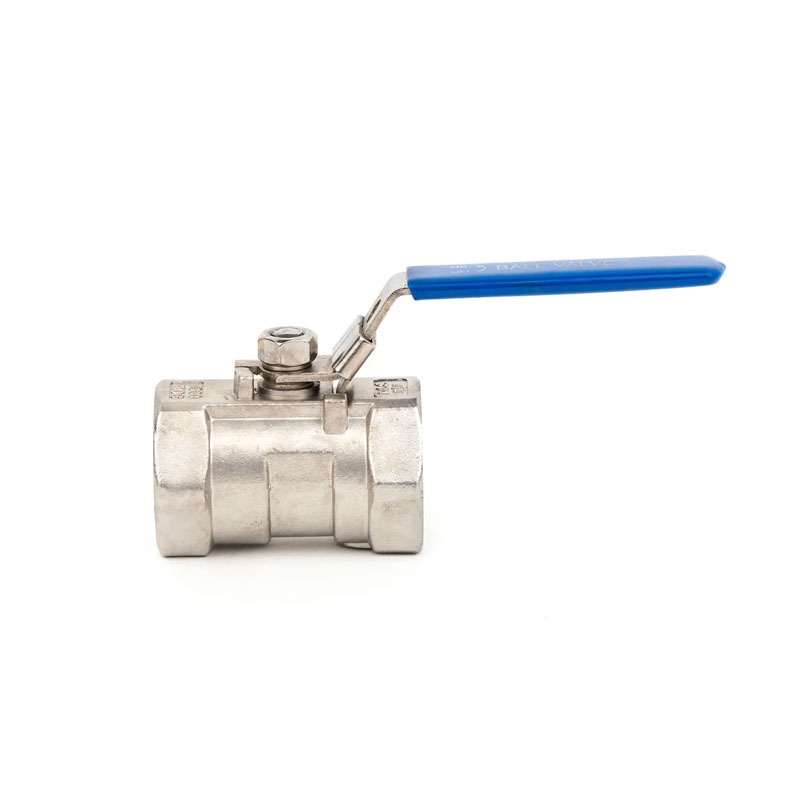

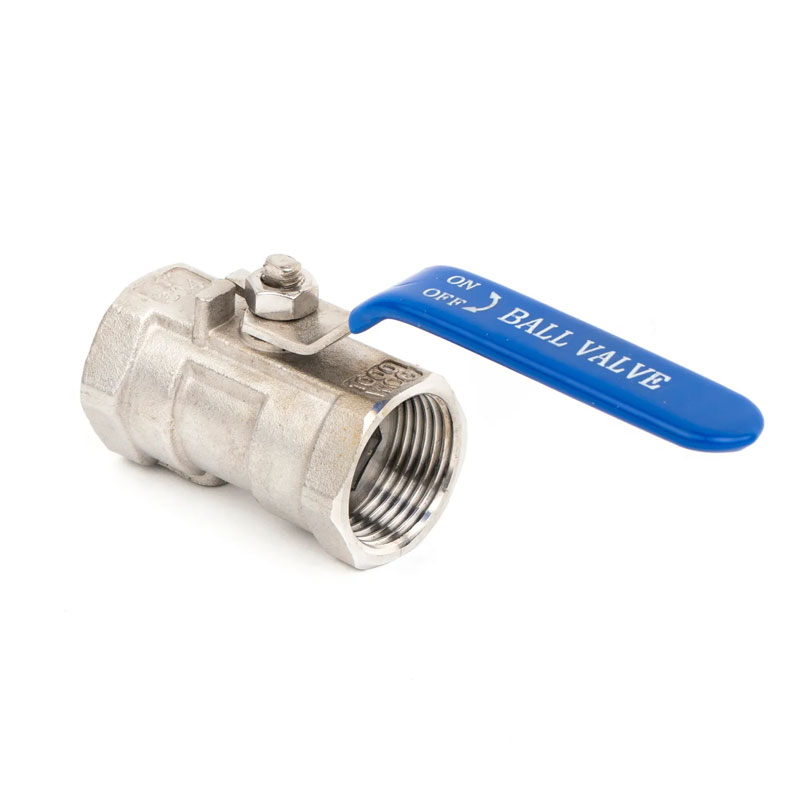

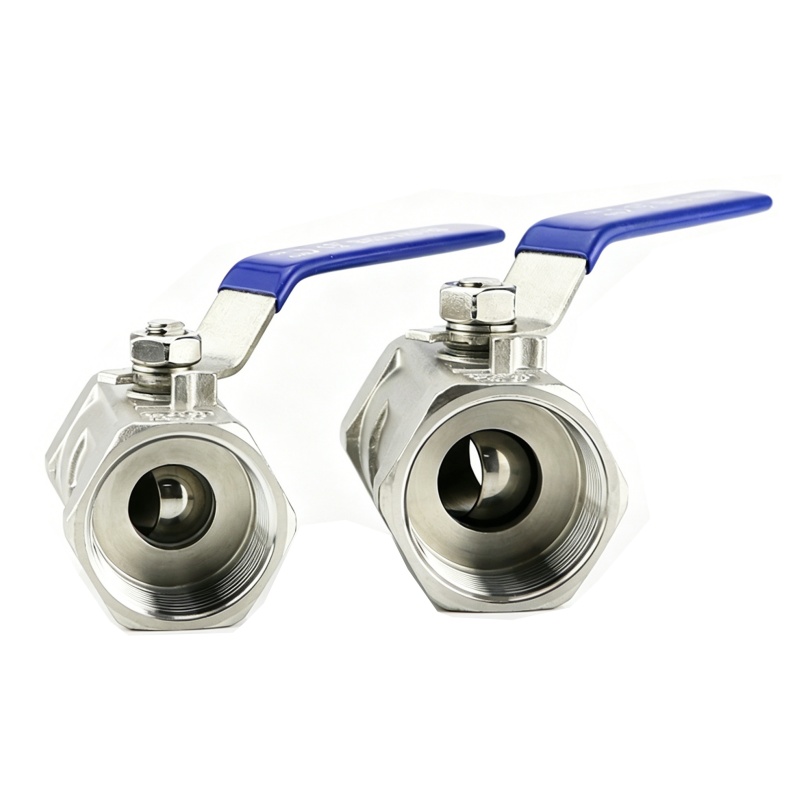

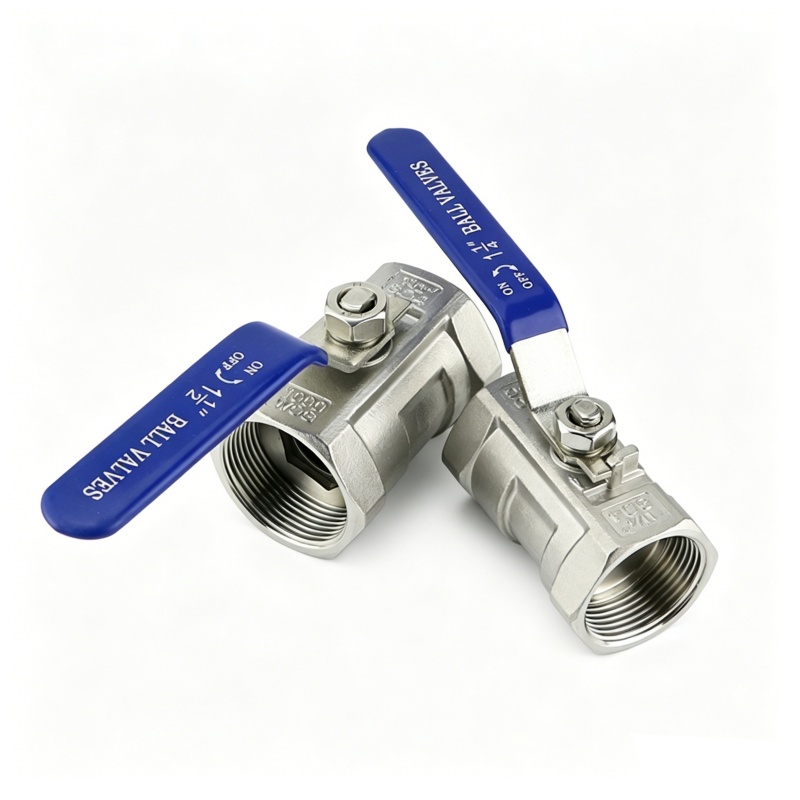

The China JOEPAI High Quality Stainless Steel 1000WOG Threaded 1PC Ball Valve has a stable structure, high pressure bearing capacity, and anti-corrosion performance, making it the preferred valve for many OEM systems, engineering installations, and fluid distribution controls. It is particularly suitable for long-term operation in precision, clean, and harsh environments.
Food and beverage production line
Control of Chemical Fluids and Corrosive Media
Pharmaceutical purification system
Compressed air and water system
Small and medium-sized equipment supporting control points
Support laser customized logo and packaging design
Provide OEM/ODM services
Fully inspected before leaving the factory, with quality inspection report
attached
Optional additional services such as silicone cover protection and sea
freight reinforced packaging
| 1 | Body | WCB/CF8M/CF8 | 7 | Packing | PTFE |
| 2 | Ball | SS316/SS304/SS | 8 | Gland | SS304/SS |
| 3 | Seat | PTFE | 9 | Handle | SS304/SS |
| 4 | Cap | WCB/CF8M/CF8 | 10 | Spring Washer | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 11 | Stem Nut | SS304/SS |
| 6 | Thrust Washer | PTFE |
| NPS | D | L | H | W |
| 1/4" | 5 | 40 | 74 | 30 |
| 3/8" | 7 | 45 | 74 | 30 |
| 1/2" | 10 | 60 | 95 | 40 |
| 3/4" | 10 | 60 | 95 | 40 |
| 1" | 14 | 70 | 102 | 50 |
| 11/4" | 20 | 80 | 124 | 60 |
| 11/2" | 24 | 85 | 144 | 60 |
| 2" | 32 | 100 | 144 | 70 |
| 21/2" | 38 | 125 | 168 | 90 |
| 3" | 50 | 150 | 192 | 90 |
| 4" | 65 | 195 | 220 | 130 |
