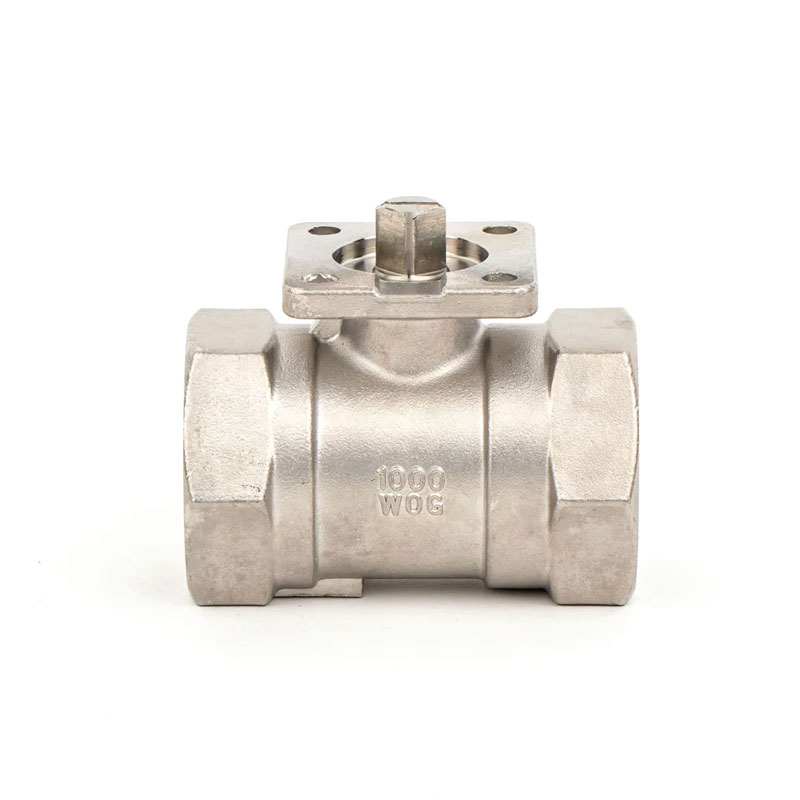

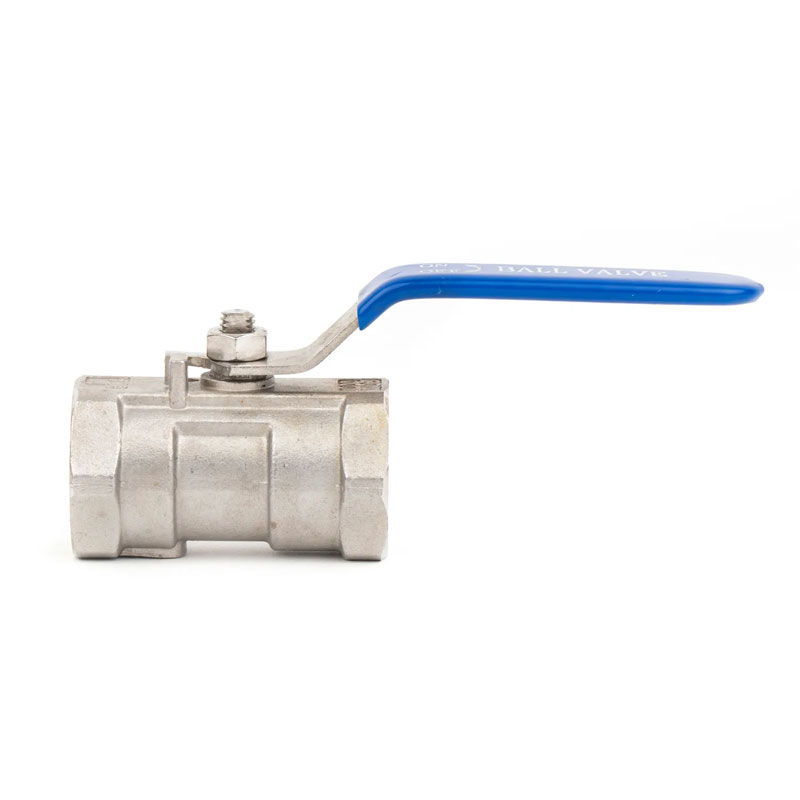

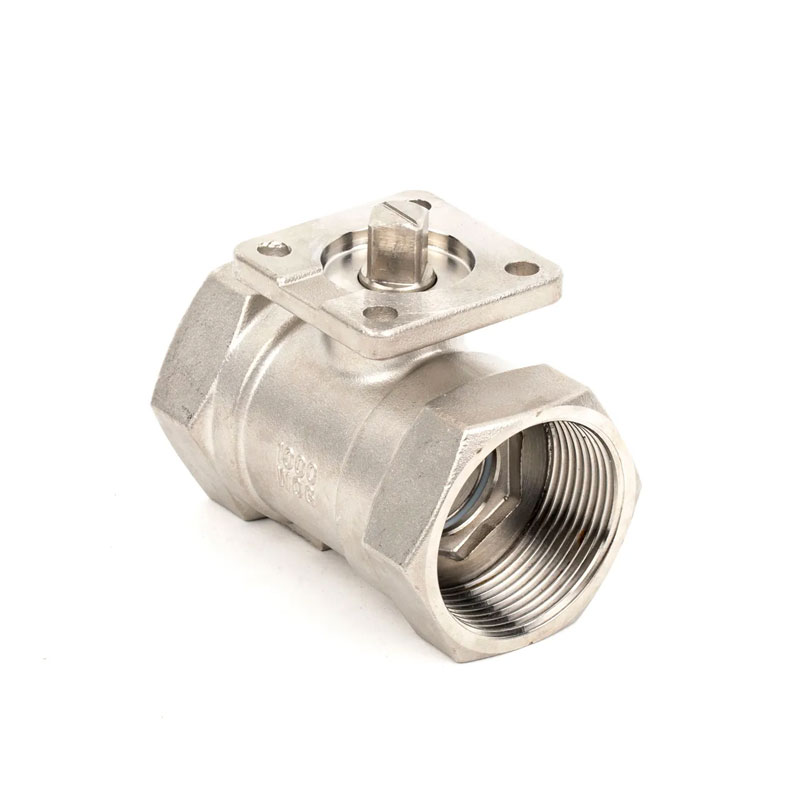

The China JOEPAI High Quality 1PC Stainless Steel Threaded Ball Valve adopts a compact integrated structure, which is suitable for various low and medium pressure pipeline control needs, especially for industrial and commercial occasions that are sensitive to installation space and cost.
Single unit molding, reducing leakage points, sturdy and durable
Adopting SUS304 or SUS316 stainless steel, with good anti-corrosion
performance
1/4 rotation opening and closing, suitable for frequent operation
scenarios
Support BSP and NPT threads to meet the application needs of different
regions
The standard design pressure reaches 1000WOG (PN63)
Industrial fluid pipeline system
Food and Pharmaceutical Technology
Oil and gas transportation
HVAC system
Water treatment and purification equipment
| 1 | Body | WCB/CF8M/CF8 | 7 | Packing | PTFE |
| 2 | Ball | SS316/SS304/SS | 8 | Gland | SS304/SS |
| 3 | Seat | PTFE | 9 | Handle | SS304/SS |
| 4 | Cap | WCB/CF8M/CF8 | 10 | Spring Washer | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 11 | Stem Nut | SS304/SS |
| 6 | Thrust Washer | PTFE |
| NPS | D | L | H | W |
| 1/4" | 5 | 40 | 74 | 30 |
| 3/8" | 7 | 45 | 74 | 30 |
| 1/2" | 10 | 60 | 95 | 40 |
| 3/4" | 10 | 60 | 95 | 40 |
| 1" | 14 | 70 | 102 | 50 |
| 11/4" | 20 | 80 | 124 | 60 |
| 11/2" | 24 | 85 | 144 | 60 |
| 2" | 32 | 100 | 144 | 70 |
