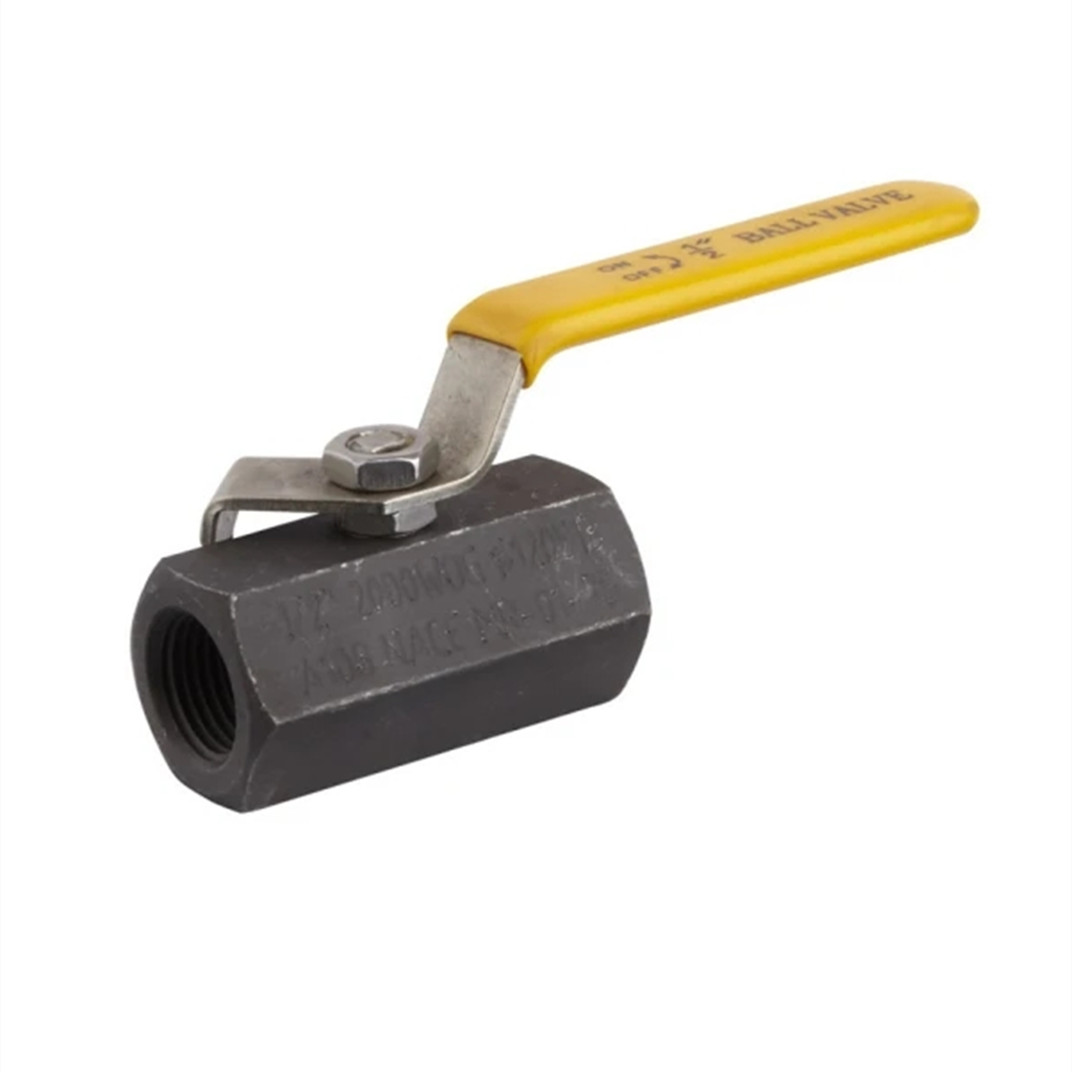

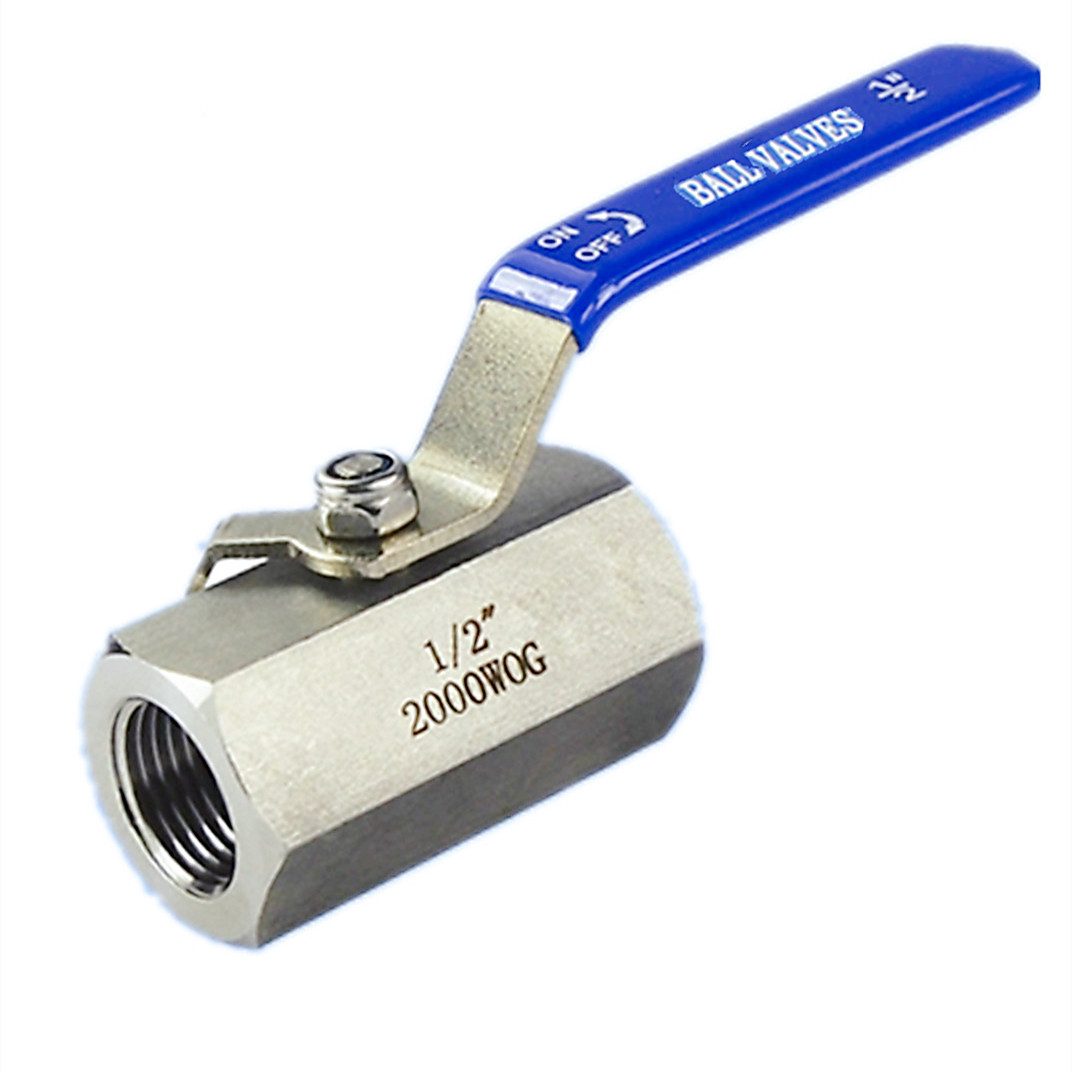

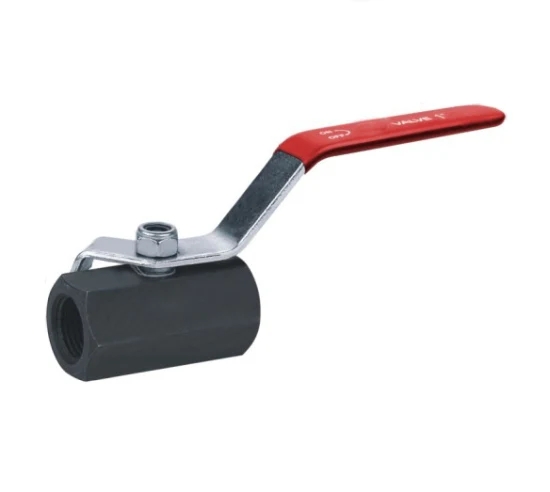

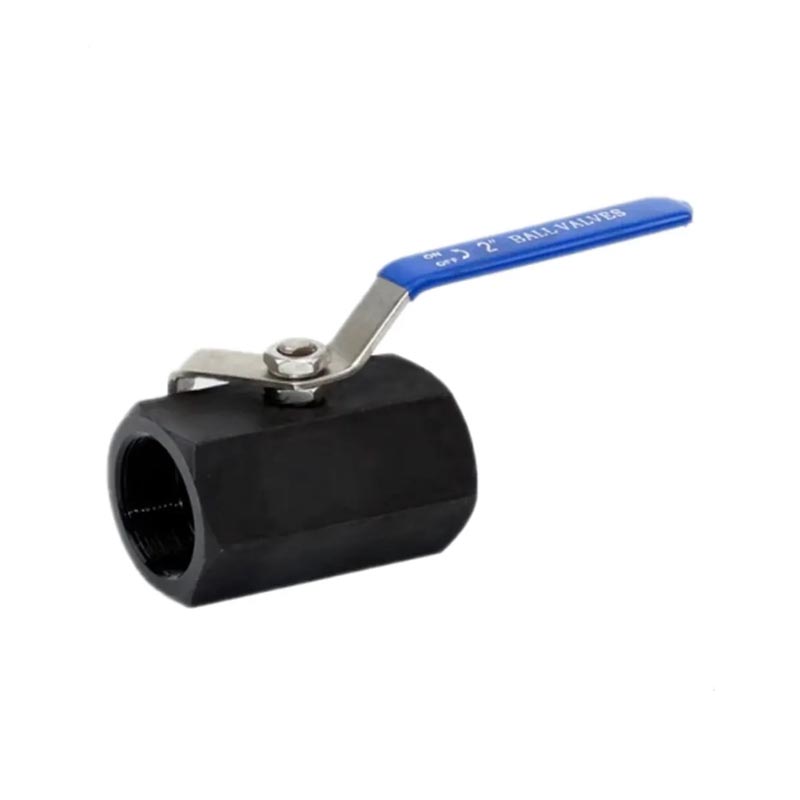

JOEPAI High Quality 1 PC Hexagonal Forged Steel Ball Valve, the ball and valve seat are precision ground and sealed with PTFE or metal to ensure smooth switching and zero leakage. This valve adopts standard threaded connections (NPT/BSPT/BSP) .
1-Piece Uni-Body Design
Bar Stock Type
Stainless Steel Trim
Adjustable Packing Gland
Blow-out-Proof Stem
▲ Design Standard:ASME B16.34
▲ Working Pressure:PN16/PN25/PN40/PN63
▲ Standard Reduced Bore
▲ Size:1/4" to 2"
▲ Body Material: Forged Carton Steel ASTM A105,Stainless Steel F304,F316
▲ SEAT Material: RPTFE/CPTFE
▲ Suitable Temperature:＜150℃(PPL＜300℃)
▲ Suitable Medium:Water,Gas,Oil,etc
▲ Threaded Ends:BSPT.NPT.DIN2999.ISO 228/1&ISO/1
▲ Inspection & Testing:API598/ASME B16.34 NACE MR-0175
▲ Options:Locking device available
Wenzhou JOEPAI Valve Co., Ltd., formerly known as Jingyue Valve Factory established in 2003, initially focused on the design, research and development, and manufacturing of stainless steel ball valves, stainless steel fire hydrants, and pressure booster valves. With the continuous expansion of the market and the diversification of customer demands, Jingyue brand has gradually accumulated profound industry experience. In order to better serve the global market, JOEPAI Valve was officially established in 2020. The company's industrial scope has expanded to the research and development, production, and sales of various types of valves such as gate valves, globe valves, check valves, butterfly valves, filters, fully welded ball valves, and fluorine lined valve series.
JOEPAI focuses on customized product development and is committed to meeting the personalized needs of global customers in terms of structural materials, operating methods, interface standards, and other aspects. From scheme design, sample testing, to mass manufacturing and global delivery, every link is strictly controlled by an experienced technical team to ensure the dual guarantee of product quality and delivery efficiency.

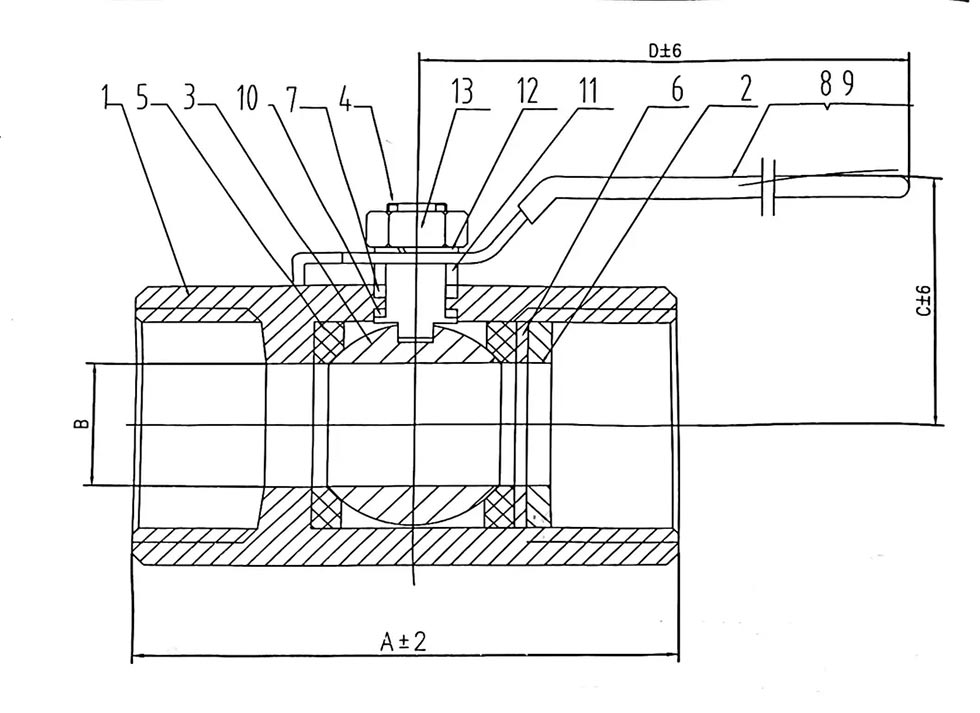

| Item | PART | MATERIAL |
| 1 | BODY | A105 |
| 2 | CAP | A105 |
| 3 | BALL | SS304/316 |
| 4 | STEM | SS304/316 |
| 5 | BODY SEAT | RPTFE |
| 6 | CAP SEAT | RPTFE |
| 7 | PACKING | PTFE |
| 8 | HANDLE | 201 |
| 9 | HANDLE SLEEVE | PVC |
| 10 | HANDLE WASHER | PTFE |
| 11 | GLAND | SS |
| 12 | WASHER | SS |
| 13 | GLAND NUT | A2-70 |
| SIZE | A | B | C | D | KGS |
| 1/4" | 43 | 5 | 28 | 73 | 0.10 |
| 3/8" | 47 | 7 | 32 | 82 | 0.16 |
| 1/2" | 62 | 9 | 47 | 117 | 0.30 |
| 3/4" | 70 | 12.5 | 52 | 117 | 0.50 |
| 1" | 86 | 15 | 65 | 130 | 1.00 |
| 1-1/4" | 94 | 20 | 75 | 132 | 1.47 |
| 1-1/2" | 102 | 25 | 78 | 157 | 1.80 |
| 2" | 115 | 32 | 90 | 160 | 3.00 |
