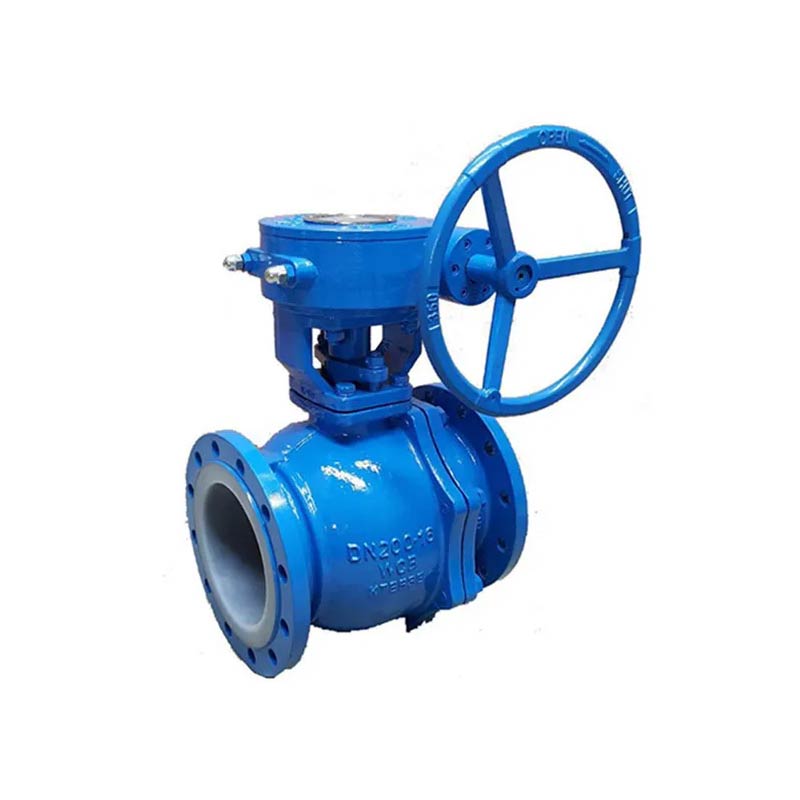

Gear Operated Cast Steel PTFE-PFA-Lined Ball Valves PN16

JOEPAI durable Gear Operated Cast Steel PTFE-PFA-Lined Ball Valves PN16 and plug are the same type of valve, but on the other hand, the opening/closing attachment of the ball valve is a ball with a circular hole, which rotates together with the rod to achieve the opening and closing of the valve

Product Feature

Implement full process quality monitoring, meticulous and all-round testing!
Efficient internal cost control reduces expenses and benefits customers!
Advanced production line, sufficient stocking, shortened delivery time!

Series fluorine lined ball valve

1.PTFE-PFA-Lined 2PC Ball Valves PN16 has high chemical stability and can be used in any other severely corrosive medium except for fuse alkali metals and F elements
2.It adopts a full diameter, drift ball structure to ensure zero leakage closure of the valve throughout the entire pressure range, and is also used for pipeline maintenance
3.The combination of opening and closing ball rods for valve castings eliminates impact and pressure, ensuring safe use
4.The compact and reasonable structure and minimal lumen chamber reduce the retention of the medium. Combined with special molding technology, the sealing surface is delicate and perfect. And use PTFE packing to ensure zero leakage of the valve
5. Two piece and three piece structures are suitable for various pipeline systems and working conditions. The three piece ball valve separates the valve body from both sides, enabling quick replacement and maintenance

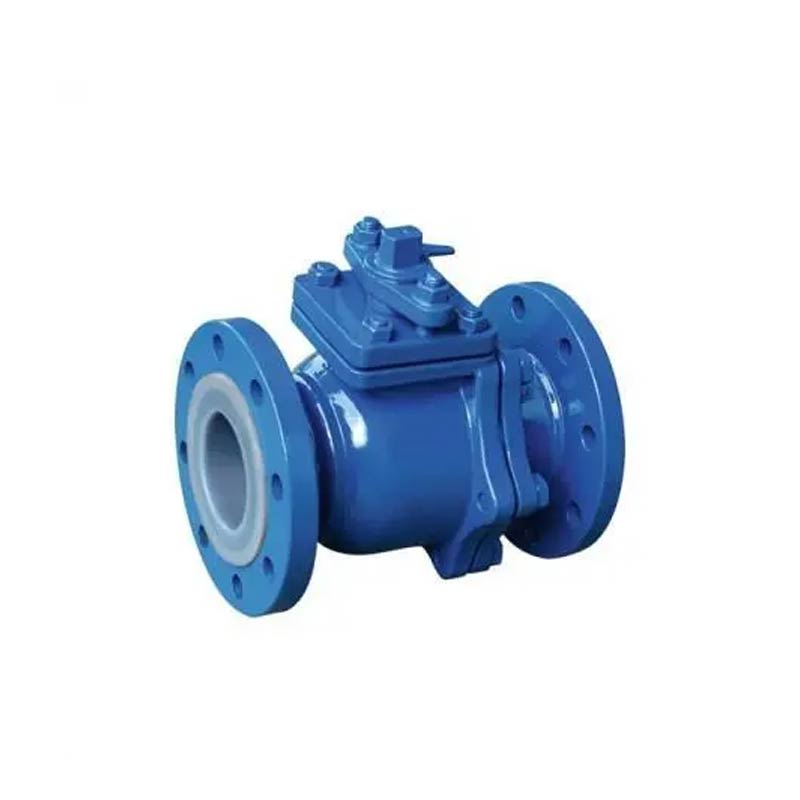

PTFE-PFA-Lined 2PC Ball Valves PN16 Detail

BLOWOUT-PROOF STEM DESIGN
LEVER OPERATION/ LOCKING DEVICE/GEAR OPERATION
INVESTMENT CASTING BODY
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308

Main parts and materials

Technical Specification

The main connection size
