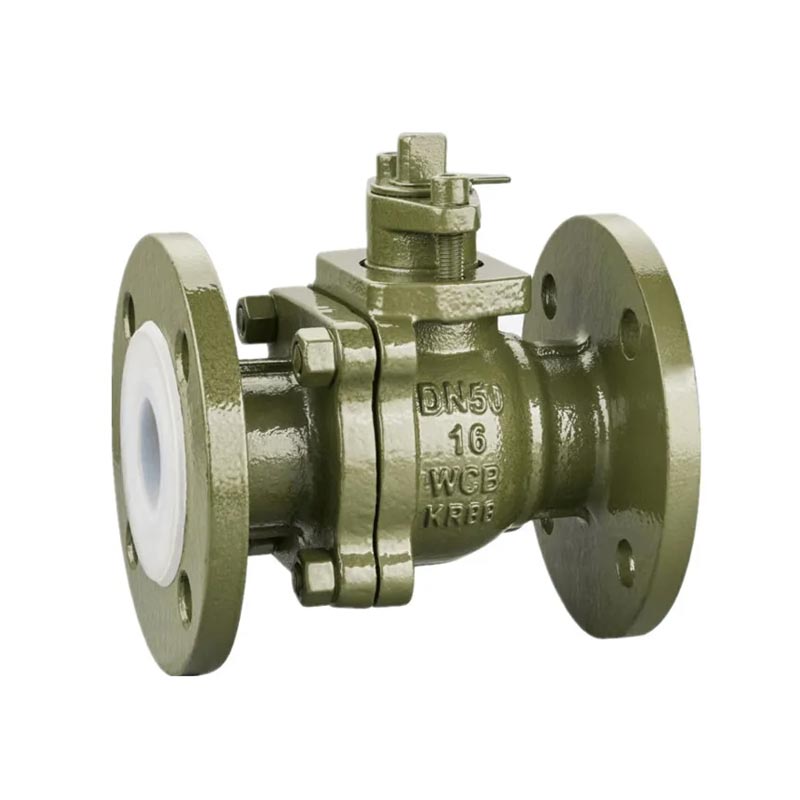

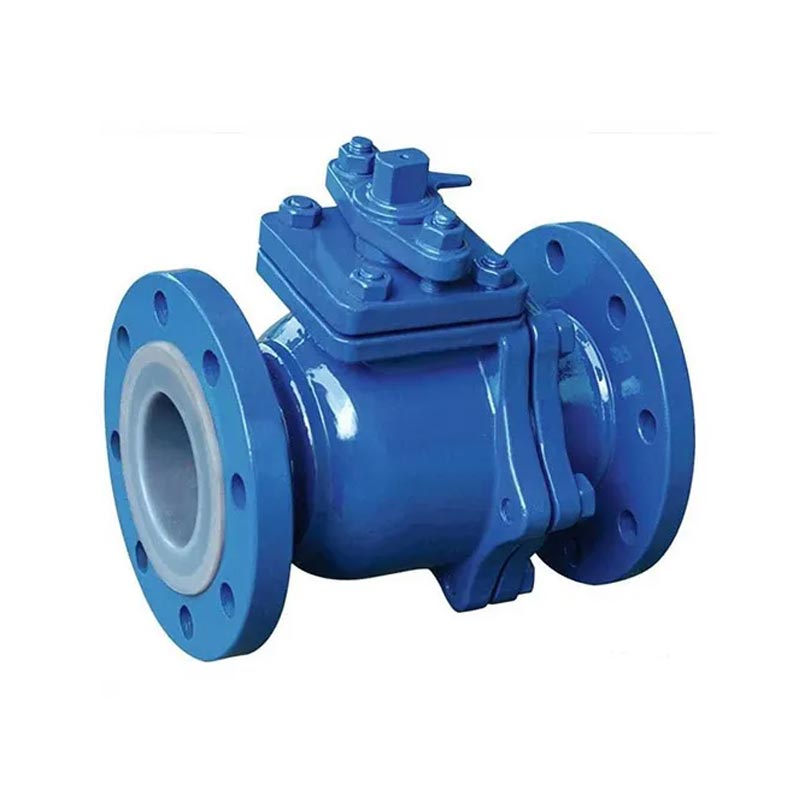

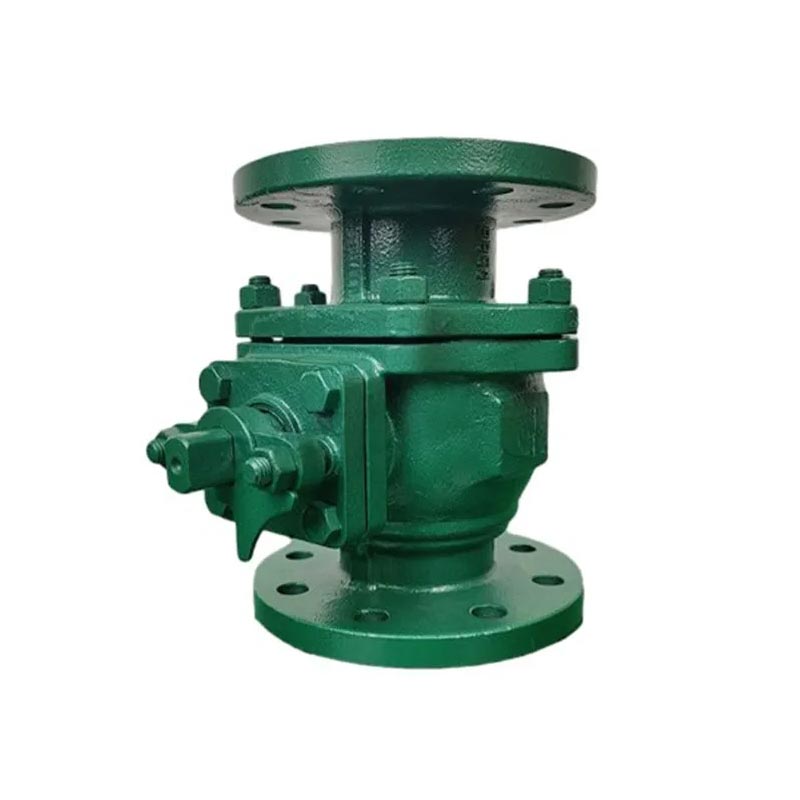

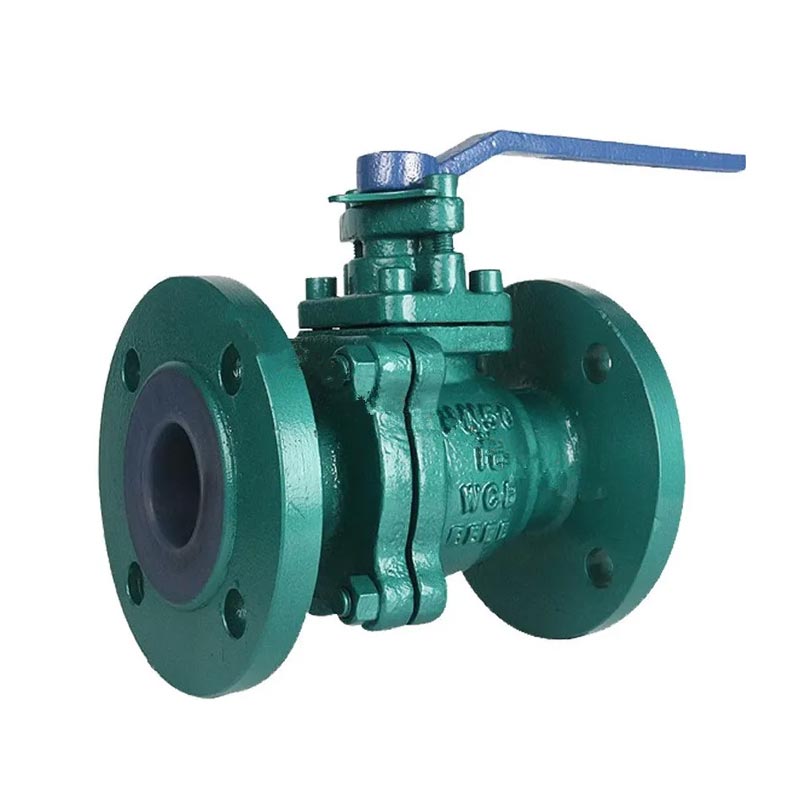

Fluorine Lined Flange Ball Valve

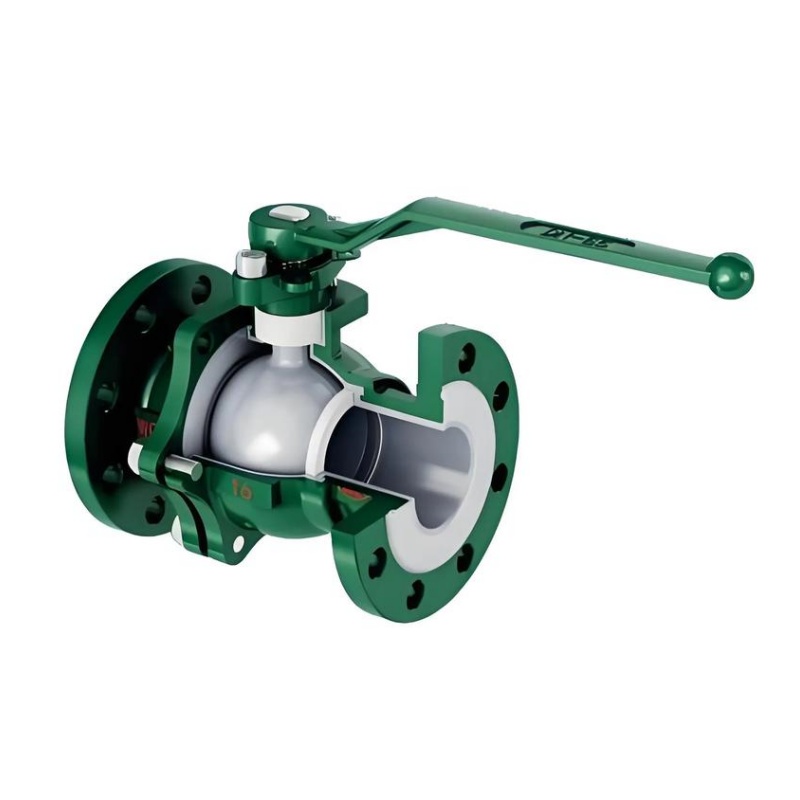

JOEPAI Fluorine Lined Flange Ball Valve is a corrosion-resistant shut-off valve widely used in the chemical, environmental protection, petrochemical, pharmaceutical, electroplating, and smelting industries. Adopting a full bore structure design and lined with PTFE, FEP or PFA material, it can efficiently block the corrosion of strong corrosive media on the valve body metal, and maintain long-term sealing and operation in extreme working conditions such as hydrofluoric acid, aqua regia, concentrated nitric acid, and strong alkali. The composite structure of the metal body and non-metallic anti-corrosion lining solves the common industry pain point of ordinary metal valves failing under corrosive conditions. The full bore design eliminates reduced-diameter dead zones, resulting in far lower fluid resistance than same-size globe valves and check valves, while the fully lined ball forms a precise sealing pair with the seat to achieve zero-leakage performance when closed. Manufactured using an integral compression lining process, the fluoroplastic lining is tightly bonded to the carbon steel valve body, preventing peeling or bulging even in long-term service. The low-friction inner lining also avoids medium clogging or jamming during operation, ensuring stable performance in applications that require extremely high levels of corrosion control.

Product Advantages

1. True Corrosion Resistance Mechanism:Physical isolation of metal from media;Low permeability significantly delays corrosion initiation;Suitable for mixed acids, waste acids, alternating media

2. Slow Seal Deterioration in Acid/Alkali Cycles:After 10,000 acid/alkali cycles, leakage ≤ 50 ppm (ISO 5208 Rate A)

3. Real Value of Full Bore:Designed for crystallizing, polymerized, solid-containing or high-viscosity media;Prevents clogging, reduces cleaning, lowers seizure risk

Product Detail

FACE-TO-FACE: GB/T12221-1989
FLANGE END DIMENSIONS: GB/T9113.1-2000
DESIGN: GB/T12237-1989
TEST: GB/T13927-1992
FULL PORT,ISO5211 DIRECT MOUNTING PAD
BLOWOUT-PROOF STEM DESIGN
LEVER OPERATION/ LOCKING DEVICE
INVESTMENT CASTING BODY
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308

Main Parts and Materials

Liner Material: FEP for general strong acids; PFA for high-temperature concentrated acids; PTFE for broad chemical compatibility and high-purity requirements.

Vacuum Suitability: "Yes" means suitable for negative pressure processes

Flange Standard: Must match your pipeline (HG / GB / ANSI / DIN)

Main Dimensions

Nominal Diameter		Standard Dimensions/mm							Reference/mm
DN/mm	NPS/inch	L	D	D1	D2	f	b	Z-Фd	D0	H	W/kg
PN10
15	1/2"	140	95	65	45	2	16	4-Ф14	120	80	3.5
20	3/4"	140	105	75	55	2	18	4-Ф14	140	90	4
25	1"	150	115	85	65	2	18	4-Ф14	160	100	4.5
32	1 1/4"	165	140	100	78	2	18	4-Ф18	160	110	6.5
40	1 1/2"	180	150	110	85	2	18	4-Ф18	200	120	8
50	2"	200	165	125	100	3	18	4-Ф18	250	135	10
65	2 1/2"	220	185	145	120	3	18	8-Ф18	300	145	15
80	3"	250	200	160	135	3	20	8-Ф18	350	185	20
100	4"	280	220	180	155	3	20	8-Ф18	240	195	25
125	5"	320	250	210	185	3	22	8-Ф18	500	210	38
150	6"	360	285	240	210	3	22	8-Ф22	200	450	55
200	8"	400	340	295	265	3	24	8-Ф22	240	490	93
250	10"	450	395	350	320	3	26	12-Ф22	240	550	150
300	12"	610	445	400	368	4	26	12-Ф22	320	600	320
350	14"	686	505	460	428	4	26	16-Ф22	320	675	400
400	16"	762	565	515	482	4	26	16-Ф26	360	780	500
PN16
15	1/2"	140	95	65	45	2	16	4-Ф14	120	80	3.5
20	3/4"	140	105	75	55	2	18	4-Ф14	140	90	4
25	1"	150	115	85	65	2	18	4-Ф14	160	100	4.5
32	1 1/4"	165	140	100	78	2	18	4-Ф18	160	110	6.5
40	1 1/2"	180	150	110	85	2	18	4-Ф18	200	120	8
50	2"	200	165	125	100	3	18	4-Ф18	250	135	10
65	2 1/2"	220	185	145	120	3	18	8-Ф18	300	145	15
80	3"	250	200	160	135	3	20	8-Ф18	350	185	20
100	4"	280	220	180	155	3	20	8-Ф18	240	195	25
125	5"	320	250	210	185	3	22	8-Ф18	500	210	38
150	6"	360	285	240	210	3	22	8-Ф23	200	450	55
200	8"	400	340	295	265	3	24	12-Ф23	240	490	93
250	10"	450	405	355	320	3	26	12-Ф25	240	550	150
300	12"	610	460	410	375	4	28	12-Ф25	320	600	320
350	14"	686	520	470	435	4	30	16-Ф25	320	675	400
400	16"	762	580	525	485	4	32	16-Ф30	360	780	500
PN25
15	1/2"	140	95	65	45	2	16	4-Ф14	120	80	3.5
20	3/4"	140	105	75	55	2	18	4-Ф14	140	90	4
25	1"	150	115	85	65	2	18	4-Ф14	160	100	4.5
32	1 1/4"	165	140	100	78	2	18	4-Ф18	160	110	6.5
40	1 1/2"	180	150	110	85	2	18	4-Ф18	200	120	8
50	2"	200	165	125	100	3	20	4-Ф18	250	135	10
65	2 1/2"	220	185	145	120	3	22	8-Ф18	300	145	15
80	3"	250	200	160	135	3	24	8-Ф18	300	185	20
100	4"	280	235	190	160	3	24	8-Ф22	200	195	25
125	5"	320	270	220	188	3	26	8-Ф26	200	210	38
150	6"	360	300	250	218	3	28	8-Ф26	200	450	55
200	8"	400	360	310	278	3	30	12-Ф26	240	495	93
250	10"	450	425	370	332	3	32	12-Ф30	280	555	150
300	12"	610	485	430	390	4	34	12-Ф30	320	605	320
350	14"	686	555	490	448	4	38	16-Ф33	320	685	400

FAQ

1: What quality certifications do JOEPAI fluorine lined ball valves have?

Our company has passed ISO 9001 quality management system certification. Our core products have obtained CE certification and meet international safety and environmental standards. All products can provide Material Traceability Reports (MTC) and export certification documents (CE, ISO) to meet the compliance requirements of the entire project process.

2: Which corrosive media can your fluorine lined ball valve handle?

The fluorine lined flange ball valve is specially designed for highly corrosive and high-purity media conditions, with PTFE/FEP/PFA lining design. It can efficiently block the corrosion of strong corrosive media on the valve body metal, and maintain long-term sealing and operation in extreme working conditions such as hydrofluoric acid, aqua regia, concentrated nitric acid, and strong alkali.

3: What are the main characteristics of the ball valve?

The main characteristics of ball valves are their compact structure, easy operation and maintenance, suitable for general working media such as water, solvents, acids, and natural gas, as well as for media with harsh working conditions such as oxygen, hydrogen peroxide, methane, and ethylene. The fluorine lined flange ball valve can be tightly closed with only a 90 degree rotation and a small rotational torque. The completely equal valve body cavity provides a low resistance, straight through flow channel for the medium.

4: What design and testing standards do you follow?

According to the product detail: FACE-TO-FACE: GB/T12221-1989; FLANGE END DIMENSIONS: GB/T9113.1-2000; DESIGN: GB/T12237-1989; TEST: GB/T13927-1992. The valve is FULL PORT, LEVER OPERATION/ LOCKING DEVICE,and ISO5211 DIRECT MOUNTING PAD optional for Automated operations, BLOWOUT-PROOF STEM DESIGN, and INVESTMENT CASTING BODY.

5: What materials are used for the main parts and the body?

The body parts and main parts materials: Body WCB/CF8/CF8M, Cap WCB/CF8/CF8M,Seat PTFE/PPL, Ball SS304/SS316, Bolt SS/SS316, Gasket PTFE, Nut SS/SS316, Stem SS304/SS316, Thrust Pads PTFE, O-Rings Viton, Packing PTFE, Gland SS/SS316. Material standard options include S45C/ASTM A216 GR-WCB/DIN1.00619, SS316/ASTM A351 GR-CF8M/DIN1.4408, and SS304/ASTM A351 GR-CF8/DIN1.4308.

6: What applications is this valve widely used for?

Widely used in chemical, pharmaceutical, electroplating, smelting, and environmental protection applications that require extremely high levels of corrosion control. It is an irreplaceable key valve control component in chemical environmental protection systems.
