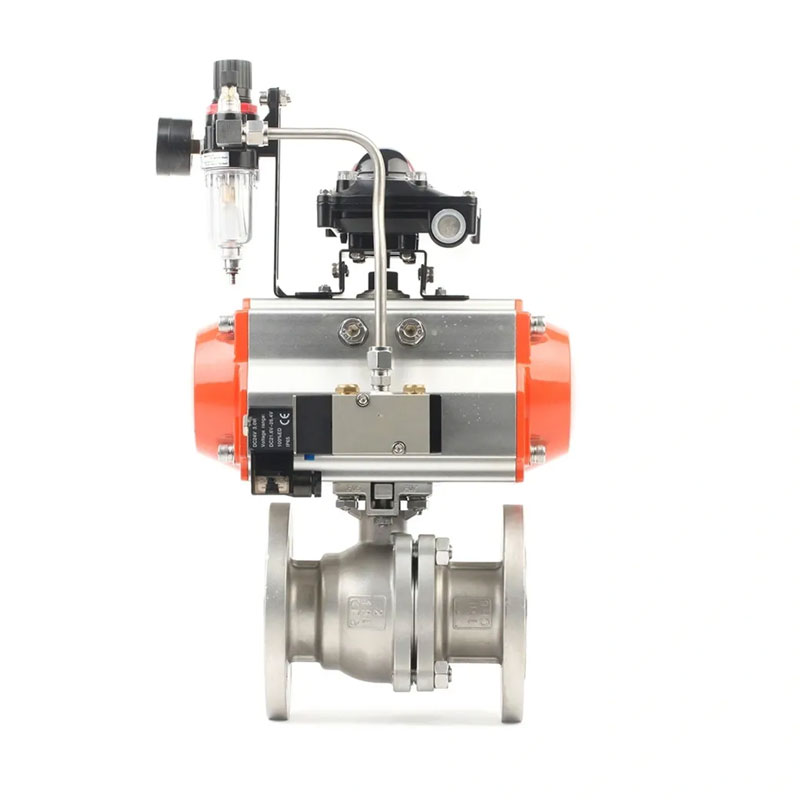

Full Port Fix Flange Pneumatic Ball Valve

Whether you control oil, gas, chemicals, or water, the Full Port Fix Flange Pneumatic Ball Valve can provide security for your system. Its full port design minimizes pressure drop to the greatest extent possible, while the pneumatic drive achieves seamless automation. This valve is made of durable materials and has a fixed flange that enables safe and leak proof connections, providing reliable performance even in the most demanding environments.

Product Standards

Design Standard:ASME B16.34
End Flange:DIN2633 PN16
Face to Face:BS EN558-1 DIN3202 F4/F5
Inspection and testing:API598/EN 12266

Product Detail

MATERIAL: CARBON STEEL WCB/DIN1.0619
STAINLESS STEEL 304/1.4308
STAINLESS STEEL 316/1.4408
Working Pressure:DN15~DN50 PN40;DN65~DN100 PN16
Full Port

Parts Material

Dimensions

To determine whether the Full Port Fix Flange Pneumatic Ball Valve needs to be replaced, the following aspects can be considered:

Appearance inspection: Check the appearance of the stainless steel ball valve for obvious damage, deformation, rust, etc. If so, it may need to be replaced.
Operation inspection: Manually operate the stainless steel ball valve and observe for any jamming or leakage. If the operation is not smooth or there is leakage, it may need to be replaced.
Leakage inspection: Check if there is any leakage in the stainless steel ball valve, especially when it is closed. If there is any leakage, it may be necessary to replace the seal or the entire stainless steel ball valve.
Performance inspection: Check the working performance of the stainless steel ball valve, such as whether it can be fully closed and opened, whether it can withstand rated pressure, etc. If the performance does not meet the requirements, it may need to be replaced.
Service life: Based on the design life and usage time of the Full Port Fix Flange Pneumatic Ball Valve, evaluate whether it needs to be replaced. Generally speaking, stainless steel ball valves that exceed their design lifespan should be considered for replacement.
