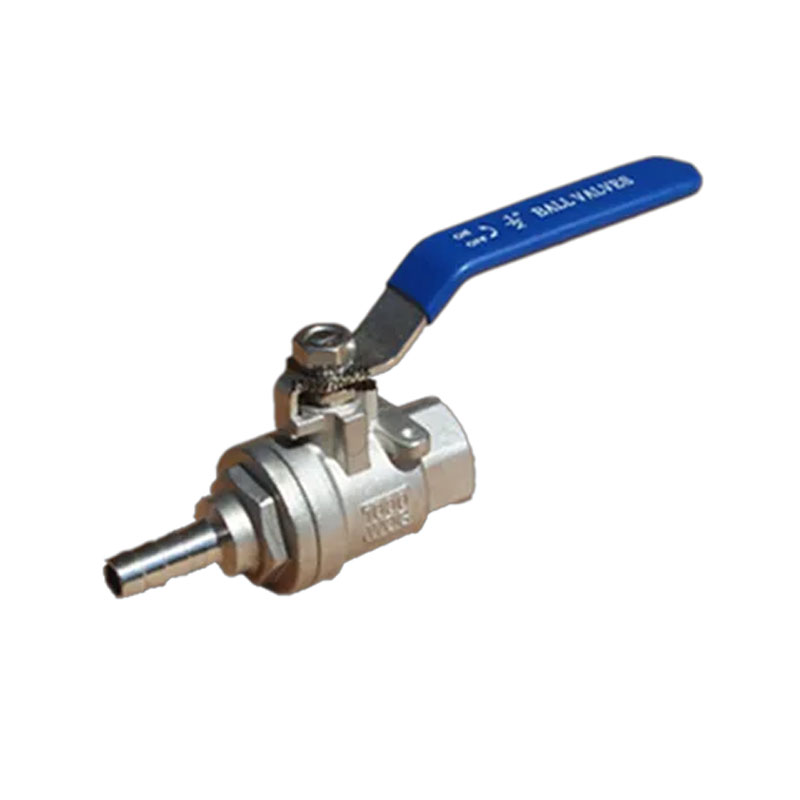

Stainless Steel Threaded 2PC Ball Valve

JOEPAI high quality Stainless Steel Threaded 2PC Ball Valve and butt welded connection ball valve are suitable for various pipelines with PN 1.0~4.0MPa, working temperature -29~180 ℃ (sealing ring is reinforced polytetrafluoroethylene) or -29~300 ℃ (sealing ring is para polystyrene), used to cut off or connect media in pipelines. By selecting different materials, it can be applied to various media such as water, steam, oil, nitric acid, acetic acid, etc.

Product Detail:

THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
REDUCED PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308

Product Feature:

Stainless Steel Threaded 2PC Ball Valve and butt welded ball valves are divided into integral (one-piece), two-stage, and three-stage types. The valve body casting adopts advanced technology introduced from Taiwan, with a reasonable structure and beautiful appearance. The valve seat adopts an elastic sealing structure, which is reliable in sealing and easy to open and close. The valve stem adopts a bottom mounted structure with reverse sealing, and the valve stem will not be flushed out when the valve chamber is abnormally pressurized. Two piece and three piece ball valves can also be connected by butt welding (BW) and socket welding (SW), and both can be equipped with international standard ISO bracket platforms and locking devices. A 90 ° switch positioning mechanism can be set, and locks can be added as needed to prevent misoperation. The driving modes are manual, electric, and pneumatic.

Main Parts and Materials

Main Dimensions
