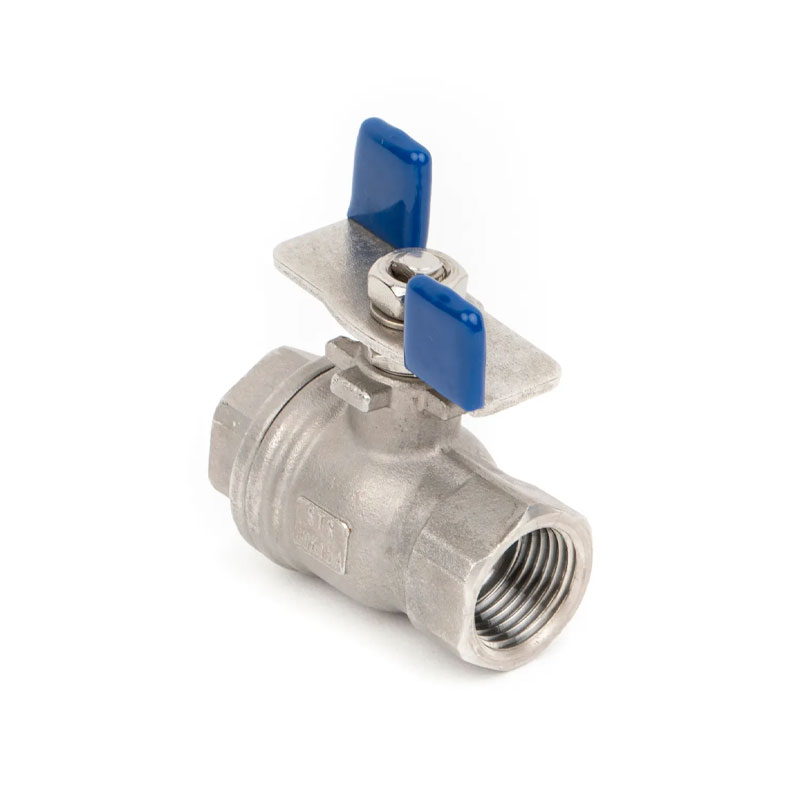

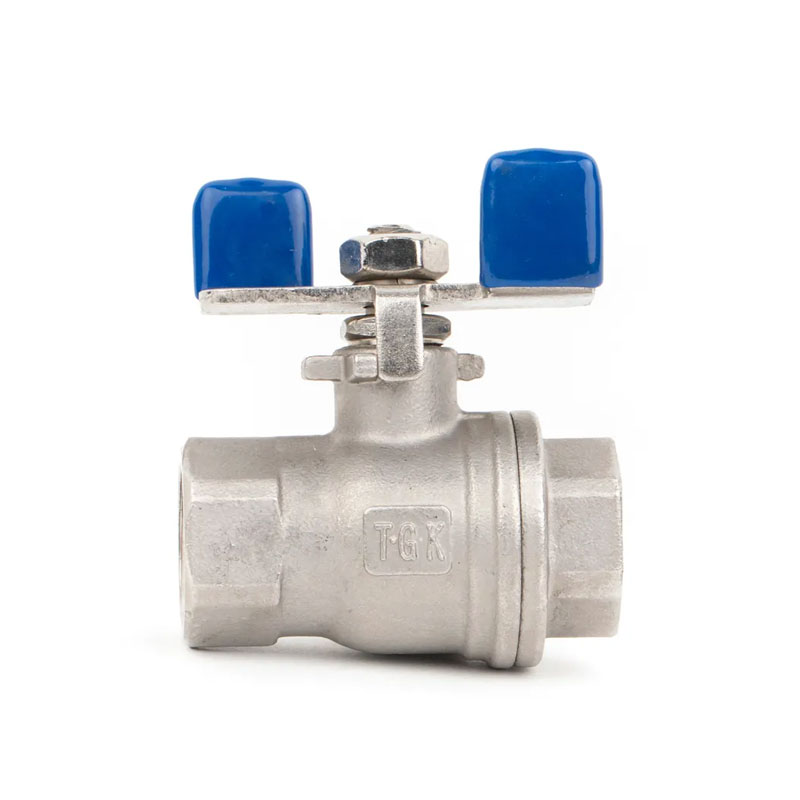

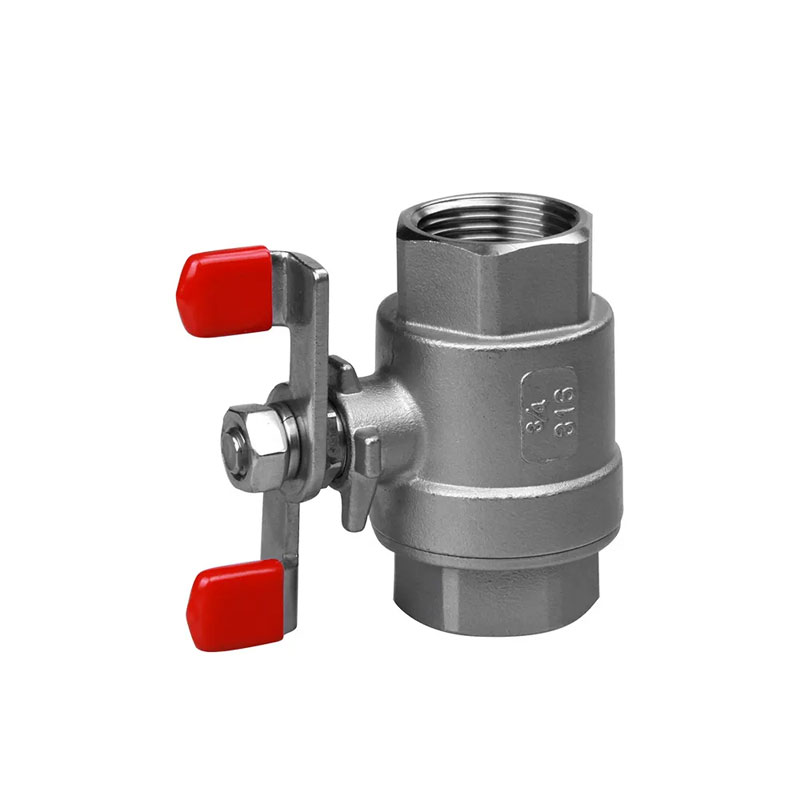

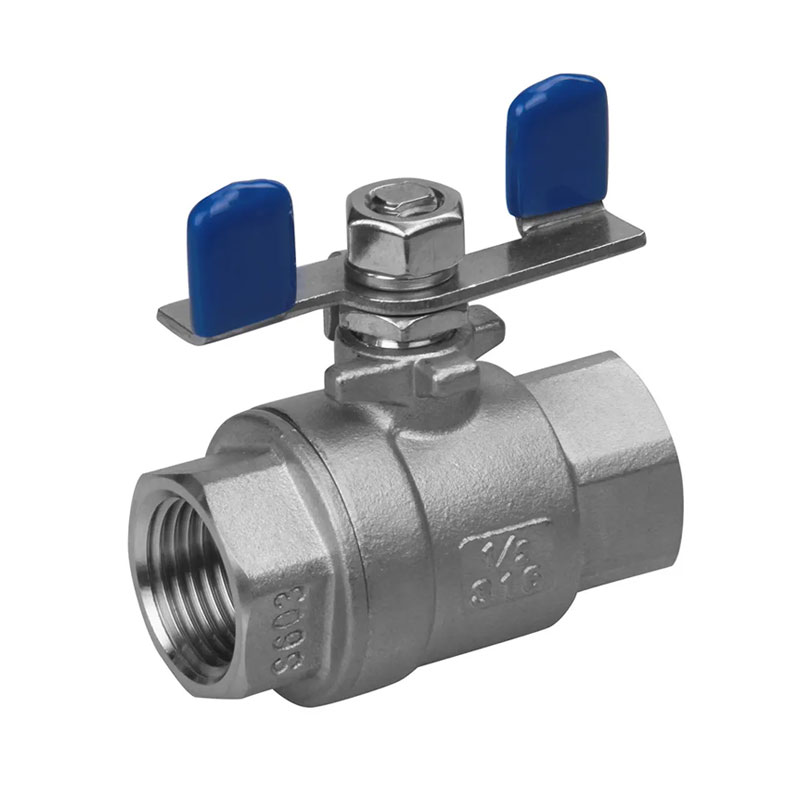

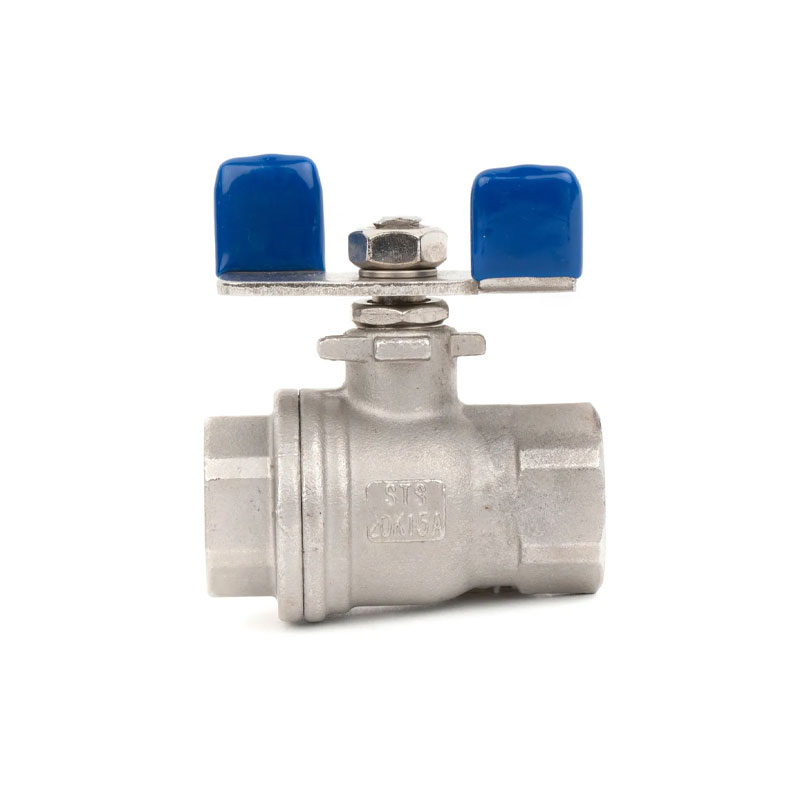

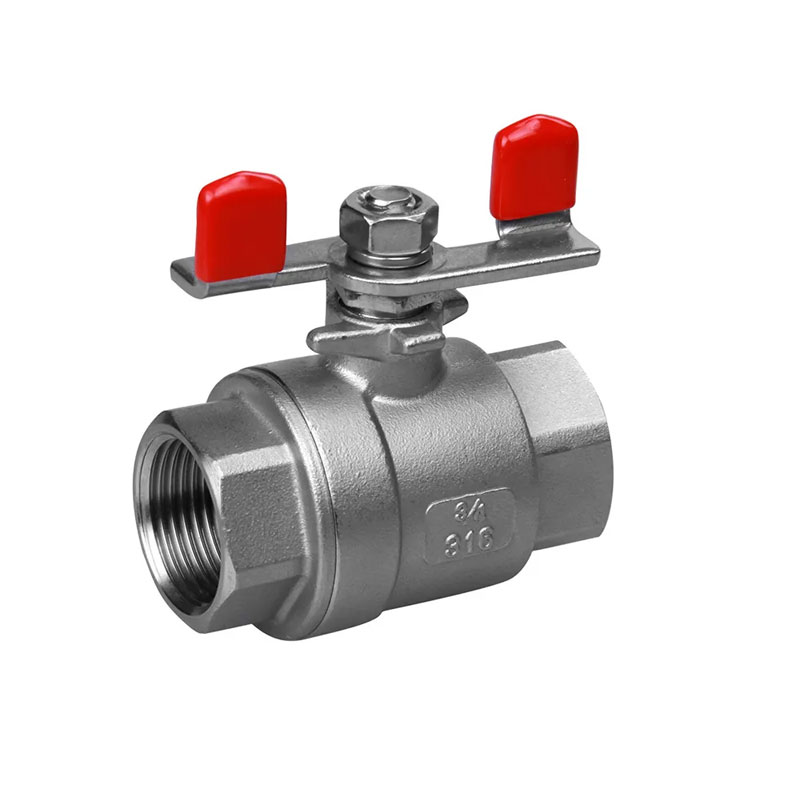

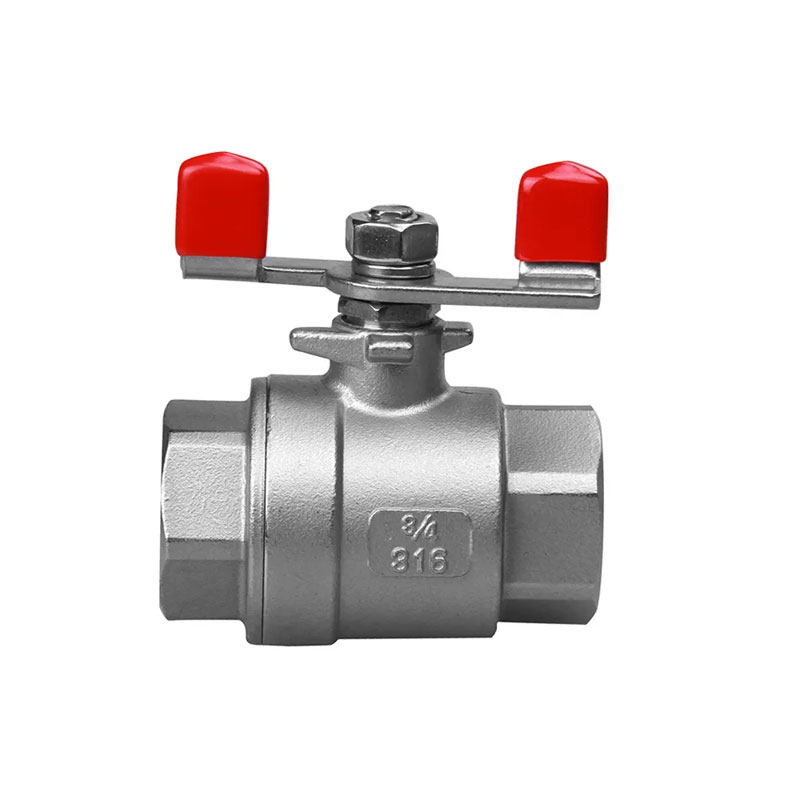

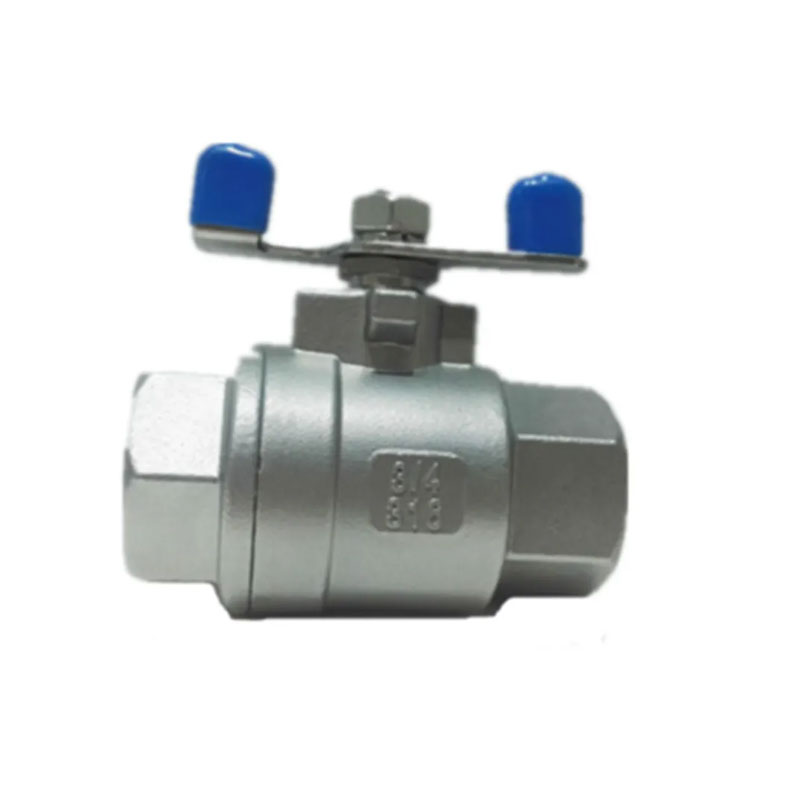

JOEPAI high quality Stainless Steel Threaded 2-PC Ball Valve, Mainly used for cutting off or connecting media in pipelines, it can also be used for fluid regulation and control, especially suitable for media containing fibers, small solid particles, etc. The multi way ball valve on the pipeline can not only flexibly control the merging, splitting, and switching of the flow direction of the medium, but also close any channel to connect the other two channels.
Wenzhou Joepai Valve Co., Ltd. stainless steel disc valves are classified as stainless steel one-piece ball valves, stainless steel two-piece ball valves, and stainless steel three piece ball valves.
● Size: 1/4"~4"
● Body Material: ASTM A216 WCB/DIN 1.0619,SS316/ASTM A351 CF8M/DIN 1.4408,
SS304/ASTM A351 CF8/1.4308
● Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber),
PPL etc.
● Max. Pressure:6.4MPa
● Temperature Range:-20ºC~232ºC
● Suitable Medium:Water,Oil,Gas and some Corrosive Liquids
● Blow-out Proof Stem/Reduced Port
● Investment Casting Body

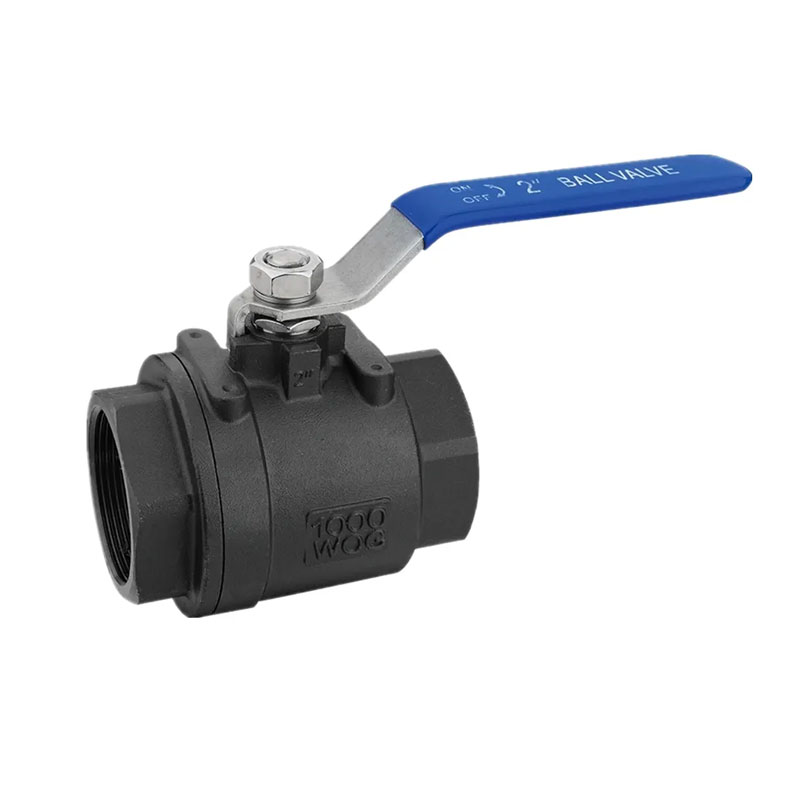

● 1000PSI(PN64)W.O.G 150lb
Chemical & Petrochemical Systems
Food & Beverage Process Lines
Water Treatment Plants
Oil & Gas
General Industrial Automation
HVAC and Building Services
| 1 | Body | CF8M/CF8/WCB | 8 | Packing | PTFE |
| 2 | Gasket | PTFE | 9 | Gland | SS304/SS |
| 3 | Cap | CF8M/CF8/WCB | 10 | Stem Nut | SS304/SS |
| 4 | Seat | PTFE | 11 | Handle | SS304/SS |
| 5 | Ball | SS316/SS304/SS | 12 | Spring Washer | SS304/SS |
| 6 | Stem | SS316/SS304/SS | 13 | Plastic Cover | Plastic |
| 7 | Thrust Washer | PTFE | 14 | Stem Nut | SS304/SS |
| NPS | DN | D | L | W | H |
| 1/4" | 8 | 11.5 | 53.5 | 93 | 51 |
| 3/8" | 10 | 11.5 | 53.5 | 93 | 51 |
| 1/2" | 15 | 13.5 | 62 | 93 | 55.5 |
| 3/4" | 20 | 17.5 | 74 | 110 | 59 |
| 1" | 25 | 22.5 | 87 | 125 | 68.5 |
| 11/4" | 32 | 29 | 105 | 145 | 75 |
| 11/2" | 40 | 35 | 108 | 170 | 86 |
| 2" | 50 | 48 | 125 | 170 | 96 |
| 21/2" | 65 | 65 | 154 | 210 | 127.5 |
| 3" | 76 | 80 | 177.5 | 240 | 134 |
| 4" | 100 | 100 | 228 | 314 | 160 |
