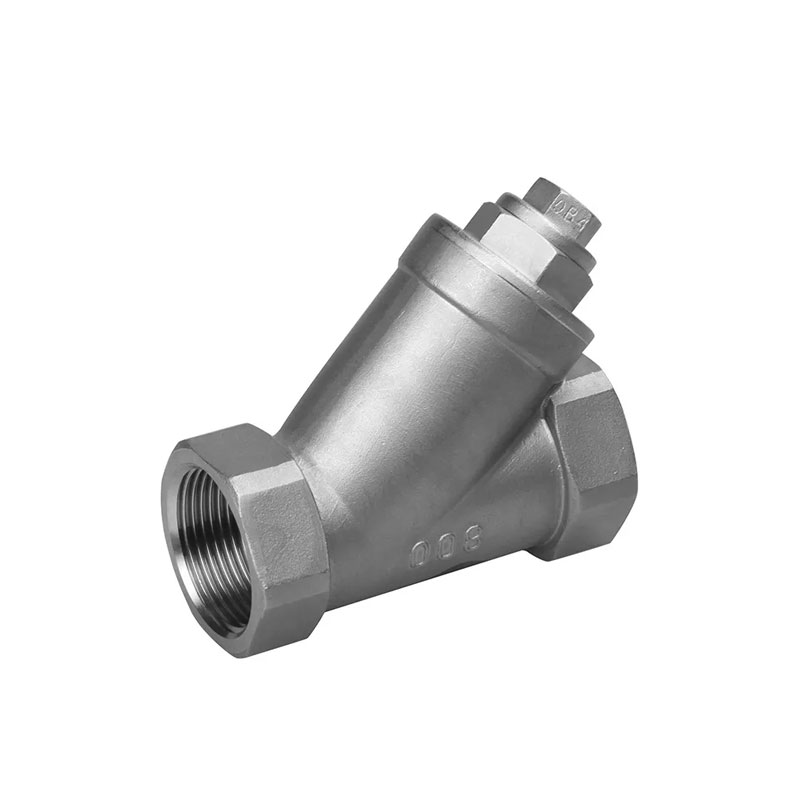

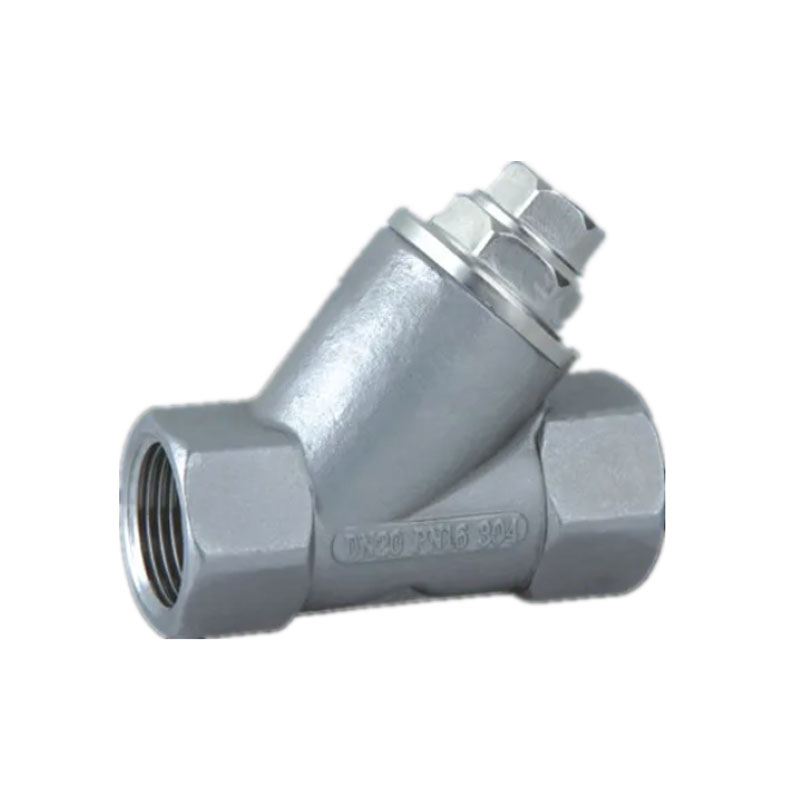

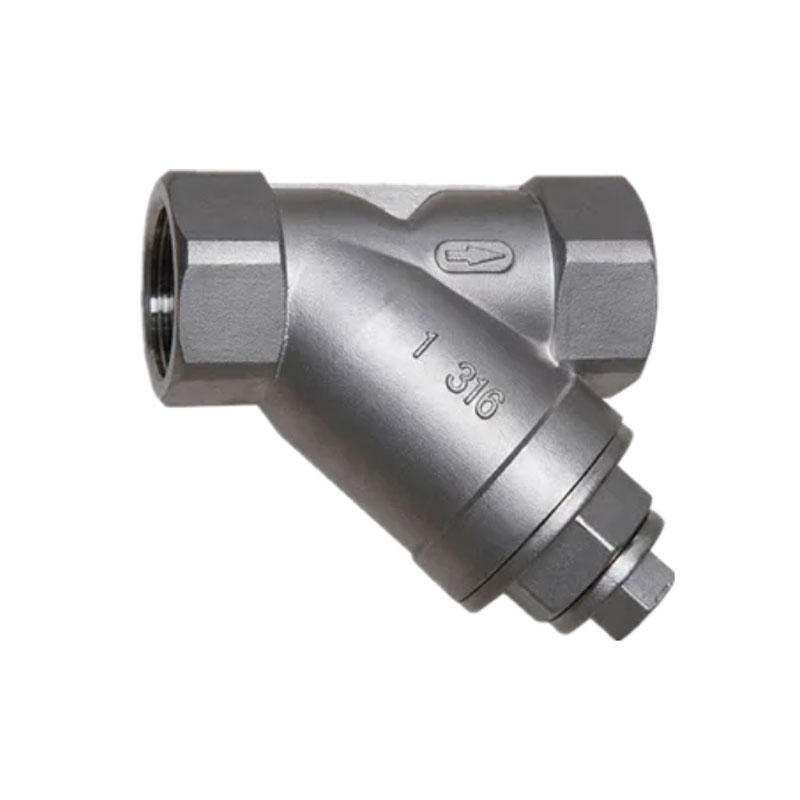

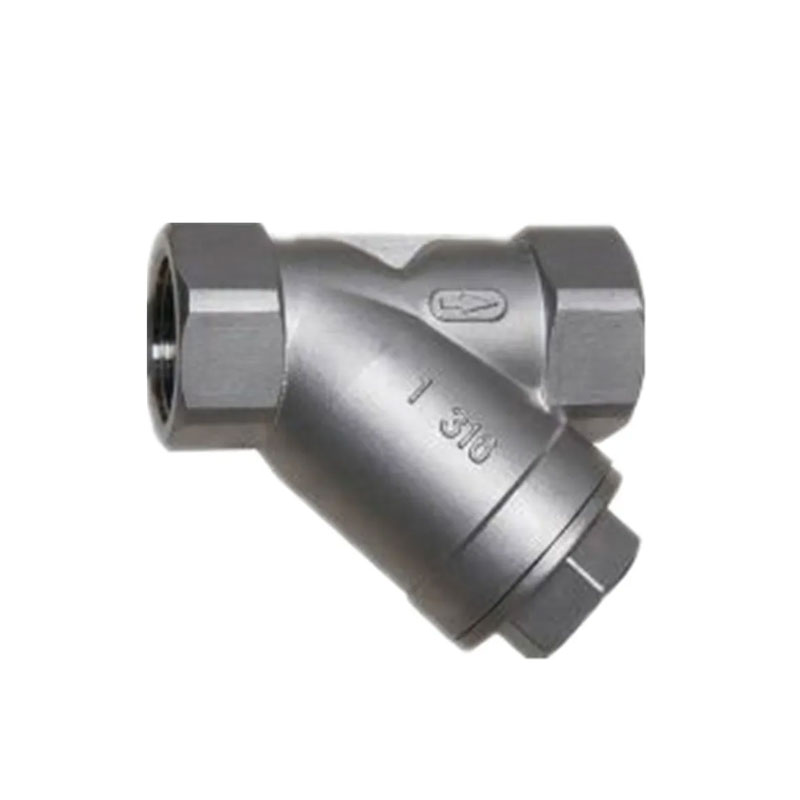

Stainless Steel Thread Ends Y-type Strainer Filter

JOEPAI High Quality Stainless Steel Thread Ends Y-type Strainer Filter is suitable for media such as water, oil, and gas. The general water network has a mesh size of 18-30, the ventilation network has a mesh size of 10-100, and the oil network has a mesh size of 100-480. The basket filter is mainly composed of a connecting pipe, a main pipe, a filter blue, a flange, a flange cover, and fasteners. When the liquid enters the filter blue through the main pipe, solid impurity particles are blocked inside the filter blue, while clean fluid passes through the filter blue and is discharged from the filter outlet.

Features:

THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 1.6MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
CASTING BODY
200PSI(PN16)W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308

Application：

Y Strainer Filter, as an indispensable high efficiency filtration device in purification equipment engineering, has played a significant role in the treatment of domestic and industrial wastewater. With various advantages in design and application, it is now highly favored.

Ansi Y Strainer Filter has effectively treated a large amount of domestic and industrial wastewater in various industries, enabling valuable water resources to be effectively reused and saving a significant amount of water resources.

The advantages of Ansi Y Strainer Filte in operation include full automation, maintenance free, large filtration area, high filter efficiency, long service life, stainless steel material, optional filtration accuracy, and complete specifications. Compared with other filtration devices, it is one of the most effective equipment in reclaimed water reuse projects. And after Ansi Y Strainer Filte treatment, the water quality not only meets the national discharge standards, but also achieves the purpose of repeated and circular utilization

Main Parts and Materials

Main Dimensions
