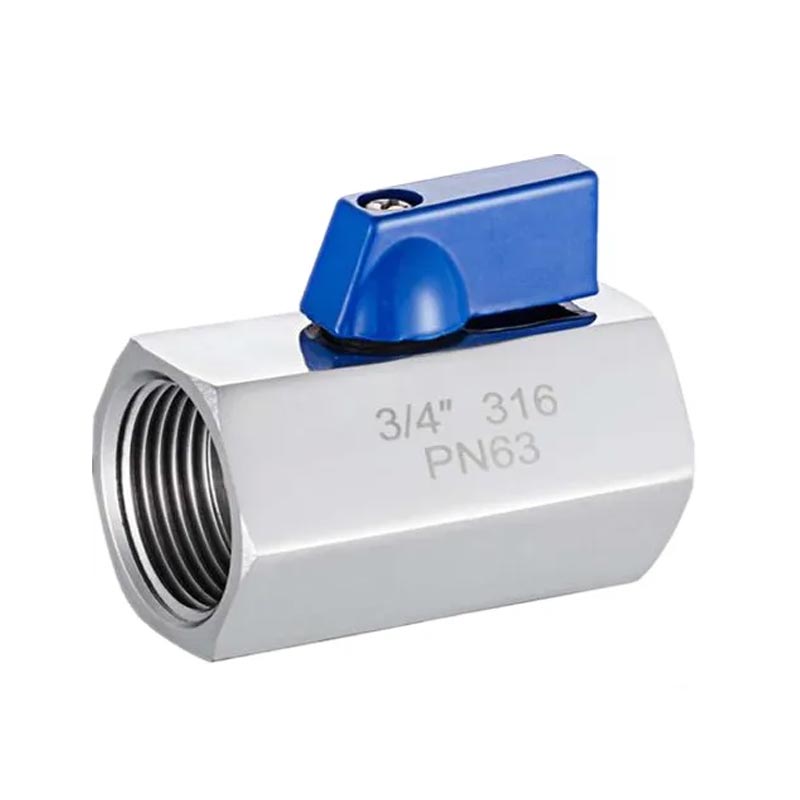

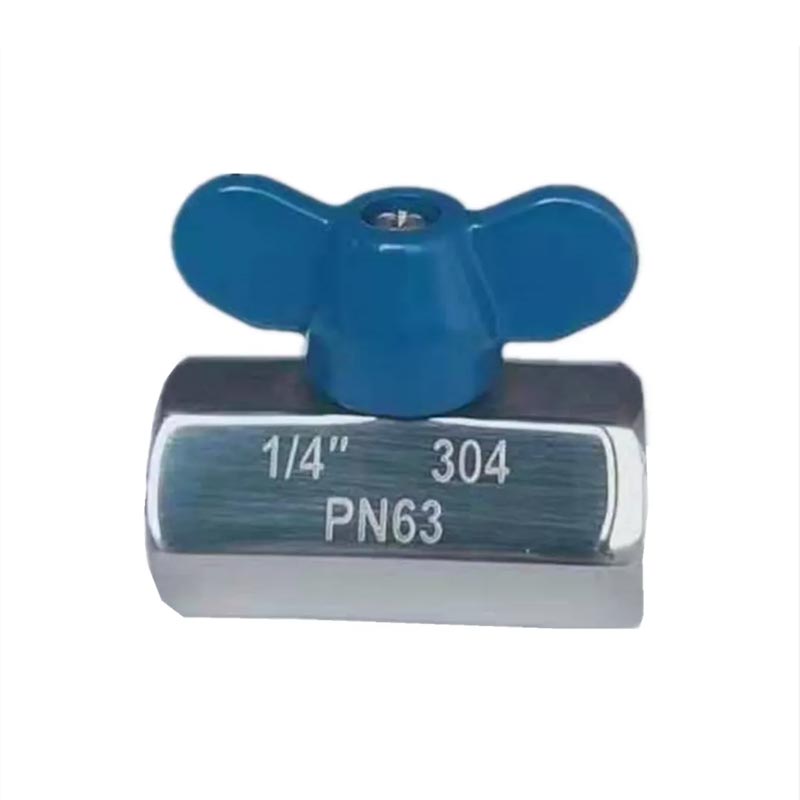

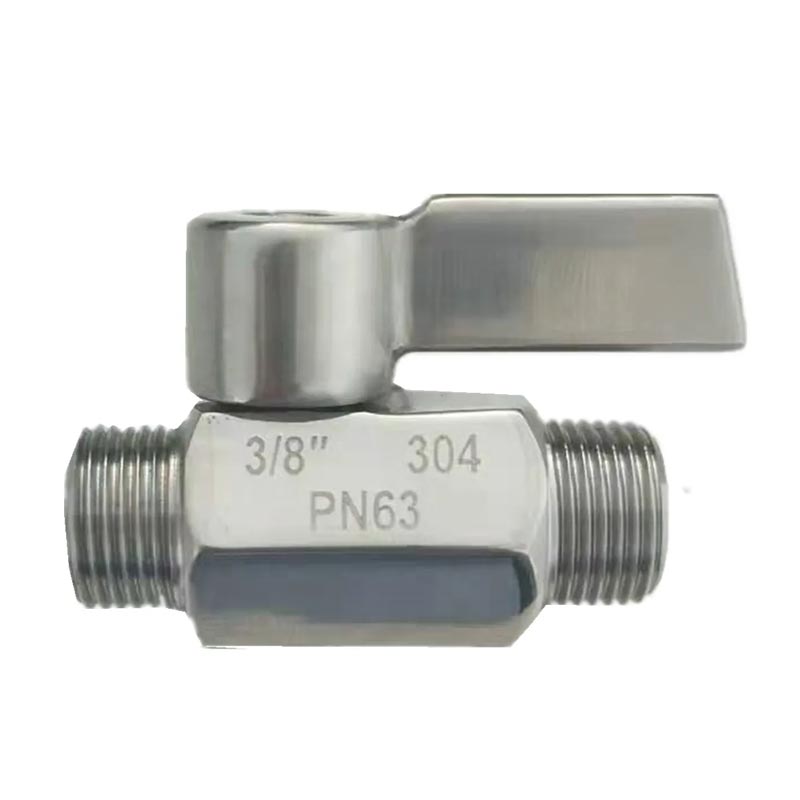

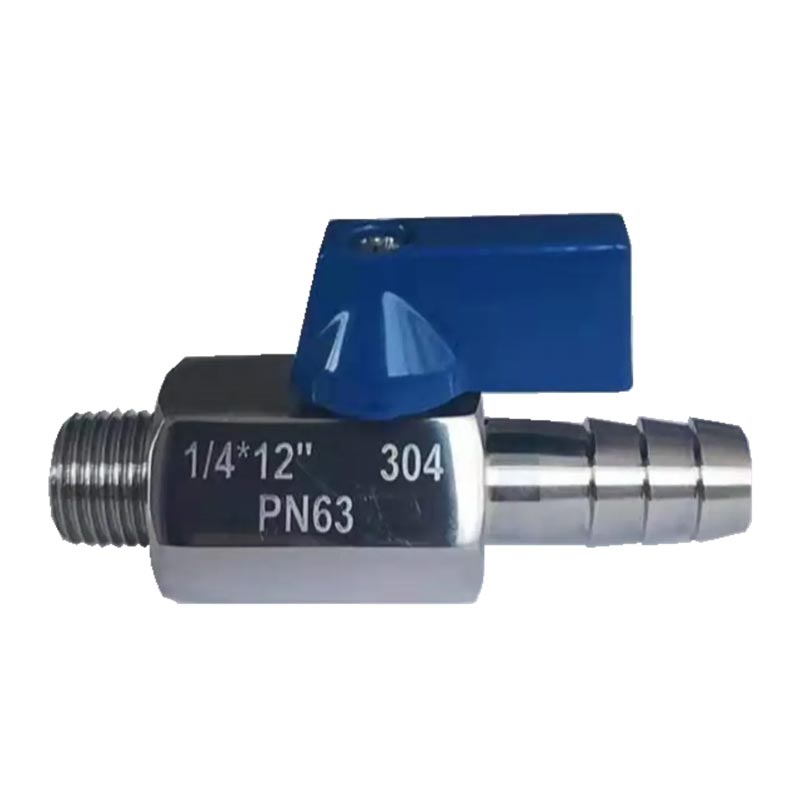

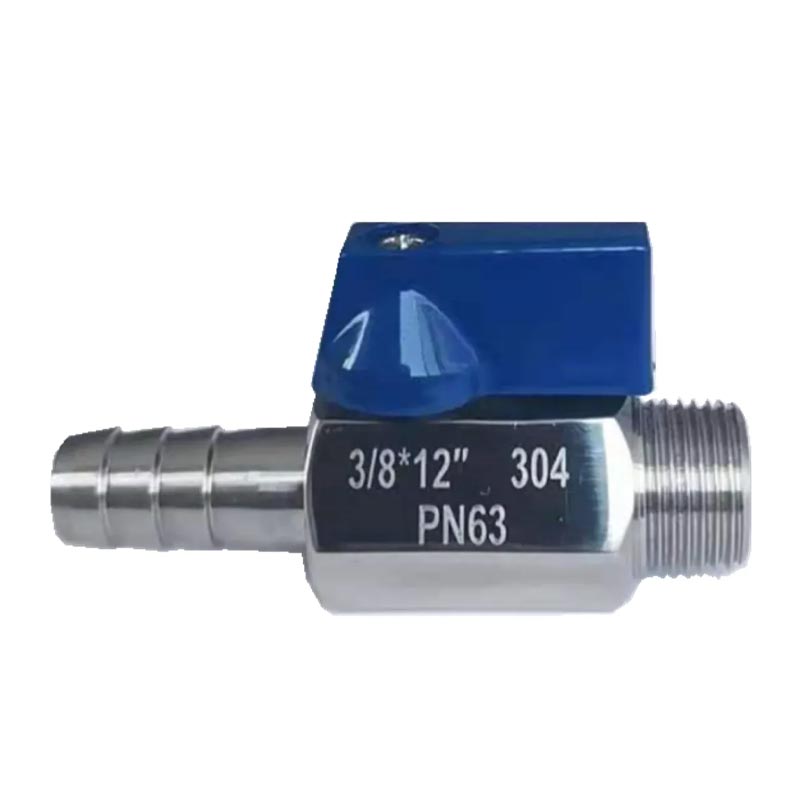

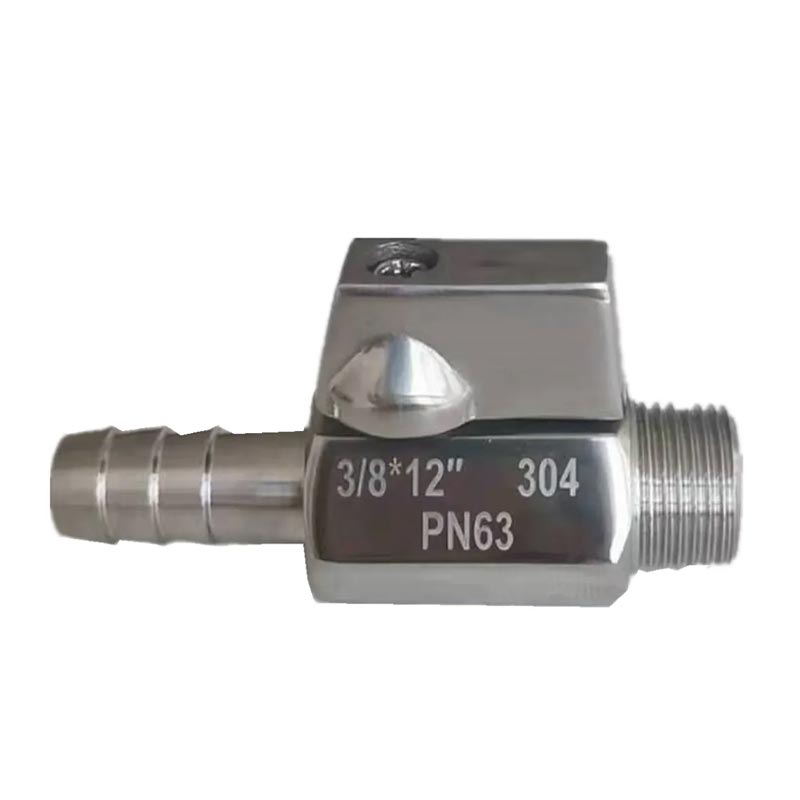

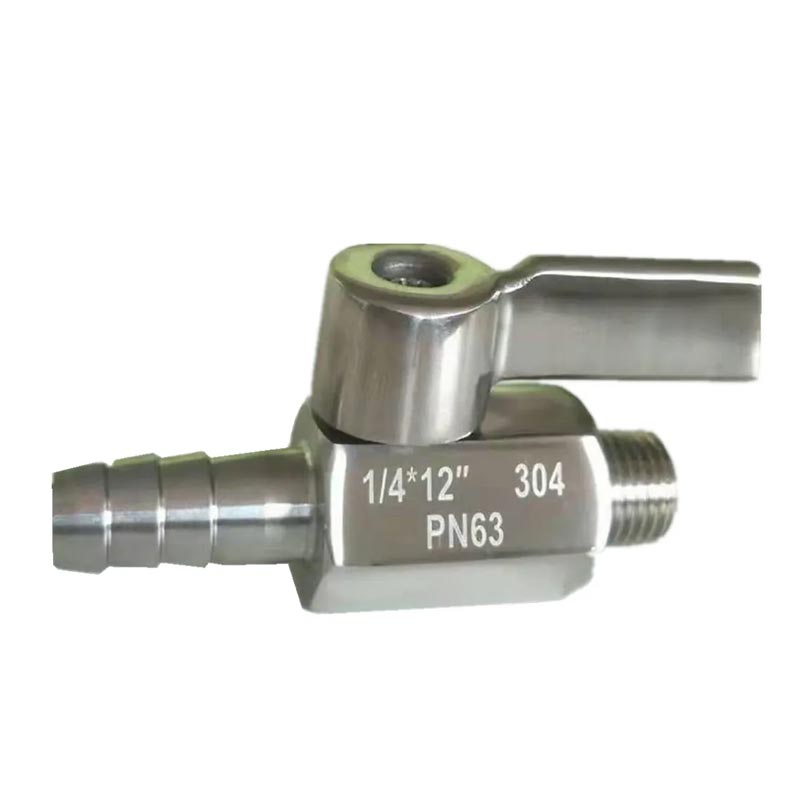

Threaded Stainless Steel Mini Ball Valve

JOEPAI durable Threaded Stainless Steel Mini Ball Valve is designed with the concept of "small volume, large performance" to achieve efficient fluid control in a compact space, making it an ideal opening and closing choice in precision fluid systems.

Threaded Stainless Steel Mini Ball Valve is a valve that uses a ball with a circular channel as the opening and closing member. The ball rotates with the valve stem to achieve the opening and closing action. Its opening and closing member is a perforated ball that rotates around an axis perpendicular to the channel to achieve the purpose of opening and closing the channel.

Our mini ball valve plays an important role in industry and daily life due to its small size, lightweight, and reliable sealing. In the future, with the development trend of intelligence, environmental protection, energy conservation, and high precision, its application prospects will be even broader.

Product Detail

Size:1/8"-1"(DN6~DN25)
Working Pressure: 1000WOG(PN63)
Blow-Out Proof Stem/Reduced port
Operator:Lever
Investment Casting
Material Standard:
  SS316/ASTM A351 GR-CF8M/DIN1.4408
  SS304/ASTM A351 GR-CF8/DIN1.4308
Seat material:PTFE RPTFE
Finish: Surface Polishing
Working Temperature:-20C-232℃
Suitable:Medium:Water,Oil,Gas
Design Standard:ASME B16.34
Threaded Ends:ANSIB.20.1(NPT):BS21;DIN2999/259;IS0228/1;JISB03;IS07/1
Inspection and testing:API598/MSS SP-110/EN 12266

Applicable Media

water, oil, gas, and certain corrosive liquids (W.O.G)

Product Usage

Equipment used in industries such as urban construction, chemical, metallurgical, petroleum, pharmaceutical, food, beverage, environmental protection, etc

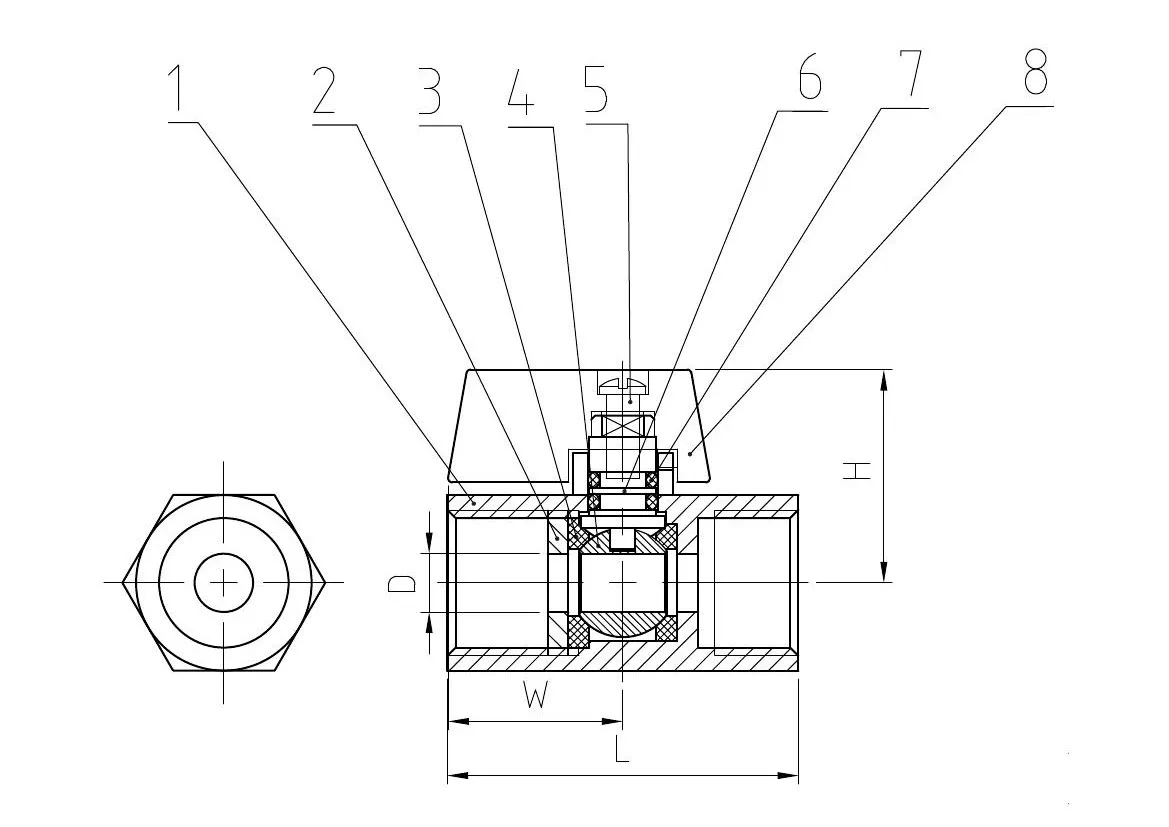

Main Parts and Materials

Main Dimensions
