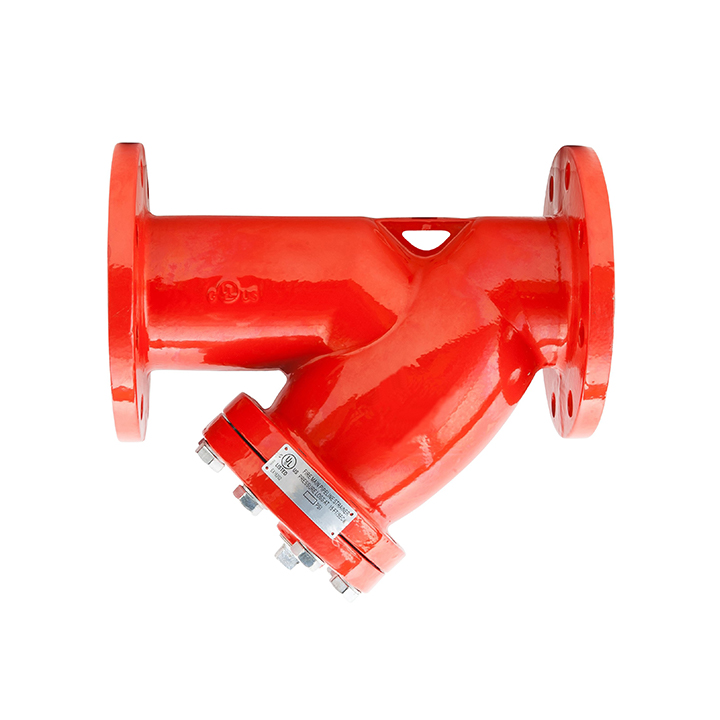

ANSI Flanged Y-Type Strainer for Fire Protection

In critical fire protection systems, pipeline contaminants like rust, scale, and welding slag pose a significant threat to sensitive components. The ANSI Flanged Y-Type Strainer serves as the first and most vital line of defense against these destructive particles. This specific strainer model is engineered to safeguard essential equipment, including alarm valves, pressure reducing valves, and sprinkler heads, by ensuring only clean water flows through the system. The reliability of the ANSI Flanged Y-Type Strainer for Fire Protection is fundamental to maintaining the operational integrity of the entire fire suppression network, making the ANSI Flanged Y-Type Strainer a non-negotiable component for life safety.

Product Description

Main Part & Materials

Robust Construction and Superior Design Features

The ANSI Flanged Y-Type Strainer boasts a design centered on durability and performance. The strainer body, available in materials like cast steel or ductile iron, is built to withstand the demanding 300 PSI working pressure common in fire protection systems. The heart of the ANSI Flanged Y-Type Strainer is its perforated stainless steel basket, which provides extensive filtration surface area while minimizing pressure loss. Furthermore, the ANSI Flanged Y-Type Strainer features a bolted flanged cap, ensuring a secure seal and granting straightforward access to the strainer basket for routine inspection and cleaning without requiring special tools.

Efficient Operational Principle and Filtration Process

During normal operation, water enters the inlet of the ANSI Flanged Y-Type Strainer. The Y-shaped configuration directs the flow into the cylindrical straining basket. As water passes through the screen, solid particles are trapped within the basket, while filtered water proceeds to the outlet, protecting downstream fire protection equipment. The efficient design of the ANSI Flanged Y-Type Strainer ensures minimal pressure drop, which is crucial for maintaining the required water volume and pressure for sprinklers and hydrants. The ANSI Flanged Y-Type Strainer performs this critical protective function continuously and automatically.

Installation Considerations

Proper installation is critical to the performance of ANSI flanged Y-strainers. Y-strainers should typically be installed before the pressure regulator and must be installed according to the gas flow direction indicated on the Y-strainer.

Y-strainers are made of washable synthetic material. Ensure the cover is easily accessible for cleaning and inspection.

Y-strainers can be installed on both horizontal and vertical pipes. Avoid installing the filter on unstable foundations.

Before servicing, isolate the ANSI flanged Y-strainer and remove line pressure to allow access to the flange cover. The stainless steel screen can then be removed, cleaned of any debris, and reinstalled, ensuring the ANSI flanged Y-strainer continues to operate at optimal efficiency and minimizing downtime.

Conclusion: An Indispensable Investment for Safety

The ANSI Flanged Y-Type Strainer is far more than a simple pipe fitting; the ANSI Flanged Y-Type Strainer is a fundamental safeguard for property and lives. By consistently preventing mechanical failure and blockages, the strainer ensures that the fire protection system will function as designed during an emergency. Investing in a high-quality ANSI Flanged Y-Type Strainer is a direct investment in the reliability and performance of a building's entire life safety infrastructure.
