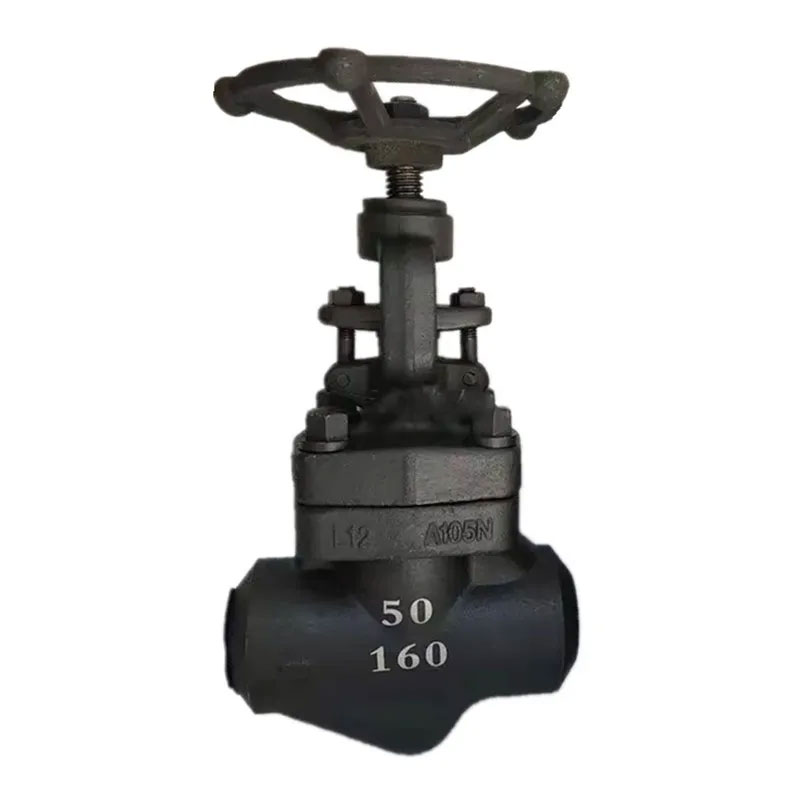

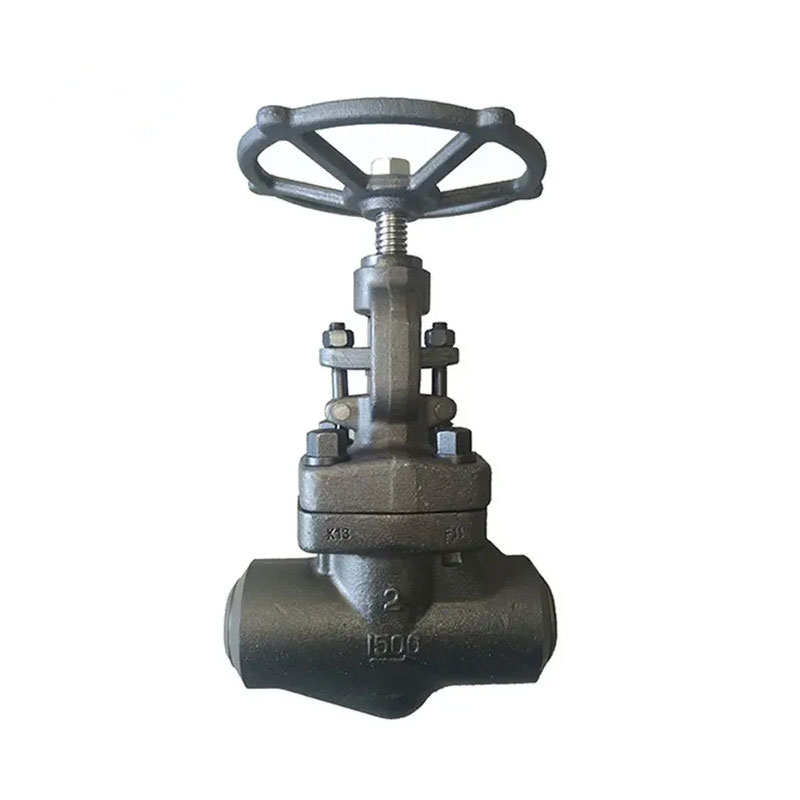

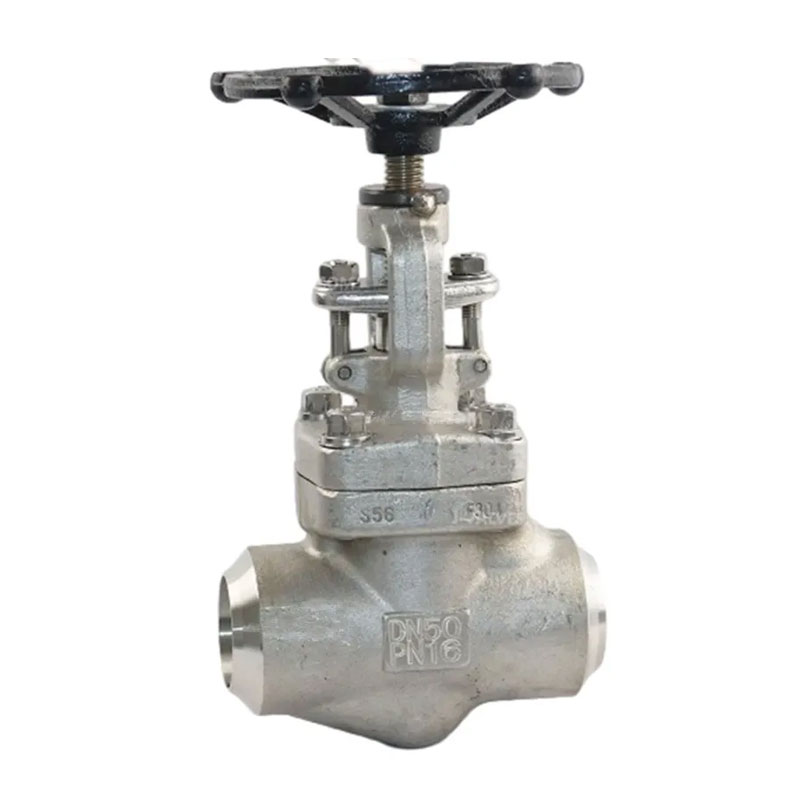

The JOEPAI durable Butt Weld A105 Forged Steel Globe Valve is made from ASTM A105 carbon steel, this forged globe valve ensures exceptional pressure resistance and high-temperature performance. Its butt weld ends provide a permanent, leak-tight connection, ideal for high-pressure and high-temperature fluid control applications. Compact in design yet robust in construction, the valve enables smooth operation and reliable shut-off, complying with international standards such as API 602 and ASME B16.34. Suitable for industries including petrochemical, power generation, and natural gas, it is engineered to handle steam, oil, gas, and other demanding media. Combining durability with easy maintenance, this valve guarantees long-term service and operational safety in critical environments.
1.Material F304/316/304L/316L(CF8/CF8M/CF3/CF3M),A105,F11,F22,F51,LF2,etc.
2.Size 1/2"-2"
3.Thread standard ISO9001 & CE,TS
4.Port Full Port/Reduce Port
5.Working Pressure 150LB-2500LB
6.Connection Ends NPT/SW/BSP/BSPT/BW/Flange
7.Working Temp -29~425ºC,or according to customer requirements for different
industry.
8.Suitable Medium Water,Natural Gas,oil and some corrosive liquid
9.Operated Handwheel
10.Inspenction & Testing According to API598
| - Full Port or Standard Port | |||||||
| - Outside Screw and Yoke(OS&Y) | |||||||
| - Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded and pressure seal bonnet | |||||||
| - Integral Backseat | |||||||
| - Loose solid disc | |||||||
| - Socket Weld Ends to ASME B16.11 | |||||||
| - Butt Weld Ends to ASME B16.25 | |||||||
| - Screwed Ends to ANSI/ASME B1.20.1 | |||||||
| - Flanged Ends to ASME B16.5 |
| Part Names | Part Materials | |||||||
| Body | A105 | LF2 | F22 | F304 | F316 | F304L | F316L | B62 |
| Bonnet | A105 | LF2 | F22 | F304 | F316 | F304L | F316L | B62 |
| Disc/Ball/Wedge | A105 | SS304 | F22 | F304 | F316 | F304L | F316L | B62 |
| Stem | A105 | F304 | F6a | F304 | F316 | F304L | F316L | B62 |
| Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | F304 | F316 | F304L | F316L | B62 |
| Packing | Graphite/PTFE | |||||||
| Gasket | SS304+Graphite/SS304+Graphite | |||||||
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. | |||||
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C |
