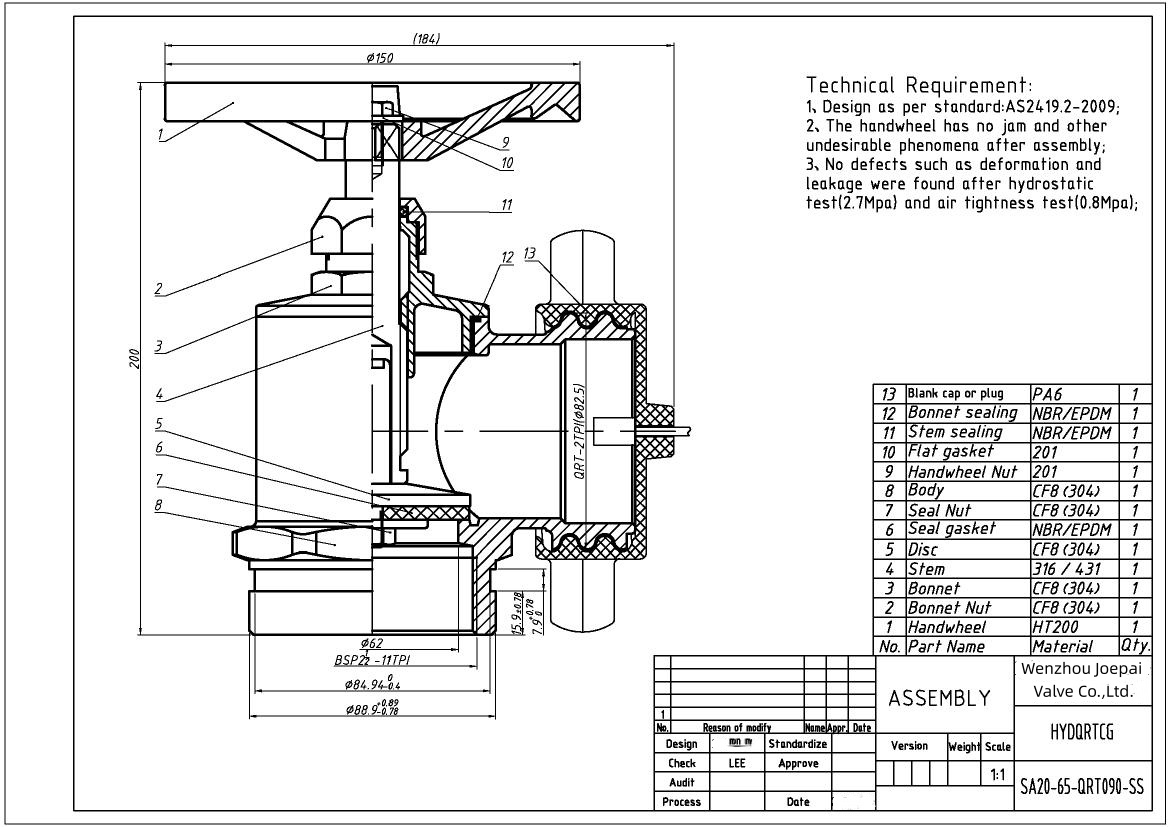

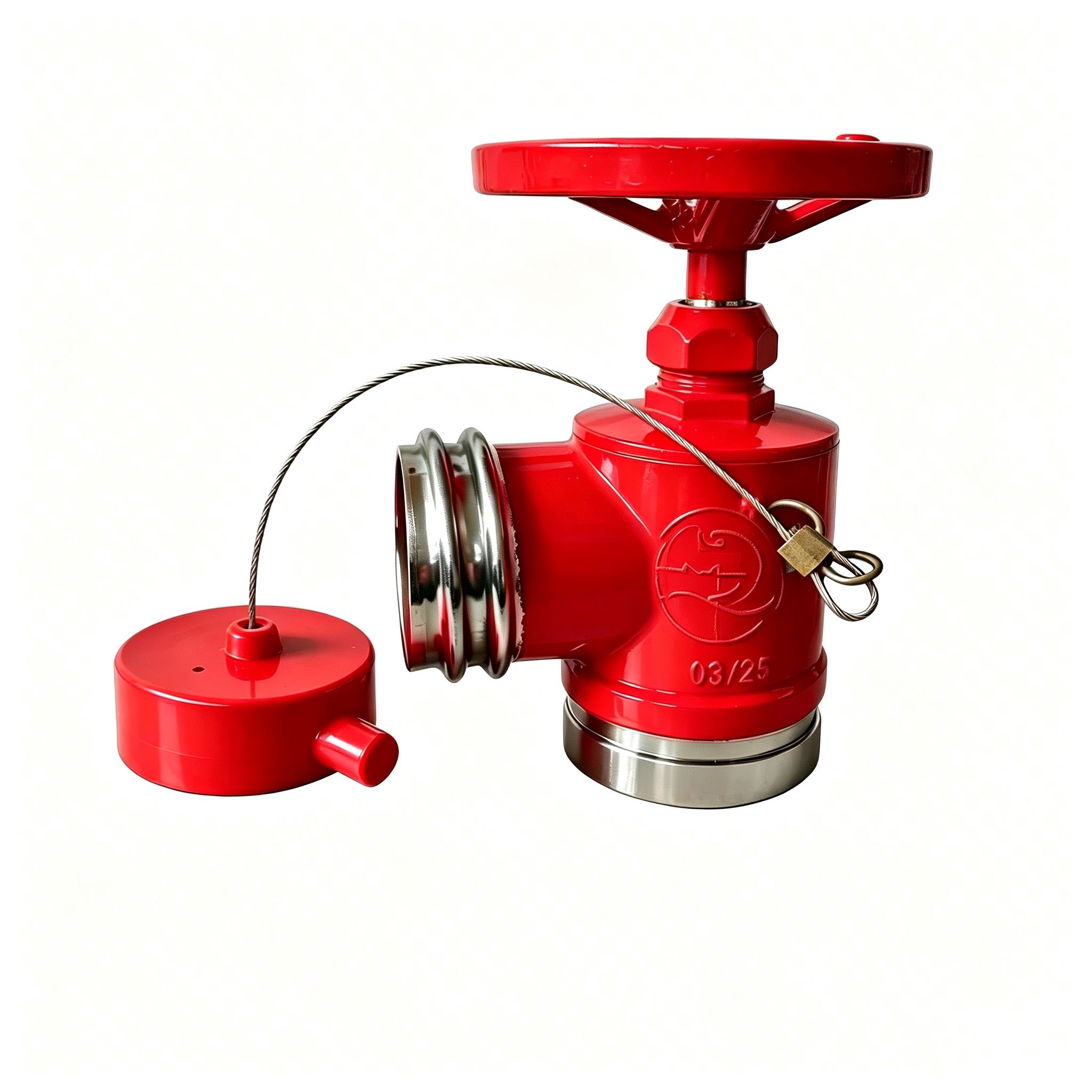

QRT and RG Connections Stainless Steel Fire Hydrant Landing Valve

The JOEPAI factory provides high-grade 304 QRT and RG Connections Stainless Steel Fire Hydrant Landing Valve,it is built for real-world Australian site conditions and meets all requirements under AS/NZS 2419.2 for fire hydrant installations.Body and bonnet are made from grade 304 stainless steel, while the stem steps up to SS316 for much better corrosion resistance — critical for our harsh local operating environments. Finished in standard signal red, this landing valve holds up well on coastal sites, mine locations, heavy industrial plants, power substations and offshore rigs right across every Australian state and territory.

Performance Specifications

Working Pressure: 1,400 kPa

Test Pressure: 2,700 kPa

Temperature Range: -10°C to +85°C

Inlet Connection:80mm Roll Groove (RG), internal 65mm BSP Female Thread

Outlet Connection:65mm QRT Quick Release Thread

Compliance & Standards:Fully complies with AS/NZS 2419.2 for fire hydrant systems

Configurations Available

JOEPAI offers a full range of QRT and RG Connections Stainless Steel Fire Hydrant Landing Valves to suit different state fire authority requirements:

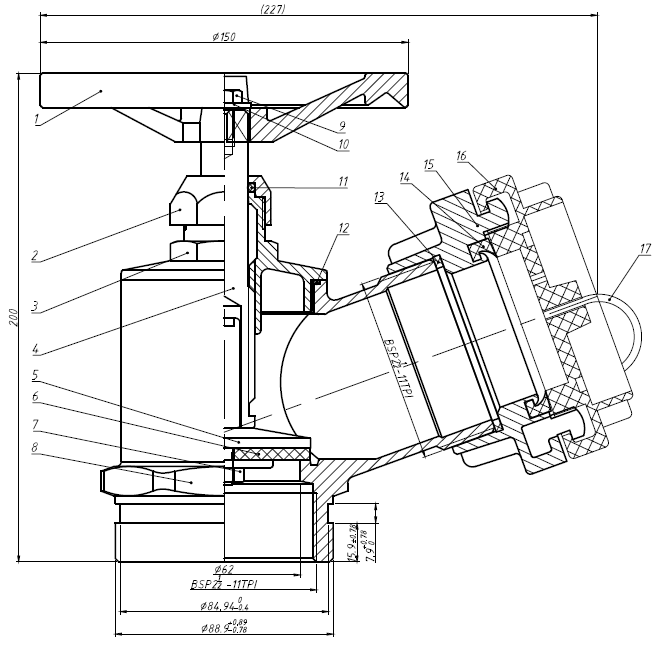

65mm BSP threaded Storz x 80mm Roll Groove Inlet

65mm NSW threaded Storz x 65mm BSP male inlet

65mm QRT Outlet x 80mm Roll Groove inlet

65mm QRT Outlet x 65mm BSP Male inlet

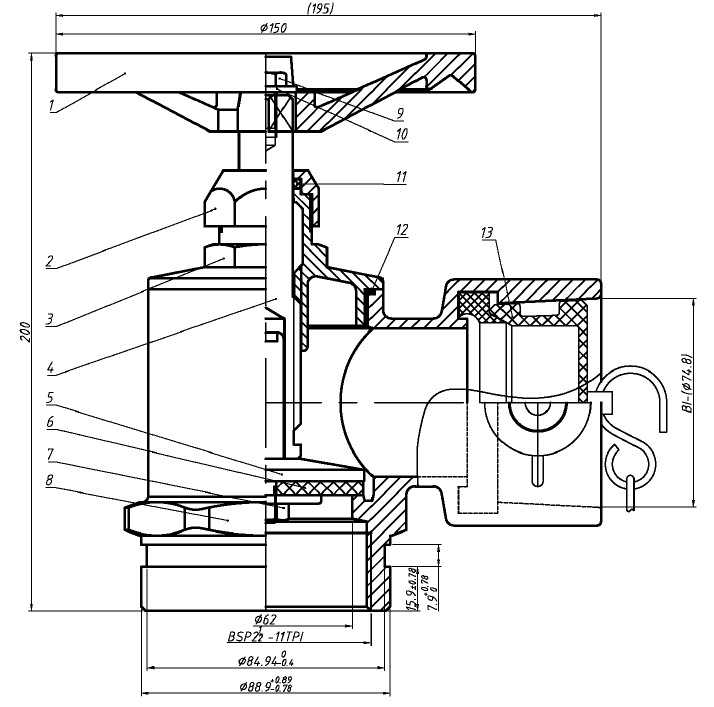

65mm BIC Outlet × 80mm Roll Groove Inlet

All valves are compatible with protective caps for each connection type, ensuring cleanliness and system integrity when not in use.

Why Choose JOEPAI SS304 Fire Hydrant Landing Valves?

Fully compliant withAS2419.2:2009

High-grade SS304 stainless steel construction

Corrosion-resistant and suitable for harsh environments

Multiple inlet and configuration options

Applications

- Queensland mine sites and remote resource operations

- Offshore oil and gas platforms and marine terminals

- Electrical substations and heavy industrial facilities

- High-rise buildings and dense urban developments

- New fire system installations and upgrades to existing systems

Protect what matters most with JOEPAI – Your trusted partner in fire safety compliance.

Let me know if you'd like this adapted into a product brochure, technical datasheet, or multi-product category page.

FAQ

Q1: Is this valve compliant with Australian fire safety standards?

Yes. This QRT and RG Connections Stainless Steel Fire Hydrant Landing Valve is designed and tested to AS/NZS 2419.2, and cleared for installation across every Australian state.

Q2: What materials are used?

Body and bonnet are SS304 stainless steel. The stem is SS316, chosen to hold up better against rust and salt‑spray exposure. Seals are NBR rubber, and the dust cap is UV‑stable plastic.

Q3: What do RG and QRT stand for?

RG stands for Roll Groove, referring to the 80 mm inlet connection. QRT is short for Queensland Quick Release Thread for the 65 mm outlet. There is a built‑in 65 mm BSP female thread within the inlet, making retrofits far simpler on existing pipework.

Q4: What are the pressure and temperature ratings?

Working pressure is 1400 kPa, factory test pressure sits at 2700 kPa. Operating temperature runs from ‑10°C to 85°C.

Q5: Is it endurance tested?

Absolutely. Every valve goes through separate pressure checks, and has completed more than 10,000 open‑close operating cycles.

Q6: Can it be used for upgrading older hydrant systems?

Yes. The inlet works well with brand‑new grooved pipe, and also fits older threaded setups when carrying out system upgrades.

Q7: Do you offer other types of landing valves?

We stock alternative landing valve options including Storz, BIC and NSW‑thread outlets, with a range of inlet sizes to match each state’s local fire requirements.

Q8: What extras do you provide?

A UV‑protective dust cap is supplied with every valve. OEM custom changes and site‑ready maintenance kits can also be arranged upon request.
