Stainless Steel Fire Hydrant Landing Valves

The JOEPAI factory provides high-grade Stainless Steel Fire Hydrant Landing Valves featuring an optimized flow design with minimal pressure loss and instant operation capability. These heavy-duty valves are engineered for water-based fire suppression systems in demanding environments.The 65mm BSP threaded Storz x 80mm Roll Groove Inlet with 65mm BSP male inlet with forged storz and UV cap Fire Hydrant Valve combines supreme strength and exceptional corrosion resistance for demanding applications in marine, mining, and industrial settings.The Stainless Steel Fire Hydrant Landing Valves combine military-grade durability with civil compliance standards, delivering fail-safe performance when emergency response demands absolute reliability.

Model Type:

65mm BSP threaded Storz x 80mm Roll Groove Inlet

65mm NSW threaded Storz x 65mm BSP male inlet

65mm QRT Outlet x 80mm Roll Groove inlet

65mm QRT Outlet x 65mm BSP Male inlet

65mm BIC x 80mm Roll Groove Inlet

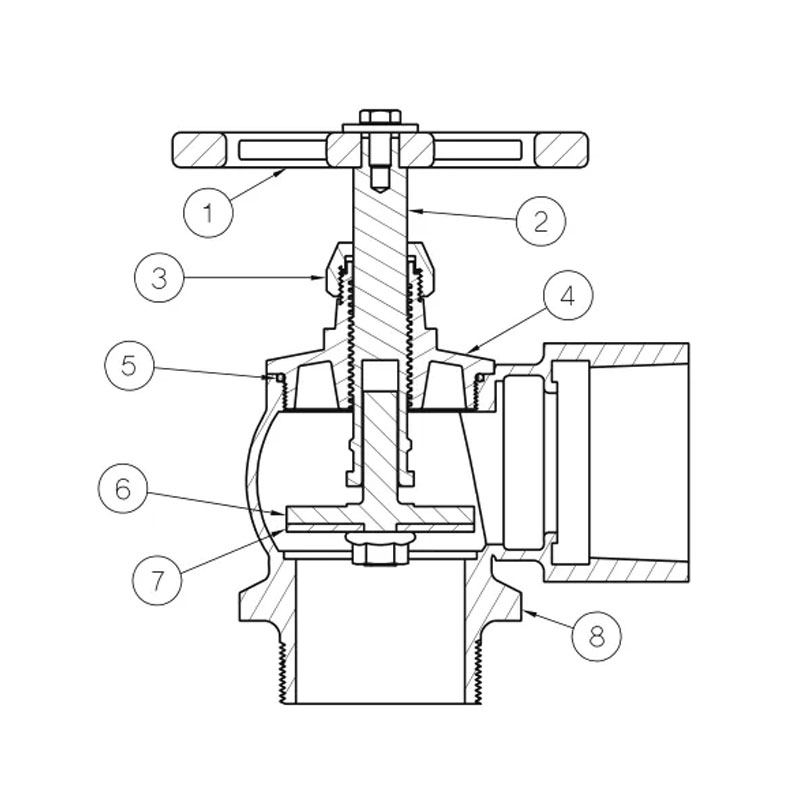

Premium Materials:

Body, Bonnet & Disc: 304 Stainless Steel

Stem: 316 Stainless Steel (superior corrosion resistance)

Hand Wheel: Durable HT200 Cast Iron

Seals: NBR Rubber for reliable performance

Performance Specifications:

Working Pressure: 1,400 kPa

Test Pressure: 2,700 kPa

Temperature Range: -10°C to +85°C

Compliance & Standards:Fully complies with AS/NZS 2419.2 for fire hydrant systems

Operation Principle:

When activated, water flows through the full-bore stainless steel passage, while the heavy-duty sealing system ensures zero leakage. The marine-grade construction maintains performance in saltwater environments, with all internal components resisting mineral buildup and corrosion.
