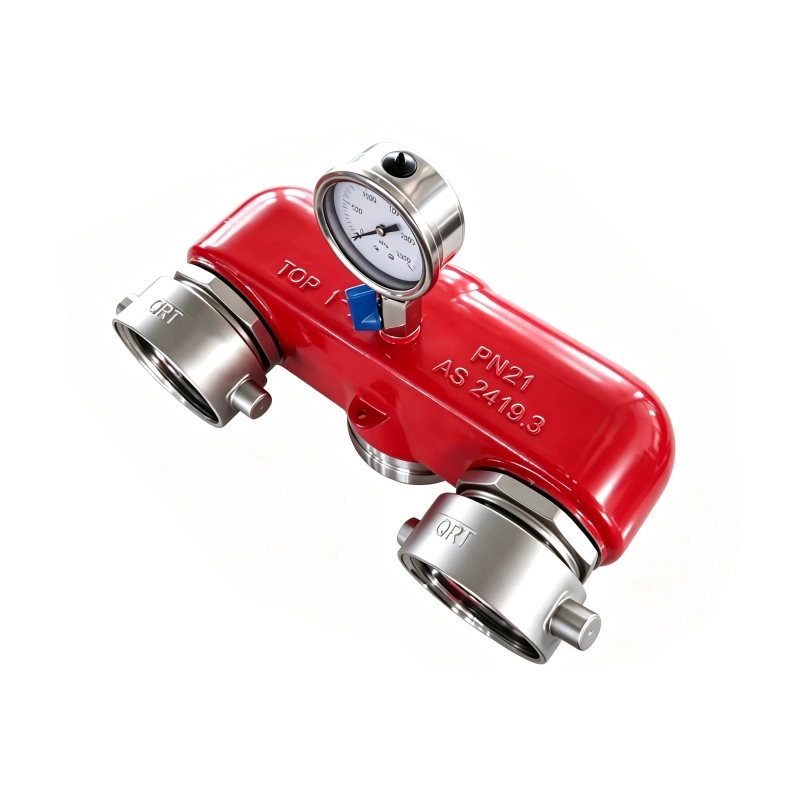

Wenzhou Joepai Valve Co., Ltd. builds on valve manufacturing experience dating back to 2003, offering industrial valve products and customized flow control solutions. With integrated design, development, manufacturing, and quality inspection capabilities, Joepai serves a range of industrial applications. The Stainless Steel Dual Booster Valve with Bottom Outlet QRT Assembly is part of its fire protection valve range, designed for compatible Queensland fire hydrant systems.
The Stainless Steel Dual Booster Valve with Bottom Outlet QRT Assembly body is made from 304 stainless steel, providing corrosion resistance and mechanical durability for fire protection applications. Regular inspection of the body and painted finish helps identify surface damage or deterioration.
The 65 mm QRT inlet is designed for compatible Queensland fire hydrant booster systems. Confirm the required coupling type and connection dimensions before ordering, particularly for replacement projects.
The bottom-entry design allows the supply pipework to connect from beneath the valve body. It suits booster cabinets where the water supply pipe rises from the floor or enters at a low level. For rear-entry pipework layouts, select a compatible rear-entry configuration.
The red painted exterior provides high visibility for fire protection equipment. Inspect the coating periodically and maintain it according to the installation environment and manufacturer's recommendations.
The assembly is supplied with a dust plug and wire, drain tap, and pressure gauge.

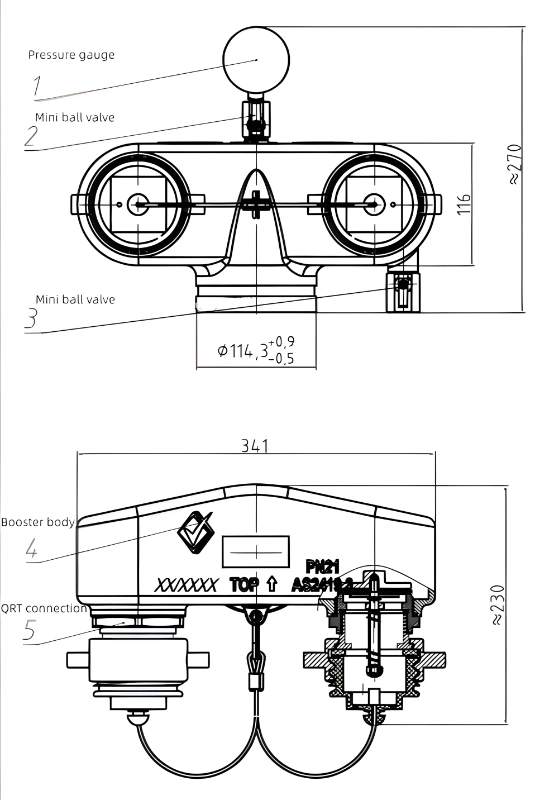

| Specification | Details |
|---|---|
| Product Name | Stainless Steel Dual Booster Valve with Bottom Outlet QRT Assembly |
| Configuration | Bottom Entry |
| Assembly Type | QRT Assembly |
| Inlet Connection | 65 mm QRT |
| Body Material | 304 Stainless Steel |
| Surface Finish | Red Painted Finish |
| Working Pressure | 2,100 kPa |
| Maximum Working Pressure | 2,650 kPa |
| Onsite Test Pressure | 3,150 kPa |
| Included Accessories | Dust Plug and Wire, Drain Tap, Pressure Gauge |
| Referenced Standard | AS/NZS 2419.3:2012 |
| Intended Market | Queensland, Australia |
| Warranty | 12 Months from Delivery |
Booster valve inlet configuration determines how the assembly connects to the supply pipework.
The inlet is located beneath the valve body. This configuration suits cabinets where the supply pipe enters from below or rises through the cabinet floor.
The inlet connects from the rear of the assembly. This configuration may suit cabinets where the supply pipework approaches horizontally from behind.
Check the cabinet layout, pipework direction, connection type, and installation dimensions before selecting a model.
Installation and commissioning must be performed by qualified fire protection personnel in accordance with the approved system design, applicable regulations, and manufacturer's instructions.
Before installation, verify the QRT connection, inlet orientation, available cabinet space, pressure ratings, and included accessories. During scheduled maintenance, inspect the valve body, painted surface, connections, pressure gauge, and drain tap for visible damage, leakage, or deterioration.
The specified onsite test pressure of 3,150 kPa must be applied only where permitted by the applicable testing procedure and manufacturer documentation. Confirm the required test pressure and acceptance criteria before commissioning.
Wenzhou Joepai Valve Co., Ltd. builds on the experience of Jingyue Valve Factory, established in 2003, and was founded in 2020 to expand its valve manufacturing and supply capabilities.

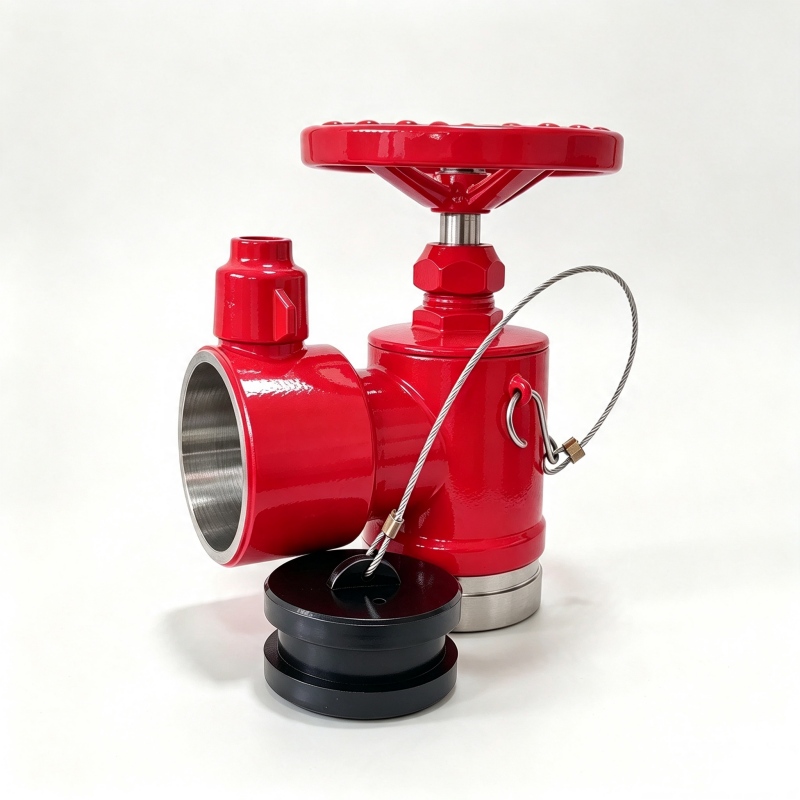

Our product range includes stainless steel ball valves, fire hydrant valves, booster valves, gate valves, globe valves, check valves, butterfly valves, strainers, fully welded ball valves, and fluorine-lined valves.

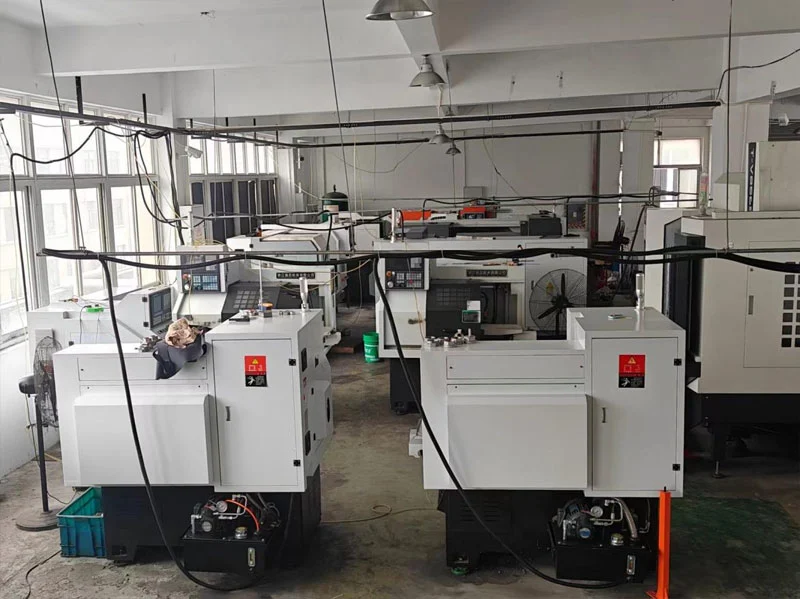

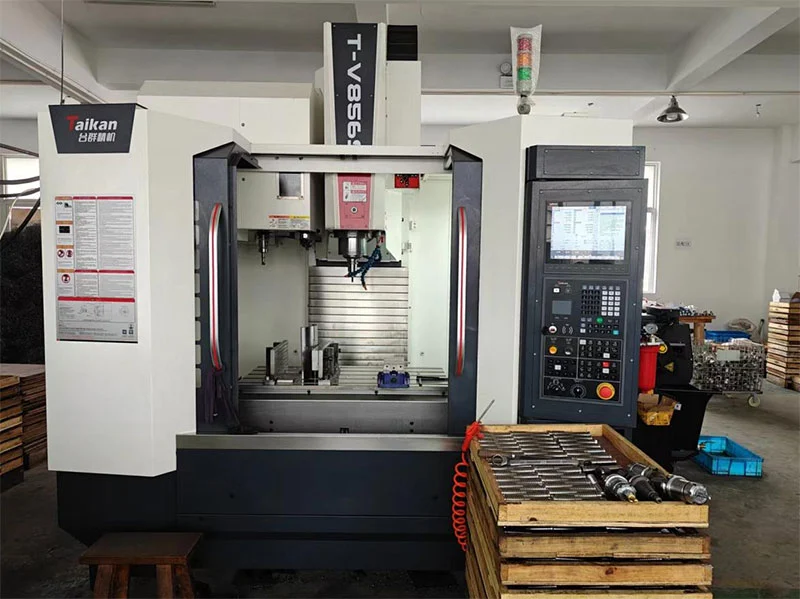

Our facilities include CAD valve design, UG 3D modeling, and a quality inspection and testing center. Production and inspection processes support product quality control from design through manufacturing.
Our valves are manufactured according to applicable international standards, including API, ANSI, JIS, ISO, DIN, GOST, and BS, as well as Chinese standards such as JB and GB, depending on product specifications.
We provide customized valve solutions based on project requirements, including product design, specifications, and application needs. Our team works with clients to confirm suitable configurations for industrial flow control systems.

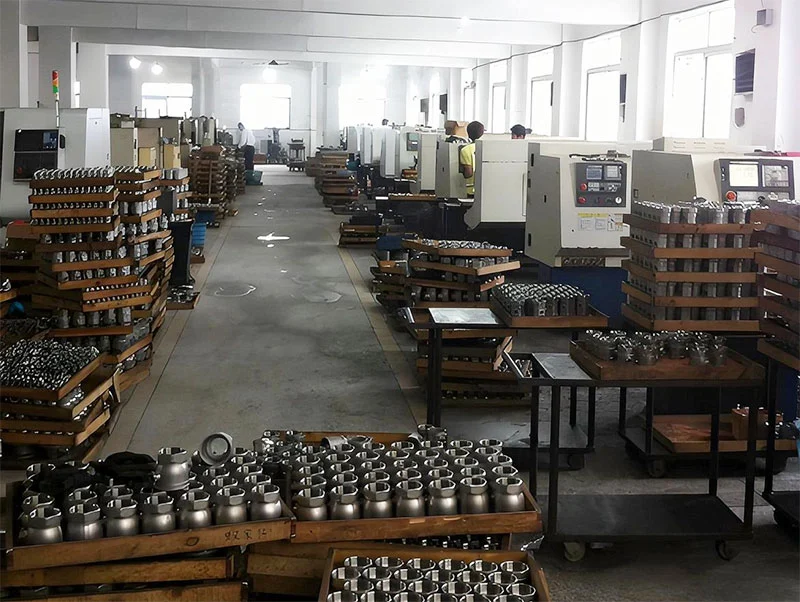

We integrate product design, development, manufacturing, and sales to support valve supply for industrial applications. Located in Longwan District, Wenzhou, Zhejiang Province, our factory benefits from convenient transportation and access to the local valve manufacturing industry.
This model features a 65 mm QRT inlet for compatible Queensland fire hydrant booster systems.
The bottom-entry configuration accommodates booster cabinets where the water supply pipe enters from beneath the valve body.
The Stainless Steel Dual Booster Valve with Bottom Outlet QRT Assembly body is made from 304 stainless steel and has a red painted finish.
The assembly includes a dust plug and wire, drain tap, and pressure gauge.
The specified working pressure is 2,100 kPa, the maximum working pressure is 2,650 kPa, and the onsite test pressure is 3,150 kPa. Confirm the applicable operating and testing requirements for the installation.
The product specifications reference AS/NZS 2419.3:2012. Confirm the applicable standard edition and supporting compliance documentation before specifying the valve for a project.
Yes. Provide the required quantity, delivery destination, connection requirements, and project specifications when requesting a quotation.
Customization requests can be submitted with technical drawings, reference photographs, or detailed specifications. Availability and feasibility are subject to confirmation.
Joepai is based in Wenzhou, China. Shipping arrangements and delivery schedules can be confirmed during the quotation process.
Contact Joepai for pricing and availability of the Stainless Steel Dual Booster Valve with Bottom Outlet QRT Assembly. Include your required quantity, connection specifications, cabinet layout, and delivery destination to support accurate quotation and model selection.
