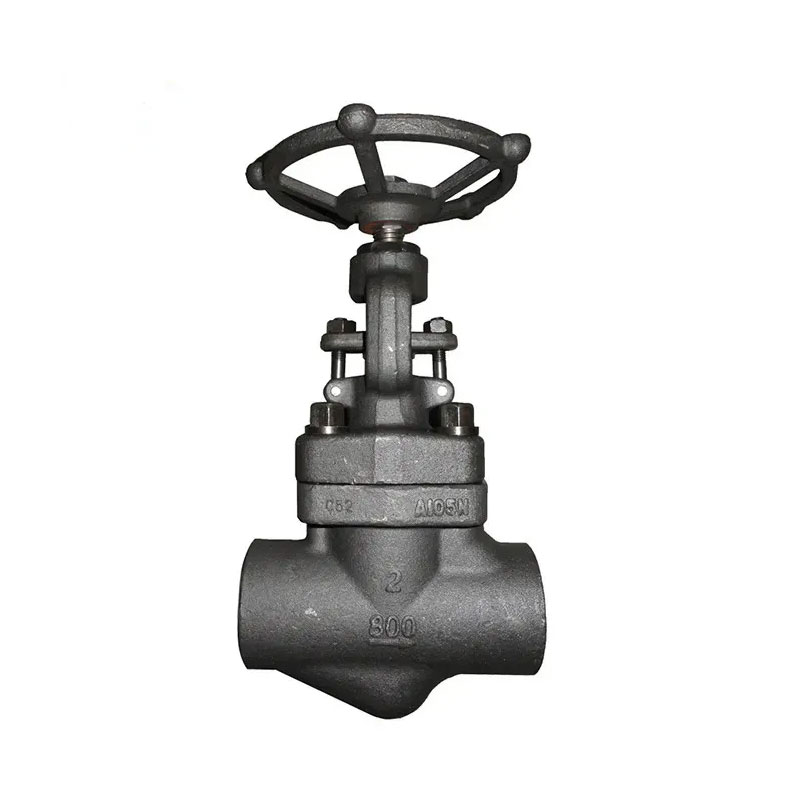

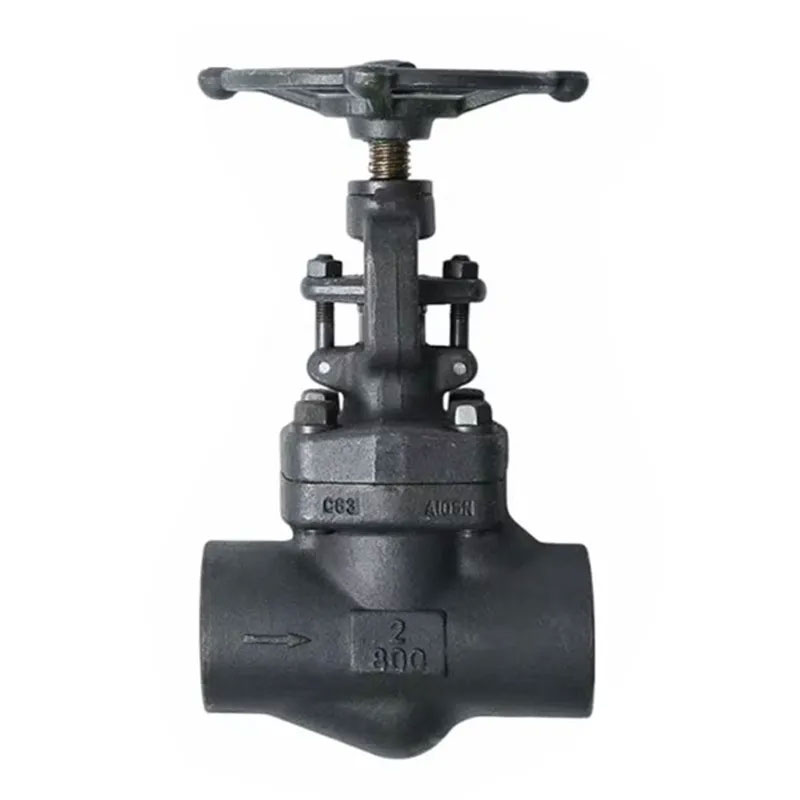

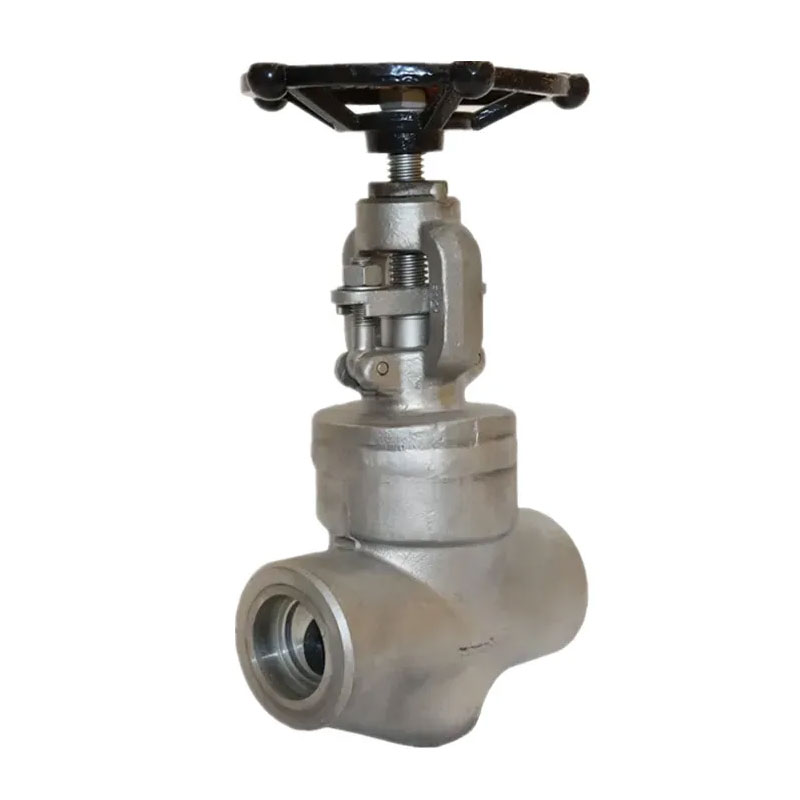

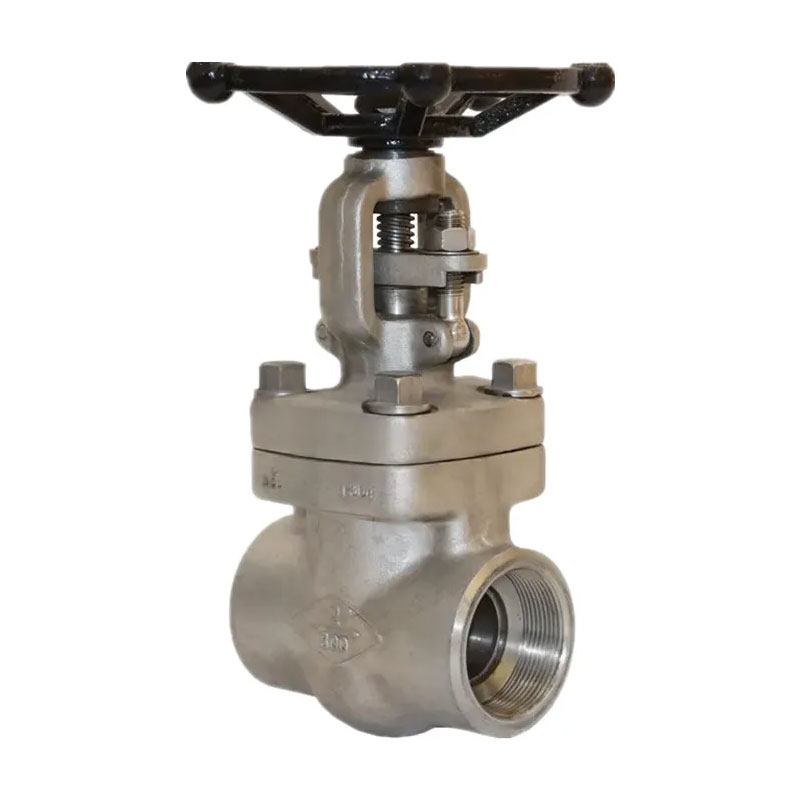

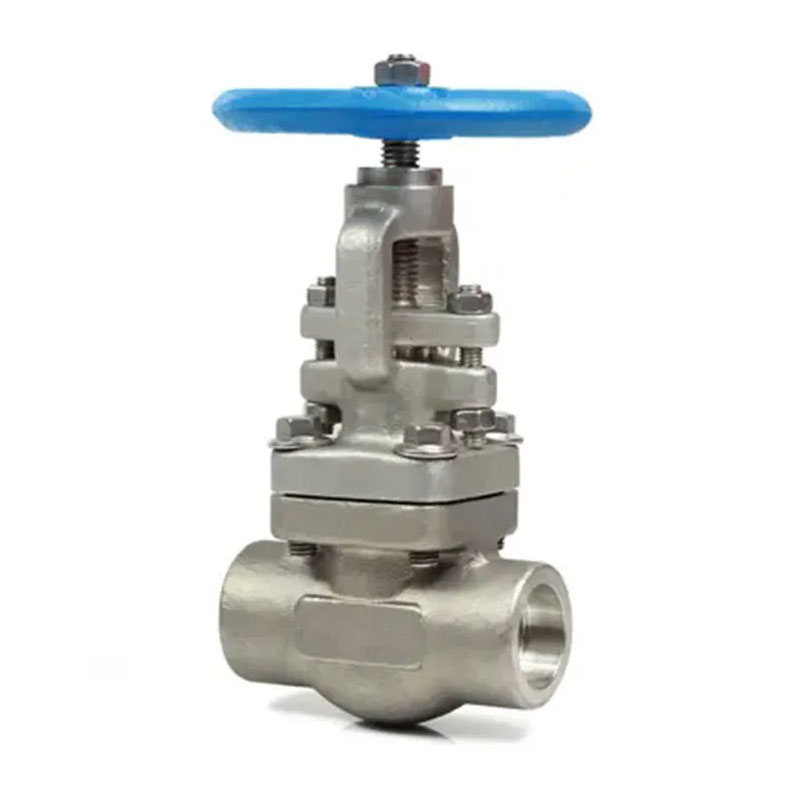

Wenzhou JOEPAI Valve Co., Ltd. has been focusing on industrial valve manufacturing and export since 2003. The API 602 Threaded Ends Forged Globe Valve Class 800 strictly comply with international standards such as DIN, GOST, KS, JIS, ISO, etc., and have strong non-standard customization and technical support capabilities to meet the diverse working conditions of global customers.JOEPAI is a pioneer in the globe valve market to fit your need for a forged globe valve. JOEPAI’s manufacturing capabilities for Forged Globe valves include 1/2”-2”, ANSI Pressure class 150#-1500#. Materials of construction include Carbon Steel, Stainless Steel, Alloy 20, and other exotic materials.All products have passed stress and lifespan tests and are widely exported to markets such as Europe, America, the Middle East, and Southeast Asia.
1.Material F304/316/304L/316L(CF8/CF8M/CF3/CF3M),A105,F11,F22,F51,LF2,etc.
2.Size 1/2"-2"
3.Thread standard ISO9001 & CE,TS
4.Port Full Port/Reduce Port
5.Working Pressure Class 800LB-2500LB
6.Connection Ends NPT/SW/BSP/BSPT/BW/Flange
7.Bolted Bonnet & Welded Bonnet
8.NACE Compliant, Graphite Packing and Gasket, (Low Fugitive Emission)
9.Working Temp -29~425ºC,or according to customer requirements for different
industry.
10.Suitable Medium Water,Natural Gas,oil and some corrosive liquid
11.Operated Handwheel
12.Inspenction & Testing According to API598
| Socket weld end/Screwed end | ANSI B16.11/ANSI B1.20.1 |
| Design standard | API 602, ASME B16.34 |
| Pressure Range | 800LB to 2500LB |
| Size Range | 1/2" to 2" |
| Material | Forged Carbon, Stainless or Alloy Steel Materials |
| Connection type | Threaded, Socket Weld, Threaded X Socket Weld |
| Working Temperature | ≤500°C |
| Operating Type | Handwheel |
| Sealing surface material | Alloy |
| Pressure test | GB/T13927, API598 |
| Face to Face | GB/T12221, ASME B16.10 |
If you need sample information, selection support, or overseas cooperation agents, please feel free to contact the JOEPAI team.
