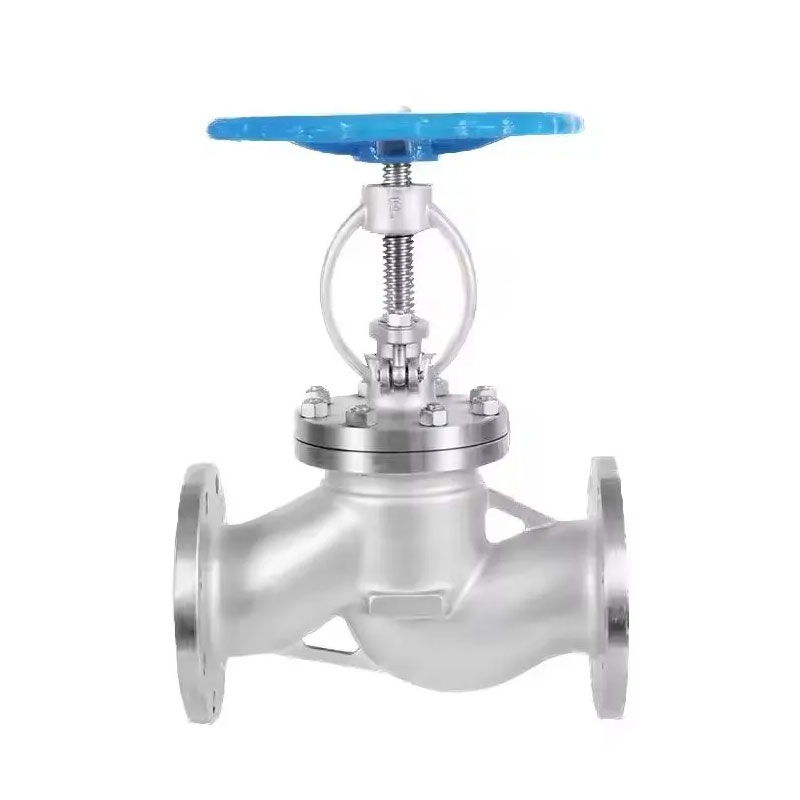

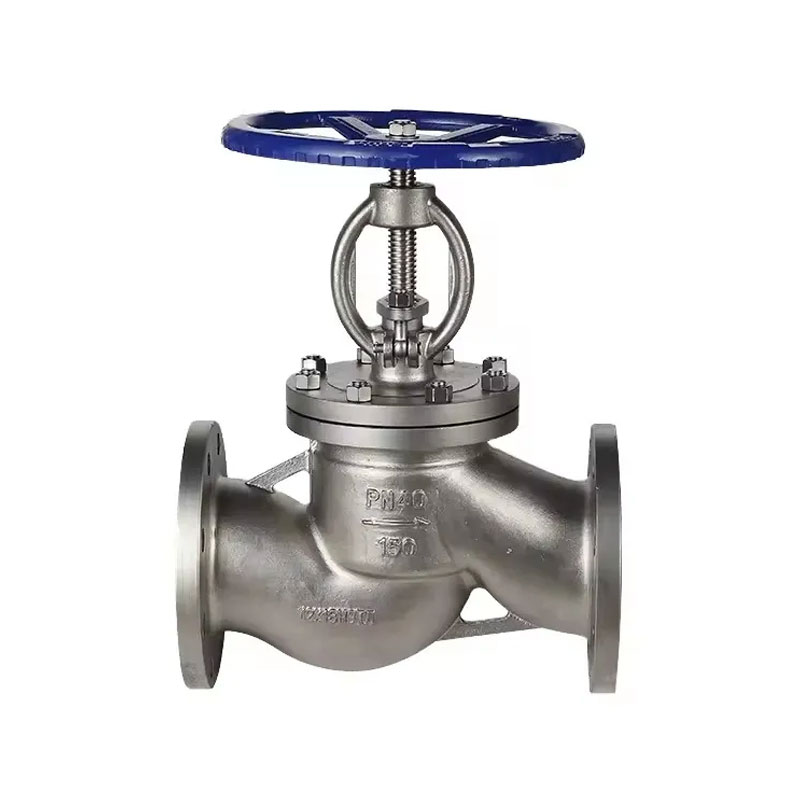

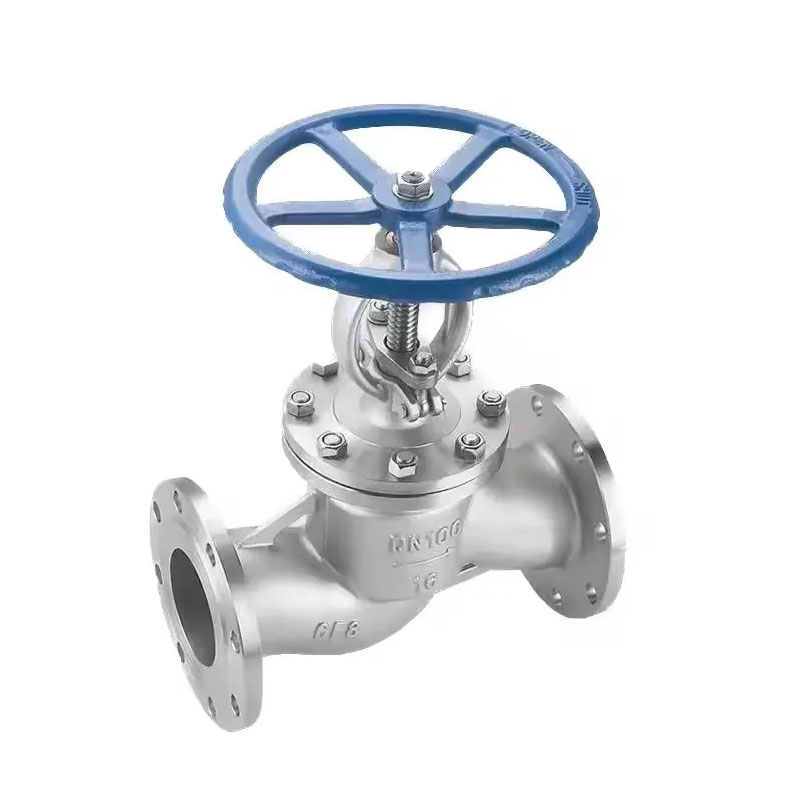

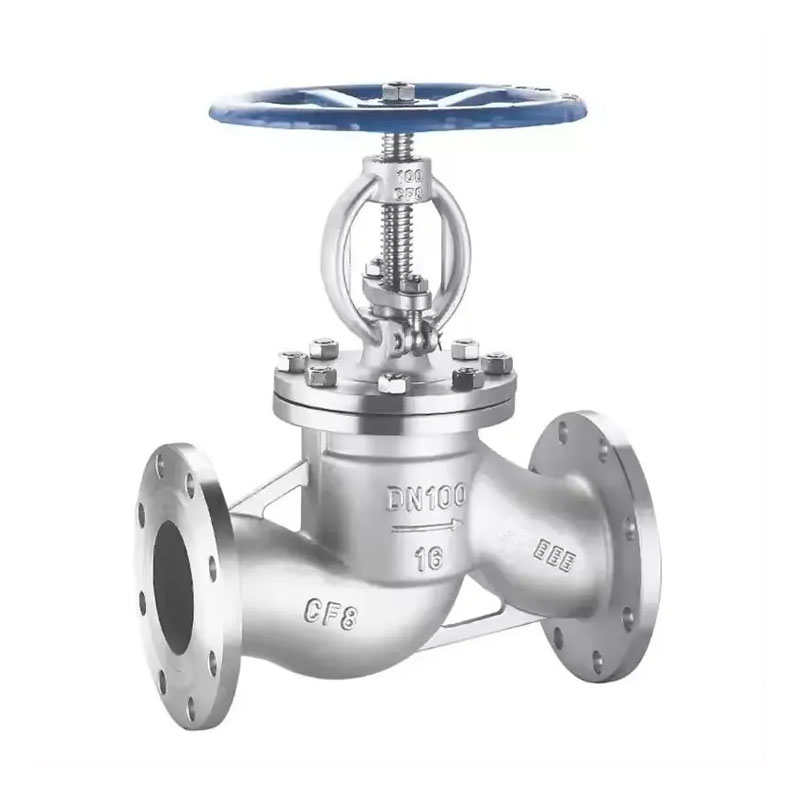

DIN Globe Valve

JOEPAI high quality DIN Globe Valves are manufactured and polished according to EN/DIN design specifications, suitable for pipeline systems in industries such as petrochemicals, power, papermaking, metallurgy, and heating. Support customization of multiple materials, drivers, and connection methods to fully meet the needs of international customers.

Send Inquiry

Product Description

Wenzhou JOEPAI Valve Co., Ltd. has been focusing on the manufacturing and export of high-performance valves for more than 20 years. The DIN Globe Valve produced is suitable for industrial process scenarios that require strict opening and closing and flow control. Compliant with European DIN standards. JOEPAI has a complete quality control system and precision machining equipment, and has obtained multiple international certifications such as CE, ISO9001, and API. Its products are exported to Europe, Southeast Asia, the Middle East, South America, and other regions.

DIN Standard

Parameter	Specification
Nominal Diameter	DN15 ~ DN500
Pressure Rating	PN10 / PN16 / PN25 / PN40
Design Standards	DIN EN 13709 / DIN 3356
Body Material	WCB / CF8 / CF8M / GS-C25 etc.
Disc/Stem Material	Stainless Steel / Alloy Steel / Copper Alloy
Sealing Material	PTFE / Stainless Steel with Hard Alloy / Flexible Graphite
Structure Type	Straight-through Type / Angle Type (optional)
Connection Type	Flanged (EN1092-1) / Butt Welded (DIN 3239) etc.
Actuation Type	Manual / Electric / Pneumatic (optional)
Operating Temperature	-29℃ ~ +450℃ (depending on materials)
Applicable Media	Water, Oil, Steam, Mildly Corrosive Fluids etc.

Product Feature:

1. Simple structure, easy operation, and convenient maintenance;
2. The DIN Globe Valve has good sealing performance, and the sealing surface is welded with stainless steel and alloy steel, resulting in a long service life of the valve;
3. The valve material is cast steel, which has high strength and good corrosion resistance;
4. Suitable for high temperature and high pressure working environments, capable of withstanding high pressure, safe and reliable.

DIN Globe Valve

Main Parts Materials:

NO.	Part name	Material
1	Body	GS-C25, CF8, CF8M
2	Disc	1Cr13, F304, F316
3	Pin	25#, F304, F316
4	Stem	1Cr13, F304, F316
5	Middle Gasket	1Cr13, F304, F316
6	Cover	GS-C25, CF8, CF8M
7	Stem	1Cr13, F304, F316
8	Bolt	ASTMA193 2H, A193-8, A193-8M
9	Nuts	ASTMA193 B7, A193-B8, A193-B8M
10	Yoke Net	2CuZn25A116Fe3Mn2
11	Hand Wheel	Carbon Steel
12	Nuts	ASTMA193 7, A193-8, A193-8M
13	Gasket	1Cr13, F304, F316
14	Gland	ASTMA193 B7, A193-B8, A193-B8M
15	Packing	Flexible graphite+304 Flexible graphite+304, PTFE
16	Bolt	ASTMA193 B7, A193-B8, A193-B8M
17	Disc Cover	GS-C25, CF8, CF8M

Main Dimensions:

Pressure	PN16
SIZE	15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	130	150	160	180	200	230	290	310	350	400	480	600	730	850
H	191	191	197	200	218	220	238	257	340	360	390	530	665	720
W	120	120	140	140	160	180	180	200	250	300	300	400	520	520
h	7	7	12	13	14	15	19	23	28	35	42	52	64	75
Kv	4.2	7.4	12	19	30	47	77	120	188	288	410	725	1145	1635

Pressure	PN25
SIZE	15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	130	150	160	180	200	230	290	310	350	400	480	600	730	850
H	191	191	197	200	218	220	238	257	340	360	390	530	665	720
W	120	120	140	140	160	180	180	200	250	300	300	400	520	520
h	7	7	12	13	14	15	19	23	28	35	42	52	64	75
Kv	4.2	7.4	12	19	30	47	77	120	188	288	410	725	1145	1635

Pressure	PN40
SIZE	15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	130	150	160	180	200	230	290	310	350	400	480	600	730	850
H	191	191	197	200	218	220	238	257	340	360	390	530	665	720
W	120	120	140	140	160	180	180	200	250	300	300	400	520	520
h	7	7	12	13	14	15	19	23	28	35	42	52	64	75
Kv	4.2	7.4	12	19	30	47	77	120	188	288	410	725	1145	1635

DIN Globe Valve
