As a high-tech enterprise that has been deeply involved in the valve manufacturing field for many years, Joepai focuses on providing customers with standard and customized valve products, covering all categories such as gate valves, GB Standard 2PC Flanged Ball Valve, butterfly valves, and stop valves. Joepai always takes "precise customization and quality escort" as the core of its service, and ensures worry-free cooperation with customers through a full-process service system.

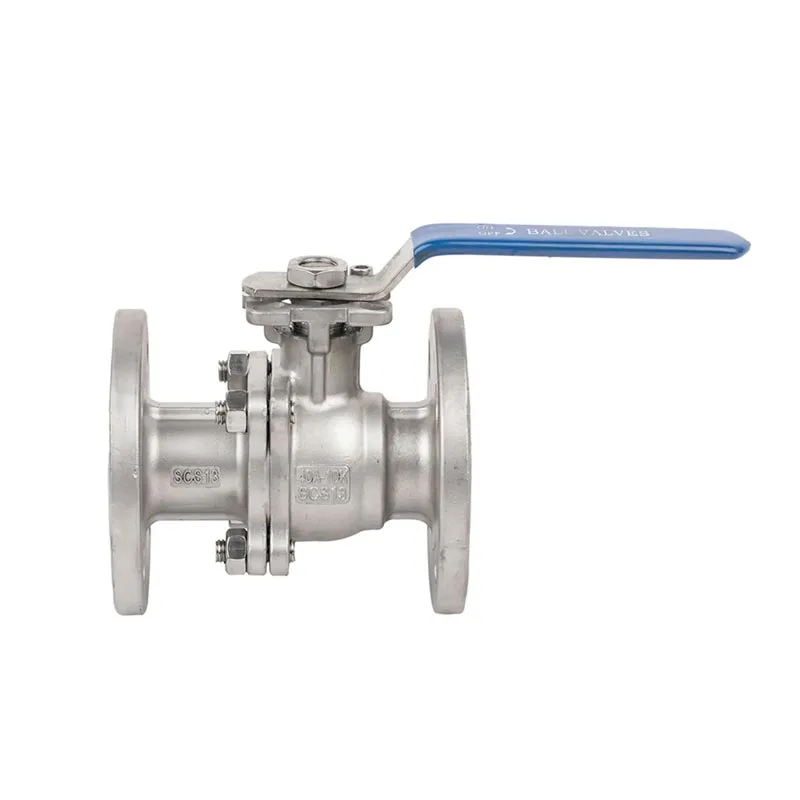

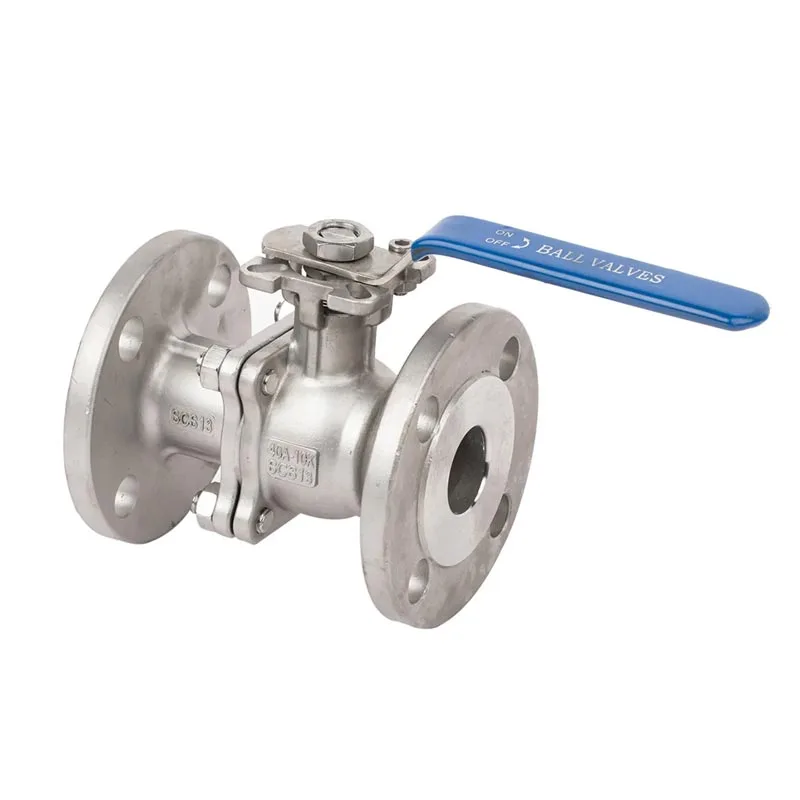

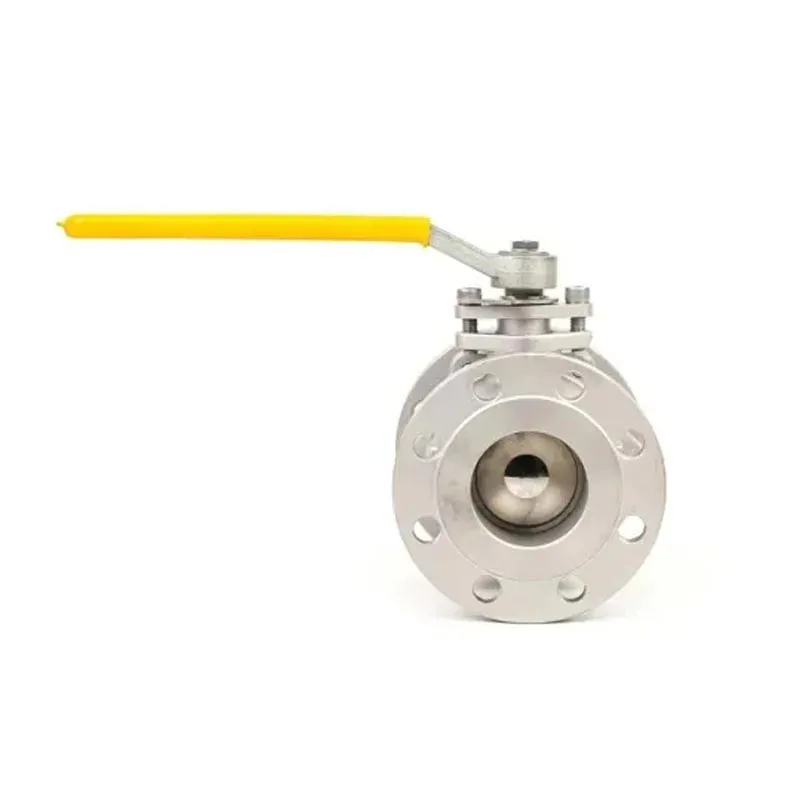

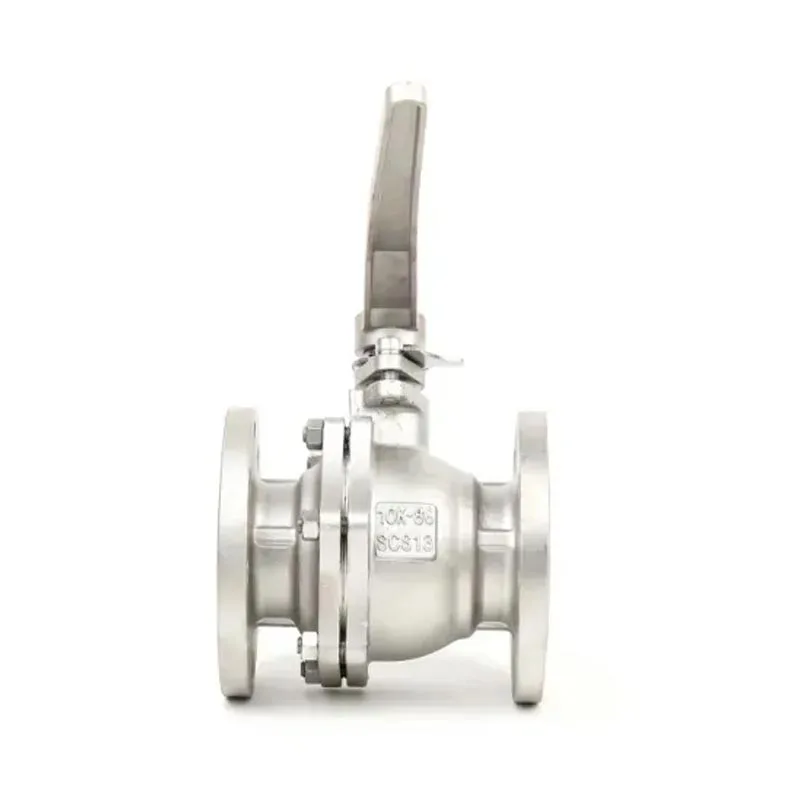

The valve stem is equipped with anti-static settings
Design of valve stem anti extrusion device
There are pressure relief holes on the steel ball groove
Design of direct installation actuator platform using ISO 5211
PRESSURE RANGE: 10K
FACE-TO-FACE DIMENSIONS: JIS 2002-2000
FLANGE END DIMENSIONS: JIS B2212-1999
DESIGN: ANSI 16.34
TEST: GB/T13927-1992
FULL PORT,ISO5211 DIRECT MOUNTING PAD
BLOWOUT-PROOF STEM DESIGN
LEVER OPERATION WITH LOCKING DEVICE,PNEUMATIC or ELECTRIC ACTUATOR
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
| 1 | Body | SUS304/SUS316/WCB | 8 | Stem | SUS304/SS |
| 2 | Seat | PTFE | 9 | Thrust Washer | PTFE |
| 3 | Ball | SUS304/SUS316/SS | 10 | Packing | PTFE |
| 4 | Bolt | SUS304/SS | 11 | Gland | SUS304/SS |
| 5 | Gasket | PTFE | 12 | Stem Nut | SUS304/SS |
| 6 | Nut | SUS304/SS | 13 | Handle | SUS304/SS |
| 7 | Cap | SUS304/SUS316/WCB |
| DN | A | F | G | K | T | H | C | D | E | h | N | M | Ra | Rb | R2 | R1 | S |
| 1/2" | 15 | 48.8 | 70 | 95 | 11 | 1 | 107 | 73 | 140 | 9 | 4 | 15 | 18 | 21 | 3 | 3 | 9 |
| 3/4" | 18 | 54 | 75 | 100 | 13 | 1 | 117 | 76 | 140 | 9 | 4 | 15 | 18 | 21 | 3 | 3 | 9 |
| 1" | 24 | 66 | 90 | 125 | 13 | 1 | 127 | 86 | 165 | 11 | 4 | 19 | 21 | 25 | 3 | 3.5 | 11 |
| 11/4" | 32 | 77 | 100 | 135 | 14 | 2 | 137 | 91 | 165 | 11 | 4 | 19 | 21 | 25 | 3 | 3.5 | 11 |
| 11/2" | 36 | 85 | 105 | 140 | 14 | 2 | 165 | 119 | 195 | 14 | 4 | 19 | 25 | 35 | 3.5 | 4.5 | 14 |
| 2" | 50 | 96 | 120 | 155 | 14 | 2 | 177 | 127 | 195 | 14 | 4 | 19 | 25 | 35 | 3.5 | 4.5 | 14 |
| 21/2" | 62 | 116 | 140 | 175 | 16 | 2 | 188.5 | 136 | 240 | 14 | 4 | 19 | 25 | 35 | 3.5 | 4.5 | 14 |
| 3" | 78 | 126 | 150 | 185 | 16 | 2 | 203.5 | 164 | 260 | 17 | 8 | 19 | 35 | 51 | 4.5 | 5.5 | 17 |
| 4" | 100 | 151.8 | 175 | 210 | 16 | 2 | 228 | 178 | 320 | 19 | 8 | 19 | 35 | 51 | 4.5 | 5.5 | 19 |
