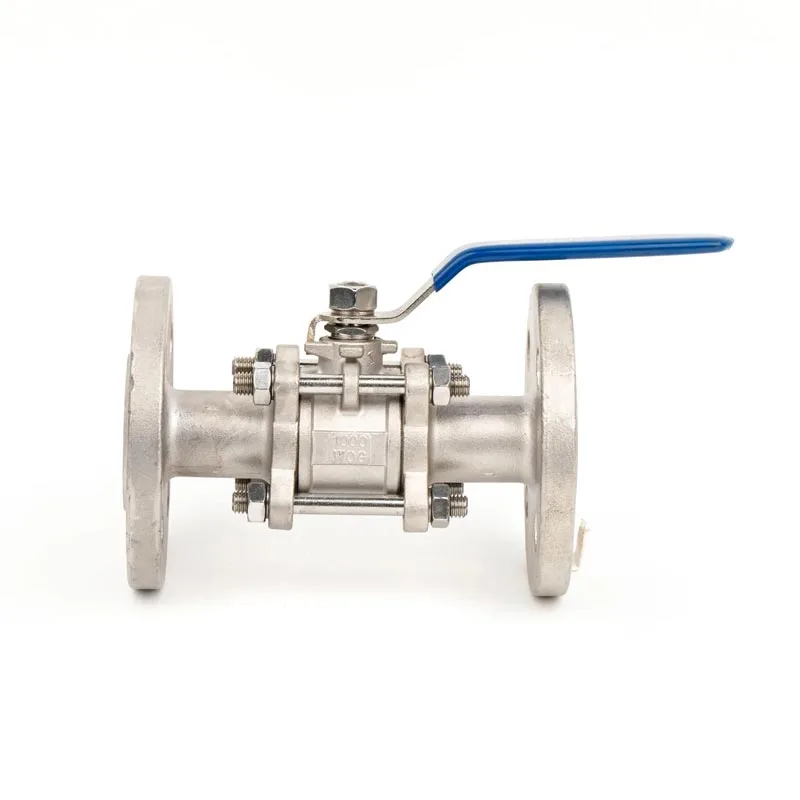

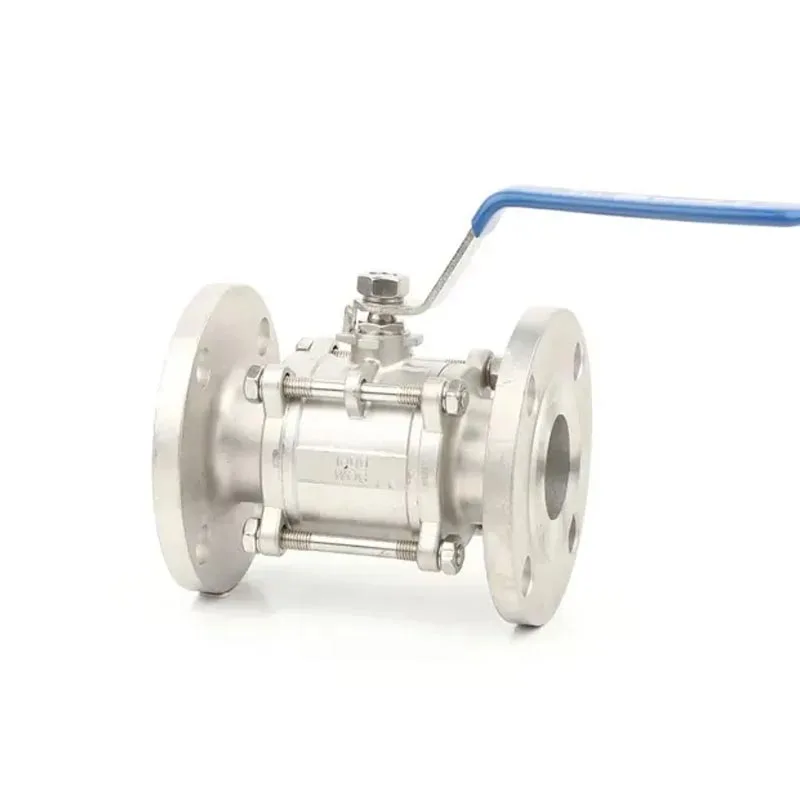

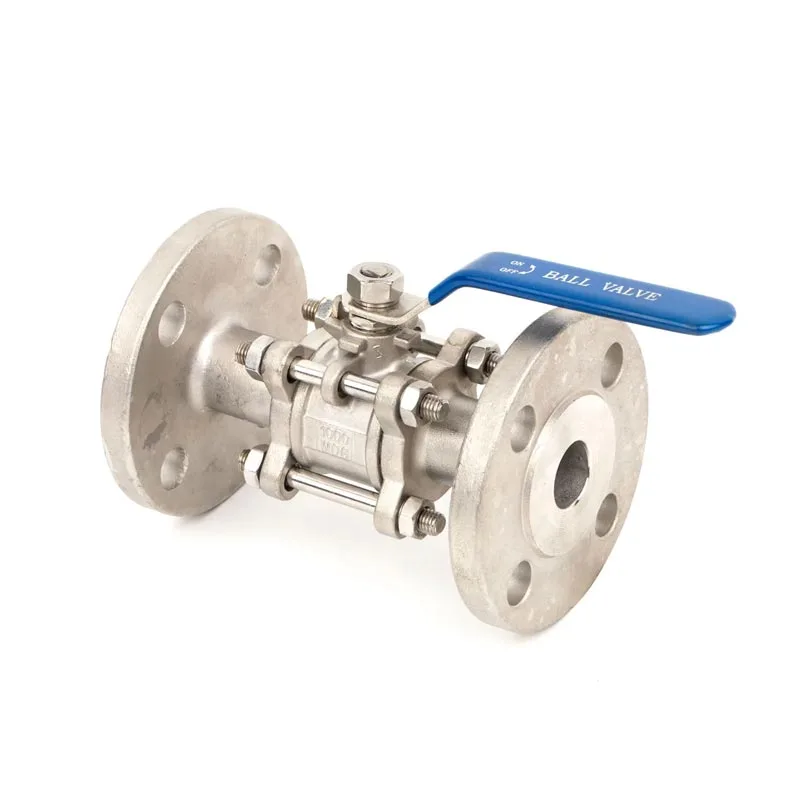

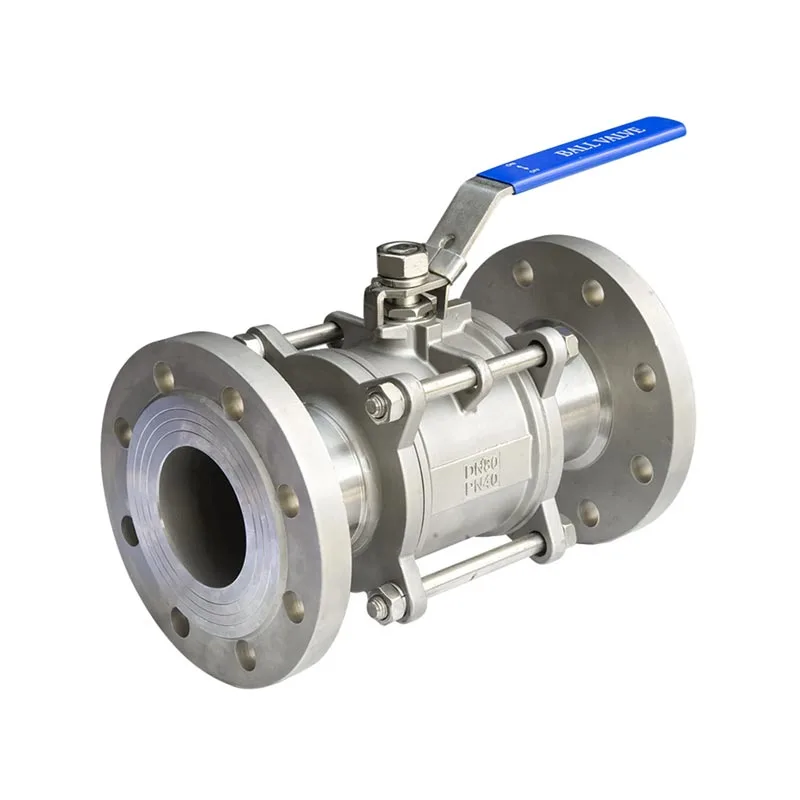

3PC DIN Flanged Ball Valve

JOEPAI durable 3PC DIN Flanged Ball Valve, also known as ball valve, flange ball valve, plate ball valve, three piece flange ball valve with internal thread connection ball valve and butt welded connection ball valve, is suitable for various pipelines with PN 1.0~4.0MPa, working temperature of -29~180 ℃ (sealing ring is reinforced polytetrafluoroethylene) or -29~300 ℃ (sealing ring is para polystyrene), used to cut off or connect media in pipelines. By selecting different materials, it can be applied to various media such as water, steam, oil, nitric acid, acetic acid, etc.

Product features：

Internal threaded ball valves and butt welded ball valves are divided into integral (one-piece), two-stage, and three-stage types. The valve body casting adopts advanced technology introduced from Taiwan, with a reasonable structure and beautiful appearance.

The valve seat adopts an elastic sealing structure, which is reliable in sealing and easy to open and close. The valve stem adopts a bottom mounted structure with reverse sealing, and the valve stem will not be flushed out when the valve chamber is abnormally pressurized. Two piece and three piece ball valves can also be connected by butt welding (BW) and socket welding (SW), and both can be equipped with international standard ISO bracket platforms and locking devices. 90 ° switch positioning mechanism can be set, and locks can be added as needed to prevent misoperation.

Drive modes: manual, electric, pneumatic

Product Detail:

Face-to-face dimension: DIN3202-F1
Flanged connection: PN16/PN40 DIN2633
TEMPERATURE RANGE: -20ºC~150ºC
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUID
FULL PORT,BLOWOUT-PROOF STEM DESIGN
LEVER OPERATION WITH LOCKING DEVICE
INVESTMENT CASTING BODY
DESIGN: DN15~DN150 PN40
TEST: API 598
MATERIAL: CARBON STEEL WCB/DIN1.0619
STAINLESS STEEL 304/1.4308
STAINLESS STEEL 316/1.4408

Main Parts and Materials

Main Dimensions
