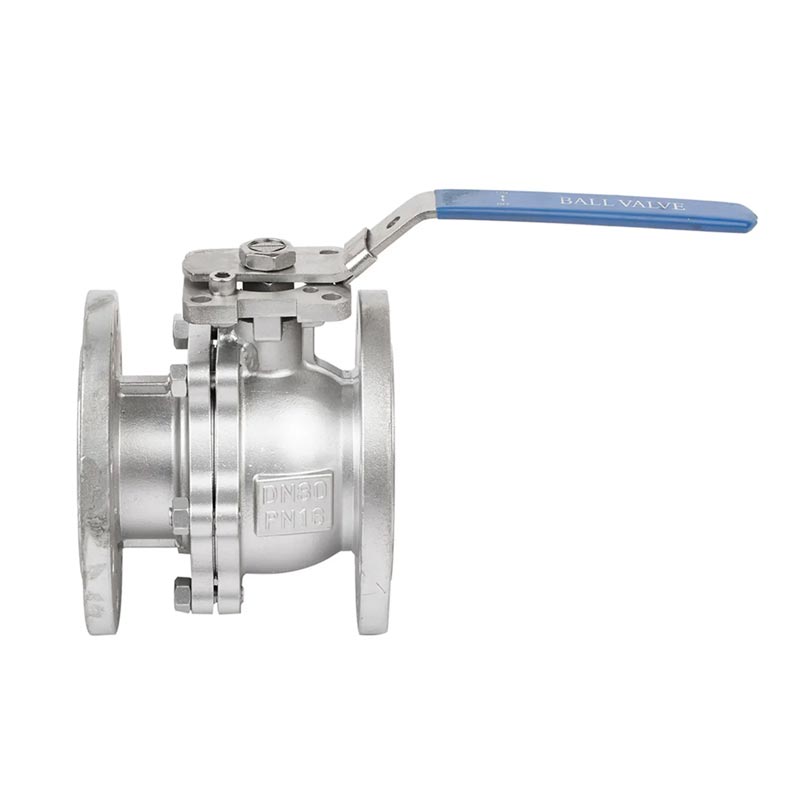

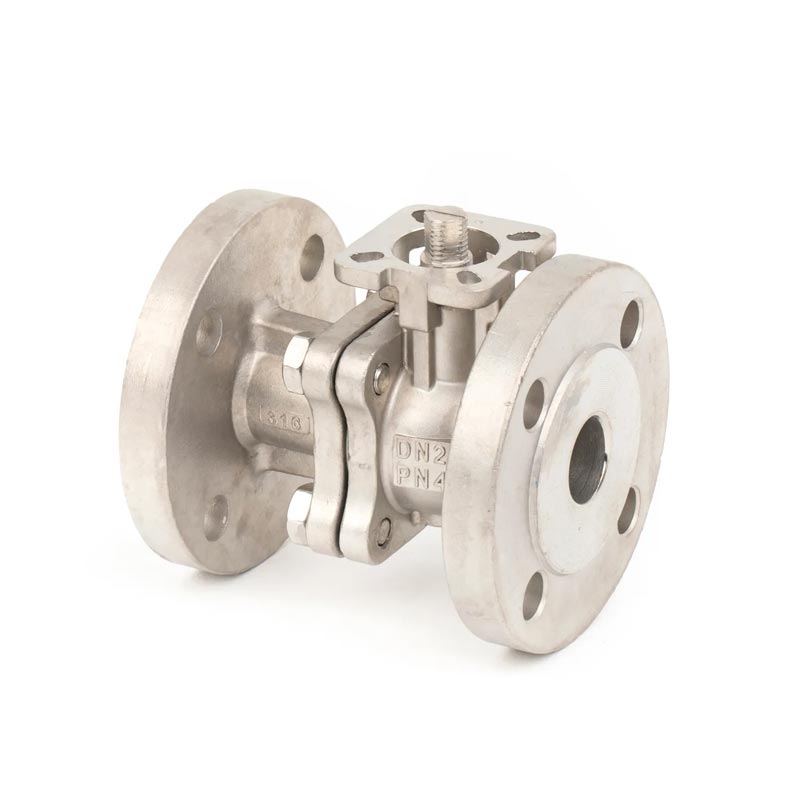

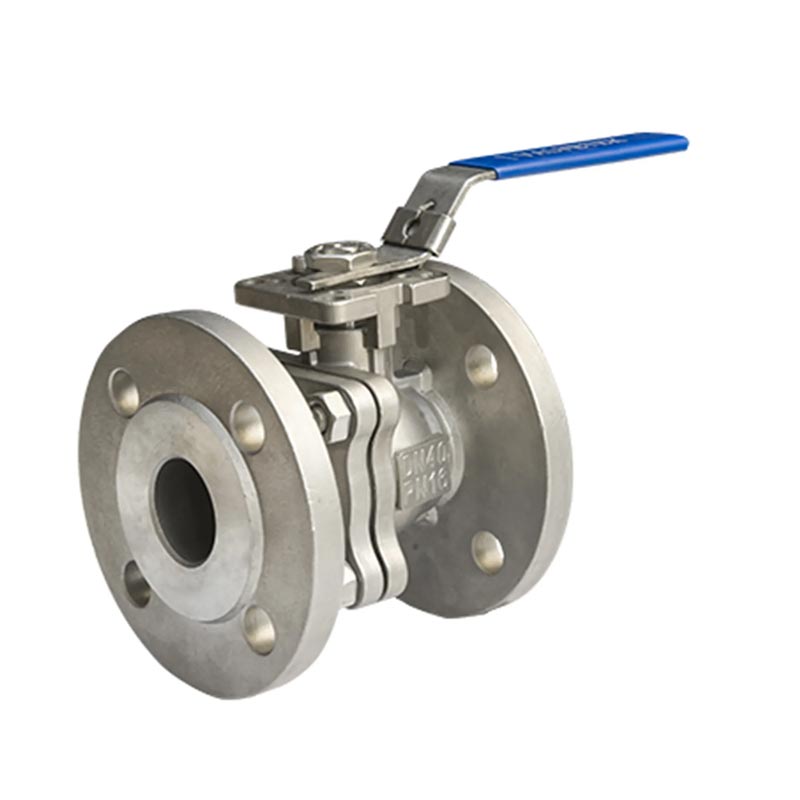

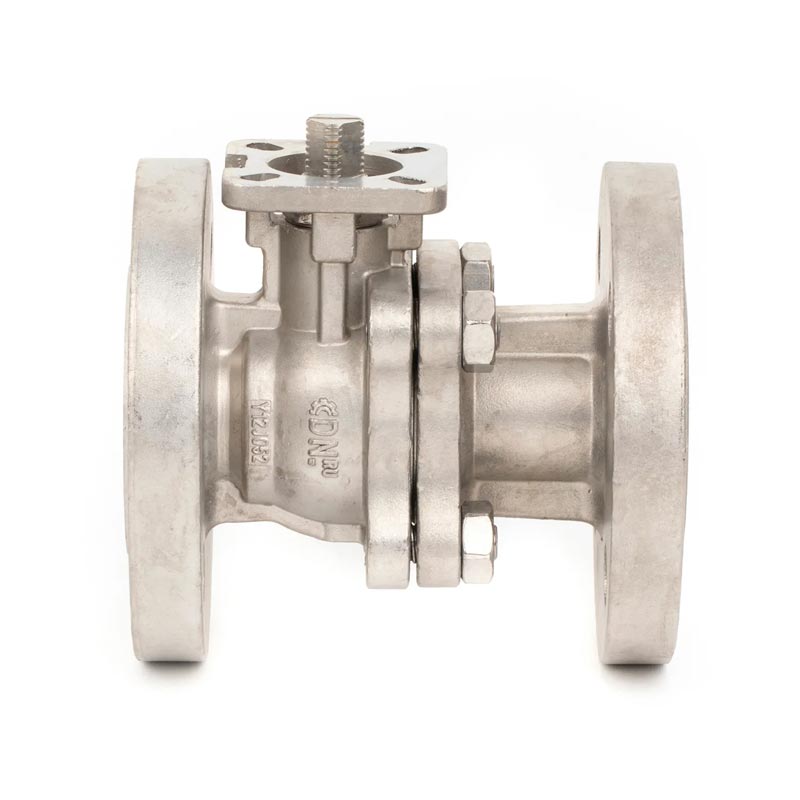

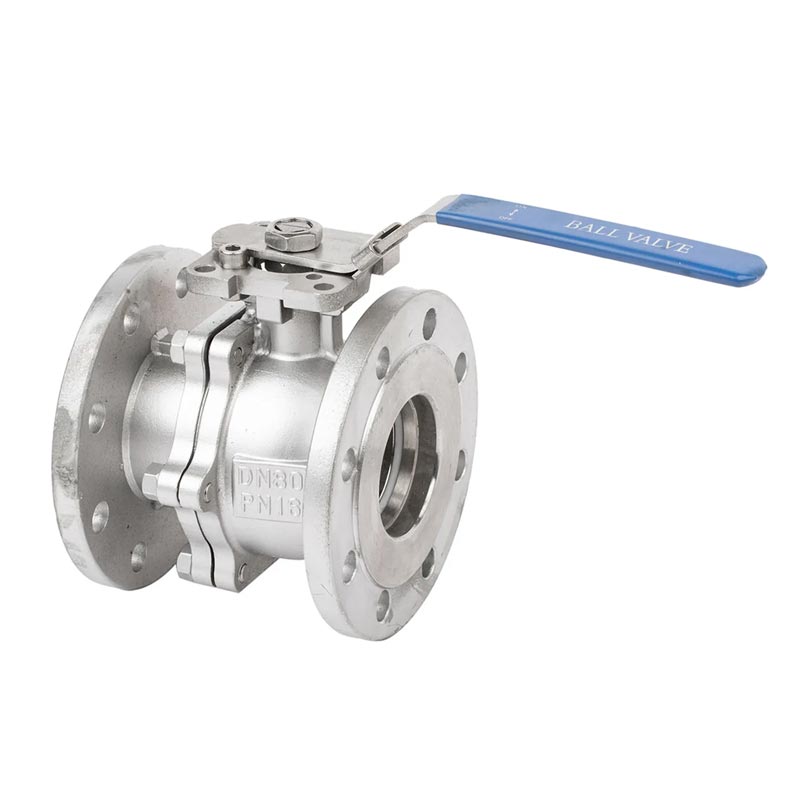

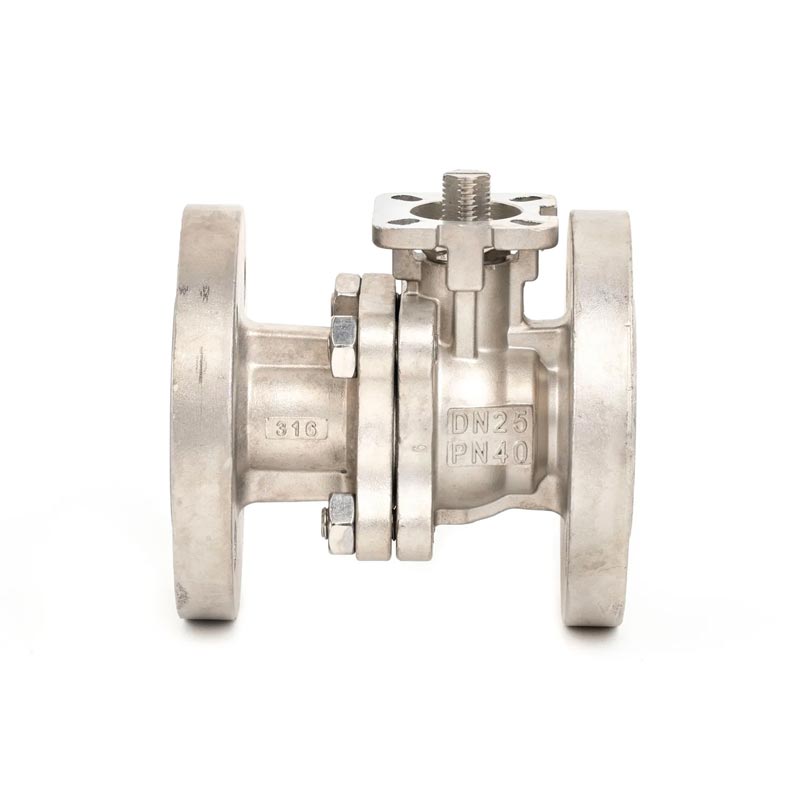

Joepai durable 2PC DIN Flanged Stainless Steel Ball Valve is a two-piece stainless steel ball valve designed and manufactured based on DIN standards, suitable for a variety of industrial fluid control scenarios. 2PC DIN Flanged Stainless Steel Ball Valve is made of high quality stainless steel and has the best corrosion resistance and high pressure resistance on the market. It is widely used in petroleum, chemical, natural gas, food, pharmaceutical, water treatment and other industries, especially suitable for working environments that require frequent opening and closing and high zero leakage requirements.
Design Standard:ASME B16.34
End Flange:DIN2633 PN16
Face to Face:BS EN558-1 DIN3202 F4/F5
Inspection and testing:API598/EN 12266
MATERIAL: CARBON STEEL WCB/DIN1.0619
STAINLESS STEEL 304/1.4308
STAINLESS STEEL 316/1.4408
Working Pressure:DN15~DN50 PN40;DN65~DN100 PN16
Full Port
ISO5211 Direct Mounting Pad
Blowout-Proof Stem Design
Anti-Static Device
Locking Device
Operation:Manual Or Actuator
Investment Casting
Working Temperature:-20℃~150℃
Suitable Medium:Water,Oil,Gas
1. Mining and steel industry
2. Coal and slurry industry
3. Paper industry
4. Power plant
5. Petroleum and chemical industry
6. Fertilizer and pharmaceutical industry
7. Wastewater, sludge and sewage treatment industry

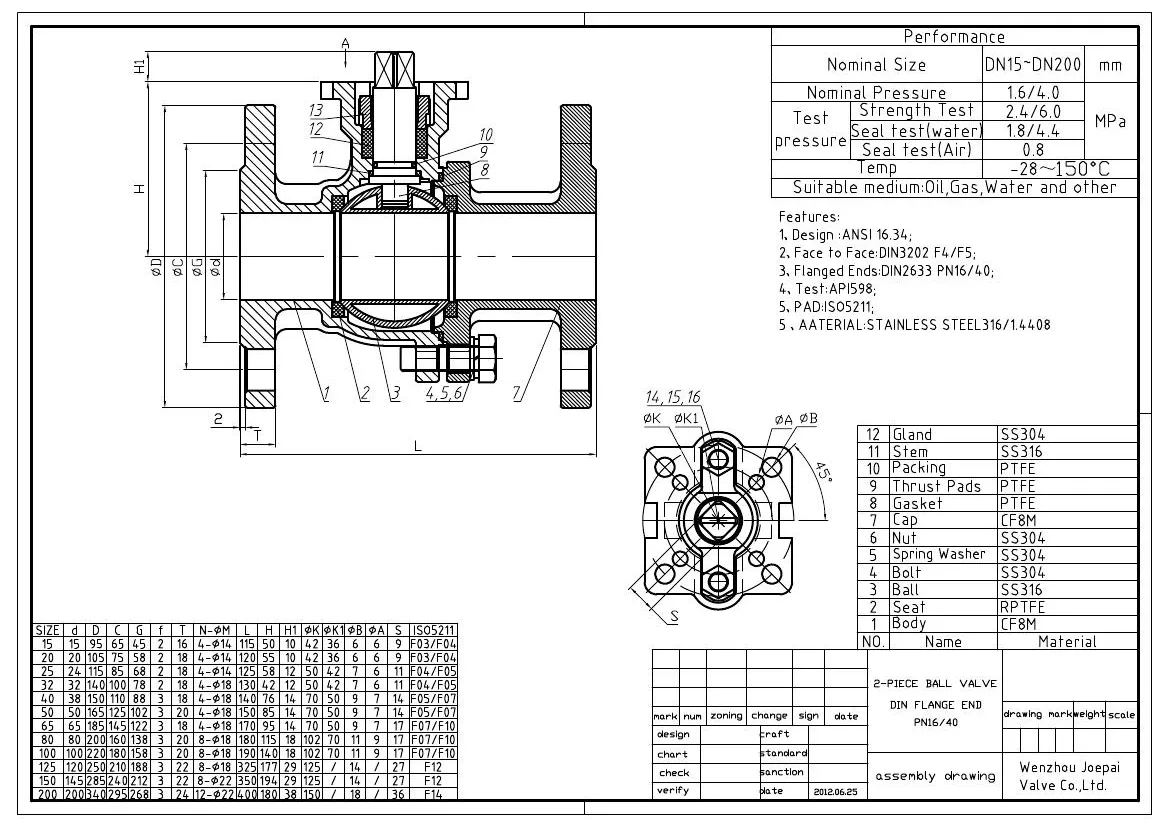

| 1 | Body | WCB/CF8/CF8M | 9 | Thrust Pads | WCB/CF8/CF8M |
| 2 | Seat | PTFE | 10 | Packing | WCB/CF8/CF8M |
| 3 | Ball | SS304/SS316 | 11 | Stem | SS304/SS316 |
| 4 | Bolt | SS304/SS316 | 12 | Gland | SS304/SS316 |
| 5 | Spring Washer | SS304/SS316 | 13 | Nut | SS304/SS316 |
| 6 | Nut | SS304/SS316 | 14 | Spring Washer | SS304/SS316 |
| 7 | Cap | WCB/CF8/CF8M | 15 | Lever | SS |
| 8 | Gasket | WCB/CF8/CF8M |
| DN | d | D | C | G | f | T | N-M | L | H | W | K | Ma |
| 15 | 15 | 95 | 65 | 45 | 2 | 16 | 4-14 | 115 | 76 | 150 | 42 | M5 |
| 20 | 20 | 105 | 75 | 58 | 2 | 18 | 4-14 | 120 | 78 | 150 | 42 | M5 |
| 25 | 24 | 115 | 85 | 68 | 2 | 18 | 4-14 | 125 | 90 | 180 | 42 | M5 |
| 32 | 32 | 140 | 100 | 78 | 2 | 18 | 4-18 | 130 | 94 | 180 | 50 | M6 |
| 40 | 38 | 150 | 110 | 88 | 3 | 18 | 4-18 | 140 | 124 | 244 | 70 | M8 |
| 50 | 46 | 165 | 125 | 102 | 3 | 20 | 4-18 | 150 | 132 | 244 | 70 | M8 |
| 65 | 62 | 185 | 145 | 122 | 3 | 18 | 4-18 | 170 | 170 | 285 | 70 | M8 |
| 80 | 74 | 200 | 160 | 138 | 3 | 20 | 8-18 | 180 | 180 | 285 | 102 | M10 |
| 100 | 93 | 220 | 180 | 158 | 3 | 20 | 8-18 | 190 | 194 | 285 | 102 | M10 |
| 125 | 120 | 250 | 210 | 188 | 3 | 22 | 8-18 | 325 | 225 | 750 | 125 | M12 |
| 150 | 145 | 285 | 240 | 212 | 3 | 22 | 8-22 | 350 | 275 | 750 | 125 | M12 |
| 200 | 200 | 340 | 295 | 168 | 3 | 24 | 12-22 | 400 | 340 | 1000 | 125 | M12 |
