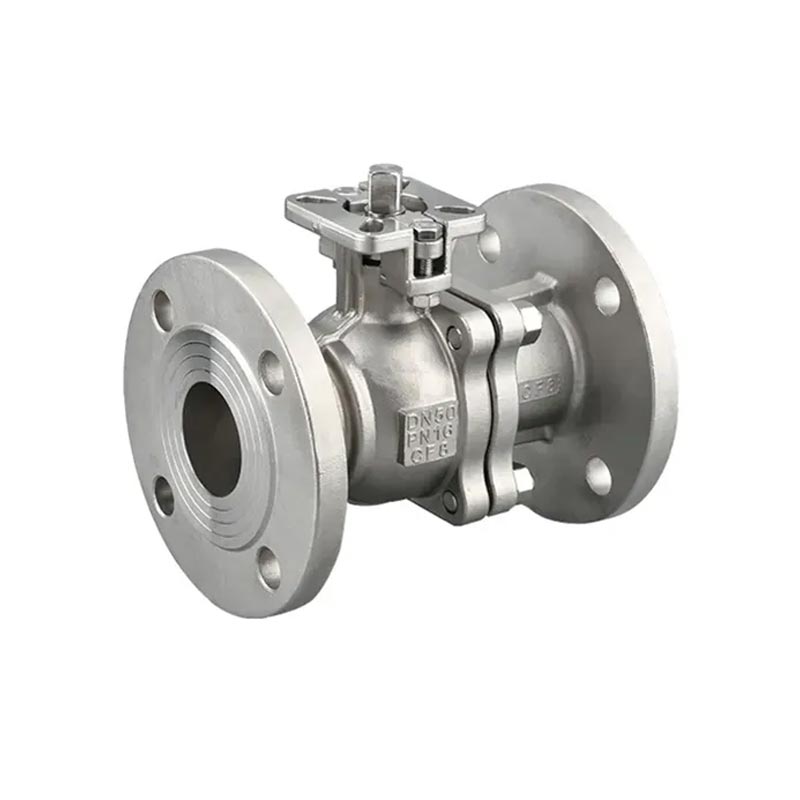

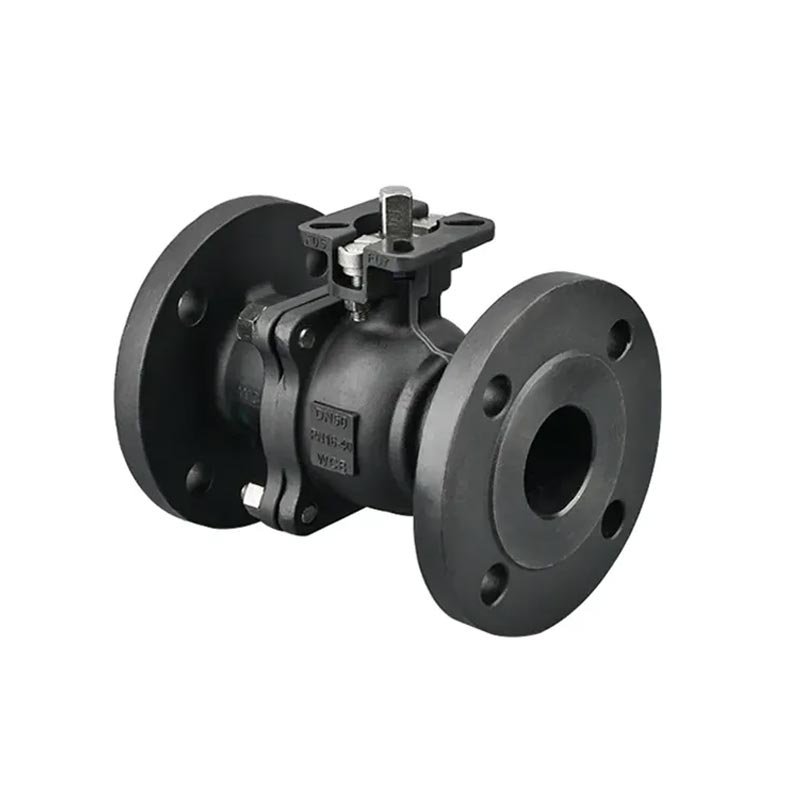

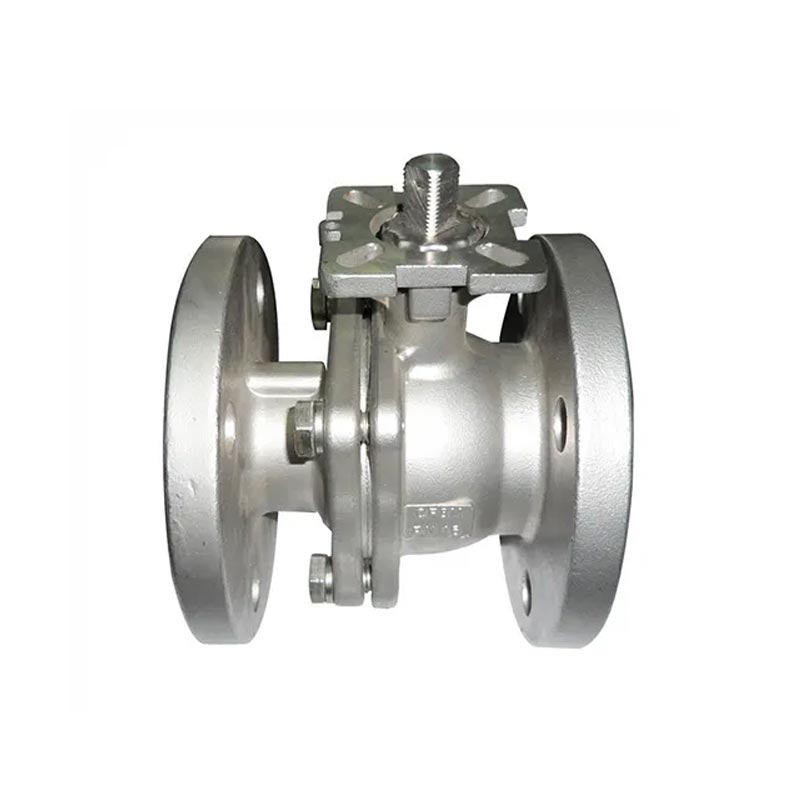

The JOEPAI 2PC Carbon Steel Flanged Ball Valve adopts a compact structure and a floating core design. The sealing surface between the ball and the valve seat automatically seals under pressure, and with a sturdy carbon steel valve body, it has good data in pressure bearing, wear resistance, corrosion resistance, etc. It is widely used in industries such as petroleum, natural gas, chemical, power station, and water treatment. With over ten years of experience in ball valve manufacturing, Qiaopai adopts CNC precision machining, five quality inspection checkpoints, and a digital process tracking system to achieve factory traceability, stable performance, and precise matching with customer standards for each ball valve. Multiple standards such as DIN, ANSI, JIS, etc. are available to meet the customized procurement needs of global customers.
Design Standard:ASME B16.34
End Flange:DIN2633 PN16
Face to Face:BS EN558-1 DIN3202 F4/F5
Inspection and testing:API598/EN 12266
Refineries, petrochemical plants, crude oil and finished oil transportation
systems
Natural gas long-distance pipelines, city gas pressure regulating
stations
Chemical process control systems
High-temperature steam transportation, thermal circulation systems
Industrial boilers, pressure vessel safety control
Papermaking, metallurgy, pharmaceuticals, industrial water treatment and
other industries
MATERIAL: CARBON STEEL WCB/DIN1.0619
STAINLESS STEEL 304/1.4308
STAINLESS STEEL 316/1.4408
Working Pressure:DN15~DN50 PN40;DN65~DN100 PN16
Full Port
Bare Stem with ISO5211 Direct Mounting Pad(Top Flange)
Blowout-Proof Stem Design
Anti-Static Device
Locking Device
Operation:Manual Or Actuator
Investment Casting
Working Temperature:-20℃~150℃
Suitable Medium:Water,Oil,Gas
Passed ISO 9001 quality management system certification
Complies with CE EU safety standards
Korean KC certification is applicable to the Asia-Pacific market
Each 2PC Carbon Steel Flanged Ball Valve has passed high pressure test and air tightness test
Precision CNC processing, key dimension error ≤ 0.01mm
All raw materials are analyzed by spectrometer chemical composition
Optional low-temperature structure (with extended valve neck)
Configurable anti-static and fireproof structure
Extended operating rod, special coating treatment (such as ENP, FBE)
Support OEM processing and packaging customization
| 1 | Body | WCB/CF8/CF8M | 7 | Cap | WCB/CF8/CF8M |
| 2 | Seat | PTFE | 8 | Stem | SS304/SS316 |
| 3 | Ball | SS304/SS316 | 9 | Thrust Pads | PTFE |
| 4 | Bolt | SS/SS316 | 10 | O-Rings | Viton |
| 5 | Gasket | PTFE | 11 | Packing | PTFE |
| 6 | Nut | SS/SS316 | 12 | Gland | SS/SS316 |

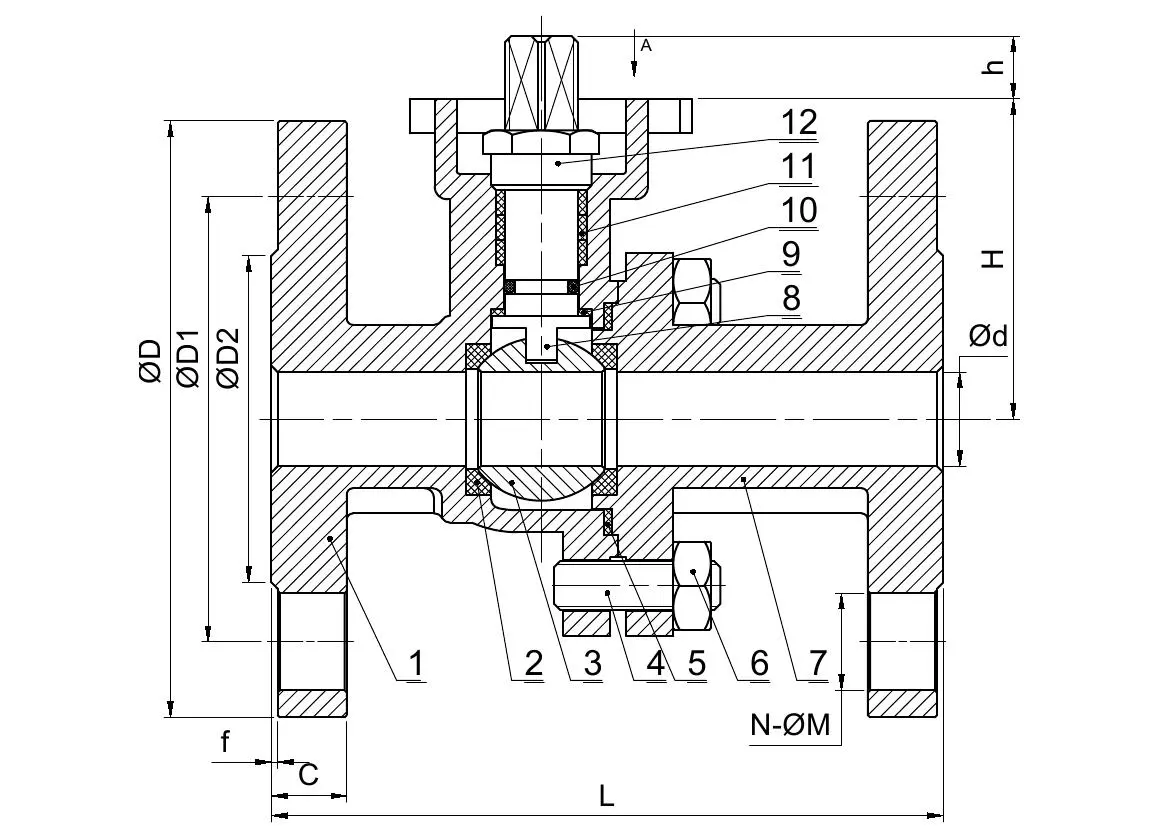

| NPS | d | L | H | D | D1 | D2 | c | f | N-M | h | a | b | A | B | K |
| 1/2" | 15 | 130 | 50 | 95 | 65 | 46 | 14 | 2 | 4-14 | 9 | 6 | 6 | 36 | 42 | 9 |
| 3/4" | 20 | 140 | 55 | 105 | 75 | 56 | 16 | 2 | 4-14 | 9 | 6 | 6 | 36 | 42 | 9 |
| 1" | 25 | 150 | 60 | 115 | 85 | 65 | 16 | 2 | 4-14 | 11 | 6 | 7 | 42 | 50 | 11 |
| 11/4" | 32 | 165 | 70 | 135 | 100 | 76 | 18 | 2 | 4-18 | 11 | 6 | 7 | 42 | 50 | 11 |
| 11/2" | 38 | 180 | 75 | 145 | 110 | 84 | 18 | 2 | 4-18 | 14 | 7 | 9 | 50 | 70 | 14 |
| 2" | 50 | 200 | 85 | 160 | 125 | 99 | 20 | 2 | 4-18 | 14 | 7 | 9 | 50 | 70 | 14 |
| 21/2" | 62 | 220 | 95 | 180 | 145 | 118 | 20 | 2 | 4-18 | 14 | 7 | 9 | 70 | 70 | 14 |
| 3" | 78 | 250 | 100 | 195 | 160 | 130 | 20 | 2 | 8-18 | 17 | 9 | 11 | 70 | 102 | 17 |
| 4" | 100 | 280 | 115 | 215 | 180 | 156 | 22 | 2 | 8-18 | 17 | 9 | 11 | 70 | 102 | 17 |
| 5" | 122 | 320 | 177 | 245 | 210 | 185 | 22 | 2 | 8-18 | 29 | - | 14 | - | 125 | 27 |
| 6" | 146 | 360 | 194 | 280 | 240 | 210 | 24 | 2 | 8-22 | 29 | - | 14 | - | 125 | 27 |
| 8" | 196 | 400 | 180 | 335 | 295 | 265 | 24 | 2 | 12-22 | 38 | - | 18 | - | 150 | 36 |
