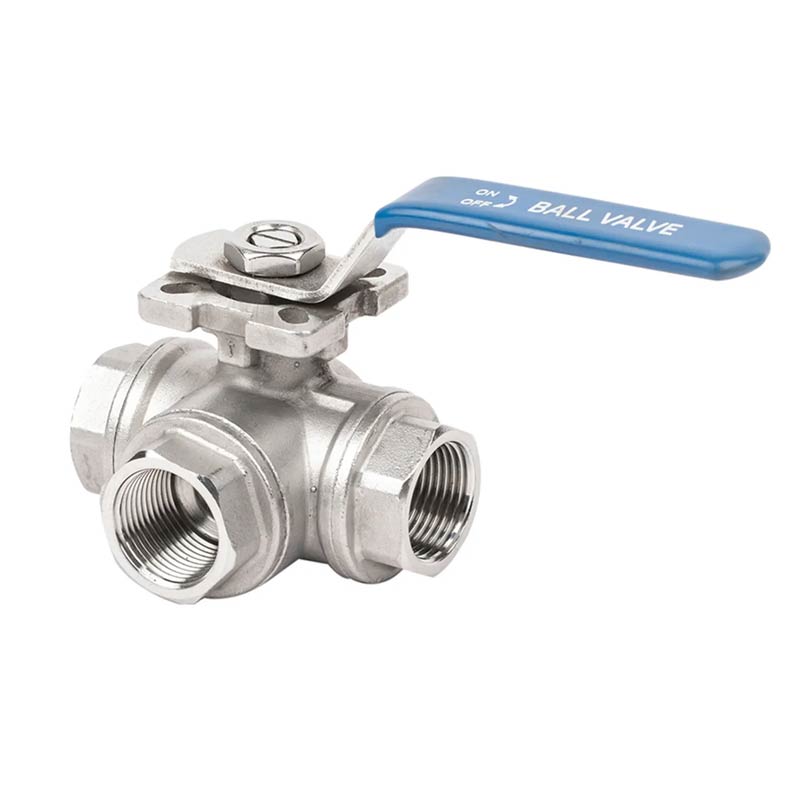

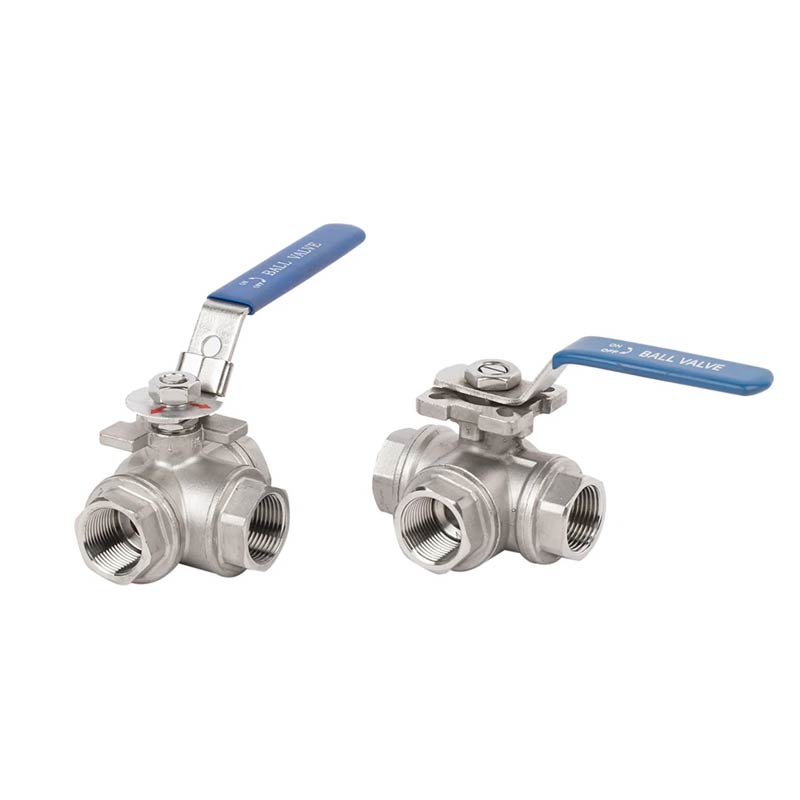

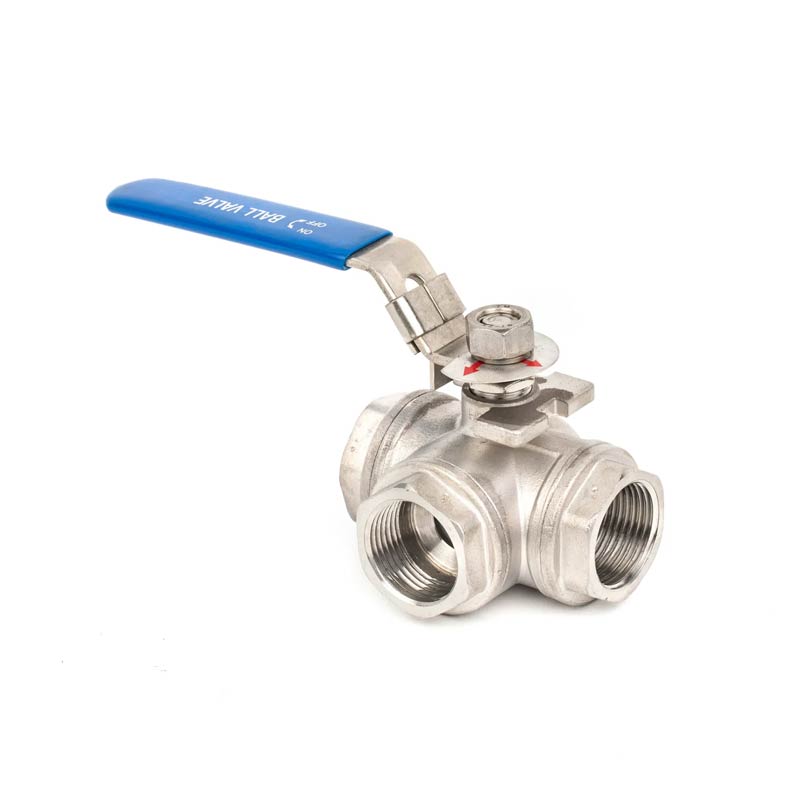

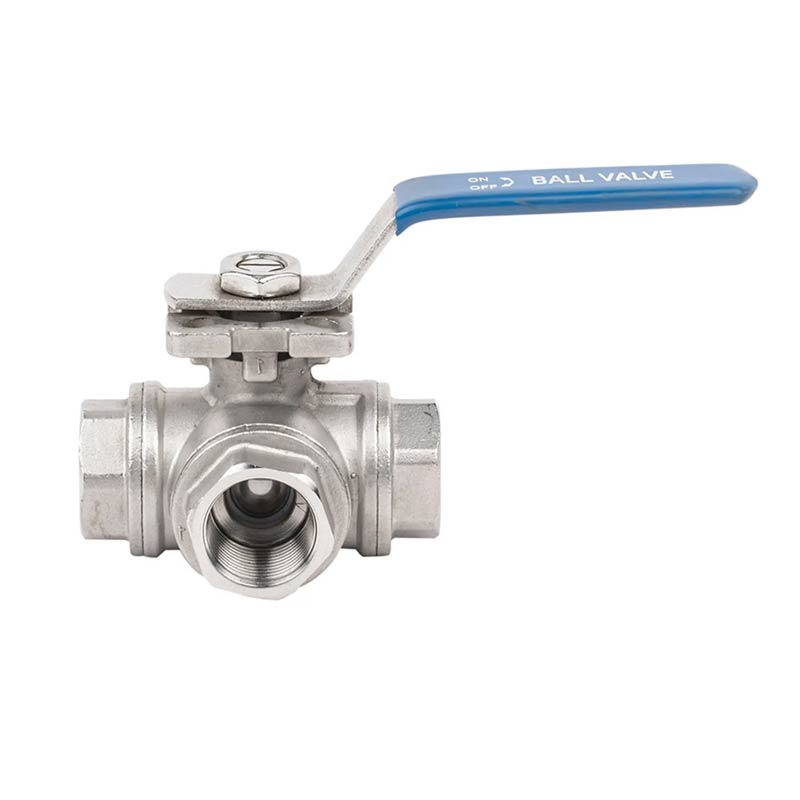

Manual Stainless Steel Threaded Three Way Ball Valve made in China factory called JOEPAI, is divided into T-shaped and L-shaped. The T-shaped can connect three orthogonal pipes and cut off the third channel, playing a role in diversion and merging. The three-way ball valve type can only connect two pipes that are orthogonal to each other, and cannot maintain the interconnection of the third pipe at the same time. It only plays a distribution role.
The working principle of Manual Stainless Steel Threaded Three Way Ball Valve is to rotate the valve core to make the valve unobstructed or blocked. Ball valve switches are lightweight, small in size, can be made into large diameters, reliable in sealing, simple in structure, easy to maintain, and the sealing surface and spherical surface are often in a closed state, which is not easily eroded by media. They are widely used in various industries. Two way ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of media.
1. The Three Way Ball Valve features a user-friendly threaded connection for easy installation, maintenance, and secure leak-free performance.
2. Three way ball valves are divided into T-shaped and L-shaped, with
long service life, high flow capacity, and low resistance
3. Precision-machined ball and seats ensure smooth handle rotation and reliable sealing, minimizing fluid leakage.
4. Suitable for chemical processing, petroleum, water treatment, and other industrial fluid systems.
5. Offers high performance at competitive pricing with support for OEM/ODM requests and custom configurations.
Investment casting body
Working pressure 1000 PSI or W.O.G.
Adjustable stem packing
Pure Teflon seals and seats
Temperature range: -60 to 450 °F
Blow-out proof stem, solid ball as per customer request
Locking device handle (option)
| 1 | Body | CF8/CF8M | 8 | Stem | SS304/SS316/SS |
| 2 | Cap | CF8/CF8M | 9 | Thrust Washer | PTFE |
| 3 | Cap | CF8/CF8M | 10 | Packing | PTFE |
| 4 | Ball | SS304/SS316/SS | 11 | Gland | SS304/SS |
| 5 | Seat | PTFE | 12 | Stem Nut | SS304/SS |
| 6 | Gasket-A | PTFE | 13 | Block Only Retreat | SS304/SS |
| 7 | Gasket-B | PTFE |
| NPS | D | L | h1 | h2 | E | Ra | Rb | Rc | Rd | K |
| 1/2" | 15 | 73.5 | 36.75 | 9 | 39 | 18 | 21 | 3 | 3 | 9 |
| 3/4" | 20 | 82.5 | 39.75 | 9 | 47.5 | 18 | 21 | 3 | 3 | 9 |
| 1" | 25 | 89 | 47.25 | 11 | 53 | 21 | 25 | 3 | 3.5 | 11 |
| 11/4" | 32 | 125.5 | 56 | 11 | 75 | 21 | 25 | 3 | 3.5 | 11 |
| 11/2" | 40 | 139 | 71.5 | 14 | 86.5 | 25 | 35 | 3.5 | 4.5 | 14 |
| 2" | 50 | 154.5 | 77 | 14 | 98 | 25 | 35 | 3.5 | 4.5 | 14 |
| Product Name | 3-Way Stainless Steel Threaded Ball Valve |
| 1. Material | Stainless Steel 304/316/304L/316L ( CF8/CF8M/CF3/CF3M) |
| 2. Size | 1/4''~4'' ( DN6~DN100) |
| 3.Certificate | ISO9001 & CE&KC |
| 4. Port | Reduced/Full Port |
| 5. Working Pressure | 1000PSI (PN63/6.3Mpa) |
| 6. Connection Ends | NPT/BSP/BSPT/DIN259/DIN2999 |
| 7. Working Temp. | -20~300ºC |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |
| 11. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 20~30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Warranty | 18 Months after leaving factory |
| Advantage | OEM is applicable |
| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Fire Hydrant Valve, Booster Valve, Fully Welded Ball Valve & Y Strainer., etc. |
