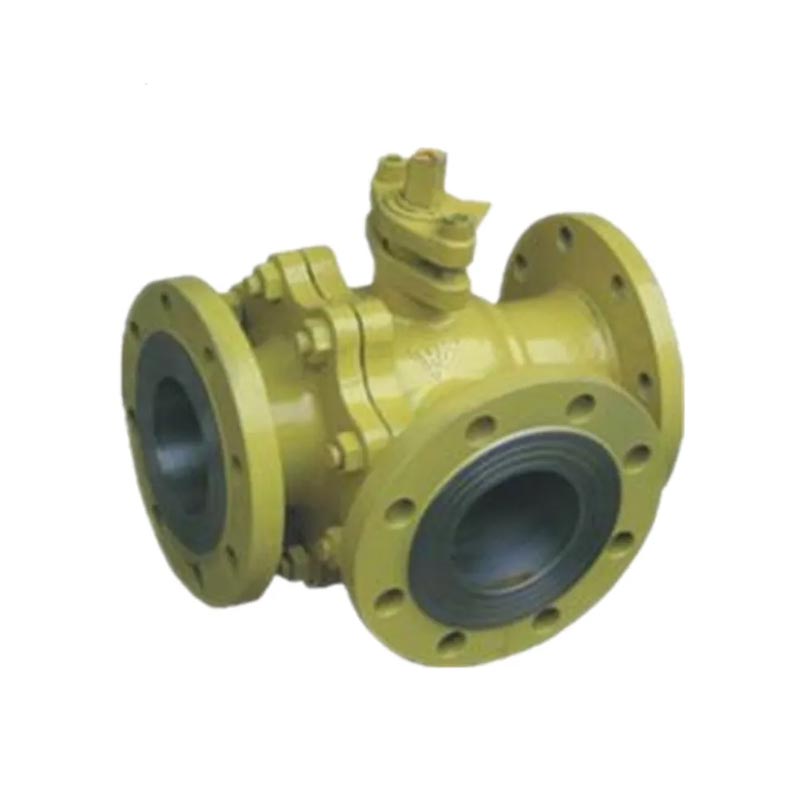

JOEPAI High Quality Carbon Steel Flanged Three Way Ball Valve (WCB material) is designed for industrial systems that require multi-channel switching or merging functions. It supports T-shaped or L-shaped channel structures and can flexibly control the flow direction and flow rate of media. The product meets various pressure levels from PN16 to PN40, and uses standard flanges for connection. It is widely used in petroleum, chemical, water supply, power, and process pipelines to achieve efficient fluid switching and system integration.

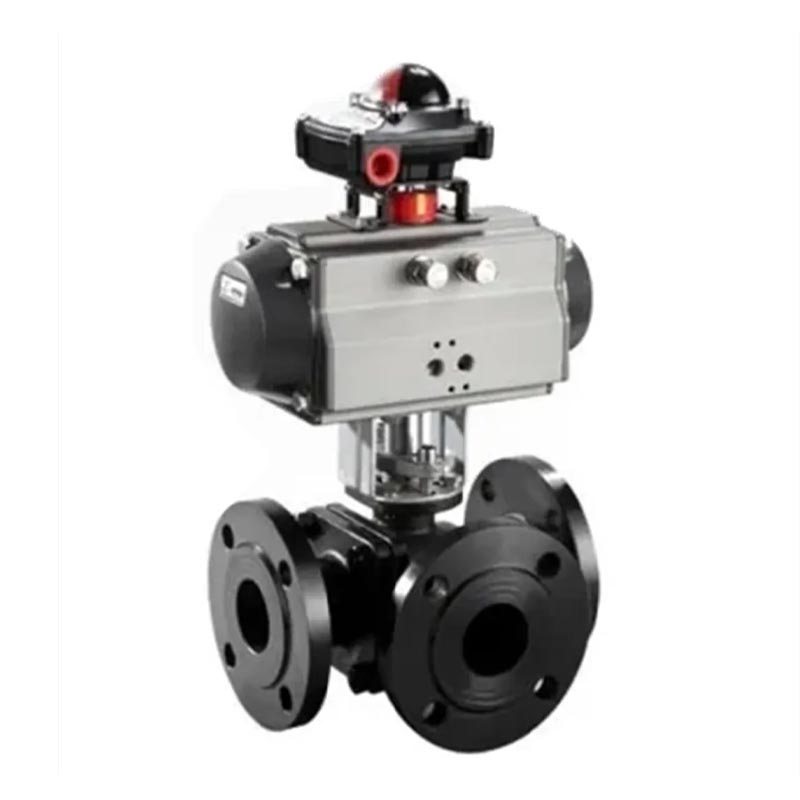

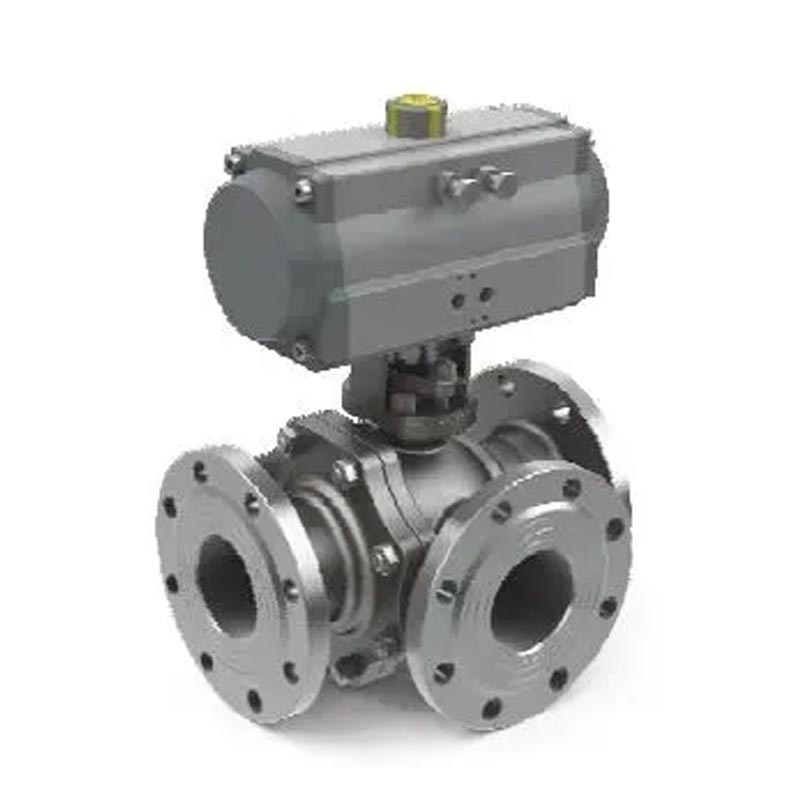

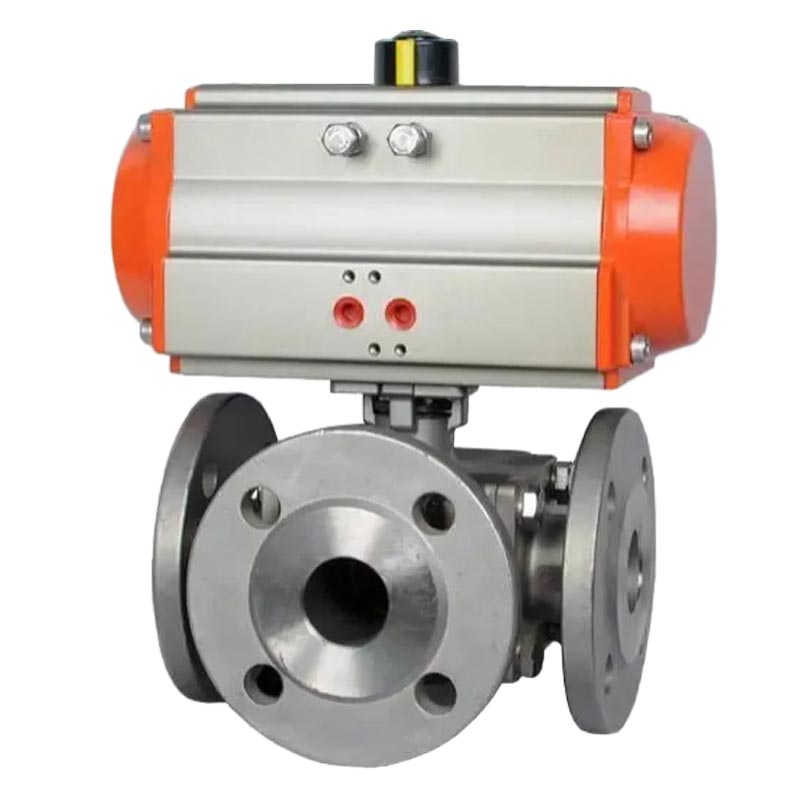

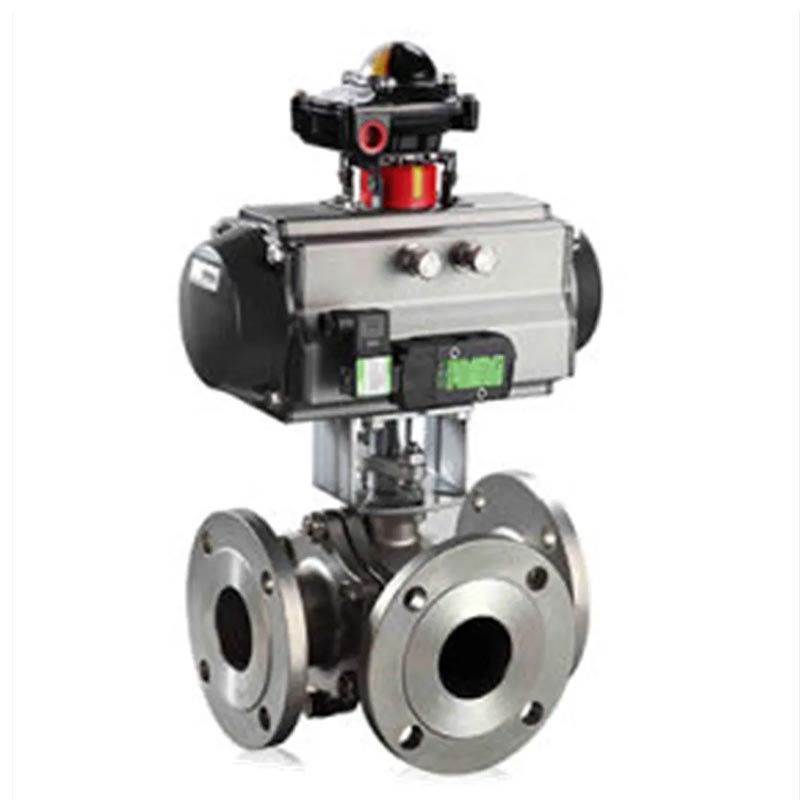

Carbon Steel Flanged Three Way Ball Valve with Pneumatic
Actuator
1. Material Carbon Steel/SS304/316/304L/316L (WCB/CF8/CF8M/CF3/CF3M)
2. Size 1/2''~8'' ( DN15~DN200)
3.Certificate ISO9001
4. Port Reduced Port
5. Working Pressure 150LB/PN16
6. Connection Ends RF Flanged
7. Working Temp. -20~300ºC
8. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
9. Seal PTFE, RPTFE, PPL
10. Locking Option
11. Inspection & Testing According to API598
Others We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check
Valve, Fire Hydrant Valve ,Booster Valve,Fully Welded Ball Valve & Y
Strainer.,etc.
| Form | Type T, L three way ball valve |
| Inside nominal diameter DN(mm) | DN15-DN300 |
| Nominal pressure | 1.6 2.5 4.0 6.4Mpa |
| Liquid range |
Air, water, gas, oil and petrochemical products corrosive medium |
| Working temperature |
Hard seal:-40 --300 Soft seal:-40 --180 |
| Spillage | 0 conform to ANSIB16.104standard |
| Main material |
Valve body: WCB 304 316 316L Spool: 304 316 316L |
| Seat form |
Stainless steel movable hard seal, PTFE soft seal |
| Surface preparation | Polishing |
| Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L/L1(RF/BW) | in | 17.75 | 20.00 | 22.75 | 26.5 | 36.00 | 40.25 | 50.00 | 56.00 | / | / |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | / | / | |
| L2(RTJ) | in | 17.88 | 21.25 | 23.00 | 26.88 | 36.50 | 40.88 | 50.88 | 56.88 | / | / |
| mm | 454 | 540 | 584 | 683 | 927 | 1038 | 1292 | 1445 | / | / | |
| H | in | 7.50 | 9.00 | 11.00 | 14.12 | 15.75 | 18.88 | 20.50 | 26.38 | / | / |
| mm | 190 | 230 | 280 | 360 | 400 | 480 | 520 | 670 | / | / | |
| W | in | 24 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | / | / |
| mm | 600 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | / | / | |
| WT(Kg) | RF/RTJ | 68 | 95 | 120 | 185 | 675 | 1100 | 1650 | 2300 | / | / |
| BW | 54 | 74 | 91 | 122 | 555 | 918 | 1355 | 2950 | / | / | |
1. Leave a position for the valve handle to rotate.
2. Cannot be used for throttling.
Ball valves with transmission mechanisms should be installed upright.

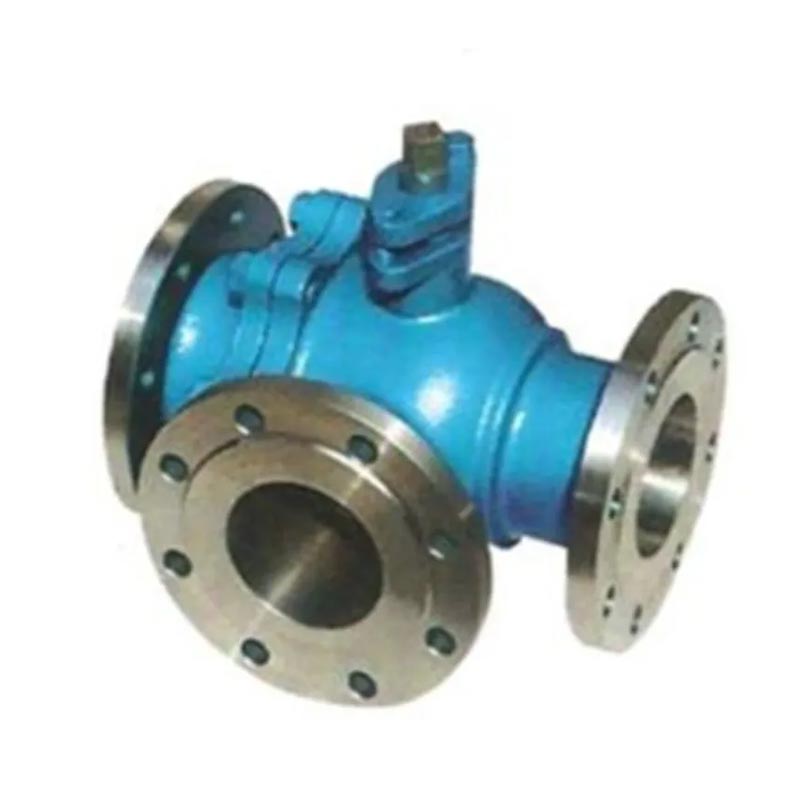

The working principle of a Carbon Steel Flanged Three Way Ball Valve is to rotate the valve to make it open or close. Ball valve switches are lightweight, small in size, can be made into large diameters, reliable in sealing, simple in structure, easy to maintain, and the sealing surface and spherical surface are often in a closed state, which is not easily eroded by media. They are widely used in various industries.
Three way ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of media.
Three way ball valve is a relatively new type of ball valve, which has some unique advantages in its structure, such as frictionless opening and closing, low sealing wear, and small opening and closing torque. This can reduce the specifications of the accompanying actuator.
Equipped with a multi turn electric actuator, it can achieve adjustment and tight cutting of the medium. Widely applicable to working conditions such as petroleum, chemical, urban water supply and drainage that require strict cut-off.
