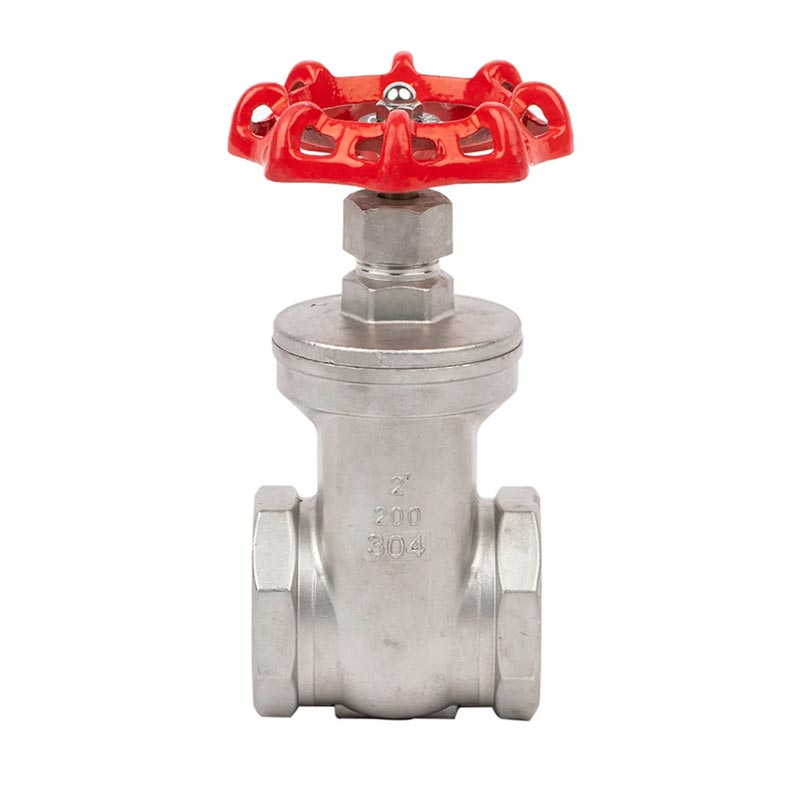

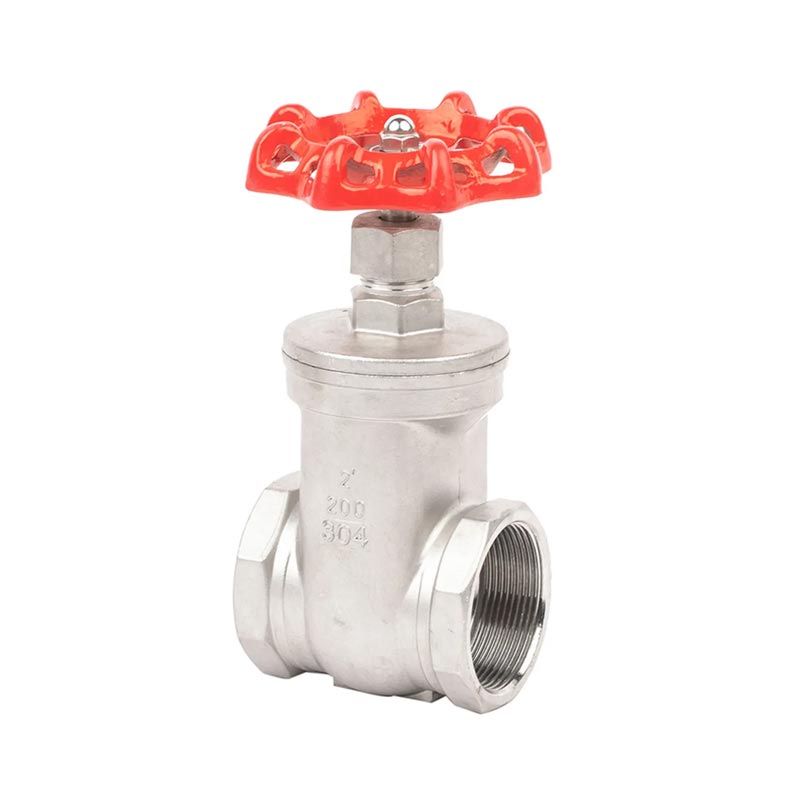

JOEPAI is a valve brand, the Stainless Steel Threaded Gate Valve produced by Joepai has low fluid resistance, requires less torque for opening and closing, has a relatively simple structural shape, and can be used in pipelines with bidirectional medium flow. When completely opened, the sealing surface is less susceptible to erosion by the working medium.
Stainless Steel Threaded Gate Valve is a forced sealing valve that requires pressure to be applied to the valve disc to prevent leakage on the sealing surface. The closure principle of a closed disk is: the closed closure surface and closed closure surface of a closed disk, as well as the closed closure opening and closing components of a closed disk are insert shaped floppy disks with flat or circular hot open surfaces, and the opening and closing components are insert shaped hot swappable disks that move linearly along the centerline of the liquid.
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 1.6MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
200PSI(PN16)W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
| 1 | Body | SS304/SS316 | 7 | Cap Nut | SS304/SS316 |
| 2 | Disc | SS304/SS316 | 8 | Stem | SS304/SS316 |
| 3 | Bonnet | SS304/SS316 | 9 | Handle | WCB |
| 4 | Gasket-A | PTFE | 10 | Spring Washer | SS304 |
| 5 | O Ring | VITON | 11 | Stem Nut | SS304 |
| 6 | Gasket-B | PTFE |
| NPS | DN | L | W | H |
| 1/2" | 15 | 55 | 72 | 85 |
| 3/4" | 20 | 60 | 72 | 85 |
| 1" | 25 | 66 | 80 | 112 |
| 11/4" | 32 | 75 | 80 | 120 |
| 11/2" | 40 | 85 | 90 | 146 |
| 2" | 50 | 95 | 100 | 160 |
| 21/2" | 65 | 110 | 130 | 200 |
| 3" | 80 | 120 | 140 | 230 |
