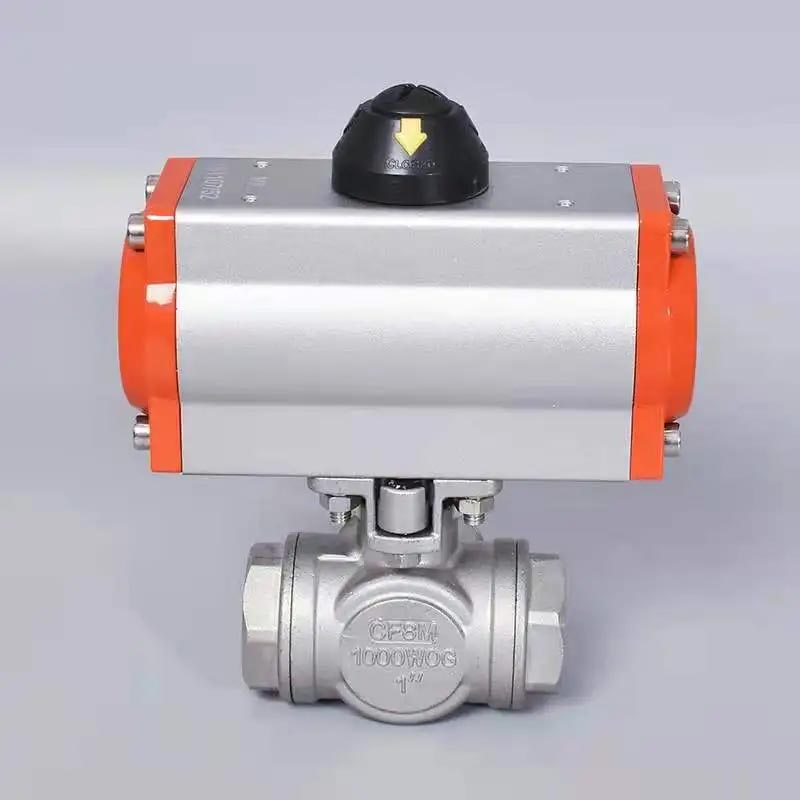

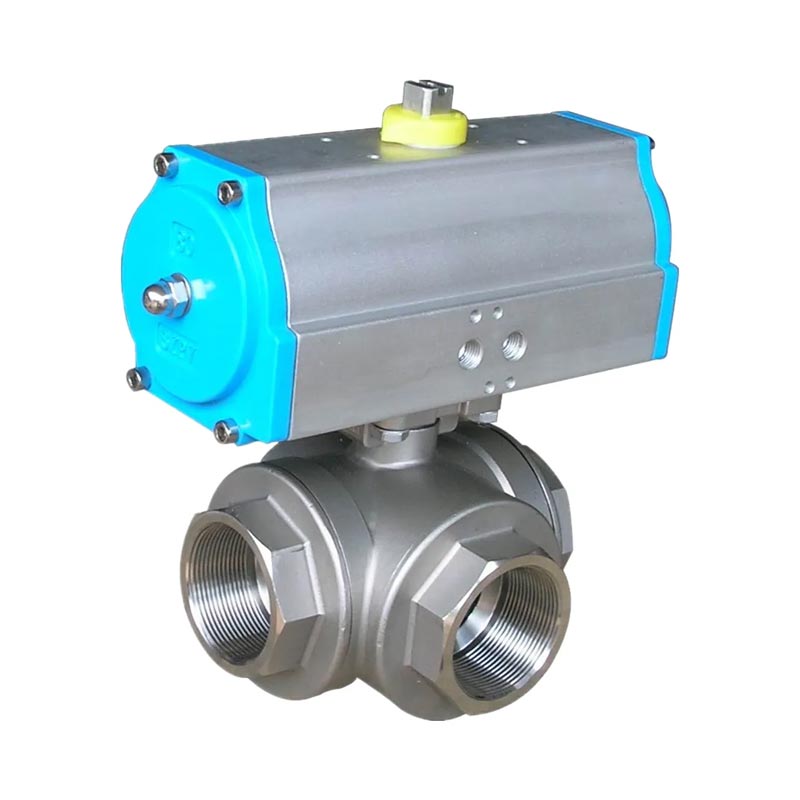

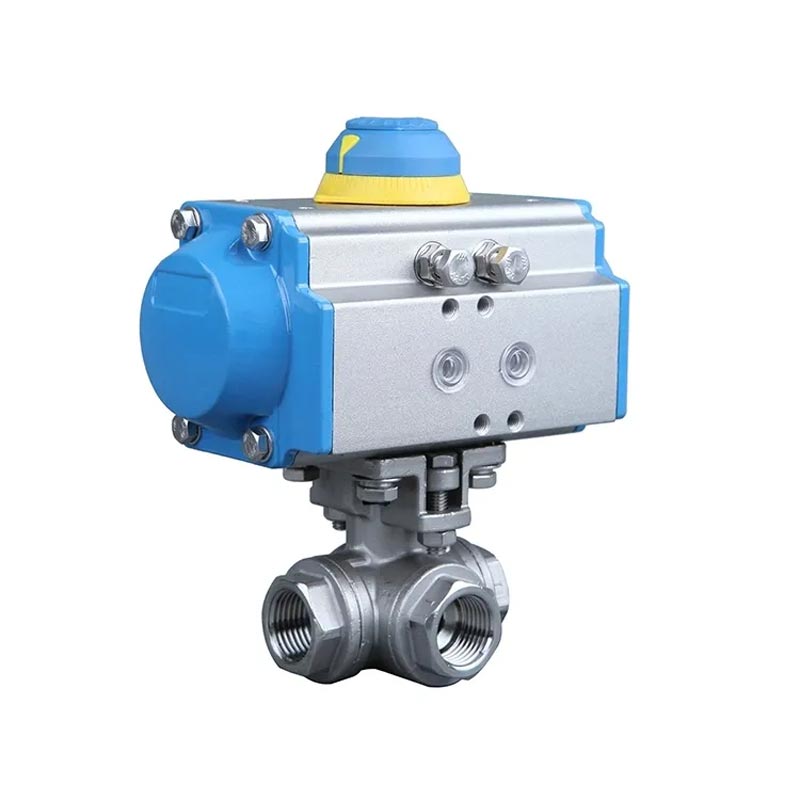

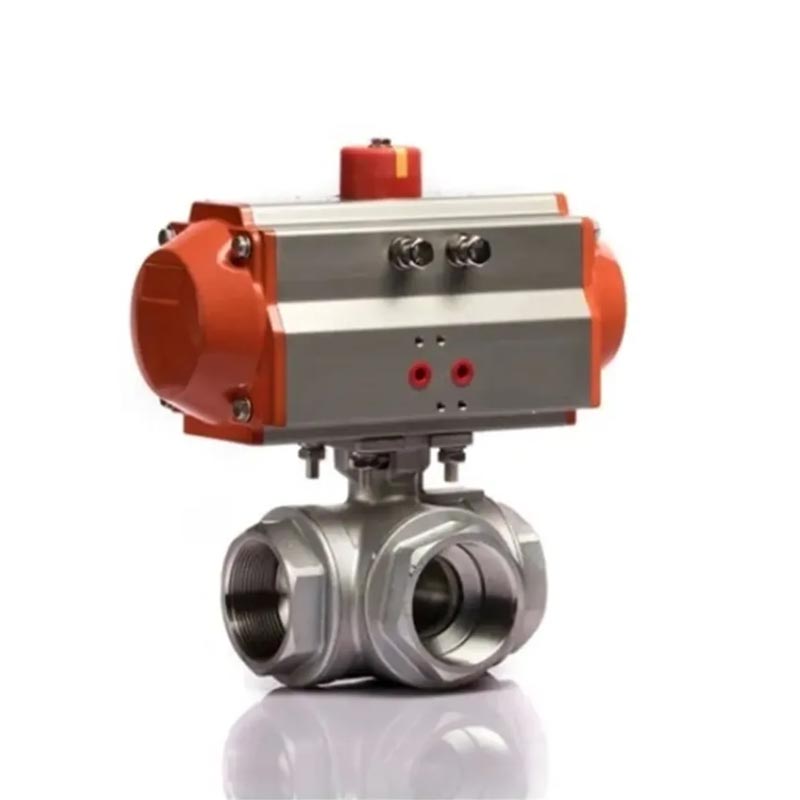

The JOEPAI Stainless Steel Threaded Three way Pneumatic Ball Valve features a high quality 304 or 316 stainless steel forged valve body and is equipped with high performance double acting or single acting pneumatic actuators for automatic opening and closing control. The compact threaded connection structure simplifies installation and maintenance, adapts to various standards such as NPT and BSP, and uses PTFE or reinforced sealing materials for the sealing part. It is suitable for T-shaped or L-shaped channel structures and can achieve medium diversion, merging, or switching operations. It is widely used in fluid automation control systems.
Investment casting body
Working pressure 1000 W.O.G.
Adjustable stem packing
Pure Teflon seals and seats
Temperature range: -60 to 450 °F
ISO5211 direct mounting pad design for Actuators
Blow-out proof stem, solid ball as per customer request
100% leakage tested at 100 psi air under water
Hydrostatic test pressure: 1500psi
Locking device handle (option)
| 1 | Body | CF8/CF8M | 8 | Stem | SS304/SS316/SS |
| 2 | Cap | CF8/CF8M | 9 | Thrust Washer | PTFE |
| 3 | Cap | CF8/CF8M | 10 | Packing | PTFE |
| 4 | Ball | SS304/SS316/SS | 11 | Gland | SS304/SS |
| 5 | Seat | PTFE | 12 | Stem Nut | SS304/SS |
| 6 | Gasket-A | PTFE | 13 | Block Only Retreat | SS304/SS |
| 7 | Gasket-B | PTFE |
| NPS | D | L | h1 | h2 | E | Ra | Rb | Rc | Rd | K |
| 1/2" | 15 | 73.5 | 36.75 | 9 | 39 | 18 | 21 | 3 | 3 | 9 |
| 3/4" | 20 | 82.5 | 39.75 | 9 | 47.5 | 18 | 21 | 3 | 3 | 9 |
| 1" | 25 | 89 | 47.25 | 11 | 53 | 21 | 25 | 3 | 3.5 | 11 |
| 11/4" | 32 | 125.5 | 56 | 11 | 75 | 21 | 25 | 3 | 3.5 | 11 |
| 11/2" | 40 | 139 | 71.5 | 14 | 86.5 | 25 | 35 | 3.5 | 4.5 | 14 |
| 2" | 50 | 154.5 | 77 | 14 | 98 | 25 | 35 | 3.5 | 4.5 | 14 |
| Product Name | 3-Way Stainless Steel Threaded Ball Valve with Pneumatic Actuator |
| 1. Material | Stainless Steel 304/316/304L/316L ( CF8/CF8M/CF3/CF3M) |
| 2. Size | 1/4''~4'' ( DN6~DN100) |
| 3.Certificate | ISO9001 & CE |
| 4. Port | Reduced/Full Port |
| 5. Working Pressure | 1000PSI (PN63/6.3Mpa) |
| 6. Connection Ends | NPT/BSP/BSPT/DIN259/DIN2999 |
| 7. Working Temp. | -20~300ºC |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |
| 11. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 20~30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Warranty | 18 Months after leaving factory |
| Advantage | OEM is applicable |
| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Fire Hydrant Valve, Booster Valve, Fully Welded Ball Valve & Y Strainer., Etc. |
