3-PC Clamped Sanitary Ball Valve with ISO 5211 Direct Mounting Pad

JOEPAI High Quality 3-PC Clamp Sanitary Ball Valve with ISO 5211 Direct Mounting Pad makes compatibility with automated actuators, while the clamp connection is easy to disassemble and maintain. Choose JOEPAI to achieve your sanitary valve needs, widely used in industries such as food and beverage, pharmaceuticals, and biotechnology.

Product Application:

3-PC Clamped Sanitary Ball Valve with ISO 5211 Direct Mounting Pads are usually used in industries such as food, beverage, chemical, and cosmetics for regulating the flow of various mediums. The full-port design makes minimal restriction, making it good for handling viscous or particulate substances.

Working Principle:

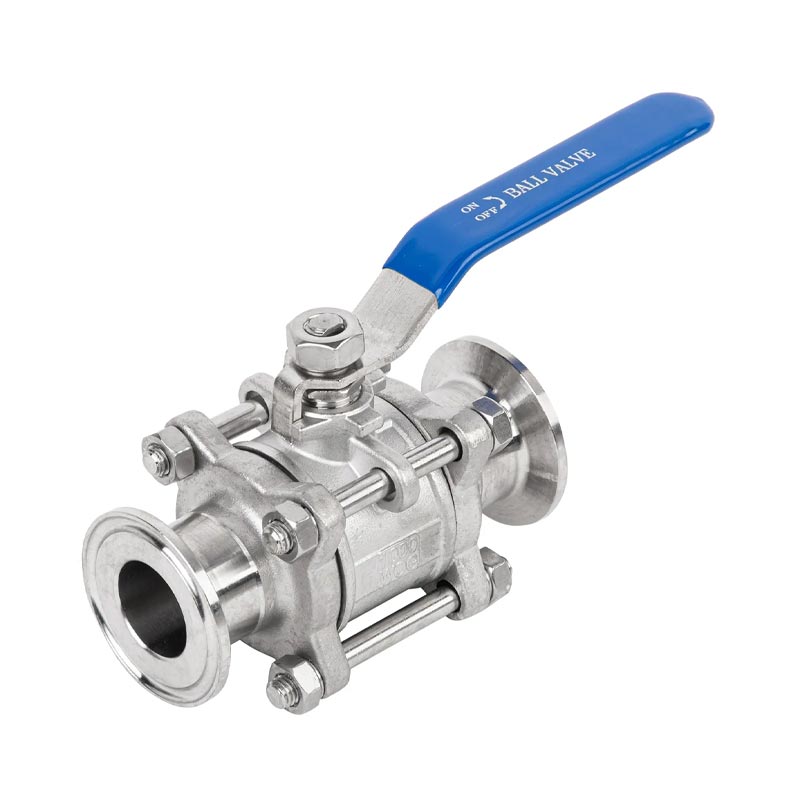

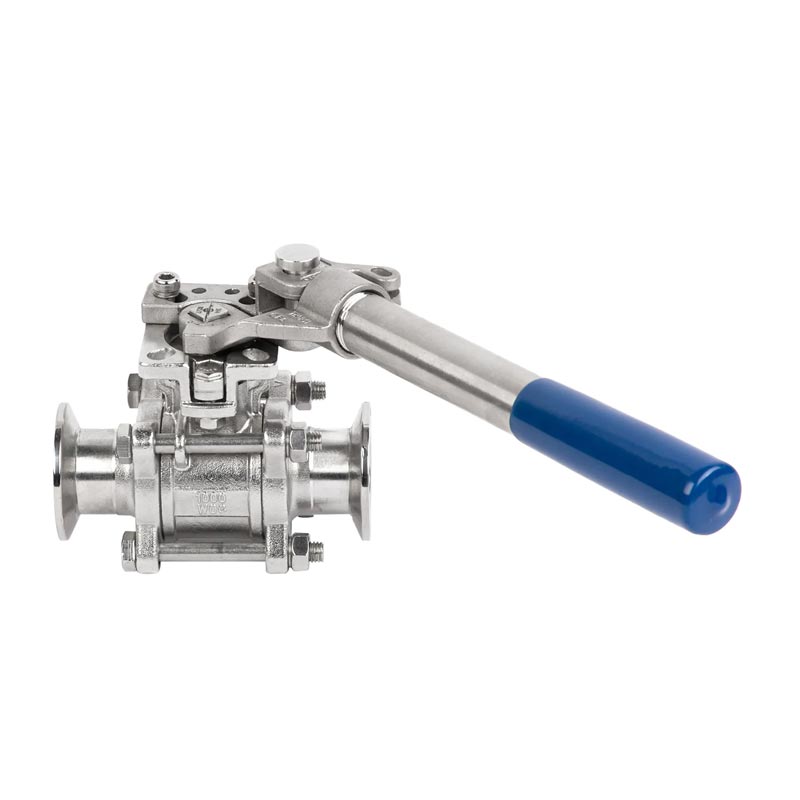

The manual ball valve is controlled via a 90-degree rotary actuator. When the handle is turned, it causes axial movement, enabling the valve to open or close.

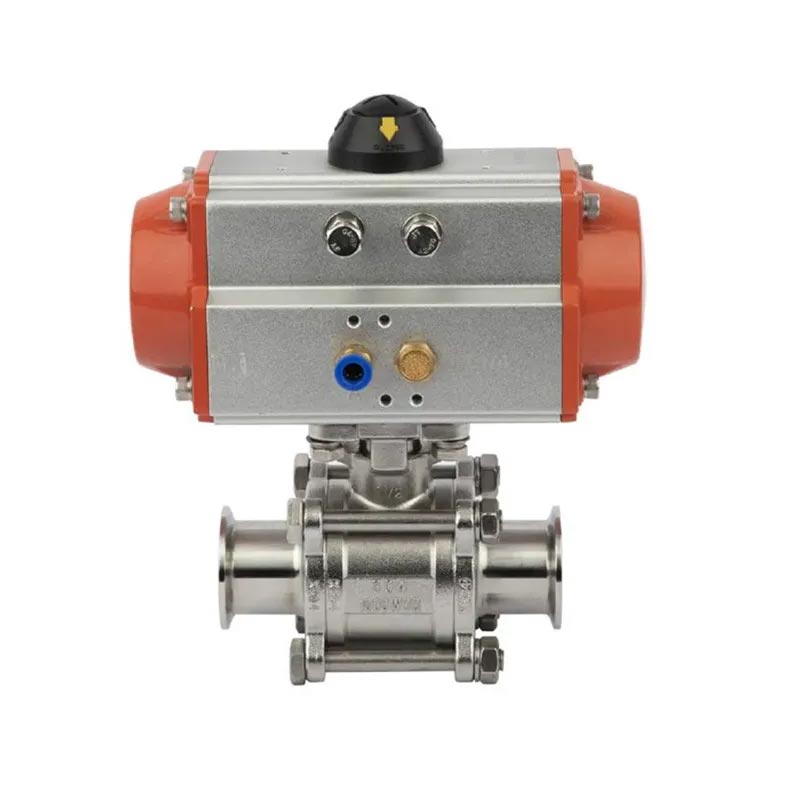

In the case of a pneumatic actuator, the piston’s axial movement is converted into a 90-degree rotation of the valve shaft, facilitating the valve’s opening and closing to control flow within the pipeline system.

Standard Design:

3-PC Clamped Sanitary Ball Valve with ISO 5211 Direct Mounting Pads are available in a series of standards to be suitable for client needs, including DIN, 3A, SMS, ISO/IDF, BS/RJ, and ASME/BPE.
