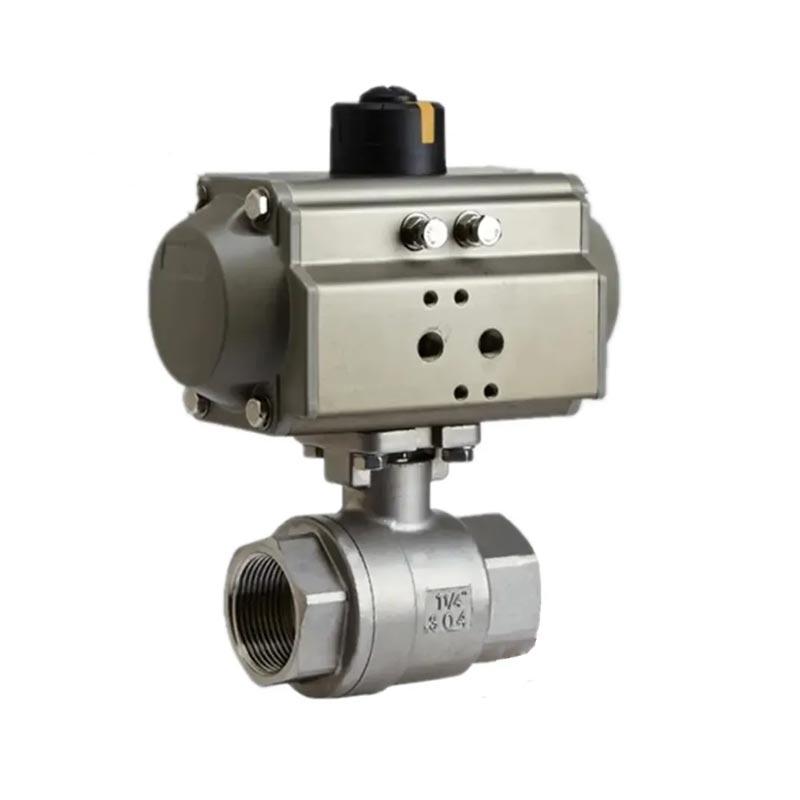

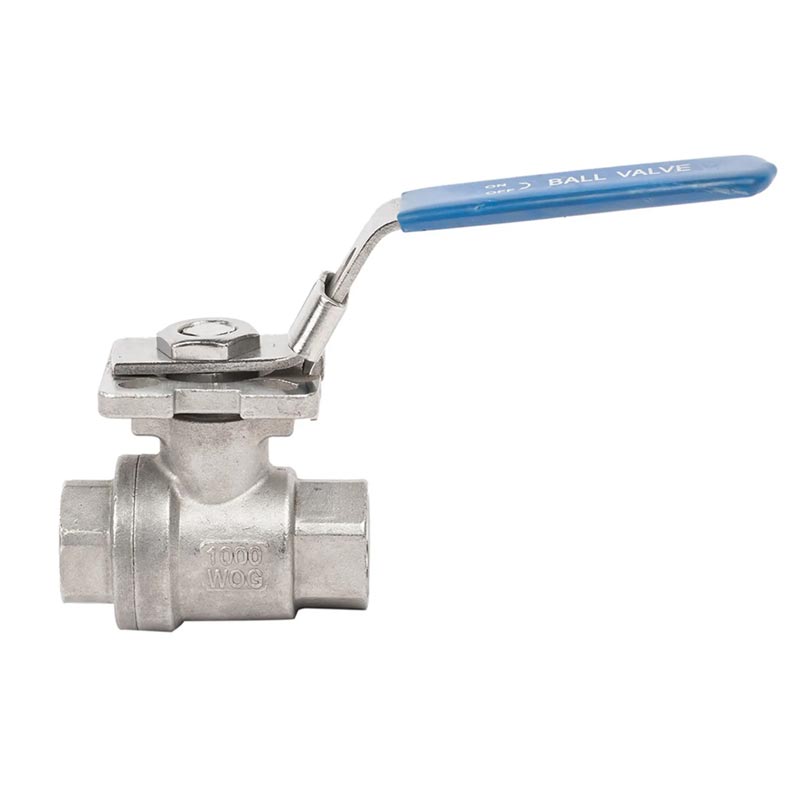

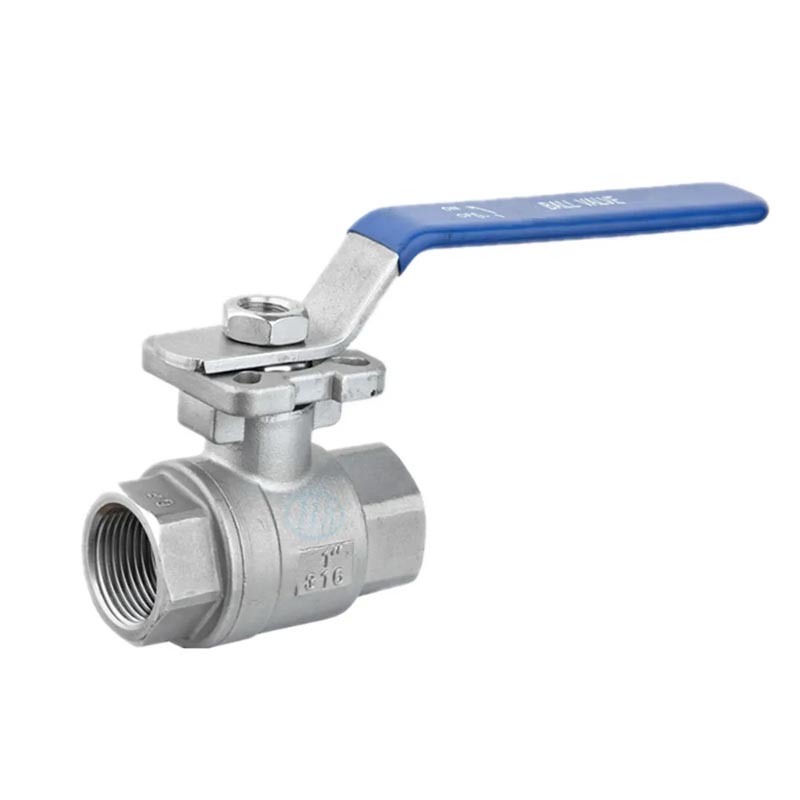

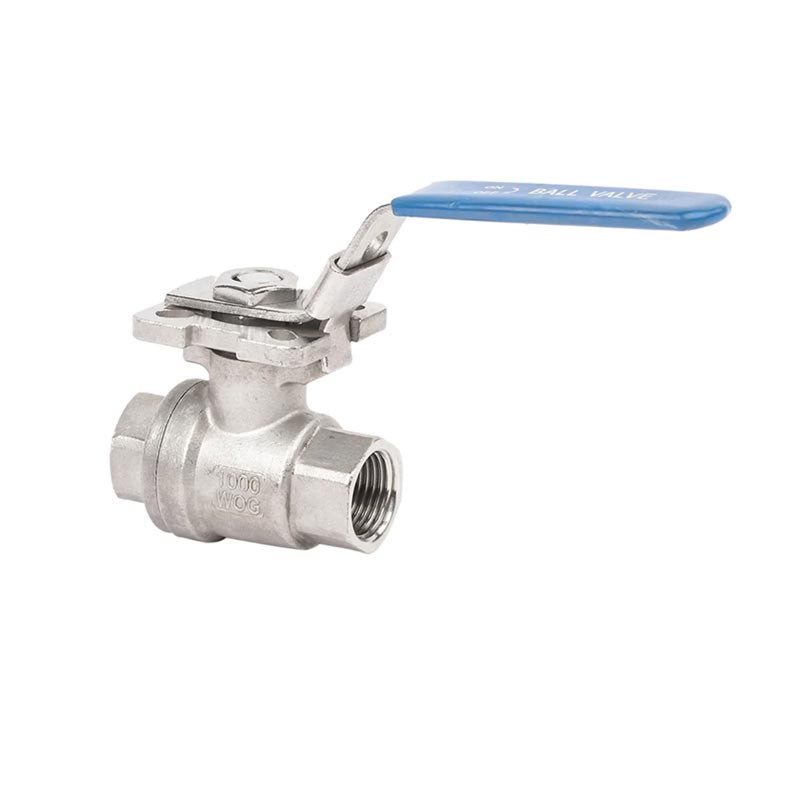

JOEPAI Female Threaded 2PC ball valve with ISO5211 Direct Mounting Pad is an advanced valve made of high-quality stainless steel (SS304/SS316). This valve adopts a two-piece design and ISO5211 mounting pad, providing great convenience for actuator installation and suitable for modern industrial systems that require high efficiency and minimal manual intervention.
Explosion proof valve stem
Anti static device for club body
Precision cast valve body
There is a pressure balance hole in the ball groove

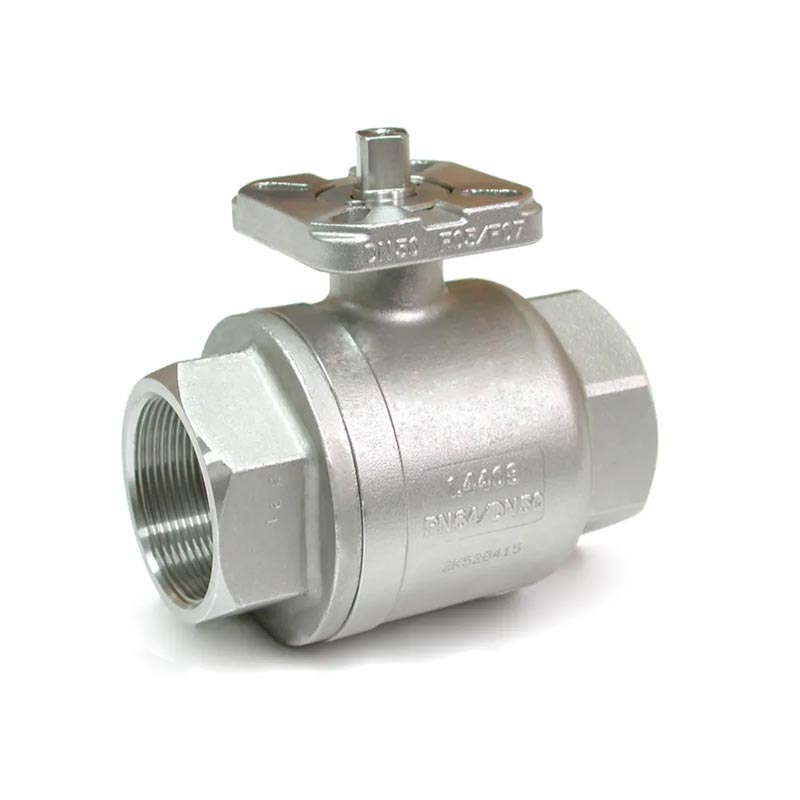

ISO 5211 mounting pad for easy automation
Provide locking device
Design: ASME B16.34、API 608
Wall thickness: ASME B16.34、EN12516-3
Fire protection design complies with standards: API 607
Threaded end: BSPT,BSP(P),NPT,DIN 2999 G Thread
Inspection and testing: API598、EN12266
JOEPAI has a wide range of capabilities as we manufacture different types of valves and provide solutions for every industry. They are designed to operate in any environment and at any work rate. Some of them are industrial ball valves, butterfly valves, gate valves, check valves, globe valves, and fire system valves.
| 1 | Body | WCB/CF8M/CF8 | 8 | Packing | PTFE |
| 2 | Cap | WCB/CF8M/CF8 | 9 | Gland | SS304/SS |
| 3 | Seat | PTFE | 10 | Handle | SS304/SS |
| 4 | Ball | SS316/SS304/SS | 11 | Spring Washer | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 12 | Stem Nut | SS304/SS |
| 6 | Gasket | PTFE | 13 | Locking Piece | SS304/SS |
| 7 | Thrust Washer | PTFE | 14 | Plastic Cover | Plastic |
| NPS | DN | D | L | H | H1 | RA | RB | Ra | Rb | K |
| 1/2" | 15 | 15 | 62 | 38 | 9 | 18 | 21 | 3 | 3 | 9 |
| 3/4" | 20 | 20 | 75 | 41 | 9 | 18 | 21 | 3 | 3 | 9 |
| 1" | 25 | 25 | 85 | 58 | 11 | 21 | 25 | 3 | 3.5 | 11 |
| 11/4" | 32 | 30 | 91 | 60 | 11 | 21 | 25 | 3 | 3.5 | 11 |
| 11/2" | 40 | 38 | 105 | 75 | 14 | 25 | 35 | 3.5 | 4.5 | 14 |
| 2" | 50 | 49 | 120 | 80 | 14 | 25 | 35 | 3.5 | 4.5 | 14 |
