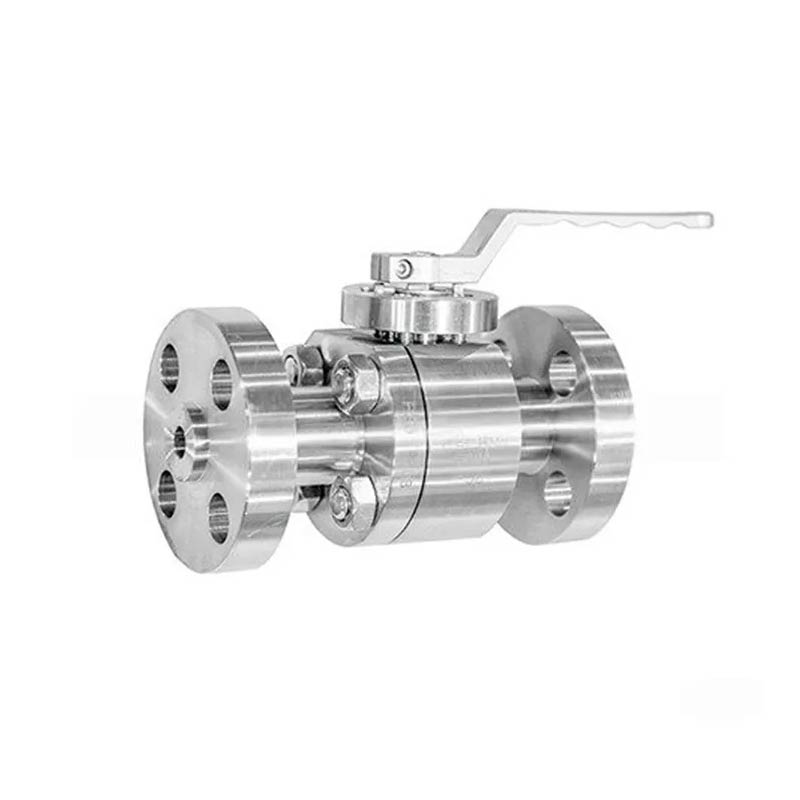

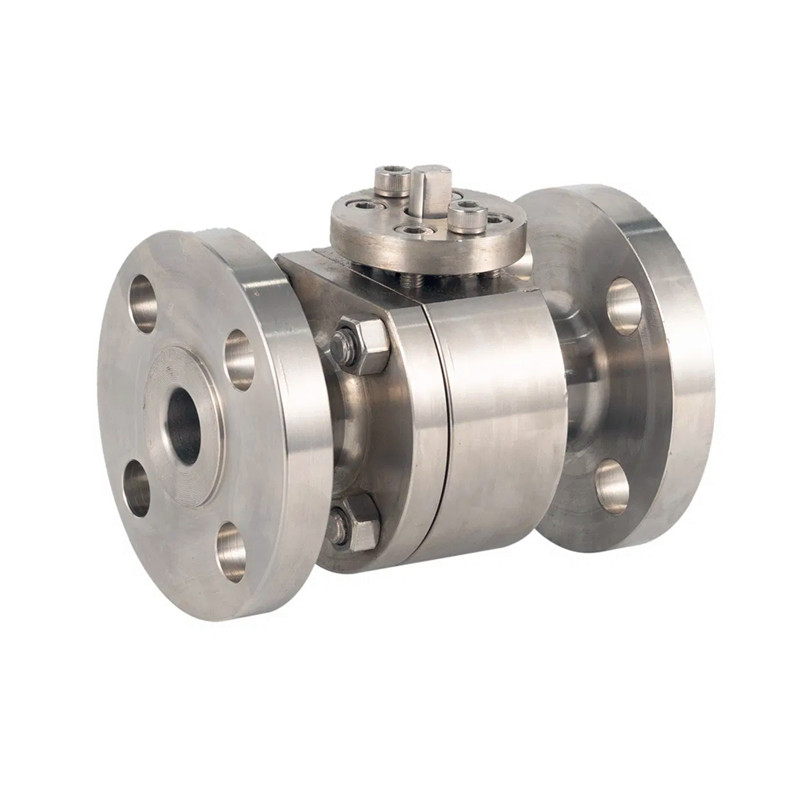

Forged High Pressure Flanged Ball Valve

JOEPAI Valve has been deeply involved in the Forged High Pressure Flanged Ball Valve market since 2003, focusing on customized and export services for forged high-pressure valves, with rich OEM experience and international project matching records. In industrial applications involving harsh conditions such as high pressure, high temperature, or corrosive media, forged ball valves are often a more reliable choice than cast valves. Unlike most ball valves that use casting processes, forged valves significantly improve their structural strength and pressure resistance through a unique manufacturing method. Choose a forged ball valve for severe conditions where safety, reliability, and maximum strength are non-negotiable.

Design Advanges

High-pressure ball valves are designed to control and withstand fluid or gas media under high pressures, typically handling working pressures ranging from hundreds to thousands of pounds per square inch (psi). These valves are manufactured from stainless steel, carbon steel, and other high-strength alloys to ensure leak-free, trouble-free operation under high-pressure conditions, with excellent sealing performance and durability.

When selecting a forged ball valve, it’s important to understand how its manufacturing process differs from that of cast valves. Similar to cast valves, the production of a forged ball valve starts with detailed design and engineering tailored to specific operational requirements. Customers have the flexibility to select from various design parameters to match their application needs. We offer forged ball valves in multiple sizes, pressure ratings, material grades, and trim configurations. For example, our severe service forged ball valves are available in sizes from ½" to 20", with pressure classes ranging from ANSI 150# to 4500#.

Once the valve design is finalized, our skilled technicians proceed with the forging process. Forging involves applying mechanical force—often combined with heat—to shape metal into high-strength, dense components. Both the valve body and internal parts are forged, resulting in exceptionally robust, heavy-duty valves that deliver reliable performance even under the most demanding conditions.

Design standards

Technical specification：GB AS DIN JS
Design Standard：API 6D、API 608、BS 5351、GB/T 12237、GB/T 21385-2008
Face to Face：GB/T 12221 ASME B16.10
Flanged Ends：GB/T 9113 JB 79 HG 20592 ASME B16.5 DIN2542-2546 JIS B2212 JIS B2214
Test and Inspection：GB/T 13927 B/T 26480 API6D API598 DIN3230 JIS B2003

Performance Specification

Nominal pressure:PN1.6-6.4,Class150/300,10K/20K
Strength test: 1.5PN
Seal Test: 1.1PN
Gas seal test: 0.6Mpa
Valve body main material: A105,F304,F316，Duplex Stainless Steel
Suitable medium: water, steam, oil ，Containing fibers, small solid particles, slurry, etc
Suitable temperature:-29℃~180℃；-29℃~425℃；-40~540℃

Forging Ball Valve Parts Materials

Main Dimensions
